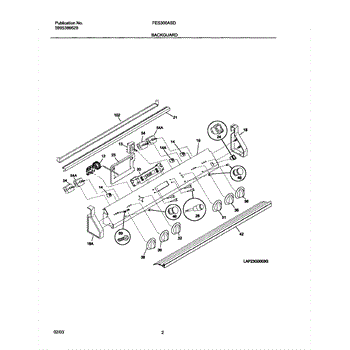

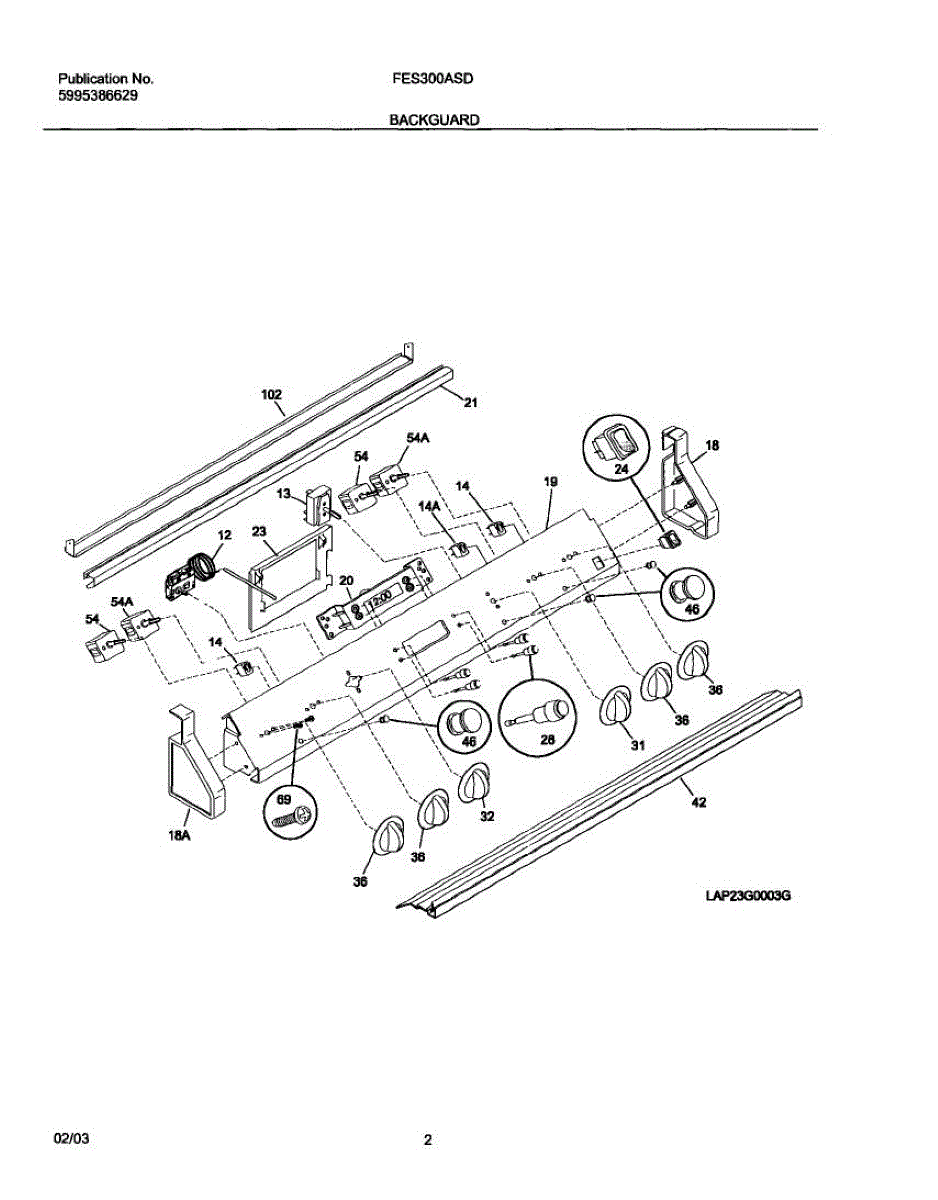

Parts for Frigidaire FES300ASD: 03 - Backguard Parts

This oven thermostat senses oven temperature and signals the control system to maintain set heat levels for consistent cooking. It replaces a failed temperature-sensing control to help ovens reach and hold desired baking and roasting temps. What it does:

• Regulates oven temperature by opening/closing the thermal switch at set points
• Helps correct symptoms like oven not heating, overheating, or temperature fluctuations
• Works with the oven control and heating elements to stabilize cooking temps
• Mechanical design suited for direct temperature sensing inside the oven cavity

• Disconnect power to the range before attempting any service to avoid shock
• Access may require removing the oven back panel or control panel; follow the service manual
• Handle the temperature sensing probe and capillary tube carefully to avoid kinks or damage

250V.

Color: White

Color: White

The Switch Rocker is an OEM part for Frigidaire ranges. This switch is used to control various functions of the range, such as turning on heating elements or activating specific cooking modes. It provides a reliable and straightforward interface for managing the range's features.

You should replace the range switch rocker if it becomes faulty. Causes of a bad switch rocker can include wear and tear from frequent use, exposure to high temperatures, electrical malfunctions, or physical damage from impacts or mishandling. A defective switch rocker can result in unresponsive controls, making it challenging to operate the range effectively.

Symptoms of a bad Range Switch Rocker include:

• The switch not responding when pressed
• Inconsistent or flickering performance of the heating elements
• Physical damage or looseness in the switch
• Intermittent operation or complete failure to activate the desired function

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Control Knob is an OEM replacement part for Frigidaire ranges and cooktops. It measures about 2-1/2 inches in diameter. It allows users to control the heat settings for burners or the oven, ensuring precise temperature adjustments during cooking. The knob is designed to fit securely onto the control shaft, providing a user-friendly interface for operating the appliance.

Over time, control knobs can wear out or become damaged due to repeated use, accidental impacts, or exposure to high temperatures. A broken or malfunctioning knob can make it difficult to adjust or control the appliance effectively.

Symptoms of a bad control knob include:

• Difficulty turning the knob or it spinning freely without engaging
• Cracks, breaks, or visible damage to the knob
• The appliance not responding to adjustments made with the knob
• The knob not staying securely attached to the control shaft

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This surface element switch is the control behind your cooktop knob. It regulates power to the surface heating element so you can set and maintain the desired heat for reliable, consistent cooking performance.

• Regulates and cycles power to the surface heating element based on the knob setting
• Restores accurate low-to-high temperature control at the burner
• Typical failure symptoms: burner won't heat, only heats on high, or won't turn off
• Helps correct intermittent or uneven surface element heating

• Disconnect power at the circuit breaker before servicing
• Remove the knob and access the switch from the control panel or rear cover as applicable
• Photograph or label wire positions; transfer wires to the new switch one at a time
• Secure the switch, reassemble, restore power, and test all heat settings

The Range Switch is an OEM part for Frigidaire ranges. This switch controls the power supply to the range elements, allowing you to adjust the heat levels for cooking.

Causes of a bad Range Switch can include wear and tear from regular use, electrical issues such as short circuits or faulty wiring, or damage due to spills or overheating. These issues can result in the switch failing to regulate the power to the elements properly.

Symptoms of a bad Range Switch include:

• Inability to adjust the heat level
• The element not turning on or off
• Intermittent or inconsistent heating
• A burnt smell or visible damage on the switch

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

This is a 10-24 x 1/2 inch machine screw used to secure temperature probes, thermistor brackets, shields and drawer/box components. It provides a simple, reliable fastener for small appliance assemblies. What it does:

• Secures probe or thermistor brackets to the appliance chassis or housing
• Holds shielding or small drawer/box parts in place to prevent movement or rattling
• Helps maintain correct sensor positioning so temperature readings stay stable
• Common replacement when a stripped, corroded, or missing screw causes loose parts or vibration

• One 10-24 x 1/2 in. screw

• Use the matching 10-24 threaded hole; avoid over-tightening to prevent stripping or cracking nearby plastic
• If replacing a corroded screw, inspect mating threads and components for damage before reuse
• Turn off and unplug the appliance or disconnect power before accessing internal components

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts
