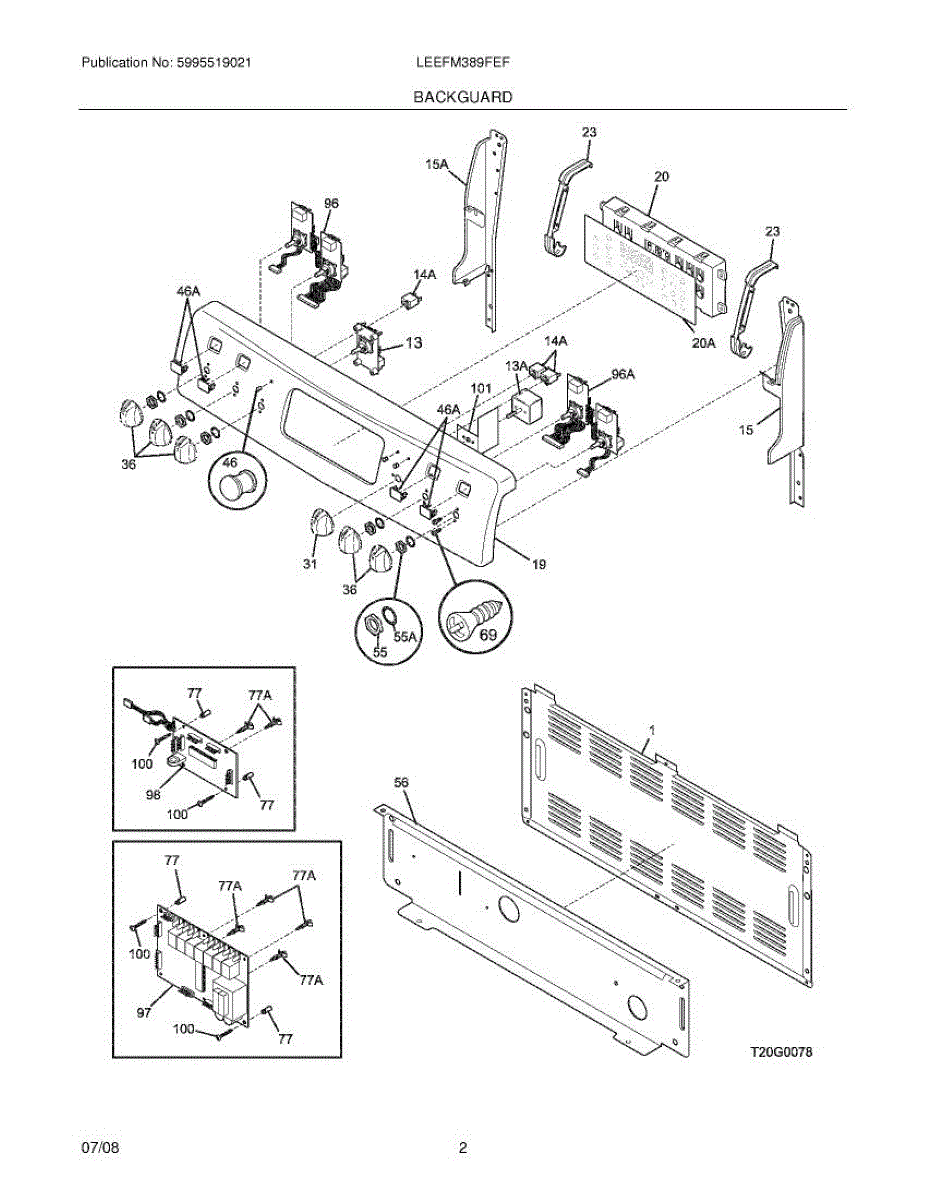

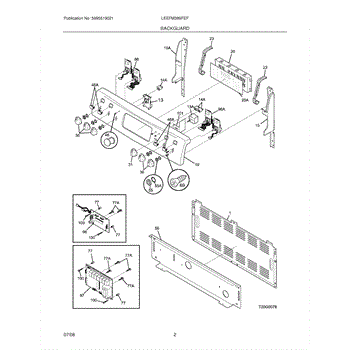

Parts for Frigidaire LEEFM389FEF: 03 - Backguard Parts

Protective cover that shields the range door hinge assembly from debris and damage. Replace if cracked, broken, or missing to restore a clean finished look.

This electronic control board manages oven functions and the user interface so the range heats and cycles correctly. It replaces a faulty control assembly to restore timed baking, temperature control and display response. What it does:

• Receives user commands from the front panel and runs the oven's timed bake/clean cycles
• Regulates heating elements by switching relays based on temperature input
• Drives the display and touch/keypad so settings and error messages appear
• Common symptoms: oven won't heat, display is blank or unresponsive, or cycles fail to start

• Disconnect power at the breaker before accessing or replacing the control board
• Handle the board carefully to avoid static damage and avoid contact with component leads
• Retain all mounting hardware and wire routing; match connectors during reassembly

Burner won't turn off or element light stays on? This range burner control switch regulates temperature and power. Moderate DIY repair, 30-60 minutes.

Signals when your range burners or oven are active. Replace when light fails to illuminate or stays on constantly. Confirm fit with your model number.

If your oven isn't reaching temperature, switches to convection unexpectedly, or heats erratically, the control board likely failed. Moderately difficult repair.

Structural bracket for electric and gas ranges. Secures internal components in place. Replace if bracket is bent, cracked, or broken during repairs.

Replace a cracked, broken, or missing control knob on your range cooktop. Installs on the control shaft to adjust burner heat settings comfortably.

Replace your range's control knob if the original is cracked, broken, or missing. This knob attaches to the control panel for adjusting settings.

This range lens covers and protects the interior oven light while allowing illumination to pass through. It shields the light bulb from grease, food splatter, and high temperatures during cooking. Replace if the lens is cracked, yellowed, or so dirty that it blocks light even after cleaning.

Indicator light lens covers and protects the burner signal light on your range. Replace when cracked, discolored, or missing. Confirm fit with your model.

This is a small lock washer used in range and oven assemblies to secure fasteners and prevent them from loosening due to heat and vibration. It is commonly used in mounting hardware for controls or other internal components. Replace this washer if it is deformed, cracked, or no longer holds the associated bolt or screw tightly in place.

Secures burner or oven control to the control panel behind the knob. Replace if stripped, missing, or loose to keep control shaft stable and aligned.

Replace a cracked, broken, or missing shield on your range. This protective guard component installs to safeguard internal parts from damage or wear.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

Replace a cracked or missing power board spacer in your range. This insulating bushing mounts between the control board and chassis for proper spacing.

Spacer for ranges and ovens. Maintains proper spacing between components. Replace if worn, cracked, or missing to ensure correct alignment and fit.

Fix burners that won't shut off, controls changing temp on their own, or unresponsive buttons. This range user interface board restores reliable control input.

Fix burners that won't shut off, controls changing temp on their own, or unresponsive buttons. This range user interface board restores reliable control input.

This is a relay board that controls power to the surface burner elements on an electric range or cooktop. It receives signals from the electronic oven control and switches the heating elements on and off at the correct power levels. Replace this board if your surface burners fail to heat, heat inconsistently, stay on continuously, or if you notice error codes related to the surface elements.

Replacement mounting screw for range power and control boards. Secures electrical board connections. Needed when original screw is missing or damaged.

This switch insulator cushions and isolates the control switch from the appliance chassis, helping prevent shorts and ensuring stable switch mounting for reliable control operation. It's a simple replacement to restore safe electrical separation. What it does:

• Electrically isolates the control switch from metal panels to help prevent short circuits.
• Holds and positions the switch for correct actuator alignment and reliable operation.
• Protects the switch body from wear and vibration.
• Can help address intermittent or unstable switch behavior caused by a damaged or missing insulator.

• Disconnect power to the appliance before starting any work.
• Access typically requires removing the control panel or console—keep track of screws and fasteners.
• Inspect the switch and mounting hardware; replace any damaged clips or screws for secure fit.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
