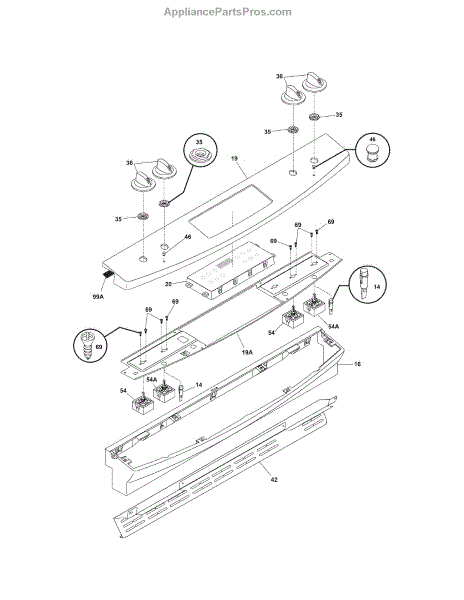

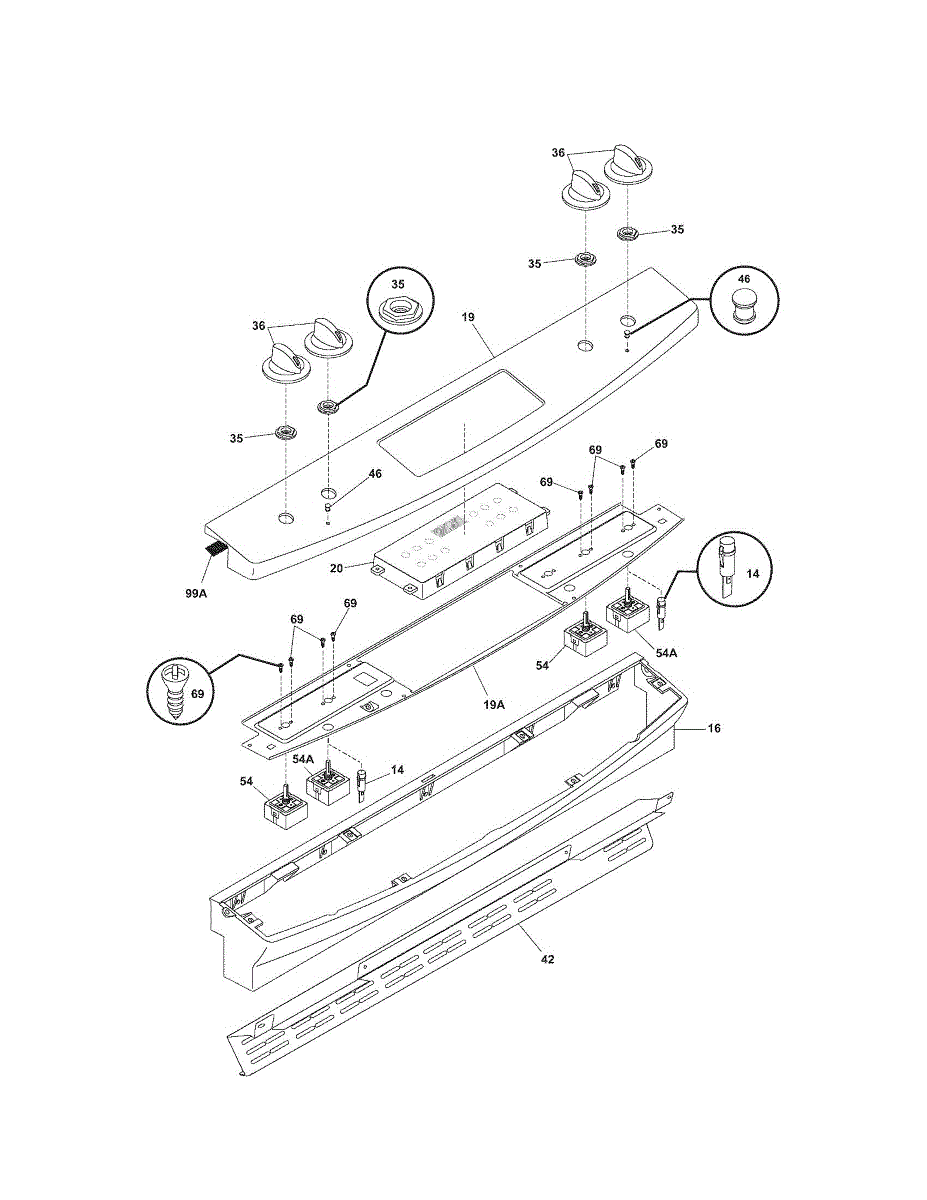

Parts for Kenmore 790.46583501 (79046583501, 790 46583501): Backguard Parts

Control console housing that covers and protects your range's touch pad buttons and display. Replace if cracked, broken, or worn to restore appearance.

Black control panel assembly for electric ranges. Replaces cracked, broken, or worn touch pad panels. Installs on the front control area to restore appearance.

This electronic control board manages oven timing functions, temperature settings, and cooking mode selection. It includes the digital display, programming buttons, and circuits that control heating elements and cooking cycles. Replace if your oven timer doesn't work, won't maintain temperature, or if the display shows error messages.

Replace your worn, cracked, or missing range trim. This cosmetic finishing piece installs around the edges or front panel to restore your range's appearance.

The translucent cover that protects and diffuses light from indicator bulbs on your range's control panel. Replace when the lens is cracked, yellowed, or missing, making it difficult to see indicator lights clearly.

Burner won't turn off or stuck on high heat? This infinite switch controls surface burner temperature settings. DIY-friendly, 30-minute repair.

Burner won't turn off or heat properly? This range burner switch controls power flow to surface elements. Moderate DIY repair, 30-45 minutes.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

Range oven door gasket seals heat inside for efficient cooking. Replace if torn, brittle, or causing heat loss. Confirm fit with your model number.

Replace your range's wire harness if damaged, frayed, or worn. This internal wiring component connects electrical systems within your range unit.

Replacement wiring harness for your range. Connects electrical components inside the appliance. Order a new harness if yours is damaged or frayed.

Specs: 8 - 18 x 0.500

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

This is a black control panel overlay that attaches to the front of the range or oven, providing the printed labels and graphics for the clock, timer, and oven function buttons. It sits over the electronic control panel and gives the controls a finished appearance. Replace this overlay if the printed text is faded, peeling, worn away, or if the panel surface is cracked or damaged.
