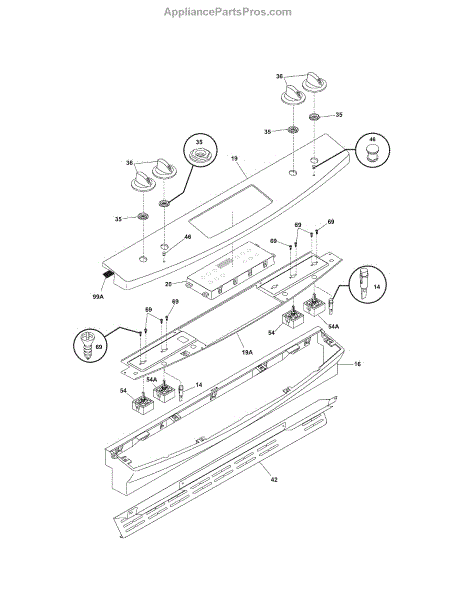

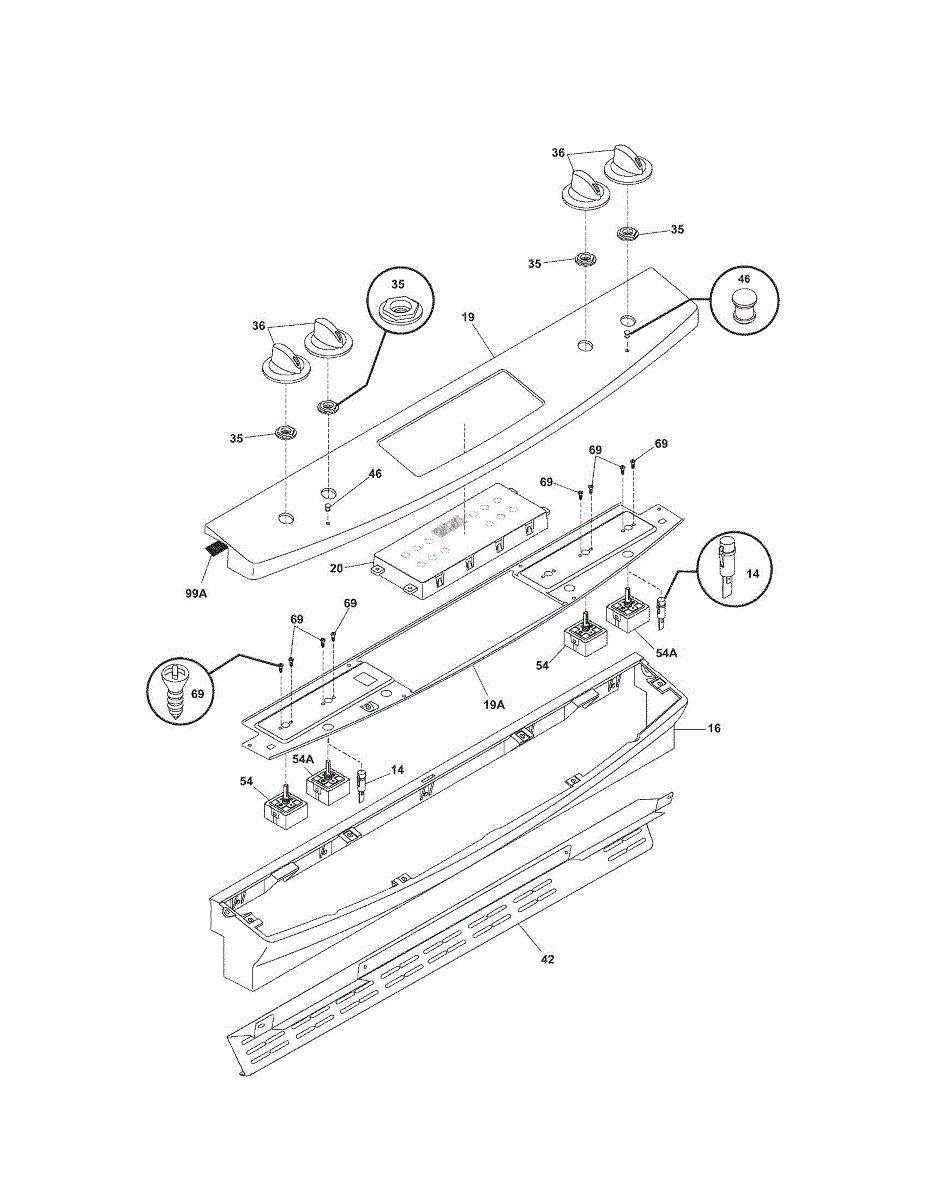

Parts for Kenmore 790.46589502 (79046589502, 790 46589502): Backguard Parts

Replace your range's cracked or worn touch pad control panel. This cosmetic part installs on the front console to restore the appearance and function.

Control console housing that covers and protects your range's touch pad buttons and display. Replace if cracked, broken, or worn to restore appearance.

White touch pad control panel assembly for electric ranges. Replaces cracked, worn, or non-responsive control panels. Direct fit replacement part.

Black control panel assembly for electric ranges. Replaces cracked, broken, or worn touch pad panels. Installs on the front control area to restore appearance.

User interface panel for your range front console. Replace if the touchpad surface is worn, cracked, faded, or cosmetically damaged. Restores clean appearance.

Oven won't start a timed bake cycle or display shows no time? This range clock timer control board restores timer functions and clock display.

Replacement control knob for range or oven. Installs on the control panel to adjust temperature and burner settings. Needed when original is cracked or missing.

Replace your worn, cracked, or missing range trim. This cosmetic finishing piece installs around the edges or front panel to restore your range's appearance.

Burner won't turn off or stuck on high heat? This infinite switch controls surface burner temperature settings. DIY-friendly, 30-minute repair.

Burner won't turn off or heat properly? This range burner switch controls power flow to surface elements. Moderate DIY repair, 30-45 minutes.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

Replace your range door gasket to restore proper oven sealing and heat retention. Prevents heat loss and improves cooking efficiency. Verify fit with your model.

Range oven door gasket seals heat inside for efficient cooking. Replace if torn, brittle, or causing heat loss. Confirm fit with your model number.

This repair parts list is the official parts diagram and itemized list used to identify replacement components for service and repairs. It helps you find the correct part numbers and locations quickly, saving diagnostic time. What it does:

• Shows exploded diagrams and numbered parts for easy identification
• Lists part numbers and quantities corresponding to each diagram item
• Helps match failed components to the correct replacement part
• Useful for planning repairs and ordering the right part the first time

• Reference this parts list before ordering or replacing parts to ensure correct selection
• Keep with the appliance documentation or service records for future use
• Not a repair manual — follow manufacturer instructions and safety guidelines when servicing

Decorative overlay that fits over your range's control panel touch pad. Replace if cracked, peeling, faded, or worn to restore appearance and readability.

Replacement use and care guide manual for your range. Needed when original documentation is lost, damaged, or missing. Provides operating instructions.

Replace your range's wire harness if damaged, frayed, or worn. This internal wiring component connects electrical systems within your range unit.

Replacement wiring harness for your range. Connects electrical components inside the appliance. Order a new harness if yours is damaged or frayed.

Specs: 8 - 18 x 0.500

Graphic label overlay for your electric range control panel. Replaces worn, peeling, or cracked original to restore clear button legends and a clean finish.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

The Overlay is an OEM part for Frigidaire ranges. It is the control panel's interface layer, displaying the various functions and settings available for the range. This component is crucial for selecting and controlling the appliance's operations, ensuring user-friendly interaction with the cooking settings.

Common causes of a bad overlay include regular wear and tear, exposure to heat, or accidental damage.

Symptoms of a bad overlay include:

• Faded or illegible markings on the control panel
• Difficulty in selecting or changing settings
• Non-responsive or sticking buttons
• The overlay peeling or becoming loose

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
