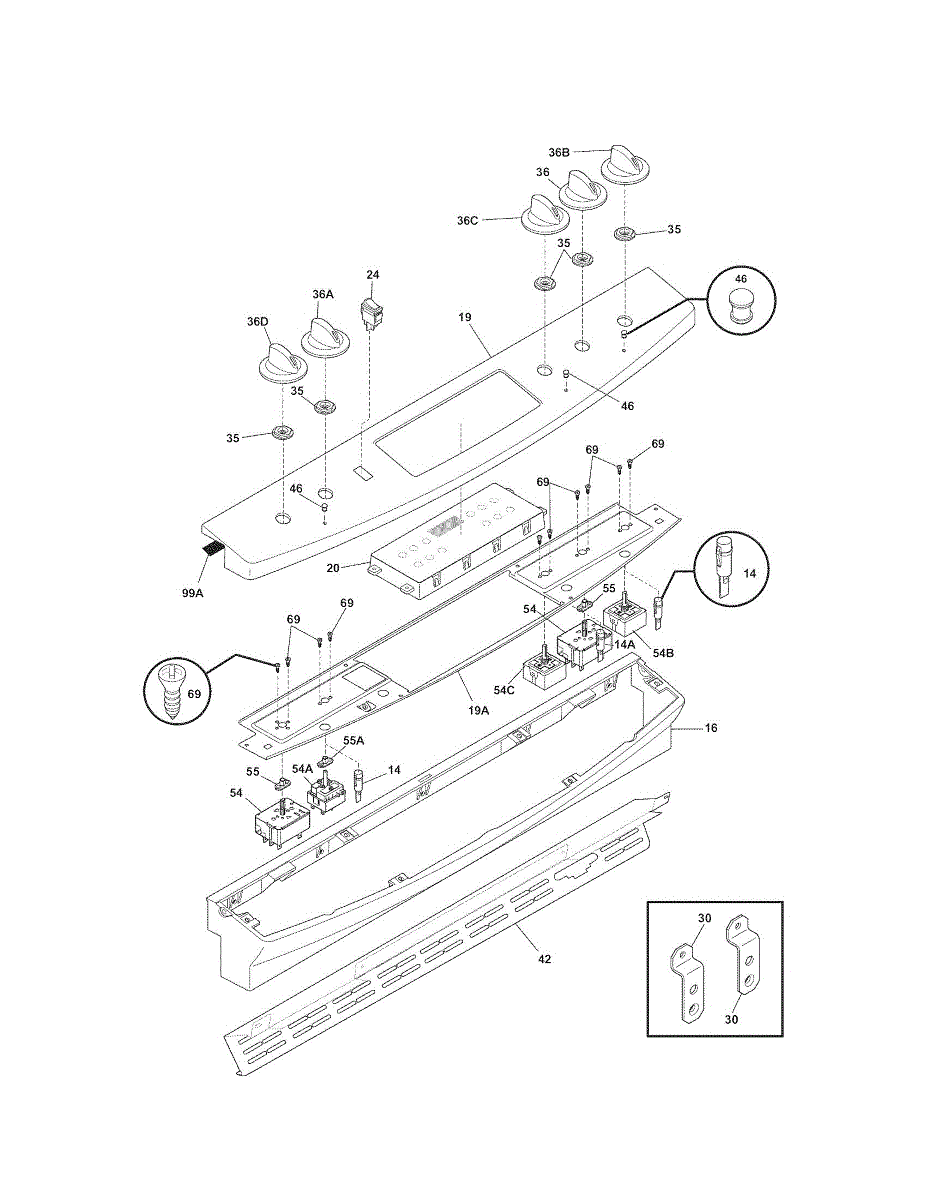

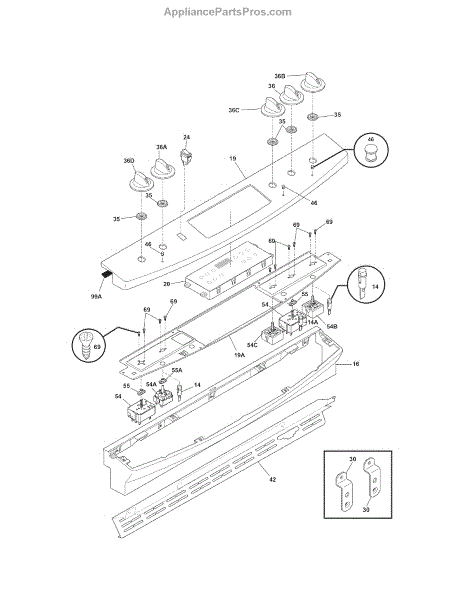

Parts for Kenmore 790.46692701 (79046692701, 790 46692701): Backguard Parts

Illuminates your range oven cavity for visibility while cooking. Replace when bulb burns out or dims. Verify compatibility with your model number.

Control console housing that covers and protects your range's touch pad buttons and display. Replace if cracked, broken, or worn to restore appearance.

The Rocker Switch is an OEM part for Frigidaire ranges and ovens. It is responsible for turning the interior oven light on and off. The light switch allows visibility of the oven cavity for viewing food during the cooking process.

Causes can include normal wear and tear over time, exposure to heat inside the oven cavity, or accidental damage.

Symptoms of a bad oven light rocker switch include:

• The oven light failing to illuminate when the door is opened
• The light remaining on even when the door is closed
• An inconsistent or flickering oven light
• The switch itself becoming loose, cracked, or non-responsive

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Switch Rocker is an OEM part for Frigidaire ranges. This switch is used to control various functions of the range, such as turning on heating elements or activating specific cooking modes. It provides a reliable and straightforward interface for managing the range's features.

You should replace the range switch rocker if it becomes faulty. Causes of a bad switch rocker can include wear and tear from frequent use, exposure to high temperatures, electrical malfunctions, or physical damage from impacts or mishandling. A defective switch rocker can result in unresponsive controls, making it challenging to operate the range effectively.

Symptoms of a bad Range Switch Rocker include:

• The switch not responding when pressed
• Inconsistent or flickering performance of the heating elements
• Physical damage or looseness in the switch
• Intermittent operation or complete failure to activate the desired function

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Replace your worn, cracked, or missing range control knob. This knob installs on the control panel to adjust burner heat settings and oven temperature.

Replacement control knob for your range cooktop. Restores a cracked, broken, stripped, or missing knob so you can safely adjust temperature settings again.

Replacement control knob for range or oven. Installs on the control panel to adjust temperature and burner settings. Needed when original is cracked or missing.

This replacement control knob mounts on the front control shaft of compatible cooking appliances. It lets you turn burners or oven functions on and adjust settings. Restore a clean look and positive, accurate control.

• Provides the hand control to select burner or oven settings and adjust heat/temperature
• Press-fits onto the control stem for a secure grip and precise rotation
• Common symptoms: cracked or broken knob, spins without moving the control, hard to read, missing
• Also replace if melted/warped or if the knob won't stay on the shaft

• Disconnect power and allow the appliance to cool before servicing
• Pull the old knob straight off; do not pry against the control panel
• Align the new knob with the control stem and push straight on until fully seated
• If it doesn't seat easily, confirm the knob matches the stem shape and the specific control position

Range burner won't heat or stays on high? This infinite switch controls surface element temperature settings. Moderate DIY repair in 30-45 minutes.

Burner won't heat or stays on high? This cooktop infinite switch controls element temperature settings. Moderate DIY repair taking 30-45 minutes.

If your range burner won't turn on or off properly, or the indicator light stays on when turned off, this infinite switch restores control. DIY repair.

If your dual burner stays on low and won't turn off, or the small element doesn't heat, this infinite switch may need replacing. DIY-friendly repair.

This bushing supports and guides a rotating shaft to reduce friction and wear, helping the appliance run quietly and smoothly. Replacing a worn bushing restores proper alignment and prevents further damage to the shaft or housing. What it does:

• Provides a low-friction bearing surface for a rotating shaft
• Keeps the shaft aligned to prevent wobble and uneven operation
• Reduces noise caused by metal-on-metal contact
• Helps prevent excessive wear that can lead to binding or failure

• Disconnect power to the appliance before starting any repair
• Inspect the shaft and surrounding housing; replace if scored or damaged
• Remove the old bushing and press or snap the new bushing into place using appropriate hand tools
• If other wear items (bearings, seals, mounts) show damage, replace them to prevent repeat failure

Molded support sleeve that aligns and stabilizes rotating shafts in your range. Replace if worn, cracked, or causing excessive vibration or noise.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

Heat-resistant gasket seals between cooktop and control panel components. Replace when cracked or damaged to contain heat and prevent spills. Verify fit.

Heat-resistant gasket seals between cooktop and control panel components. Replace when cracked or damaged to contain heat and prevent spills. Verify fit.

Specs: 8 - 18 x 0.500

Graphic label overlay for your electric range control panel. Replaces worn, peeling, or cracked original to restore clear button legends and a clean finish.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

The Overlay is an OEM part for Frigidaire ranges. It is the control panel's interface layer, displaying the various functions and settings available for the range. This component is crucial for selecting and controlling the appliance's operations, ensuring user-friendly interaction with the cooking settings.

Common causes of a bad overlay include regular wear and tear, exposure to heat, or accidental damage.

Symptoms of a bad overlay include:

• Faded or illegible markings on the control panel
• Difficulty in selecting or changing settings
• Non-responsive or sticking buttons
• The overlay peeling or becoming loose

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
