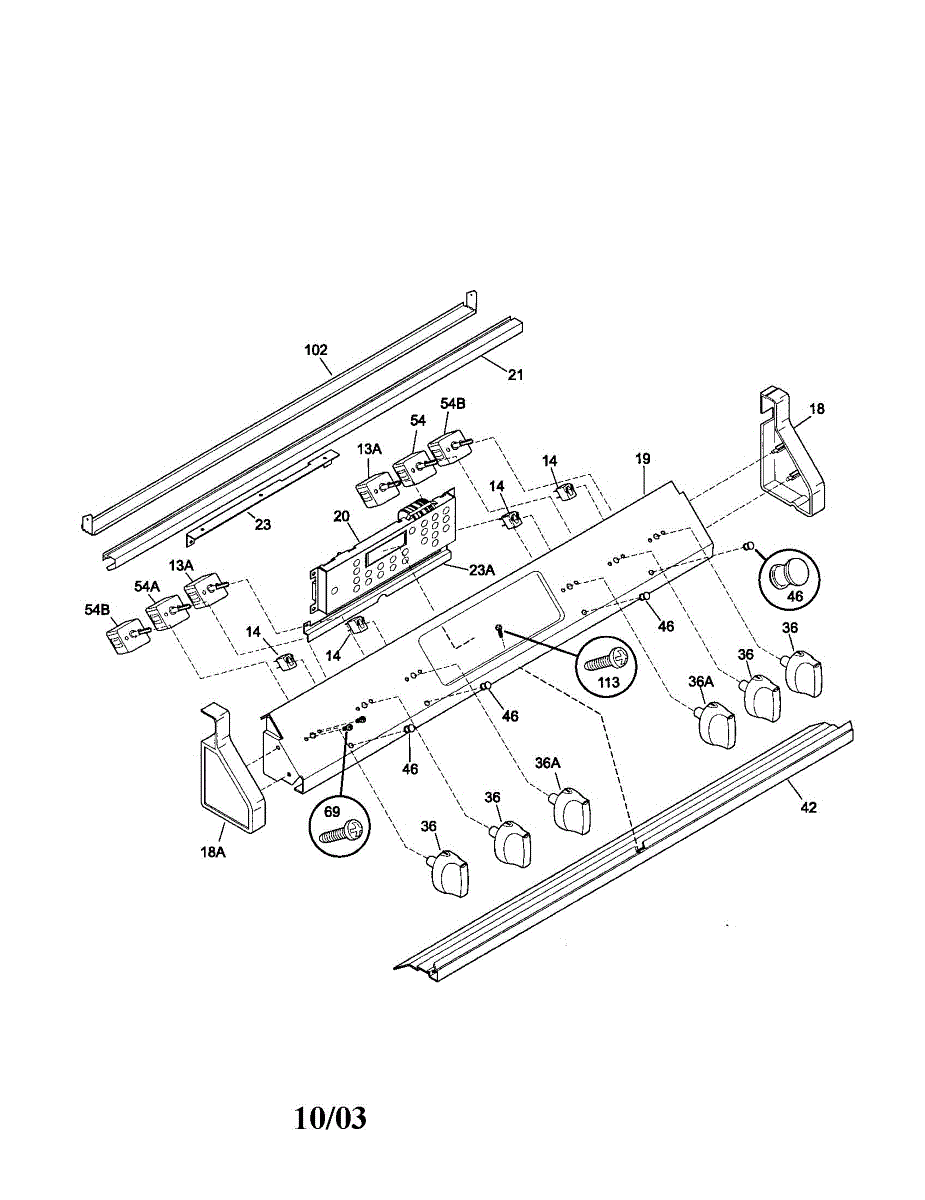

Parts for Kenmore 790.46829101 (79046829101, 790 46829101): Backguard Parts

Service data sheet for your range. Contains technical specifications, wiring diagrams, and troubleshooting information. Replace lost or damaged sheets.

Replacement use and care guide manual for your range. Essential reference for proper operation, maintenance, and safety instructions when original is lost or damaged.

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Replacement mounting screw for refrigerators, ovens, ranges, and cooktops. Secures interior panels, components, and trim. Needed when original is stripped, missing, or damaged during repair.

Burner won't turn off or element light stays on? This range burner control switch regulates temperature and power. Moderate DIY repair, 30-60 minutes.

Specs: 8 - 18 x 0.500

Color: White

Color: White

Color: Almond

Replace your range's damaged or unresponsive touch pad control panel. Houses buttons and display for setting cook modes, temperatures, and timers.

Replace your range's control knob if it's cracked, broken, or missing. This knob installs on the control panel to operate burners or oven settings.

Range burner not heating or stuck on high? This infinite switch controls surface element temperature. Common repair for unresponsive controls.

Element won't heat or overheats? This infinite switch kit restores precise temperature control to your cooktop's burners. Fixes erratic heating issues.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment
