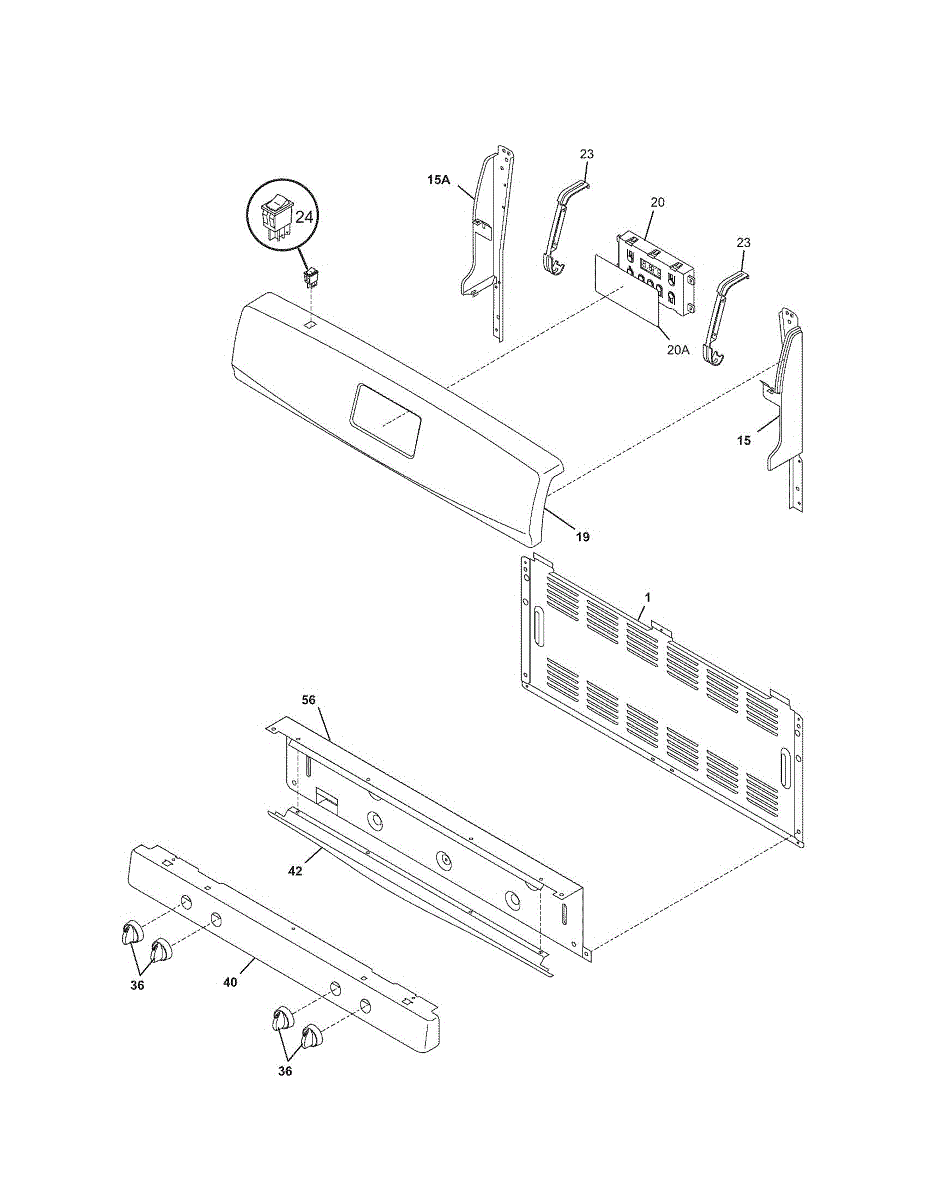

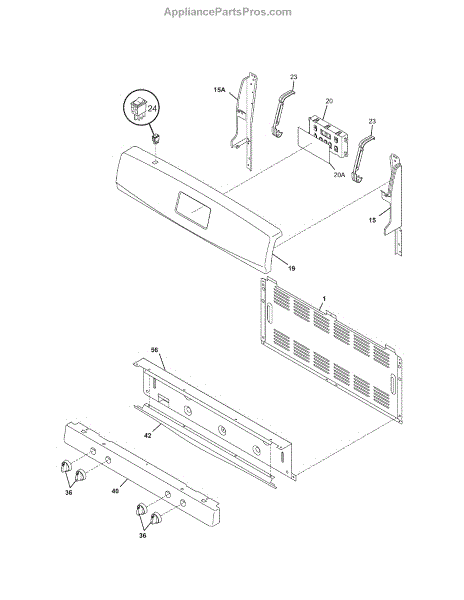

Parts for Kenmore 790.70119700 (79070119700, 790 70119700): Backguard Parts

This is a bisque-colored left-side support bracket that mounts to the backguard area of the range. It provides structural support for the shelf or trim along the back of the cooktop. Replace this bracket if it is cracked, broken, or missing, which can cause the backguard trim or shelf to sit unevenly or come loose.

Bisque clock overlay that covers the range control panel display area. Replaces cracked, faded, or missing overlay to restore appearance and readability.

This is the electronic oven control board that manages cooking functions including temperature regulation, bake and broil cycles, and clock/timer operations. It mounts behind the control panel at the back of the range. Replace this board if the oven fails to heat, displays error codes, has an unresponsive control panel, or runs at incorrect temperatures.

Control panel overlay for electric and gas ranges. Labels buttons and controls on the interface. Replace if cracked, peeling, faded, or worn out.

Protective cover for your range control panel with button markings. Replace if cracked, faded, or mounting tabs are broken. Installs over the clock assembly.

This rocker switch is the on/off control used in the appliance's control panel. It opens and closes the circuit to a selected feature, restoring dependable operation when the original switch becomes worn, stuck, or fails.

• Controls a single on/off circuit from the control panel
• Restores proper switching for the associated feature
• Common symptoms: feature won't turn on or off, light or function flickers or stays on, switch feels loose or sticks
• Replaces a cracked, burned, or unresponsive rocker

• Disconnect power at the breaker before servicing
• Access the switch from the control panel or mounting area; note/photograph wire positions
• Move wires to the new switch one at a time and seat the switch securely in the panel opening
• Restore power and test operation before reassembly

The Rocker Switch is an OEM part for Frigidaire ranges and ovens. It is responsible for turning the interior oven light on and off. The light switch allows visibility of the oven cavity for viewing food during the cooking process.

Causes can include normal wear and tear over time, exposure to heat inside the oven cavity, or accidental damage.

Symptoms of a bad oven light rocker switch include:

• The oven light failing to illuminate when the door is opened
• The light remaining on even when the door is closed
• An inconsistent or flickering oven light
• The switch itself becoming loose, cracked, or non-responsive

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Switch Rocker is an OEM part for Frigidaire ranges. This switch is used to control various functions of the range, such as turning on heating elements or activating specific cooking modes. It provides a reliable and straightforward interface for managing the range's features.

You should replace the range switch rocker if it becomes faulty. Causes of a bad switch rocker can include wear and tear from frequent use, exposure to high temperatures, electrical malfunctions, or physical damage from impacts or mishandling. A defective switch rocker can result in unresponsive controls, making it challenging to operate the range effectively.

Symptoms of a bad Range Switch Rocker include:

• The switch not responding when pressed
• Inconsistent or flickering performance of the heating elements
• Physical damage or looseness in the switch
• Intermittent operation or complete failure to activate the desired function

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Kit contains 5 knobs. (4 of part# 316442513 and 1 of part# 316442501.)

Color: white. Measures about 2 inches in diameter.

Color: black. Measures about 2 inches in diameter.

Replace your range's control panel if cracked, damaged, or worn. This structural part covers the control interface area on the front of your stove.

Replace your range's control panel touch pad if the overlay is cracked, peeling, or unresponsive. This membrane pad covers the control buttons on your oven.

Grey extrusion trim piece for gas range exterior panels. Replaces cracked, broken, or missing trim that affects your range's finished appearance.

Shield for gas ranges. Protects internal components from heat and debris. Replace if cracked, bent, or missing to maintain proper appliance protection.

This repair parts list is a printed parts diagram and list used to identify service parts and their reference numbers quickly. It helps you confirm the exact replacement parts needed before ordering or servicing. What it does:

• Shows exploded views and reference numbers for appliance components to aid parts identification
• Lists part numbers and quantities as referenced by the manufacturer's parts diagram
• Helps troubleshoot by matching failed components to the correct replacement parts
• Reduces ordering errors by clarifying part locations and names

• One printed repair parts list / parts diagram sheet

• This item is informational only; it does not contain replacement hardware
• Use the parts list to locate the correct replacement part before beginning repairs
• Follow all safety guidelines and disconnect power before servicing the appliance

Factory diagnostic guide for gas ranges showing wiring diagrams, error codes, and troubleshooting steps. Replace if missing, damaged, or illegible.

Replacement care guide and owner's manual for your range. Includes operating instructions, maintenance tips, and safety information. Perfect for lost or damaged manuals.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
