Parts for Kenmore 790.70301701 (79070301701, 790 70301701): Backguard Parts

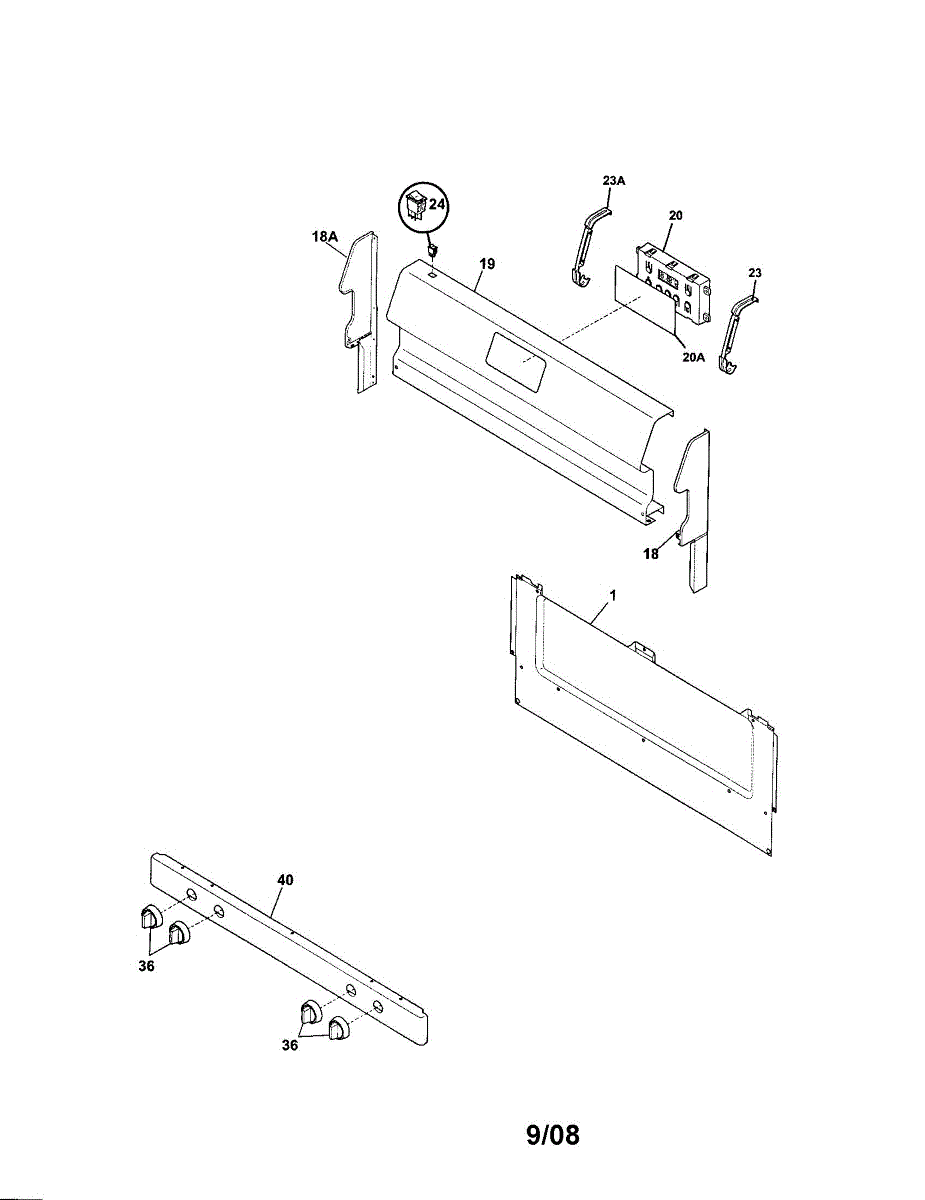

This printed repair parts list provides a parts diagram and reference listing for identifying service components and part numbers. It helps technicians and owners exact replacement parts before ordering. What it does:

• Shows labeled components and reference numbers for the appliance
• Helps locate the correct part name/number when ordering replacements
• Useful for parts needed for repair or service diagnostics
• Serves as a visual reference during disassembly and reassembly

• This item is a reference document, not a replacement appliance component
• Keep with the appliance or service records for future maintenance
• Always disconnect power and follow safety procedures before servicing

Factory diagnostic guide for gas ranges showing wiring diagrams, error codes, and troubleshooting steps. Replace if missing, damaged, or illegible.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Converts your gas range from natural gas to liquid propane fuel. Includes all orifices and instructions. Needed when switching fuel types or missing parts.

Gas orifice spud that meters fuel flow from valve to burner on gas ranges. Replace if clogged, damaged, or converting between LP and natural gas fuel types.

Replacement mounting screw for ovens and ranges. Secures panels, brackets, trim, and internal components. Replace missing or stripped screws to restore fit.

Size: 8-18ab x 0.5 inch.

Main wire harness for gas ranges. Connects electrical components throughout the unit. Replace if wiring is damaged, frayed, or connections are loose.

Touch-up paint for appliances to cover scratches, chips, and worn areas on exterior surfaces. Restores appearance of refrigerators, ranges, and more.

Touch-up paint in bisque color for appliance exterior surfaces. Covers chips, scratches, and worn spots on refrigerator doors, range panels, and more.

The Frigidaire Touch-Up Paint is white in color in a .6 fl oz bottle. For almond order 5303321320. For black order 5303321321.

The Touch Up Paint is an OEM part for Frigidaire appliances. Whether you're dealing with scratches, chips, or other minor cosmetic damage, this touch-up paint provides an easy and effective solution for maintaining the appearance of your appliance. It's designed to adhere well to metal surfaces, offering durability and resistance to further wear and tear.

Over time, appliances can accumulate minor surface damage from regular use, cleaning, and accidental impacts. Using the Touch Up Paint not only improves the aesthetic appeal of your appliance but also helps protect exposed areas from rust and corrosion, which can extend the life of the appliance.

Symptoms of needing Touch Up Paint include:

• Visible scratches or chips on the appliance's surface.
• Areas of rust or corrosion that need to be covered after treating the rust.
• The desire to maintain or improve the appliance's appearance for aesthetic reasons or to maintain its value.

Color: Black

Color: Black

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Size: 8-32t x 0.500 inch. Color: Black.

The Clock/Timer is an OEM replacement part for Frigidaire ranges. It allows for precise time and temperature settings to be entered and displayed for oven functions.

As a digital module, causes for failure may include corrupted firmware over time or water/debris intrusion damaging circuits. Backlight failure is common after extended hours of usage.

Symptoms consist of:

• Inaccurate time displaying/keeping
• Timer functions like pre-heating not engaging
• Corrupted or non-responsive touch controls
• Faint or no display illumination

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Protective cover for your range control panel with button markings. Replace if cracked, faded, or mounting tabs are broken. Installs over the clock assembly.

The Rocker Switch is an OEM part for Frigidaire ranges and ovens. It is responsible for turning the interior oven light on and off. The light switch allows visibility of the oven cavity for viewing food during the cooking process.

Causes can include normal wear and tear over time, exposure to heat inside the oven cavity, or accidental damage.

Symptoms of a bad oven light rocker switch include:

• The oven light failing to illuminate when the door is opened
• The light remaining on even when the door is closed
• An inconsistent or flickering oven light
• The switch itself becoming loose, cracked, or non-responsive

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.
