Parts for Kenmore 790.70301701 (79070301701, 790 70301701): Burner Parts

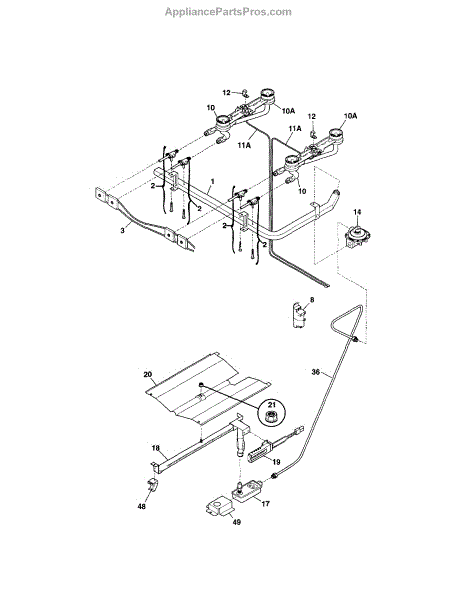

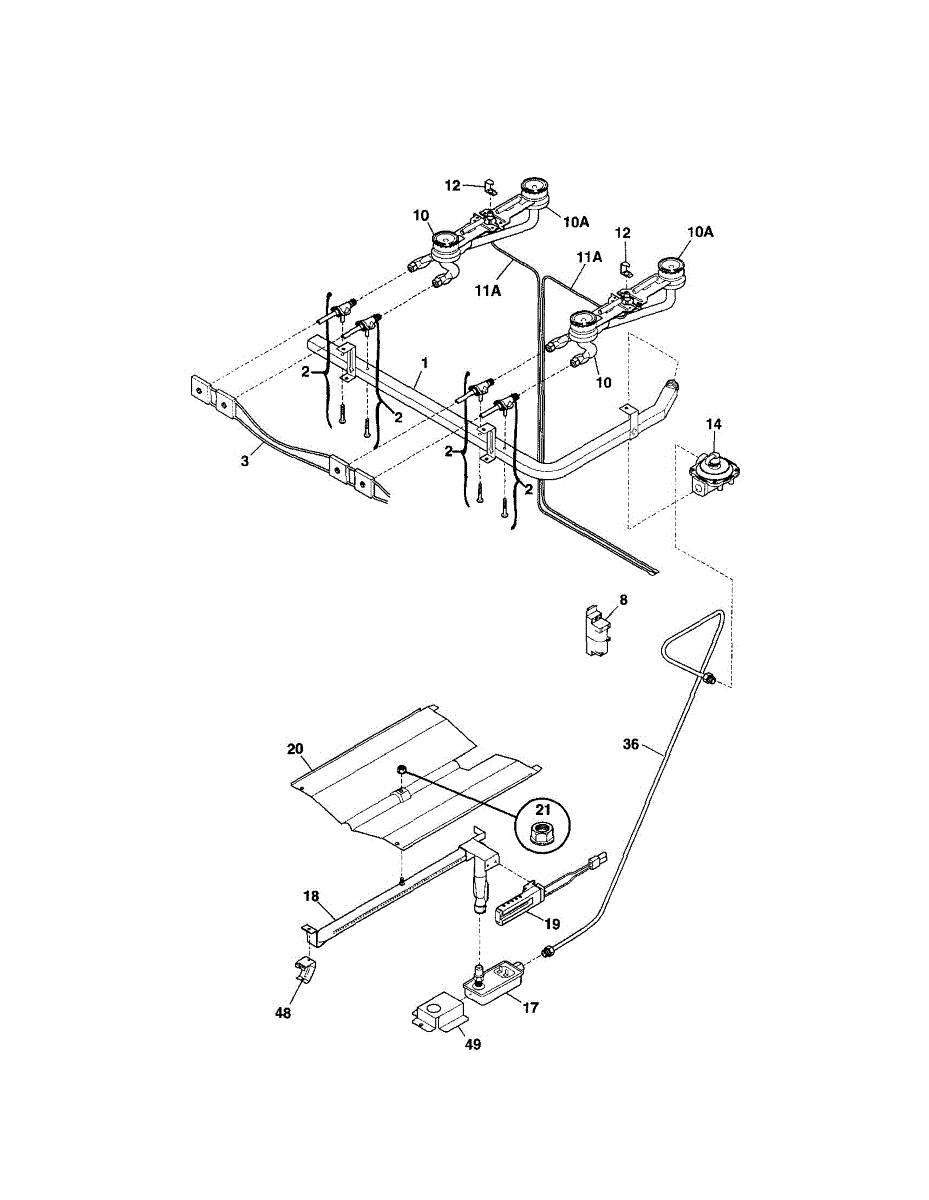

This printed repair parts list provides a parts diagram and reference listing for identifying service components and part numbers. It helps technicians and owners exact replacement parts before ordering. What it does:

• Shows labeled components and reference numbers for the appliance
• Helps locate the correct part name/number when ordering replacements
• Useful for parts needed for repair or service diagnostics
• Serves as a visual reference during disassembly and reassembly

• This item is a reference document, not a replacement appliance component
• Keep with the appliance or service records for future maintenance
• Always disconnect power and follow safety procedures before servicing

Secures gas valve assemblies and mounting brackets to your range. Replace if screw is stripped, missing, or corroded to keep valve hardware stable.

Burner won't light, stays on, or flame is uneven? This top burner valve controls gas flow to restore safe on/off control. Typical repair time: 45 minutes.

Factory diagnostic guide for gas ranges showing wiring diagrams, error codes, and troubleshooting steps. Replace if missing, damaged, or illegible.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Converts your gas range from natural gas to liquid propane fuel. Includes all orifices and instructions. Needed when switching fuel types or missing parts.

Gas orifice spud that meters fuel flow from valve to burner on gas ranges. Replace if clogged, damaged, or converting between LP and natural gas fuel types.

This electronic module generates the electrical spark needed to ignite the gas burners on a cooktop. It receives a signal when a burner knob is turned and sends a high-voltage pulse to the spark electrode at the burner. Replace this module if one or more burners fail to ignite, you hear no clicking sound when turning the knob, or the igniters click continuously without stopping.

Replacement mounting screw for ovens and ranges. Secures panels, brackets, trim, and internal components. Replace missing or stripped screws to restore fit.

Size: 8-18ab x 0.5 inch.

Replace your cracked, rusted, or clogged gas range surface burner. Mounts on the cooktop to direct gas flow for a steady flame. Easy one-screw install.

Replacement top burner for gas ranges. Installs on the cooktop surface to provide flame for cooking. Order if your burner is rusted, eroded, or broken.

Main wire harness for gas ranges. Connects electrical components throughout the unit. Replace if wiring is damaged, frayed, or connections are loose.

Fix burners that click but won't light with this gas range spark electrode. Restores reliable ignition when your stovetop igniter is worn or cracked.

Cable retainer for cooktop installation. Secures wiring harnesses in place. Replace if broken, cracked, or missing to properly organize internal cables.

This is the gas pressure regulator that controls the flow and pressure of gas supplied to the burners and oven in a gas range. It ensures a consistent and safe gas pressure is delivered for proper ignition and flame performance. Replace this regulator if you notice uneven flames, difficulty igniting burners, yellow or weak flames, or if you smell gas when the burners are off.

A replacement hex-head screw used to secure appliance regulator brackets and similar small components. Restores proper fastener fit so panels and brackets stay firmly attached. What it does

• Fastens regulator bracket and related sheet-metal components
• Provides a secure threaded connection for components where an 8-18 thread is specified
• Helps eliminate looseness or rattling caused by a missing or damaged screw
• Matches the nickel/chrome finish commonly used on interior mounting locations

• One hex head screw (8-18 x 3/8), nickel finish

• Intended for use where an 8-18 x 3/8 hex screw is specified by the manufacturer
• Tighten to snug; avoid over-torquing which can strip sheet-metal threads
• Turn off power to the appliance before accessing internal components
• If the original screw used a lock washer or threadlocker, replace or reapply as appropriate

Touch-up paint for appliances to cover scratches, chips, and worn areas on exterior surfaces. Restores appearance of refrigerators, ranges, and more.

Touch-up paint in bisque color for appliance exterior surfaces. Covers chips, scratches, and worn spots on refrigerator doors, range panels, and more.

The Frigidaire Touch-Up Paint is white in color in a .6 fl oz bottle. For almond order 5303321320. For black order 5303321321.

The Touch Up Paint is an OEM part for Frigidaire appliances. Whether you're dealing with scratches, chips, or other minor cosmetic damage, this touch-up paint provides an easy and effective solution for maintaining the appearance of your appliance. It's designed to adhere well to metal surfaces, offering durability and resistance to further wear and tear.

Over time, appliances can accumulate minor surface damage from regular use, cleaning, and accidental impacts. Using the Touch Up Paint not only improves the aesthetic appeal of your appliance but also helps protect exposed areas from rust and corrosion, which can extend the life of the appliance.

Symptoms of needing Touch Up Paint include:

• Visible scratches or chips on the appliance's surface.
• Areas of rust or corrosion that need to be covered after treating the rust.
• The desire to maintain or improve the appliance's appearance for aesthetic reasons or to maintain its value.

Oven won't light even with glowing igniter? Safety valve controls gas flow to burner. Moderately easy repair with gas line disconnect required.

Oven burner distributes gas and air mixture for even baking flames. Replace if rusted, corroded, or producing uneven flame patterns in your range.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Oven won't light or takes forever to heat? A weak igniter is usually the culprit. Moderately easy DIY repair—most complete it in 15-30 minutes.

Size: 8-32t x 0.500 inch. Color: Black.

Mounting bracket for gas ranges. Secures components inside your range. Replace if bent, broken, or missing to restore proper structural support.
