Parts for Kenmore 790.70301701 (79070301701, 790 70301701): Door Parts

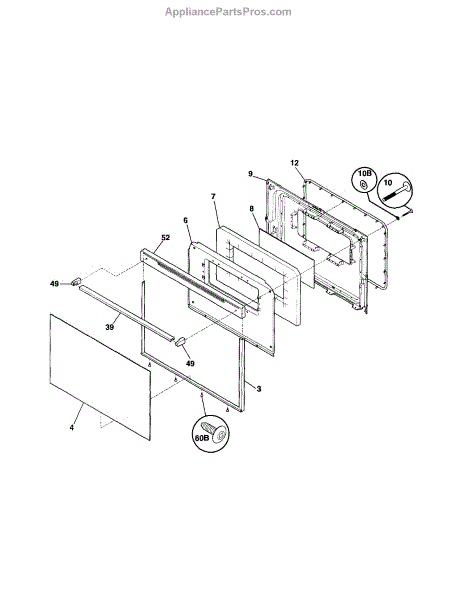

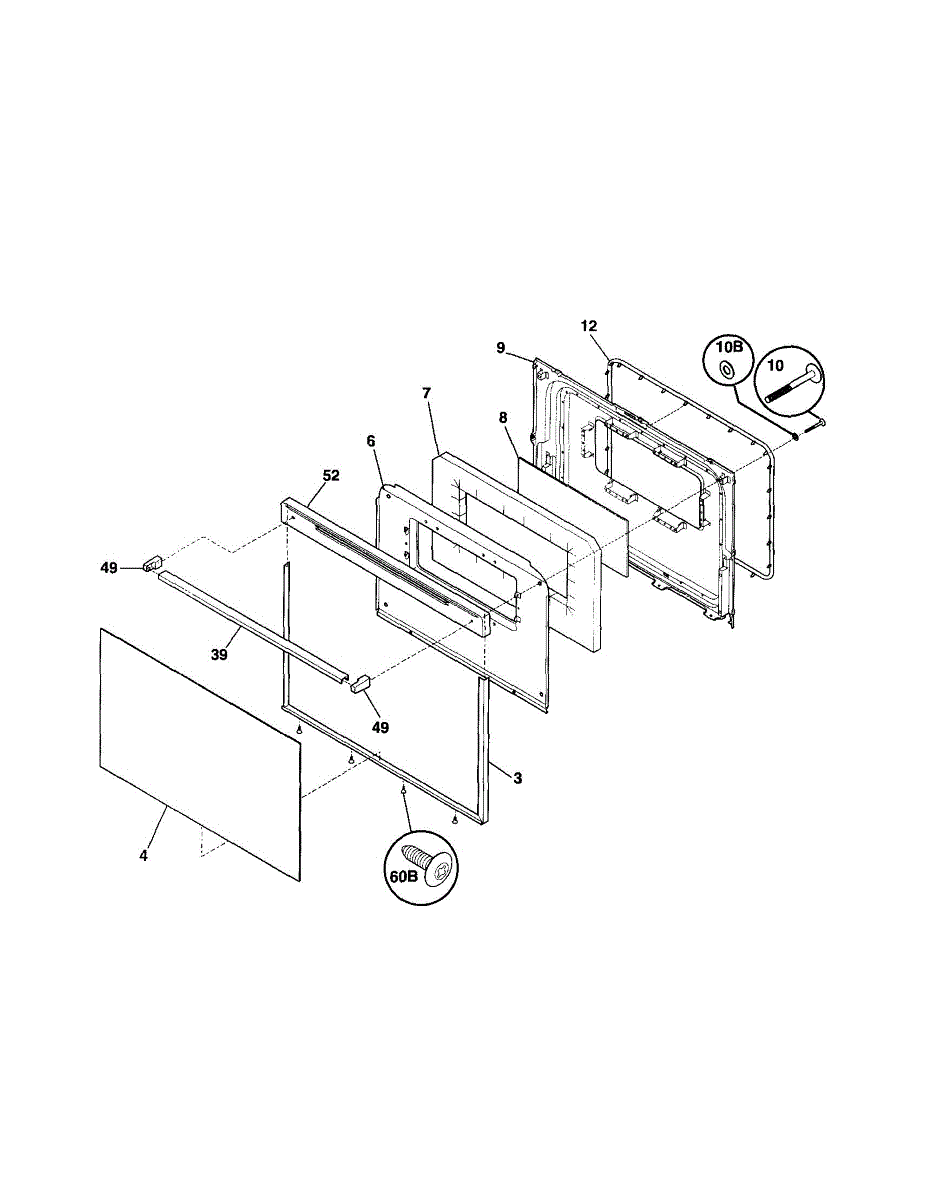

This printed repair parts list provides a parts diagram and reference listing for identifying service components and part numbers. It helps technicians and owners exact replacement parts before ordering. What it does:

• Shows labeled components and reference numbers for the appliance
• Helps locate the correct part name/number when ordering replacements
• Useful for parts needed for repair or service diagnostics
• Serves as a visual reference during disassembly and reassembly

• This item is a reference document, not a replacement appliance component
• Keep with the appliance or service records for future maintenance
• Always disconnect power and follow safety procedures before servicing

Factory diagnostic guide for gas ranges showing wiring diagrams, error codes, and troubleshooting steps. Replace if missing, damaged, or illegible.

Replaces cracked, shattered, or chipped outer oven door glass panel. Black finish with pre-applied foil tape. Restores appearance and heat containment.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Heat shield for electric and gas ranges. Mounts inside the range to protect components from heat damage. Replace if cracked, warped, or missing.

Converts your gas range from natural gas to liquid propane fuel. Includes all orifices and instructions. Needed when switching fuel types or missing parts.

Gas orifice spud that meters fuel flow from valve to burner on gas ranges. Replace if clogged, damaged, or converting between LP and natural gas fuel types.

Replacement mounting screw for ovens and ranges. Secures panels, brackets, trim, and internal components. Replace missing or stripped screws to restore fit.

Size: 8-18ab x 0.5 inch.

Secures the oven door handle to the door or front panel. Replace if your screw is stripped, missing, or damaged to restore a firm grip and proper alignment.

Size: 3/4 inch od x 1/4 inch id.

Main wire harness for gas ranges. Connects electrical components throughout the unit. Replace if wiring is damaged, frayed, or connections are loose.

Replace your range oven door seal when heat escapes or it's cracked. Seals oven perimeter for proper temperature control. Confirm fit with model number.

Touch-up paint for appliances to cover scratches, chips, and worn areas on exterior surfaces. Restores appearance of refrigerators, ranges, and more.

Touch-up paint in bisque color for appliance exterior surfaces. Covers chips, scratches, and worn spots on refrigerator doors, range panels, and more.

The Frigidaire Touch-Up Paint is white in color in a .6 fl oz bottle. For almond order 5303321320. For black order 5303321321.

The Touch Up Paint is an OEM part for Frigidaire appliances. Whether you're dealing with scratches, chips, or other minor cosmetic damage, this touch-up paint provides an easy and effective solution for maintaining the appearance of your appliance. It's designed to adhere well to metal surfaces, offering durability and resistance to further wear and tear.

Over time, appliances can accumulate minor surface damage from regular use, cleaning, and accidental impacts. Using the Touch Up Paint not only improves the aesthetic appeal of your appliance but also helps protect exposed areas from rust and corrosion, which can extend the life of the appliance.

Symptoms of needing Touch Up Paint include:

• Visible scratches or chips on the appliance's surface.
• Areas of rust or corrosion that need to be covered after treating the rust.
• The desire to maintain or improve the appliance's appearance for aesthetic reasons or to maintain its value.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Size: 8-32t x 0.500 inch. Color: Black.

The Handle is an OEM replacement part for Frigidaire ovens. It is designed to provide a sturdy grip for opening and closing the oven door, ensuring ease of use and safety during cooking.

The handle can become worn or damaged over time due to regular use, exposure to heat, or accidental impact. Repeated opening and closing of the oven door can lead to loosening or breakage.

Symptoms of a bad handle include:

• The handle feeling loose or wobbly
• Difficulty in opening or closing the oven door
• The handle becoming detached from the door
• Visible cracks or damage to the handle

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Black end cap that covers and secures the outer end of your range handle. Replace this part when cracked, chipped, missing, or worn for a finished look.

The door vent trim cap is the small plastic cover that snaps over the vent opening on your appliance door, protecting the vent from damage and giving it a finished appearance while allowing air to flow through. It keeps debris out of the vent channel and helps maintain the door's aesthetic. Replace this part if the cap is cracked, broken off, or missing, leaving an unsightly or unprotected opening on the door.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
