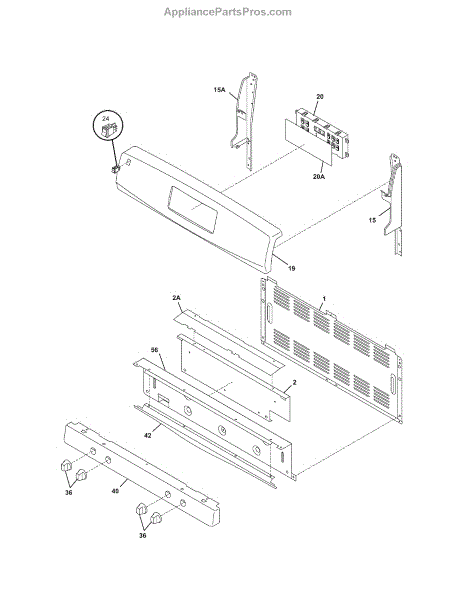

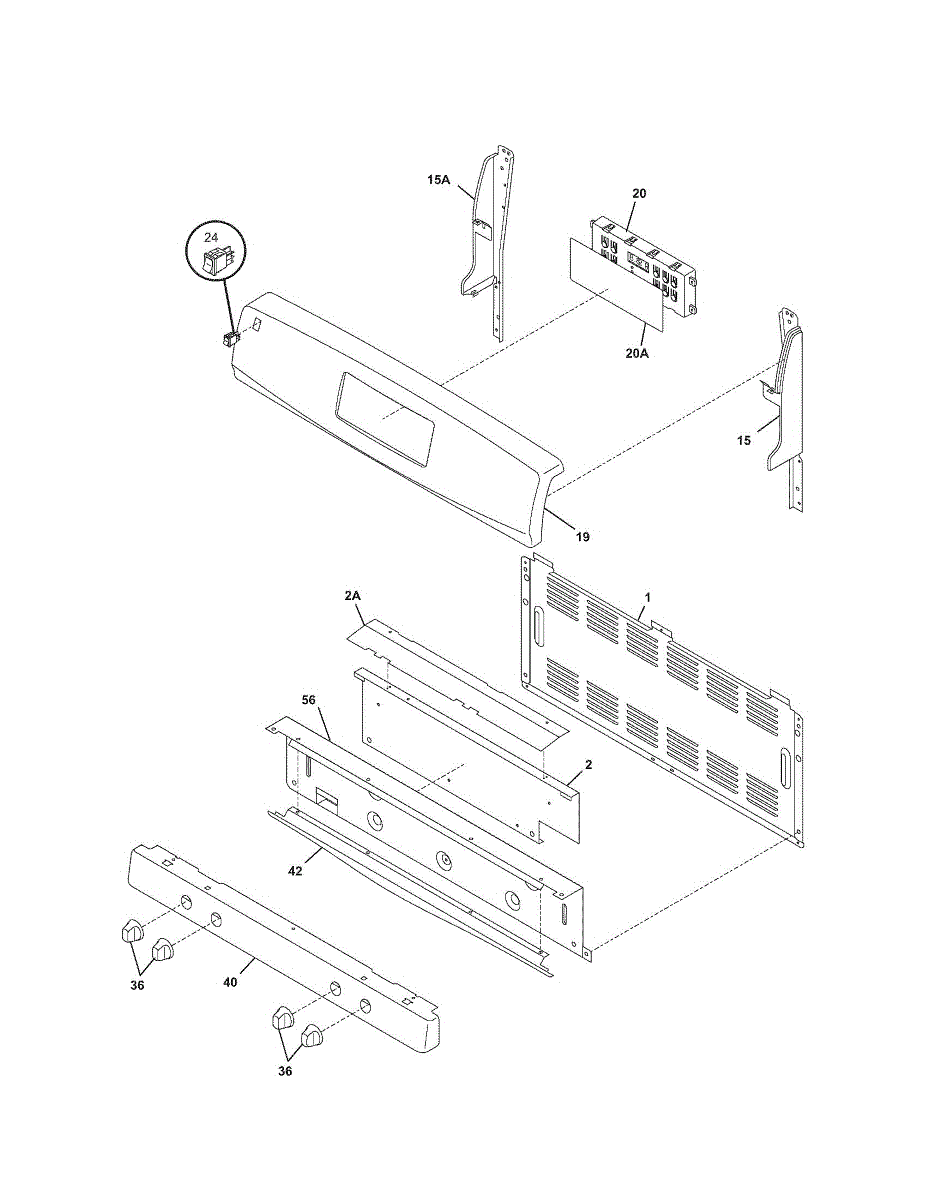

Parts for Kenmore 790.71342700 (79071342700, 790 71342700): Backguard Parts

This is a bisque-colored left-side support bracket that mounts to the backguard area of the range. It provides structural support for the shelf or trim along the back of the cooktop. Replace this bracket if it is cracked, broken, or missing, which can cause the backguard trim or shelf to sit unevenly or come loose.

Replace your damaged or worn range touch pad control panel. This component installs on the control console and is needed when cracked, unresponsive, or missing.

The oven control board manages oven functions including temperature control, timing, and cooking modes. Replace when the oven won't heat, displays error codes, or controls become unresponsive.

Touch pad overlay for electric and gas ranges. Covers the control panel with clear markings for settings. Replace if cracked, warped, peeling, or worn.

Covers and labels control panel buttons on your range. Replace if the overlay is cracked, peeling, faded, or worn, making buttons hard to read or use.

Covers and labels control panel buttons on your range. Replace if the overlay is cracked, peeling, faded, or worn, making buttons hard to read or use.

This rocker switch is the on/off control used in the appliance's control panel. It opens and closes the circuit to a selected feature, restoring dependable operation when the original switch becomes worn, stuck, or fails.

• Controls a single on/off circuit from the control panel
• Restores proper switching for the associated feature
• Common symptoms: feature won't turn on or off, light or function flickers or stays on, switch feels loose or sticks
• Replaces a cracked, burned, or unresponsive rocker

• Disconnect power at the breaker before servicing
• Access the switch from the control panel or mounting area; note/photograph wire positions
• Move wires to the new switch one at a time and seat the switch securely in the panel opening
• Restore power and test operation before reassembly

The Rocker Switch is an OEM part for Frigidaire ranges and ovens. It is responsible for turning the interior oven light on and off. The light switch allows visibility of the oven cavity for viewing food during the cooking process.

Causes can include normal wear and tear over time, exposure to heat inside the oven cavity, or accidental damage.

Symptoms of a bad oven light rocker switch include:

• The oven light failing to illuminate when the door is opened
• The light remaining on even when the door is closed
• An inconsistent or flickering oven light
• The switch itself becoming loose, cracked, or non-responsive

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Switch Rocker is an OEM part for Frigidaire ranges. This switch is used to control various functions of the range, such as turning on heating elements or activating specific cooking modes. It provides a reliable and straightforward interface for managing the range's features.

You should replace the range switch rocker if it becomes faulty. Causes of a bad switch rocker can include wear and tear from frequent use, exposure to high temperatures, electrical malfunctions, or physical damage from impacts or mishandling. A defective switch rocker can result in unresponsive controls, making it challenging to operate the range effectively.

Symptoms of a bad Range Switch Rocker include:

• The switch not responding when pressed
• Inconsistent or flickering performance of the heating elements
• Physical damage or looseness in the switch
• Intermittent operation or complete failure to activate the desired function

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Kit contains 5 knobs. (4 of part# 316442513 and 1 of part# 316442501.)

Color: white. Measures about 2 inches in diameter.

Color: black. Measures about 2 inches in diameter.

Touch pad control panel for ranges. Mounts on the front control surface. Replace if cracked, faded, unresponsive, or buttons are worn or damaged.

Replacement door trim for gas ranges. Installs along the oven door edge to provide a finished look. Order if your original trim is cracked or missing.

This trim is a decorative finish piece for select ranges and wall ovens. It covers gaps and raw edges for a clean look and helps keep adjacent panels properly seated when the original becomes cracked, bent, or missing.

• Provides a finished appearance by covering exposed edges or gaps
• Helps maintain alignment of nearby panels or glass
• Replace if cracked, warped, missing, or no longer seats securely
• Common symptoms include loose/rattling panels and exposed or sharp edges

• Disconnect power; for gas models, also shut off the gas supply
• Wear gloves—edges can be sharp
• Remove old trim and transfer/reuse original screws or clips
• Align the new trim and secure with existing fasteners; confirm proper fit before reassembly

Shield for gas ranges. Protects internal components from heat and debris. Replace if cracked, bent, or missing to maintain proper appliance protection.

This repair parts list is a printed parts diagram and reference sheet that helps identify components and part numbers for service and ordering. It makes locating replacement parts faster and reduces ordering errors. What it does:

• Shows the appliance's exploded parts diagram to identify individual components
• Lists OEM part numbers and reference labels used for ordering
• Helps diagnose which worn or damaged parts may cause common faults
• Speeds up parts lookup for repairs and maintenance
• Useful for confirming correct parts before beginning service

• This is an informational parts diagram only; it is not an electrical or repair kit
• Always unplug the appliance or switch off power at the breaker before servicing
• Use the listed part numbers to order exact replacements;

Replacement care guide and owner's manual for your range. Includes operating instructions, maintenance tips, and safety information. Perfect for lost or damaged manuals.
