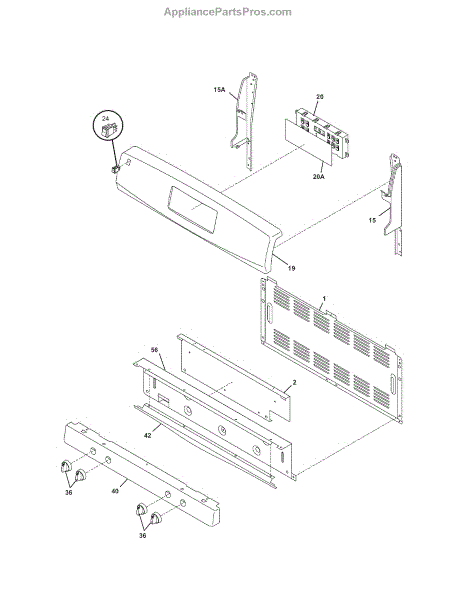

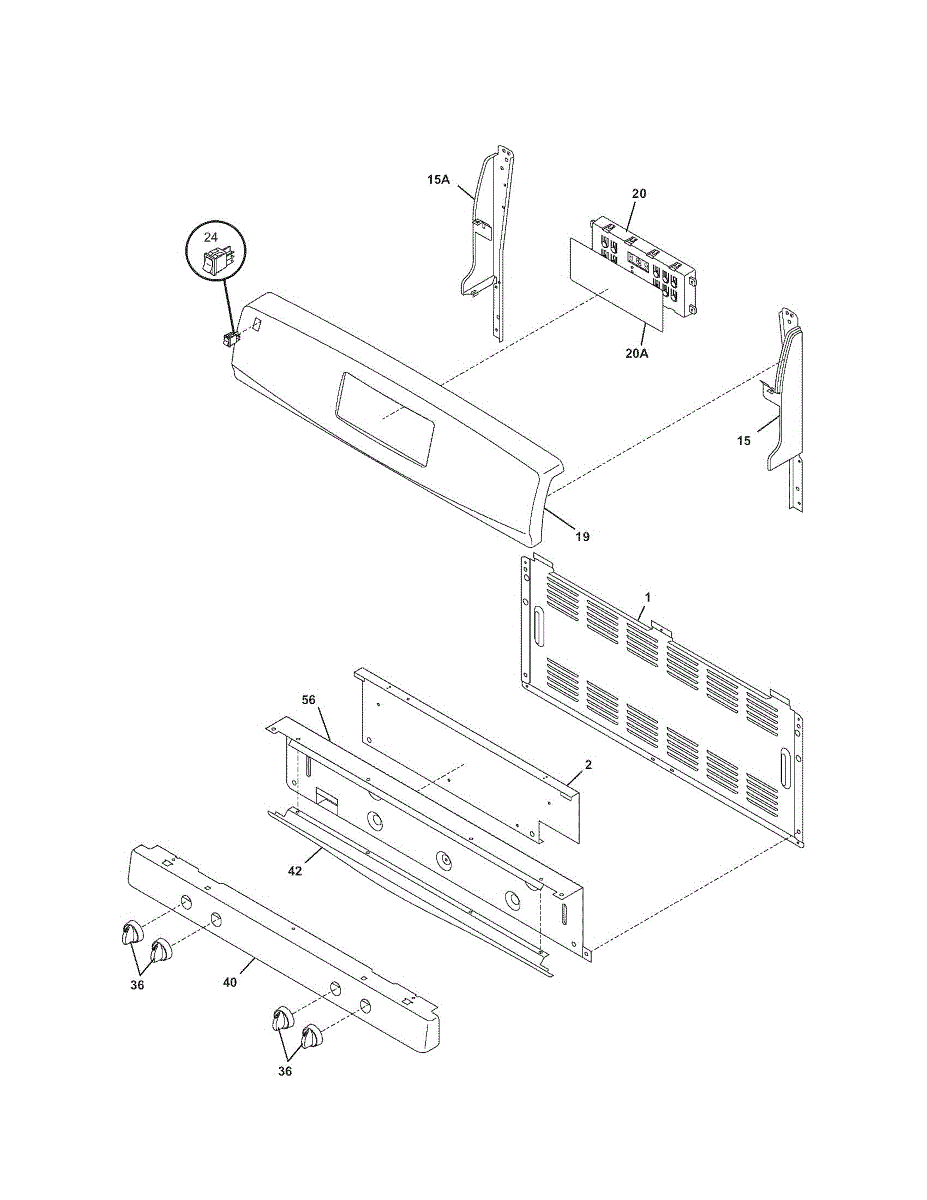

Parts for Kenmore 790.71354701 (79071354701, 790 71354701): Backguard Parts

Replacement endcap for electric and gas ranges. Installs on the control panel or side trim. Order if your original is cracked, broken, or missing.

Replace your damaged or worn range touch pad control panel. This component installs on the control console and is needed when cracked, unresponsive, or missing.

Touch pad overlay for electric and gas ranges. Covers the control panel with clear markings for settings. Replace if cracked, warped, peeling, or worn.

Covers and labels control panel buttons on your range. Replace if the overlay is cracked, peeling, faded, or worn, making buttons hard to read or use.

Covers and labels control panel buttons on your range. Replace if the overlay is cracked, peeling, faded, or worn, making buttons hard to read or use.

This rocker switch is the on/off control used in the appliance's control panel. It opens and closes the circuit to a selected feature, restoring dependable operation when the original switch becomes worn, stuck, or fails.

• Controls a single on/off circuit from the control panel
• Restores proper switching for the associated feature
• Common symptoms: feature won't turn on or off, light or function flickers or stays on, switch feels loose or sticks
• Replaces a cracked, burned, or unresponsive rocker

• Disconnect power at the breaker before servicing
• Access the switch from the control panel or mounting area; note/photograph wire positions
• Move wires to the new switch one at a time and seat the switch securely in the panel opening
• Restore power and test operation before reassembly

The Rocker Switch is an OEM part for Frigidaire ranges and ovens. It is responsible for turning the interior oven light on and off. The light switch allows visibility of the oven cavity for viewing food during the cooking process.

Causes can include normal wear and tear over time, exposure to heat inside the oven cavity, or accidental damage.

Symptoms of a bad oven light rocker switch include:

• The oven light failing to illuminate when the door is opened
• The light remaining on even when the door is closed
• An inconsistent or flickering oven light
• The switch itself becoming loose, cracked, or non-responsive

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Switch Rocker is an OEM part for Frigidaire ranges. This switch is used to control various functions of the range, such as turning on heating elements or activating specific cooking modes. It provides a reliable and straightforward interface for managing the range's features.

You should replace the range switch rocker if it becomes faulty. Causes of a bad switch rocker can include wear and tear from frequent use, exposure to high temperatures, electrical malfunctions, or physical damage from impacts or mishandling. A defective switch rocker can result in unresponsive controls, making it challenging to operate the range effectively.

Symptoms of a bad Range Switch Rocker include:

• The switch not responding when pressed
• Inconsistent or flickering performance of the heating elements
• Physical damage or looseness in the switch
• Intermittent operation or complete failure to activate the desired function

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Kit contains 5 knobs. (4 of part# 316442513 and 1 of part# 316442501.)

Replacement control knob for ranges and cooktops. Attaches to the valve shaft to select burner or oven heat settings when original is cracked, worn, or missing.

Black range burner control knob that mounts on the front control panel. Replace if your knob is cracked, broken, missing, or difficult to grip securely.

Touch pad control panel for ranges. Mounts on the front control surface. Replace if cracked, faded, unresponsive, or buttons are worn or damaged.

Replacement door trim for gas ranges. Installs along the oven door edge to provide a finished look. Order if your original trim is cracked or missing.

This trim is a decorative finish piece for select ranges and wall ovens. It covers gaps and raw edges for a clean look and helps keep adjacent panels properly seated when the original becomes cracked, bent, or missing.

• Provides a finished appearance by covering exposed edges or gaps
• Helps maintain alignment of nearby panels or glass
• Replace if cracked, warped, missing, or no longer seats securely
• Common symptoms include loose/rattling panels and exposed or sharp edges

• Disconnect power; for gas models, also shut off the gas supply
• Wear gloves—edges can be sharp
• Remove old trim and transfer/reuse original screws or clips
• Align the new trim and secure with existing fasteners; confirm proper fit before reassembly

Shield for gas ranges. Protects internal components from heat and debris. Replace if cracked, bent, or missing to maintain proper appliance protection.

This repair parts list is a factory parts diagram and index that helps you identify the correct replacement parts for the appliance. Use it to part locations and reference part numbers before ordering. What it does:

• Shows exploded views and part callouts to clarify assembly and component placement
• Lists OEM part numbers and reference IDs used by service technicians and parts suppliers
• Helps you the exact parts you need, reducing ordering mistakes and returns
• Useful for diagnosing which component relates to a specific symptom or failure

• This is a reference document only; it is not a replaceable mechanical component
• Keep the sheet dry and store with appliance paperwork for future repairs
• Use the listed part numbers when ordering replacement parts to ensure accuracy

Replacement care guide and owner's manual for your range. Includes operating instructions, maintenance tips, and safety information. Perfect for lost or damaged manuals.
