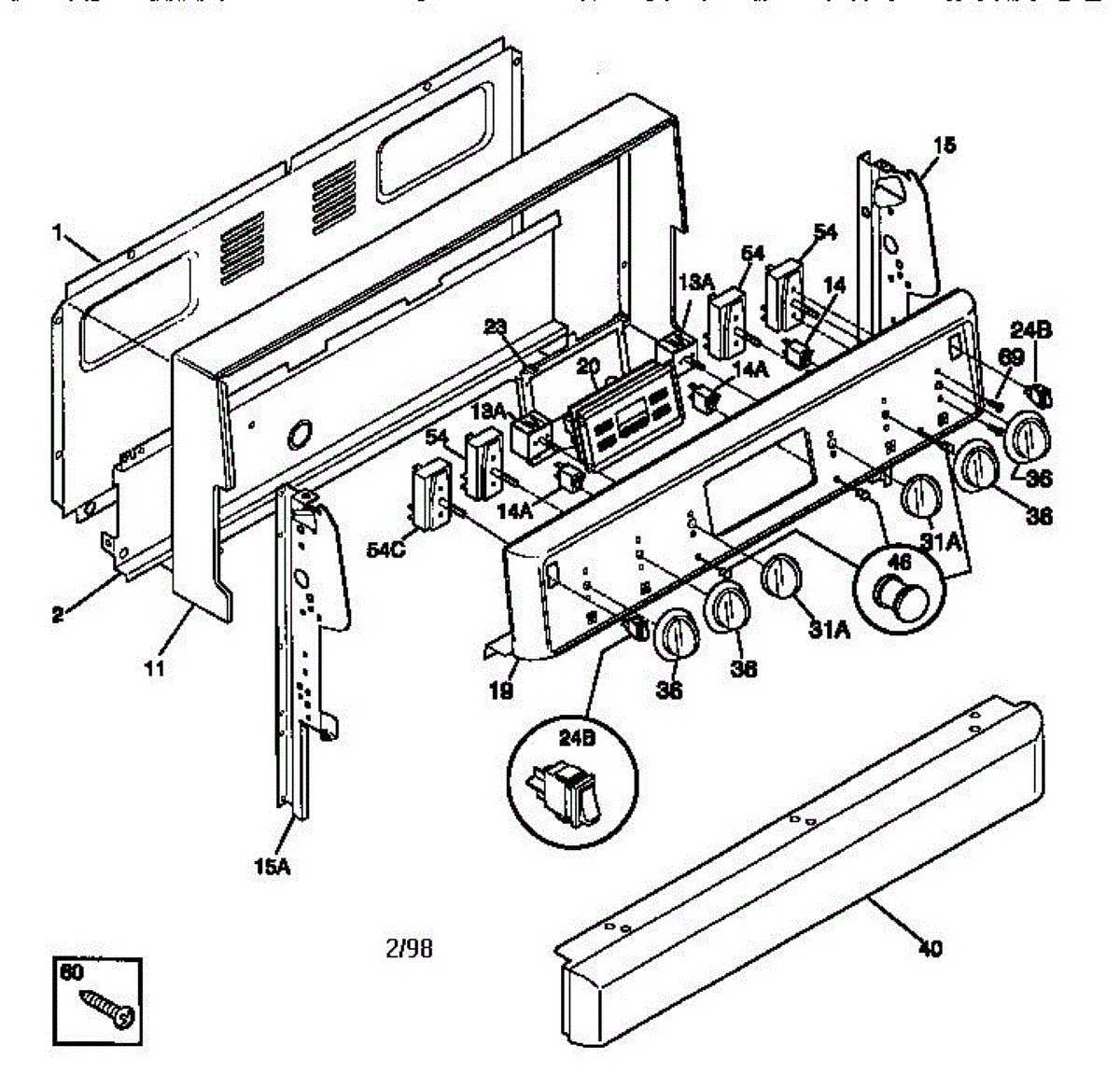

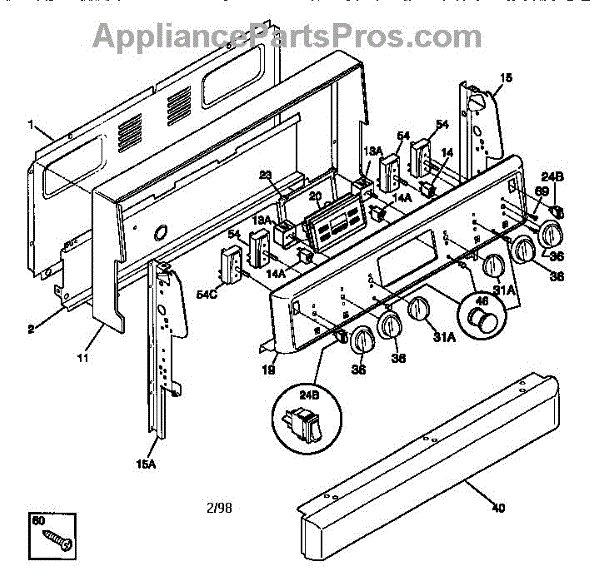

Parts for Kenmore 790.95745890 (79095745890, 790 95745890): Backguard Parts

Burner won't turn off or element light stays on? This range burner control switch regulates temperature and power. Moderate DIY repair, 30-60 minutes.

Range indicator light illuminates to show when burners or oven are on. Replace if light is dim, flickering, or burned out. Verify fit with your model.

Signals when your range burners or oven are active. Replace when light fails to illuminate or stays on constantly. Confirm fit with your model number.

Protects and diffuses your range's indicator light that signals when burners are on or surfaces are hot. Replace if cracked or missing. Easy install.

Range burner not heating or temperature won't adjust? This surface element control switch regulates heat output. Moderate DIY repair in 30-45 minutes.

Burner stuck on high or won't heat? This surface element switch controls temperature for electric range burners. DIY repair in under 30 minutes.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

This genuine wiring diagram shows the appliance's electrical schematic so DIYers can identify wire routing, connectors, and component locations for accurate troubleshooting. It helps verify circuits before repairs and parts replacement. What it does:

• Displays the complete electrical schematic and wire color codes for the appliance
• Helps locate connectors, terminals, and component wiring for accurate diagnosis
• Useful for tracing shorts, open circuits, or incorrect wiring after service
• Supports safe, informed replacement of electrical components

• Intended for reference only; do not use the diagram as a safety barrier—disconnect power before servicing
• Keep the diagram dry and flat; fold carefully to avoid tearing the print
• Use alongside OEM service manuals and schematic legends for full context

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Size: 8-18ab x 0.5 inch.

Hex flange nut with 10-32 thread secures components in appliances. Replace if stripped, missing, or damaged. Flange provides broader bearing surface.

Push-in plug button that covers openings in the oven bottom panel. Replace if cracked, missing, or broken to keep debris out and maintain a clean finish.

Phillips head mounting screw for dishwashers and ranges. Secures internal components and panels. Replace if stripped, rusted, or missing during repairs.

Size: 10-32 x 0.312 inch. Color: Black.

Size: 8-32t x 0.500 inch. Color: Black.

Size: 10 fl. oz. Used on glass, ceramic and porcelain cooktops.
