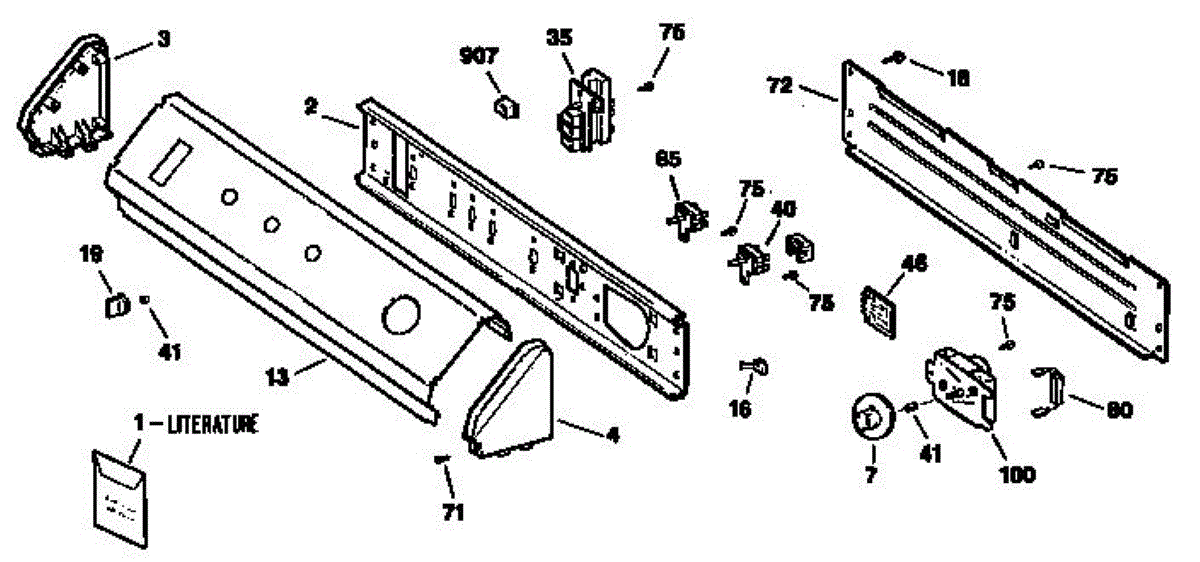

Parts for Kenmore 363.DDE8509RCMAA (363DDE8509RCMAA, 363 DDE8509RCMAA): Backsplash Assembly Parts

This part has been discontinued and is no longer available.

The Blower Wheel is an OEM replacement part for GE dryers. It has a role in the air circulation within the dryer, aiding in the even and efficient drying of clothes. The blower wheel, connected to the motor, helps in expelling the moist air out of the dryer through the exhaust vent during the drying cycle.

Causes of a malfunctioning blower wheel are typically wear and tear from regular use, the accumulation of lint or debris, or damage to the wheel’s fins or central hub, which can impact its rotation and air circulation capability.

Symptoms of a bad Blower Wheel include:

• Unusual noises during operation
• Extended drying times
• The dryer overheating
• Reduced air circulation

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Secures the drive motor to its mounting bracket. Replace if cracked, broken, or missing to keep the motor and blower aligned and stable during operation.

This dryer motor kit powers the drum and blower. Replacing a weak or failed motor restores proper tumbling and airflow so the dryer starts reliably and dries loads more evenly.

• Drives the drum via the belt and turns the blower wheel for airflow
• Helps resolve: dryer hums but won't start, drum won't turn, or stops mid-cycle
• Can reduce loud buzzing/grinding noises from the motor area
• Restores consistent operation when the motor overheats and trips its protector

• Disconnect power; turn off gas supply to gas dryers before servicing
• Remove panels to access the drive system; release belt tension and remove the drum as needed
• The blower wheel threads onto the motor shaft—support it carefully; many GE dryers use a reverse (left-hand) thread
• Transfer wiring and any reusable hardware to the new motor; test before reassembly

Connects motor to drum for rotation. Replace if dryer won't start, makes noise, or drum doesn't turn. Confirm fit with your model number before ordering.

Idler pulley for dryer drum assembly. Maintains belt tension to enable smooth drum rotation. Replace if worn, cracked, or causing noise during operation.

Replaces a cracked, rusted, or disconnected exhaust duct that routes hot air from your dryer to the home vent. Restores proper airflow and venting.

Color: white. It measures about 13-1/2 inches wide by 5 inches high.

Size: 16 1/2 inches overall height x 19 inches maximum inside width. 4 drum glides are used and sold separately on this support bearing.

The Dryer Front Bearing Drum Slide (Green, 2-Pack) is an OEM replacement part for GE dryers. These slides are located on the front panel of the dryer and work to support the drum as it rotates. The green slides are designed to reduce friction between the drum and the panel, ensuring smooth operation and helping to prolong the life of the appliance.

Over time, these slides can wear out due to constant movement, heat, and friction. When worn or damaged, the drum may not rotate as intended, leading to noise and reduced efficiency.

Symptoms of bad dryer front bearing drum slides include:

• Squeaking or grinding noises during operation
• The drum appearing loose or sagging at the front
• Clothes not drying evenly or taking longer to dry
• Visible wear or thinning on the existing drum slides

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Dryer Front Bearing Drum Slide (White, 2-Pack) is an OEM replacement part for GE dryers. These slides are located on the front panel of the dryer and work to support the drum as it rotates. The white slides are designed to reduce friction between the drum and the panel, ensuring smooth operation and helping to prolong the life of the appliance.

Over time, these slides can wear out due to constant movement, heat, and friction. When worn or damaged, the drum may not rotate as intended, leading to noise and reduced efficiency.

Symptoms of bad dryer front bearing drum slides include:

• Squeaking or grinding noises during operation
• The drum appearing loose or sagging at the front
• Clothes not drying evenly or taking longer to dry
• Visible wear or thinning on the existing drum slides

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Door Latch is an OEM part for GE dryers. This part ensures the dryer door stays securely closed during operation, activating the safety switch to allow the dryer to operate. The latch mechanism engages with the door strike to lock the door, preventing it from opening while the dryer is running, which is essential for both safety and proper functioning of the appliance.

Causes for replacement can include normal wear and tear, accidental damage, or a misalignment that prevents the door from securely latching.

Symptoms of a bad Door Latch include:

• The dryer door doesn't stay closed during cycles.
• Difficulty in starting the dryer due to the door not activating the safety switch.
• Visible wear or damage to the latch mechanism.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Heating Element Assembly is an OEM part for GE dryers. It is responsible for generating the heat necessary to dry clothes during the drying cycle. This assembly includes the heating element itself, which heats up when electricity passes through it, and the housing that supports and protects the element.

You should replace this heating element assembly if it becomes faulty. Causes of a bad heating element assembly can include wear and tear over time, overheating due to blocked airflow, or damage from electrical issues.

Symptoms of a bad heating element assembly include:

• Clothes not drying properly
• No heat during the drying cycle
• Longer drying times
• The dryer not getting warm

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Note: For restring coil only use WE11X10007

Rear drum bearing kit supports and smoothly rotates your dryer drum. Replace when you hear squealing, screeching, or grinding noises. Verify fit with your model.

The Door Strike is an OEM part for GE dryers. This component is crucial for ensuring that the dryer door latches properly when closed. It interacts with the door catch mechanism to secure the door during operation, preventing it from opening unexpectedly, which ensures the dryer operates safely and efficiently.

Symptoms of a failing Door Strike include:

• The dryer door not staying closed during a cycle
• Difficulty in closing the dryer door or getting it to latch properly
• The dryer not starting because the door switch is not engaged
• Visible damage or wear on the door strike

Causes of a bad door strike can include wear and tear from regular use, physical damage from slamming the door or mishandling, and misalignment caused by repeated opening and closing.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Note: If the door catch is also needed, use part number WE1M1011.

This replacement hinge supports and pivots the appliance door so it opens and closes smoothly and stays aligned. A worn or bent hinge can lead to door sagging, scraping, or poor latching that impacts performance and safety. What it does

• Supports the door and provides the pivot point for opening/closing
• Maintains door alignment to help ensure a proper seal
• Restores smooth, consistent door motion
• Common symptoms: door sags, squeaks, scrapes, or won't latch/stay closed

• 1 hinge

• Disconnect power before servicing; for gas units, also shut off gas supply
• Support the door while removing/installing fasteners to prevent stress on the panel
• Reuse original mounting screws/hardware unless damaged
• After installation, adjust if needed
