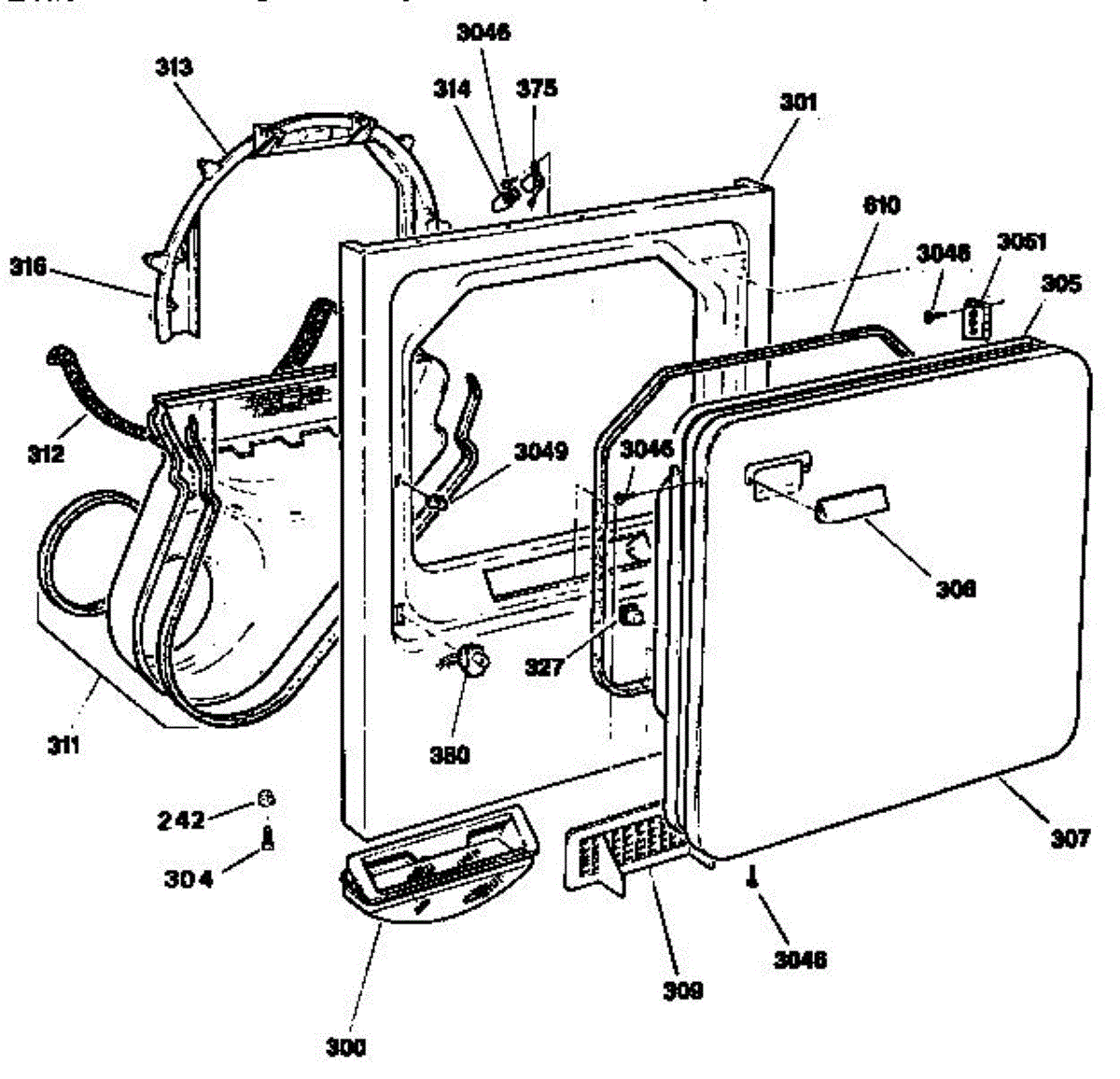

Parts for Kenmore 363.DDE8509RCMAA (363DDE8509RCMAA, 363 DDE8509RCMAA): Front Cabinet Assembly Parts

This part has been discontinued and is no longer available.

The Knob Clip is an OEM part for GE washing machines and dryers. This small but crucial component is designed to secure the control knob to the appliance's control panel.

Over time, knob clips can wear out or break due to frequent use or accidental damage. When this happens, the control knob may become loose, fall off easily, or fail to engage the control panel properly, making it difficult to set the appliance to the desired cycle or function.

Symptoms of a bad Knob Clip include:

• The control knob is loose or falls off the panel easily.
• Difficulty in adjusting settings due to a loose knob.
• The knob does not stay in place or slips when turned.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Black. 8-18 AB HXW 3/8

This electromechanical timer assembly controls cycle timing for compatible GE ranges and ovens, restoring accurate cook cycles and timer functions. It replaces a worn or non-advancing control to help your appliance complete timed operations reliably. What it does:

• Advances and times cooking cycles so bake, broil and self-clean operations run to completion
• Restores timer and manual cycle control when the original timer stops advancing
• Helps resolve symptoms like no timer display, oven cycles that won't start or stop on schedule, or intermittent timing failures
• Works as the user-accessible timing control for front-panel settings

• Disconnect power to the appliance before beginning service to avoid shock hazard
• Access may require removing the range/oven control panel or console; keep fasteners and trim for reassembly
• Handle connectors carefully and match wiring/location during reinstallation

Size: 14-10 a.

Secures the blower wheel to the motor shaft. Replace when the wheel loosens or moves, causing rattling or rubbing noise. Includes clamps and screw.

The Blower Wheel is an OEM replacement part for GE dryers. It has a role in the air circulation within the dryer, aiding in the even and efficient drying of clothes. The blower wheel, connected to the motor, helps in expelling the moist air out of the dryer through the exhaust vent during the drying cycle.

Causes of a malfunctioning blower wheel are typically wear and tear from regular use, the accumulation of lint or debris, or damage to the wheel’s fins or central hub, which can impact its rotation and air circulation capability.

Symptoms of a bad Blower Wheel include:

• Unusual noises during operation
• Extended drying times
• The dryer overheating
• Reduced air circulation

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Secures the drive motor to its mounting bracket. Replace if cracked, broken, or missing to keep the motor and blower aligned and stable during operation.

Secures your dryer motor to the cabinet to reduce vibration and noise. Replace if motor shifts or rattles during operation. Confirm fit with your model.

Metal bracket that secures the dryer motor and blower assembly in place. Replace if your mounting bracket is cracked, broken, or causing loose components.

This dryer motor kit powers the drum and blower. Replacing a weak or failed motor restores proper tumbling and airflow so the dryer starts reliably and dries loads more evenly.

• Drives the drum via the belt and turns the blower wheel for airflow
• Helps resolve: dryer hums but won't start, drum won't turn, or stops mid-cycle
• Can reduce loud buzzing/grinding noises from the motor area
• Restores consistent operation when the motor overheats and trips its protector

• Disconnect power; turn off gas supply to gas dryers before servicing
• Remove panels to access the drive system; release belt tension and remove the drum as needed
• The blower wheel threads onto the motor shaft—support it carefully; many GE dryers use a reverse (left-hand) thread
• Transfer wiring and any reusable hardware to the new motor; test before reassembly

Connects motor to drum for rotation. Replace if dryer won't start, makes noise, or drum doesn't turn. Confirm fit with your model number before ordering.

Supports the idler pulley to maintain proper belt tension in your dryer. Replace if the arm is warped, cracked, or causing belt tracking issues.

Idler pulley for dryer drum assembly. Maintains belt tension to enable smooth drum rotation. Replace if worn, cracked, or causing noise during operation.

Replaces a cracked, rusted, or disconnected exhaust duct that routes hot air from your dryer to the home vent. Restores proper airflow and venting.

Dryer won't heat or keeps running without stopping? A faulty operating thermostat often causes heating issues and timer problems. DIY repair part.

Replacement mounting screw for dryer panels and components. Needed when original screws are stripped, missing, or damaged during repair or maintenance.

Structural bracket that supports and secures the dryer motor in place. Replace if cracked, bent, or broken to properly mount the motor assembly.

Mounting screw kit for washers, dryers, and ranges. Replaces lost, stripped, or damaged screws used to secure panels and components during repairs.

Secures the ground wire to the dryer cabinet for safe electrical connection. Replace if missing, stripped, or corroded to restore proper grounding.

This screw is a factory replacement fastener used to secure appliance panels and components. It restores lost or loose hardware so parts sit correctly and operate without rattling or movement. What it does

• Secures panels, brackets, and small components to the appliance frame
• Restores proper alignment and helps eliminate rattling or vibration
• Replaces missing or stripped fasteners that prevent parts from staying fixed
• Matches OEM fit for reliable fastening where the original screw was used

• One replacement screw

• Use the correct-size screwdriver or driver bit to avoid stripping the head
• Power off and unplug the appliance before accessing internal components
• Tighten snugly but avoid overtightening to prevent thread damage
• Keep removed hardware organized so you can install replacements in the original locations

Color: white. It measures about 13-1/2 inches wide by 5 inches high.

This adjustable gray foot supports and levels your dryer, allowing you to compensate for uneven floors. It screws into the dryer's base and can be raised or lowered to ensure the appliance sits level and stable. Replace this part if your dryer rocks, vibrates excessively, or appears tilted.

A fabric strip that seals the gap between the dryer drum and front panel to prevent air leaks. Replace if you notice lint escaping from the front of the dryer, reduced drying efficiency, or if the seal is visibly worn or damaged.

Size: 16 1/2 inches overall height x 19 inches maximum inside width. 4 drum glides are used and sold separately on this support bearing.

The Dryer Front Bearing Drum Slide (Green, 2-Pack) is an OEM replacement part for GE dryers. These slides are located on the front panel of the dryer and work to support the drum as it rotates. The green slides are designed to reduce friction between the drum and the panel, ensuring smooth operation and helping to prolong the life of the appliance.

Over time, these slides can wear out due to constant movement, heat, and friction. When worn or damaged, the drum may not rotate as intended, leading to noise and reduced efficiency.

Symptoms of bad dryer front bearing drum slides include:

• Squeaking or grinding noises during operation
• The drum appearing loose or sagging at the front
• Clothes not drying evenly or taking longer to dry
• Visible wear or thinning on the existing drum slides

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Dryer Front Bearing Drum Slide (White, 2-Pack) is an OEM replacement part for GE dryers. These slides are located on the front panel of the dryer and work to support the drum as it rotates. The white slides are designed to reduce friction between the drum and the panel, ensuring smooth operation and helping to prolong the life of the appliance.

Over time, these slides can wear out due to constant movement, heat, and friction. When worn or damaged, the drum may not rotate as intended, leading to noise and reduced efficiency.

Symptoms of bad dryer front bearing drum slides include:

• Squeaking or grinding noises during operation
• The drum appearing loose or sagging at the front
• Clothes not drying evenly or taking longer to dry
• Visible wear or thinning on the existing drum slides

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Door Latch is an OEM part for GE dryers. This part ensures the dryer door stays securely closed during operation, activating the safety switch to allow the dryer to operate. The latch mechanism engages with the door strike to lock the door, preventing it from opening while the dryer is running, which is essential for both safety and proper functioning of the appliance.

Causes for replacement can include normal wear and tear, accidental damage, or a misalignment that prevents the door from securely latching.

Symptoms of a bad Door Latch include:

• The dryer door doesn't stay closed during cycles.
• Difficulty in starting the dryer due to the door not activating the safety switch.
• Visible wear or damage to the latch mechanism.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Dryer won't start or humming when you press start? The door switch signals when the door is closed. Easy 15-minute DIY repair with basic tools.

Speed nut fastener for dryers. Secures panels, covers, and internal components. Replace when stripped, missing, or damaged to restore proper assembly.

Replacement screw that secures dryer panels, trims, and internal components. Needed when original fasteners are missing, stripped, or corroded.

This outer side cabinet panel covers and protects the appliance's internal components while restoring the exterior appearance. It provides a clean, finished side surface and replaces panels that are dented, scratched, or corroded. What it does

• Replaces a damaged or worn outer side panel to restore the appliance's look
• Protects internal parts and wiring from dust, moisture, and accidental contact
• Helps maintain proper airflow channels and cabinet alignment
• Commonly used when panels are dented, scratched, or showing corrosion

• Disconnect power to the appliance before beginning any work
• Use appropriate hand tools; avoid overtightening screws to prevent panel distortion
• Handle edges carefully to avoid cuts and to protect the finish

Fix a dryer that won't heat, overheats, or runs too long. This thermostat cycles the heating element to maintain safe drying temperatures.

Terminal block mounting bracket for dryers. Secures the terminal block to the dryer frame. Replace if cracked, broken, or missing to properly mount wiring.

Heat deflector for dryers. Directs heated air properly through the drum. Replace if cracked, warped, or missing to restore efficient airflow distribution.

Dryer overheating or shutting off? This safety thermostat detects excessive heat and cuts power to prevent thermal damage. Direct replacement part.

Dryer shuts off too soon or won't heat? A faulty high limit thermostat often causes premature shutoff. Simple DIY fix—usually takes 15 minutes or less.

Rear drum bearing kit supports and smoothly rotates your dryer drum. Replace when you hear squealing, screeching, or grinding noises. Verify fit with your model.

This screw is a factory replacement fastener used to secure appliance panels and components. It restores lost or loose hardware so parts sit correctly and operate without rattling or movement. What it does

• Secures panels, brackets, and small components to the appliance frame
• Restores proper alignment and helps eliminate rattling or vibration
• Replaces missing or stripped fasteners that prevent parts from staying fixed
• Matches OEM fit for reliable fastening where the original screw was used

• One replacement screw

• Use the correct-size screwdriver or driver bit to avoid stripping the head
• Power off and unplug the appliance before accessing internal components
• Tighten snugly but avoid overtightening to prevent thread damage
• Keep removed hardware organized so you can install replacements in the original locations

The Heating Element Assembly is an OEM part for GE dryers. It is responsible for generating the heat necessary to dry clothes during the drying cycle. This assembly includes the heating element itself, which heats up when electricity passes through it, and the housing that supports and protects the element.

You should replace this heating element assembly if it becomes faulty. Causes of a bad heating element assembly can include wear and tear over time, overheating due to blocked airflow, or damage from electrical issues.

Symptoms of a bad heating element assembly include:

• Clothes not drying properly
• No heat during the drying cycle
• Longer drying times
• The dryer not getting warm

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Note: For restring coil only use WE11X10007

Ground strap assembly connects drum shaft to dryer frame for electrical safety. Replace if damaged, corroded, or causing startup squealing noise.

This is a small screw, and it is made for dryers, washers, and washer dryer combos. This is a genuine replacement part made by General Electric. Screws are common in these appliances and can cause many difficulties if they become loose, damaged, or missing.A new screw might be needed if there are areas in the appliance that seem off balance or not level. Another way to tell if a new screw is needed is if there are parts in the appliance that are loose or falling off. This is common over many years of normal use as the shaking of washers and dryers can eventually lead to loose screws. Be sure the washer or dryer is completely off before attempting to replace any screws.This is an OEM part sourced directly from the manufacturer. It is sold individually and is compatible with washers, dryers, and washer dryer combos made by General Electric.

Rear drum bearing kit supports and smoothly rotates your dryer drum. Replace when you hear squealing, screeching, or grinding noises. Verify fit with your model.

This dryer motor kit powers the drum and blower. Replacing a weak or failed motor restores proper tumbling and airflow so the dryer starts reliably and dries loads more evenly.

• Drives the drum via the belt and turns the blower wheel for airflow
• Helps resolve: dryer hums but won't start, drum won't turn, or stops mid-cycle
• Can reduce loud buzzing/grinding noises from the motor area
• Restores consistent operation when the motor overheats and trips its protector

• Disconnect power; turn off gas supply to gas dryers before servicing
• Remove panels to access the drive system; release belt tension and remove the drum as needed
• The blower wheel threads onto the motor shaft—support it carefully; many GE dryers use a reverse (left-hand) thread
• Transfer wiring and any reusable hardware to the new motor; test before reassembly

The Interlock Switch is an OEM replacement part for GE electric and gas dryers. This safety component monitors the door closure, preventing operation if the door is not securely closed and latched. The switch measures 2 inches long and 1/2 inch wide.

Symptoms of a faulty interlock switch include:

• Dryer failing to start or running with the door open
• Timer display not illuminated when start button is pressed
• Inability to open the dryer door during operation
• Dryer suddenly stopping mid-cycle before fully drying clothes

Causes relate to the internal component contacting the door frame over 50,000 open/close cycles potentially exposing wiring to wear. Regular cleaning the external switch area prevents dust or lint buildup skewing performance.

This genuine GE switch is compatible with Hotpoint and RCA dryers as well.

Note: Can be used as a dishwasher door switch on specific models. Check your model number for the most accurate results.

Replacement screw that secures appliance panels and internal components, restoring proper fit and helping prevent rattling or misalignment. Use this fastener when original screws are stripped, missing, or damaged to keep parts stable and secure. What it does:

• Secures panels, trim pieces, brackets and other components to maintain proper alignment and fit.
• Replaces stripped, corroded, or missing screws that can cause rattling, vibration, or loose parts.
• Restores stable mounting for service panels and access covers to reduce noise and movement during operation.
• Simple hardware replacement — helps prevent secondary damage caused by loose or shifted components.

• Disconnect power or gas (when applicable) before servicing to avoid shock or injury.
• Use the correct screwdriver or bit to avoid stripping the head; turn until snug—do not overtighten.
• Keep track of small parts and wear eye protection when working in tight spaces.
• If threads are damaged, replace with the correct OEM screw rather than forcing reuse.

The Door Strike is an OEM part for GE dryers. This component is crucial for ensuring that the dryer door latches properly when closed. It interacts with the door catch mechanism to secure the door during operation, preventing it from opening unexpectedly, which ensures the dryer operates safely and efficiently.

Symptoms of a failing Door Strike include:

• The dryer door not staying closed during a cycle
• Difficulty in closing the dryer door or getting it to latch properly
• The dryer not starting because the door switch is not engaged
• Visible damage or wear on the door strike

Causes of a bad door strike can include wear and tear from regular use, physical damage from slamming the door or mishandling, and misalignment caused by repeated opening and closing.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Note: If the door catch is also needed, use part number WE1M1011.

This replacement hinge supports and pivots the appliance door so it opens and closes smoothly and stays aligned. A worn or bent hinge can lead to door sagging, scraping, or poor latching that impacts performance and safety. What it does

• Supports the door and provides the pivot point for opening/closing
• Maintains door alignment to help ensure a proper seal
• Restores smooth, consistent door motion
• Common symptoms: door sags, squeaks, scrapes, or won't latch/stay closed

• 1 hinge

• Disconnect power before servicing; for gas units, also shut off gas supply
• Support the door while removing/installing fasteners to prevent stress on the panel
• Reuse original mounting screws/hardware unless damaged
• After installation, adjust if needed

The bearing retainer secures the drum bearing assembly in your dryer. Replace if cracked, broken, or worn to restore proper structural support.

Replacement mounting screw for dryer panels, brackets, and components. Needed when screws are missing, stripped, or damaged during repairs or disassembly.

This hex washer-head screw secures dishwasher components like brackets, shields, and panels. Replacing a stripped or missing screw restores a tight fit and helps prevent vibration, rattling, and loose parts during operation.

• Fastens parts where a #10-16 x 1/2-inch hex washer-head screw is specified
• Secures brackets, panels, and assemblies to the tub or frame
• Helps resolve symptoms like loose panels, vibration, or rattling noises
• Restores proper hold when the original screw is stripped, missing, or damaged

• Disconnect power and shut off water to the dishwasher before servicing
• Match length and thread to the original; replace screws one at a time to maintain alignment
• Start threading by hand to avoid cross-threading; tighten snugly—do not overtighten, especially into plastic
• Verify no wires or hoses are pinched before reassembly

• Size: #10-16 x 1/2 inch
• Head: hex washer-head
• Type: AB tapping screw

Rear drum bearing kit supports and smoothly rotates your dryer drum. Replace when you hear squealing, screeching, or grinding noises. Verify fit with your model.
