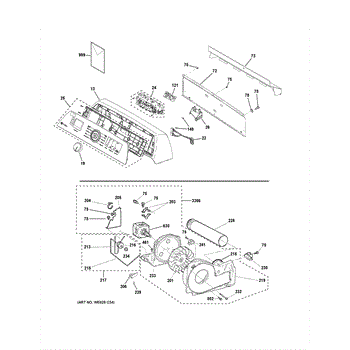

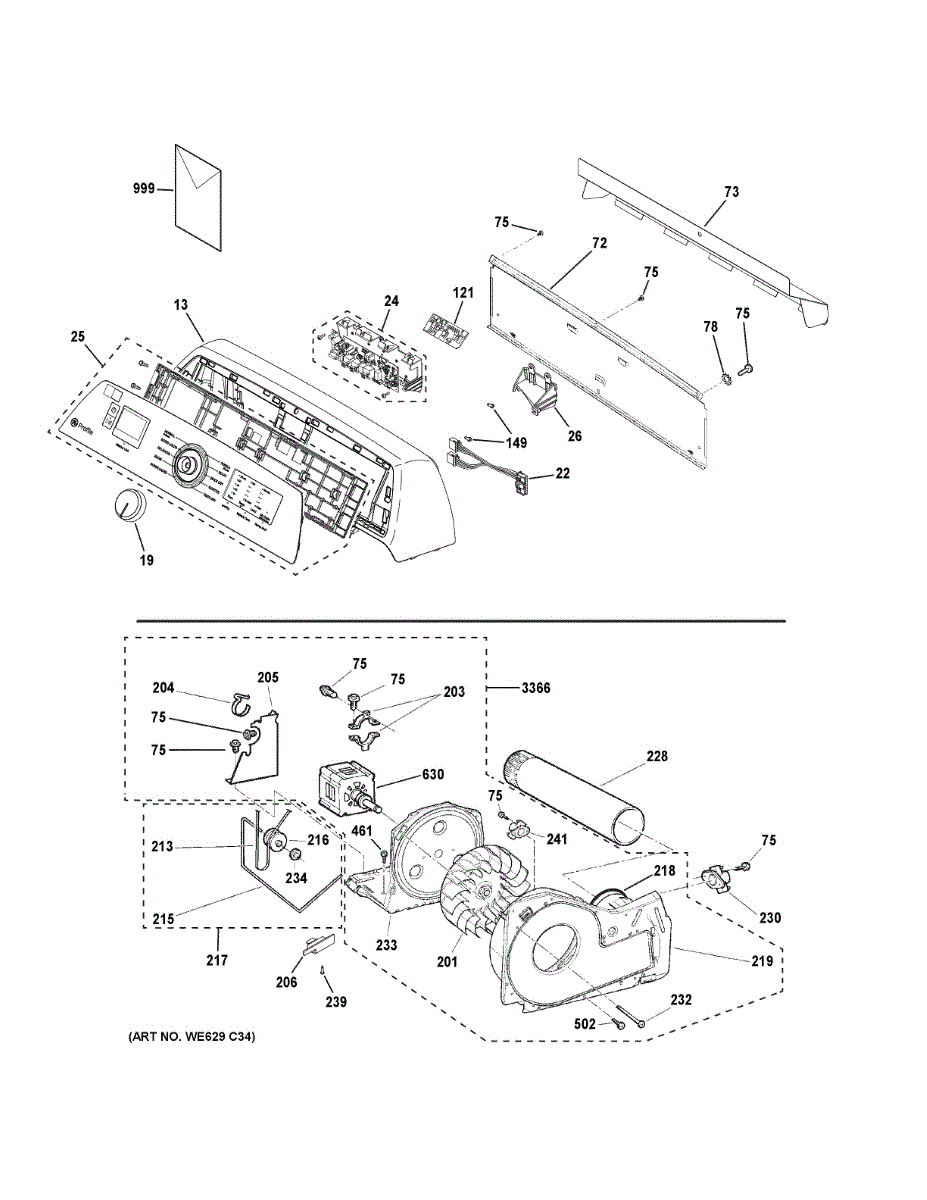

Parts for Ge PTD60EBPR1DG: Backsplash, Blower & Motor Assembly Parts

This selector knob is the replacement control knob that lets you choose settings on your appliance's control panel. It restores a secure, easy-to-grip interface so selections are clear and reliable. What it does:

• Replaces a worn, cracked, or missing control knob so you can reliably change appliance settings.
• Provides a tactile grip and visible pointer for accurate selection of cycles or functions.
• Stops slipping or loose rotation that can prevent correct setting selection.
• Matches the original shape to engage the control shaft properly.

• Remove power to the appliance before replacing the knob to avoid accidental operation.
• Most installations simply pull the old knob straight off the control shaft and push the new knob fully onto the shaft until seated.
• If fit is tight, align the internal spline with the control shaft and press firmly; do not force at an angle.

This user interface board and IMD assembly is the dryer control panel electronics that receives your button presses and manages cycle selections, displays, and timed functions so the dryer responds correctly to user input. What it does:

• Translates button and dial inputs into commands for the dryer control system
• Controls cycle selection, display indicators, and status lights
• Communicates with the main control to start/stop and regulate drying cycles
• Common fix for unresponsive buttons, incorrect cycle displays, or control-panel communication faults

• Disconnect power to the appliance before beginning any work to avoid shock hazard
• Handle the board by the edges and avoid touching contacts; static discharge can damage electronics
• Verify the part number on the old assembly matches this part before installing

This factory screw secures dryer panels and internal components, keeping assemblies tight and aligned so the machine operates safely and without vibration or rattling.

• Fastens sheet-metal panels, brackets, or trim to the dryer cabinet/frame
• A loose or missing screw can cause panel vibration, noise, or misalignment
• Helps restore stability after service or when original hardware is lost
• Typical symptoms include rattling, loose panels, or gaps in trim

• Unplug the dryer before servicing
• Keep track of original screw locations and lengths; replace like-for-like
• Start screws by hand to avoid cross-threading, then snug—do not overtighten
• If threads are damaged, inspect mating hole or clip before installing

This Wi-Fi & Bluetooth control board restores wireless connectivity so your appliance can pair with smart devices and communicate with apps or hubs. It replaces a failed or unresponsive wireless module to re-enable remote monitoring and control. What it does:

• Provides Wi-Fi and Bluetooth radio functions for appliance app connectivity and smart features
• Enables remote diagnostics, notifications, and appliance-to-app communication when supported
• Replaces boards that show no wireless connection, intermittent pairing, or failed network registration
• Works as the appliance's primary wireless interface; does not include separate display or main control board functions

• One Wi-Fi & Bluetooth control board with instructions

• Disconnect power to the appliance before starting any repair to avoid shock or damage
• Follow manufacturer instructions for board handling and ESD-sensitive components
• Verify wiring harness connections and antenna leads are secured and routed per OEM guidance

8-18 hi/lo 5/8

The Blower Wheel is an OEM component specifically designed for GE dryers. It is responsible for circulating air during the drying cycle, directing airflow through lint and clothes to remove moisture. The plastic blades of the blower wheel push air through the dryer and out the vent when the motor is running.

Symptoms of a bad blower wheel include:

• Slow or inefficient drying times even on low moisture loads
• Strange noises from inside the dryer cabinet
• Excessive vibrations felt through the dryer door or cabinet
• Bent or cracked blower wheel blades

Causes can include normal wear and tear over time, accidents that damage the blades, or failures in the secure mounting of the blower wheel.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This motor strap secures the appliance motor to the cabinet, keeping the motor stable during operation to reduce vibration and noise. Use this replacement to restore proper motor positioning and support in compatible models. What it does:

• Holds the motor firmly in place to prevent movement or shifting during use
• Helps reduce vibration and associated noise caused by a loose motor
• Maintains correct motor alignment so belts and linkages run smoothly
• Commonly used when a worn or broken strap allows motor sag or misalignment

• One motor mounting/retaining strap

• Disconnect power to the appliance before beginning any work
• Inspect mounting points and fasteners; replace any damaged hardware as needed
• Secure strap to the motor and cabinet using the original mounting holes and recommended hardware

This idler support bracket holds the dryer idler pulley in the correct position so the drive belt stays routed and tensioned, helping the drum turn smoothly. It replaces a worn or broken bracket to restore proper belt alignment and reduce belt slippage. What it does:

• Secures the idler pulley to the dryer chassis so the drive belt maintains correct tension
• Keeps the belt aligned to prevent rubbing, squealing, or premature wear
• Helps the drum turn freely by maintaining consistent belt routing and tension
• Commonly replaced when the bracket is cracked, bent, or the idler pulley mounting fails

• One idler support bracket

• Disconnect power before starting any repair
• Access typically requires removing the dryer's front or lower access panel; follow model-specific disassembly steps
• Inspect the idler pulley and drive belt; replace any worn components together to ensure reliable operation
• Use basic hand tools; avoid forcing fasteners and follow torque/fastening recommendations in the service manual

The Belt Drive is an OEM replacement part for GE dryers. It is responsible for transferring power from the motor to the drum. A bad belt drive can be caused by normal wear and tear over time, as well as excessive load or strain on the dryer drum.

Symptoms of a bad belt drive include:

• The dryer drum not spinning or rotating.
• Unusual noises coming from the dryer during operation.
• The drum not tumbling smoothly or consistently.
• The belt appearing frayed, cracked, or broken.

Causes of a faulty Belt Drive can include normal wear and tear over time, excessive tension or stretching, or physical damage from improper installation or foreign objects.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This idler arm, also called a belt tensioner arm, supports the idler pulley that keeps the dryer's drive belt tight so the drum rotates smoothly. Replacing a worn arm helps eliminate noise and belt tracking issues.

• Maintains proper belt tension by positioning the idler pulley against the drive belt
• Helps prevent belt slippage, squealing, and premature belt wear
• Supports smooth, consistent drum rotation during cycles
• Typical failure symptoms include squeaking/chirping, burning rubber smell, belt coming off, or the drum not turning

• Disconnect power; for gas dryers, also shut off the gas supply
• Access the idler assembly by removing the front or lower access panel
• Release belt tension and note the belt routing; reinstall pulley and spring as removed, then re-tension the belt
• Manually rotate the drum to verify belt tracking before reassembly and testing

The Idler Pulley is an OEM component specifically designed for GE dryers. As part of the drum assembly, the idler pulley helps drive the rotation of the drying drum. It works closely with the belt and motor pulley to spin the drum and tumble clothes during the drying cycle.

Causes of a bad idler pulley can include wear and tear of moving parts over time, loose or worn belts that cause added strain, or damage from sticking or jamming during operation.

Symptoms of a bad idler pulley include:

• The dryer drum not spinning or tumbling clothes
• Loud grinding or squealing noises coming from inside the dryer
• The belt slipping off the pulleys
• Vibration or shaking during use

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This dryer idler arm assembly keeps the drive belt tight and aligned so the drum turns smoothly. A worn or seized idler can cause squealing, belt slippage, or a drum that won't tumble.

• Applies tension to the drive belt and guides it around the motor pulley
• Maintains proper belt alignment for consistent drum rotation
• Common symptoms of failure: squealing/squeaking, belt coming off or wearing quickly, drum not turning, or burning rubber odor
• Pulley should spin freely; roughness or wobble indicates replacement is needed

• Disconnect power; if gas, also shut off gas supply before servicing
• Remove top/front panels as needed, release belt tension, and note belt routing
• Remove the old idler from its mount; transfer spring from the original if required by your model, then install the new assembly and re-route the belt
• Rotate drum by hand to verify belt tracking before reassembly and test run

This exhaust blower gasket seals the joint between the dryer's blower outlet and exhaust duct. It helps maintain proper airflow and contain lint and heat, supporting efficient drying and preventing leaks into the cabinet or laundry area. What it does:

• Seals the blower-to-exhaust connection to prevent air and lint leaks
• Helps maintain designed airflow through the drum and vent system
• Can reduce warm air or lint escaping inside the cabinet

• 1 gasket

• Disconnect power; for gas dryers, shut off gas and disconnect the supply. Allow the dryer to cool.
• Access the blower housing/exhaust duct; remove panels as needed.
• Remove the old gasket and any residue; clean mating surfaces and lint before installing.
• Seat the new gasket evenly and reassemble; avoid overtightening fasteners and ensure the home vent is clear.

This blower housing channels heated air from the dryer drum to the vent, restoring proper airflow and helping the appliance dry clothes efficiently. It replaces a cracked or damaged housing to reduce air leaks and noise. What it does

• Directs and seals airflow from the dryer drum to the blower wheel and exhaust vent.
• Helps maintain proper drying performance and cycle times by preventing air loss.
• Reduces rattling or scraping noises caused by a damaged housing contacting the blower wheel.
• Can prevent overheating caused by restricted or leaking airflow.

• One blower housing assembly.

• Disconnect power (and gas supply for gas dryers) before starting any service.
• Access may require removing the dryer front or rear panel; follow your model's service instructions.
• Inspect the blower wheel and seals when installing; replace if worn or damaged.

This exhaust duct is a replacement vent connector that routes appliance exhaust air safely away from the unit, helping restore proper airflow and reduce heat buildup. Use it to replace a damaged or missing duct for safer venting. What it does:

• Channels exhaust air from the appliance to the household vent system
• Restores proper airflow when the original duct is cracked, bent, or disconnected
• Helps reduce heat and moisture buildup around the appliance
• Supports safe operation by maintaining a clear exhaust path

• Disconnect power to the appliance before beginning any service
• Confirm orientation and fit with the appliance vent opening before final installation
• Use appropriate clamps or fasteners and ensure a secure, airtight connection
• If venting to the outdoors, verify the exterior vent is clear of obstructions after installation

The Thermostat is an OEM part for GE dryers. It works with the heating element and thermistor to monitor drum temperatures accurately during drying cycles. As a critical safety and operational component, the thermostat is responsible for regulating power to the gas valve and heating element.

Symptoms of a faulty thermostat include:

• Inconsistent or prolonged drying times between loads
• The dryer failing to reach desired temperatures
• Cycles stopping intermittently due to overheating
• Difficulty setting or maintaining temperature selections

Causes can be normal wear from extended use, moisture damage if venting is not cleaned properly, or impact fractures over time.

This genuine GE replacement restores precise temperature control for safety and performance. Installing this high-quality OEM thermostat eliminates incorrect diagnoses to ensure proper functionality cycle after cycle. For GE gas models as well as compatible Hotpoint, RCA, and select Kenmore gas dryers.

This plate motor drives the microwave/oven turntable, keeping the glass tray rotating for even cooking and heating. Replaces a worn or failed motor to restore tray rotation and reduce uneven heating. What it does:

• Turns the glass turntable so food cooks evenly
• Stops rotation or hesitates when motor fails or wears out
• May make buzzing, grinding, or intermittent noises before failing
• Prevents the turntable from rotating if the motor no longer engages

• One replacement plate (turntable) motor

• Disconnect power before servicing to avoid shock; verify unit is fully powered off
• Remove the turntable glass and roller guide to access the motor underneath the oven/microwave floor
• Typical install requires removing interior fasteners and unplugging the motor connector; retain hardware for reassembly

The Outlet Control Thermistor is an OEM part for GE dryers. This thermistor monitors and regulates the temperature inside the dryer by sending temperature readings to the control board, ensuring the dryer operates at optimal temperatures for efficient drying and preventing overheating.

Causes of a bad outlet control thermistor can include wear and tear from regular use, electrical malfunctions, or exposure to excessive heat.

Symptoms of a bad outlet control thermistor include:

• The dryer overheating or not heating at all
• Inconsistent drying times
• The dryer shutting off prematurely
• Error codes related to temperature issues

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 8-32 t. Includes 12 screws.

This GE Motor Drive and Pulley is an OEM part for GE dryers. The motor drive powers the drum, and the pulley system ensures proper tension and alignment of the belt.

The need for replacement can arise from various factors such as prolonged use, electrical issues, or mechanical wear and tear. A failing motor drive and pulley can significantly impact the dryer's performance.

Symptoms of a malfunctioning Motor Drive and Pulley include:

• The dryer drum struggles to turn or doesn't turn at all.
• Unusual noises like humming or grinding during operation.
• The dryer stops unexpectedly during a cycle.
• Overheating of the dryer motor.
• The dryer takes longer than usual to dry clothes.

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


This motor and blower assembly powers airflow and drum rotation in compatible laundry appliances, restoring proper ventilation and tumble performance. Replaces the single combined motor/blower unit so the appliance can move air and dry clothes efficiently. What it does:

• Drives the blower wheel to circulate air through the drum and exhaust system
• Powers drum rotation where applicable so loads tumble evenly
• Helps remove moisture and lint from the drying chamber
• Symptoms of a failing unit: little or no airflow, poor drying, unusual noise, or the drum not turning

• One motor and blower assembly

• Disconnect power before servicing to avoid shock or injury
• Handle the blower wheel and motor carefully to avoid bending fins or damaging wiring
• Ensure mounting hardware and duct connections are secure for proper airflow
