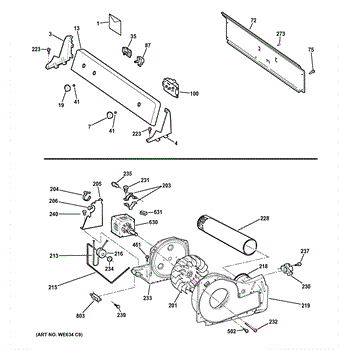

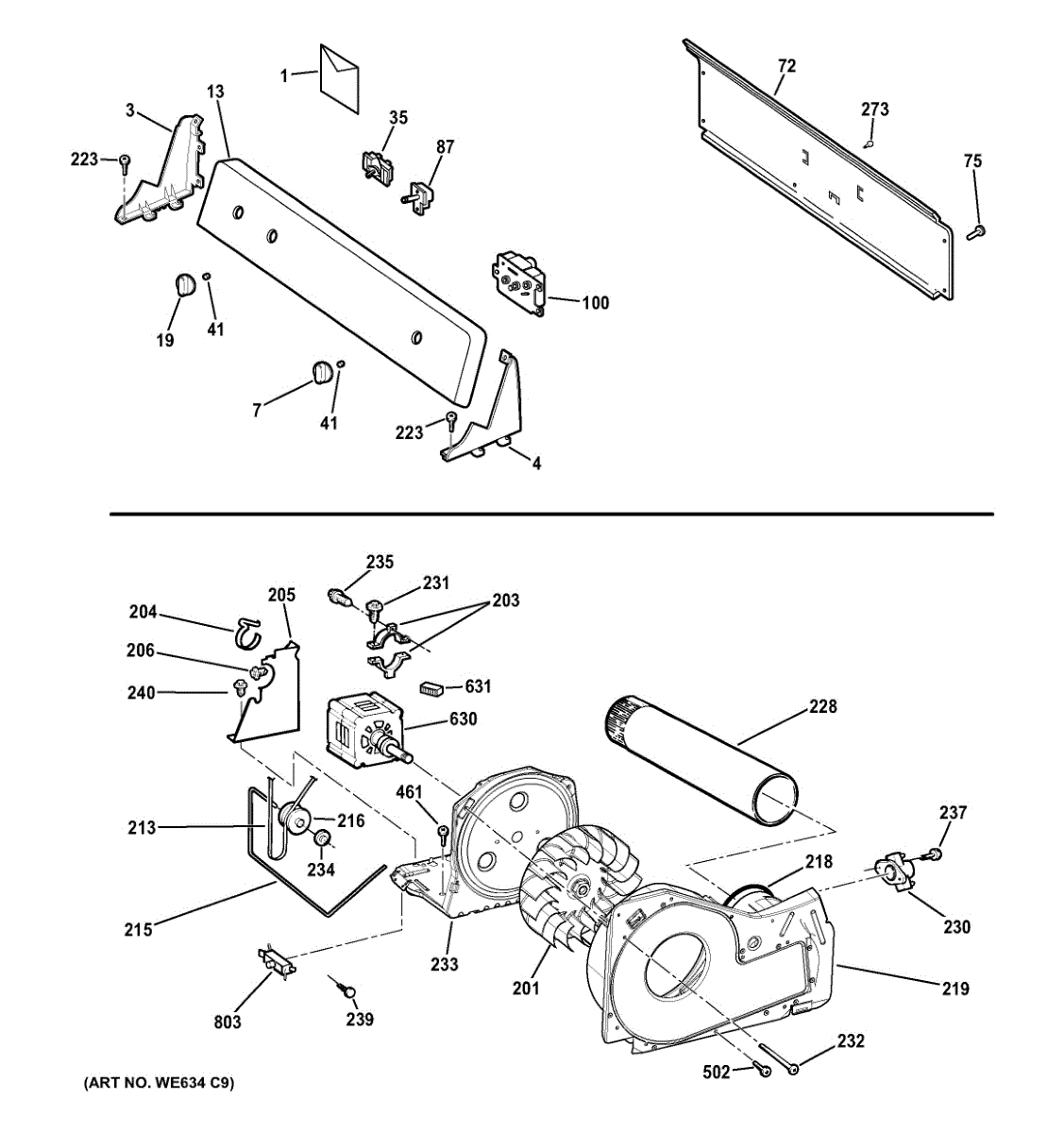

Parts for Hot Point HTDP120ED5WW: Backsplash, Blower & Motor Assembly Parts

The Timer Knob is an OEM replacement part for GE dryers. This knob controls the timer dial, which allows users to select the desired drying time settings.

Causes of a bad timer knob can include wear and tear over time, damage such as cracks or splits, or failure of the electronic components that control the rotation mechanism.

Symptoms of a bad timer knob include:

• Difficulty turning or selecting time settings
• Glitching or failure to stop at desired increments
• Loose, wobbly, or misaligned fit on the timer dial
• Cracked or broken knob

This OEM GE replacement part is also compatible with models produced by Hotpoint, RCA, and some Kenmore models.

The Control Knob is an OEM part for GE washing machines, crafted to seamlessly integrate with your appliance. This knob allows users to select and adjust various settings, ensuring precise control over the washing machine's operations.

Signs that you might need to replace the Control Knob include it becoming loose, unresponsive, or breaking off, which can occur with age or from accidental damage.

Symptoms of a bad Control Knob include:

• The knob not engaging with the machine's settings, leading to difficulty in selecting wash cycles.
• A loose or wobbly knob that does not securely fit onto the washing machine.
• Visible cracks or damage that prevent the knob from functioning correctly.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Dryer Rotary Start Switch is an OEM replacement part for GE electric dryers. This switch functions as the manual interface for selecting drying cycles and initiating operation. Reliable start switch function is key for convenient control.

Symptoms of a faulty switch include:

• Difficulty turning or clicking through cycle options
• Dryer failing to start even when a cycle is selected
• Dryer starting unintentionally or without input
• Potential safety concerns if switch malfunctions

Causes of a bad start switch can be normal wear and tear over heavy usage periods. Worn internal components prevent dependable cycling.

This OEM GE replacement is compatible with Hotpoint, RCA and some Kenmore models.

This rear panel is the replacement cabinet back panel that restores the appliance's exterior enclosure and supports internal components. It provides a clean, secure rear surface and helps protect internal wiring and parts from damage. What it does

• Replaces a dented, rusted, or damaged rear cabinet panel to restore proper enclosure and airflow
• Shields internal components and wiring from dust, debris, and accidental contact
• Helps maintain proper venting clearance and appliance stability when mounted correctly
• Prevents sharp edges and gaps that can cause injury or allow pests into the cabinet area

• Disconnect power (and gas if applicable) before servicing; ensure appliance is fully de-energized
• Remove rear access screws and any attached components carefully to avoid damage
• Align panel, secure with manufacturer-specified fasteners, and verify there are no gaps or pinched wires

Rotary tempurature switch, four position.

The Timer is an OEM part for GE dryers that is responsible for ensuring that the dryer operates for the set amount of time, enabling different cycles and functions to occur at the correct intervals. The timer regulates the start, duration, and end of each drying cycle. Over time, timers can wear out or malfunction due to electrical issues or mechanical wear, leading to problems with the dryer's operation.

Symptoms of a bad Timer include:

• The dryer failing to start or stop at the proper times.
• Only certain cycles working.
• The dryer running continuously without shutting off.

Causes of a bad timer can stem from a variety of issues, including electrical shorts, worn contacts within the timer mechanism. Regular usage and age can contribute to these problems.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This replacement blower wheel for a dryer mounts to the drive motor and pulls air through the drum, lint filter, and exhaust, restoring proper airflow so loads dry efficiently and the appliance runs as intended. What it does:

• Spins with the motor to move air through the drum, lint screen, and exhaust duct
• Maintains airflow needed for even drying and temperature control
• Wear, cracks, or a stripped hub can cause long dry times and weak vent airflow
• Damage or imbalance may produce rattling, scraping, or vibration noises from the blower area

• 1 blower wheel

• Disconnect power; turn off gas supply for gas models before servicing
• Access the blower housing and remove the old wheel from the motor shaft per your model's design
• Clean lint and debris from the blower housing and exhaust duct while open
• Seat the new wheel fully and verify free rotation without rubbing before reassembly

This replacement motor strap secures the dryer's drive motor to its mounting bracket so the motor and blower stay aligned and stable, helping reduce vibration and noise for smoother operation. What it does:

• Holds the drive motor firmly to the base/bracket
• Maintains proper alignment of the motor and blower wheel to prevent rubbing
• Helps reduce vibration, rattling, and related noise
• Typical signs of failure: increased vibration, rattling, scraping from the blower area, or a motor that feels loose inside the cabinet

• Includes 1 motor strap

• Disconnect power; for gas dryers, also shut off gas supply
• Access the motor assembly; note the strap's routing/orientation before removal
• Support the motor while releasing the strap to avoid stressing wiring and mounts
• After securing the strap, rotate the drum/blower by hand to verify free movement before reassembly

The Belt Drive is an OEM replacement part for GE dryers. It is responsible for transferring power from the motor to the drum. A bad belt drive can be caused by normal wear and tear over time, as well as excessive load or strain on the dryer drum.

Symptoms of a bad belt drive include:

• The dryer drum not spinning or rotating.
• Unusual noises coming from the dryer during operation.
• The drum not tumbling smoothly or consistently.
• The belt appearing frayed, cracked, or broken.

Causes of a faulty Belt Drive can include normal wear and tear over time, excessive tension or stretching, or physical damage from improper installation or foreign objects.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This idler arm, also called a belt tensioner arm, supports the idler pulley that keeps the dryer's drive belt tight so the drum rotates smoothly. Replacing a worn arm helps eliminate noise and belt tracking issues.

• Maintains proper belt tension by positioning the idler pulley against the drive belt
• Helps prevent belt slippage, squealing, and premature belt wear
• Supports smooth, consistent drum rotation during cycles
• Typical failure symptoms include squeaking/chirping, burning rubber smell, belt coming off, or the drum not turning

• Disconnect power; for gas dryers, also shut off the gas supply
• Access the idler assembly by removing the front or lower access panel
• Release belt tension and note the belt routing; reinstall pulley and spring as removed, then re-tension the belt
• Manually rotate the drum to verify belt tracking before reassembly and testing

The Idler Pulley is an OEM component specifically designed for GE dryers. As part of the drum assembly, the idler pulley helps drive the rotation of the drying drum. It works closely with the belt and motor pulley to spin the drum and tumble clothes during the drying cycle.

Causes of a bad idler pulley can include wear and tear of moving parts over time, loose or worn belts that cause added strain, or damage from sticking or jamming during operation.

Symptoms of a bad idler pulley include:

• The dryer drum not spinning or tumbling clothes
• Loud grinding or squealing noises coming from inside the dryer
• The belt slipping off the pulleys
• Vibration or shaking during use

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This exhaust blower gasket seals the joint between the dryer's blower outlet and exhaust duct. It helps maintain proper airflow and contain lint and heat, supporting efficient drying and preventing leaks into the cabinet or laundry area. What it does:

• Seals the blower-to-exhaust connection to prevent air and lint leaks
• Helps maintain designed airflow through the drum and vent system
• Can reduce warm air or lint escaping inside the cabinet

• 1 gasket

• Disconnect power; for gas dryers, shut off gas and disconnect the supply. Allow the dryer to cool.
• Access the blower housing/exhaust duct; remove panels as needed.
• Remove the old gasket and any residue; clean mating surfaces and lint before installing.
• Seat the new gasket evenly and reassemble; avoid overtightening fasteners and ensure the home vent is clear.

This exhaust duct routes hot, moist air from the appliance to the home vent, helping maintain proper airflow and reduce lint buildup. It's a direct-fit replacement designed to restore correct venting and appliance performance. What it does:

• Channels exhaust air from the appliance to the external vent.
• Helps prevent reduced airflow that can lengthen cycle times or reduce drying/heating performance.
• Reduces lint accumulation in the appliance exhaust path when intact and properly connected.
• Replaces damaged, crushed or disconnected ducting that can cause air leakage or poor venting.

• Disconnect power to the appliance (and shut off gas supply for gas models) before starting.
• Use gloves to avoid sharp edges; secure connections with the original clamps or equivalent fasteners.

This hex washer-head screw secures dishwasher components like brackets, shields, and panels. Replacing a stripped or missing screw restores a tight fit and helps prevent vibration, rattling, and loose parts during operation.

• Fastens parts where a #10-16 x 1/2-inch hex washer-head screw is specified
• Secures brackets, panels, and assemblies to the tub or frame
• Helps resolve symptoms like loose panels, vibration, or rattling noises
• Restores proper hold when the original screw is stripped, missing, or damaged

• Disconnect power and shut off water to the dishwasher before servicing
• Match length and thread to the original; replace screws one at a time to maintain alignment
• Start threading by hand to avoid cross-threading; tighten snugly—do not overtighten, especially into plastic
• Verify no wires or hoses are pinched before reassembly

• Size: #10-16 x 1/2 inch
• Head: hex washer-head
• Type: AB tapping screw

This motor plate is the stamped metal mounting plate that secures the motor assembly and keeps it aligned for smooth operation. It restores proper motor positioning and reduces vibration-caused noise or wear. What it does:

• Provides a stable mounting surface for the motor assembly
• Maintains motor alignment to ensure smooth shaft rotation
• Helps reduce excess vibration and noise from a loose or damaged motor support
• Supports related components so belts and pulleys track correctly

• Disconnect power before starting any repair to avoid shock or injury
• Installation requires basic hand tools and access to the motor compartment
• Verify motor and surrounding hardware are undamaged; replace any worn fasteners

This is a 10-16 x 1/2 screw used to fasten small appliance components and panels; it restores secure attachment and helps stop rattling or loose parts for reliable operation. What it does:

• Secures panels, brackets, and small assemblies to the appliance
• Prevents movement that can cause noise, vibration or misalignment
• Restores proper fit where a worn or missing screw caused loose parts
• Matches OEM size so replacement fits original mounting points

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread carefully and do not overtighten—stop when snug to avoid damage
• Replace like-for-like; if corrosion or stripped threads are present, repair or replace the mating part as needed

This screw is a factory replacement fastener used to secure appliance panels and components. It restores lost or loose hardware so parts sit correctly and operate without rattling or movement. What it does

• Secures panels, brackets, and small components to the appliance frame
• Restores proper alignment and helps eliminate rattling or vibration
• Replaces missing or stripped fasteners that prevent parts from staying fixed
• Matches OEM fit for reliable fastening where the original screw was used

• One replacement screw

• Use the correct-size screwdriver or driver bit to avoid stripping the head
• Power off and unplug the appliance before accessing internal components
• Tighten snugly but avoid overtightening to prevent thread damage
• Keep removed hardware organized so you can install replacements in the original locations

Size: 8-32 t. Includes 12 screws.

The Drive Motor Kit is an OEM part for GE dryers. This part powers the drum rotation during the drying cycle, ensuring proper tumbling and airflow for efficient drying performance.

Causes of a bad part can include normal wear and tear over time, bearing failure, or electrical issues that prevent the motor from functioning correctly.

Symptoms of a bad Drive Motor Kit include:

• Failure of the dryer drum to rotate or tumble
• Loud grinding or squeaking noises from the motor area
• Overheating or burning smell from the motor
• Incomplete or prolonged drying times

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.
