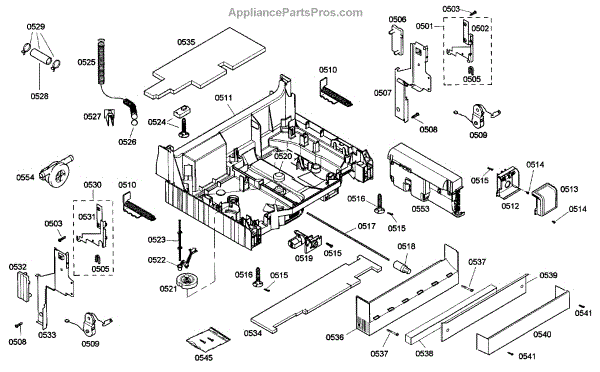

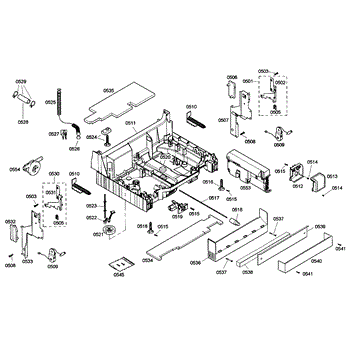

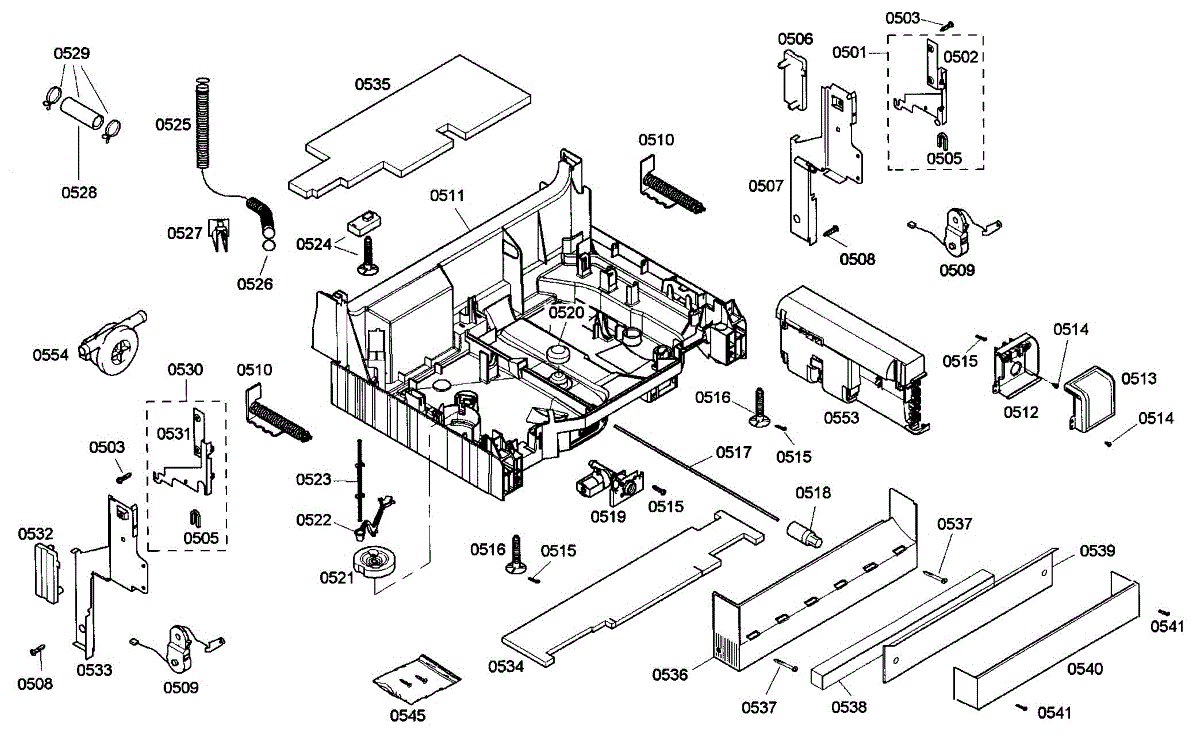

Parts for Bosch SHE68M06UC/47: Base Assembly Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Hinge Lever (RH) is an OEM component specifically designed for Bosch dishwashers. This right-hand lever is a part of the dishwasher door hinge assembly, working to open and close the door during each use.

Causes of a bad hinge lever can include wear and fatigue over thousands of opening and closing cycles. Damage can also potentially occur from any impact or denting of the door surface near the lever mechanism.

Symptoms of an ineffective hinge lever include:

• The dishwasher door sagging or becoming misaligned
• Difficulty fully opening or closing the door
• Loud squeaks or grinding noises coming from the hinges
• The door potentially detach from the hinge if broken

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers.

The Hinge Lever (RH) is an OEM component specifically designed for Bosch dishwashers. This right-hand lever is a part of the dishwasher door hinge assembly, working to open and close the door during each use.

Causes of a bad hinge lever can include wear and fatigue over thousands of opening and closing cycles. Damage can also potentially occur from any impact or denting of the door surface near the lever mechanism.

Symptoms of an ineffective hinge lever include:

• The dishwasher door sagging or becoming misaligned
• Difficulty fully opening or closing the door
• Loud squeaks or grinding noises coming from the hinges
• The door potentially detach from the hinge if broken

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers.

The Hinge Lever (RH) is an OEM component specifically designed for Bosch dishwashers. This right-hand lever is a part of the dishwasher door hinge assembly, working to open and close the door during each use.

Causes of a bad hinge lever can include wear and fatigue over thousands of opening and closing cycles. Damage can also potentially occur from any impact or denting of the door surface near the lever mechanism.

Symptoms of an ineffective hinge lever include:

• The dishwasher door sagging or becoming misaligned
• Difficulty fully opening or closing the door
• Loud squeaks or grinding noises coming from the hinges
• The door potentially detach from the hinge if broken

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers.

The Hinge Bushing is an OEM component for Bosch dishwasher models. This bushing acts as a guide and support component for the dishwasher door hinge assembly. It facilitates smooth and quiet opening and closing of the door.

Symptoms of a bad hinge bushing include:

• noise or squeaking coming from the door hinges
• excess play or looseness feeling in the hinge movement
• difficulty fully closing or opening the dishwasher door

Causes of a bad hinge bushing can be normal wear and tear over the life of the appliance. Small metal particles embedded in the bushing material during manufacturing may also cause premature wear.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This hinge cover is a molded trim piece that protects and conceals a refrigerator door hinge for a clean finished look. It helps keep hinge hardware free of dust and reduces sharp edges while restoring appearance. What it does

• Covers the door hinge area to hide hardware and improve the appliance's appearance
• Helps block dust and debris from accumulating on hinge components
• Reduces the risk of clothes or fingers catching on exposed hinge parts
• Matches OEM fit and shape to maintain proper clearance and alignment

• One hinge cover

• High-level replacement: remove the old cover and snap or screw the new cover into place (specific fasteners vary by model)
• Use basic hand tools if required; for model-specific instructions
• Disconnect power (or follow appliance-specific safety steps) before working near electrical components
• Inspect hinge and hardware while replacing the cover; replace damaged hinge components as needed

This is the right side hinge plate. For left side use 00298567.

This factory screw secures select Bosch/BSH appliance components. Use it to replace a missing or damaged fastener so panels, brackets, or trim stay tight and rattle-free during operation.

• Tightens and holds appliance parts such as panels, brackets, or trim in place
• Helps correct issues like loose or vibrating panels caused by a missing/stripped screw
• Maintains proper fitment after service or disassembly
• Torx T20 drive head helps resist cam-out during tightening

• Unplug power and shut off any water supply before servicing
• Use a T20 Torx driver; hand-start to avoid cross-threading
• Do not overtighten—snug to manufacturer torque guidance if available
• Replace any additional missing or damaged fasteners for even clamping

The Roller and Cable Assembly is an OEM part for Bosch dishwashers. This assembly includes the roller and cable, which work together to facilitate the smooth operation of the dishwasher door, allowing it to open and close effortlessly.

Over time, the roller and cable can wear out or become damaged due to regular use, friction, or accidental mishandling. If either component fails, it can affect the balance and movement of the dishwasher door, making it difficult to operate.

Symptoms of a bad roller and cable assembly include:

• Difficulty in opening or closing the dishwasher door
• A sagging or misaligned door
• Unusual noises when operating the door
• The door not staying securely in place

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

Spring with blue dot.

The Terminal Box is an OEM part for Bosch dishwashers. It serves as the central hub for connecting electrical wires within the appliance, ensuring a safe and organized electrical system.

Over time, the terminal box can become damaged due to electrical malfunctions, corrosion, or physical impact. Wear and tear from regular use can also affect its integrity, leading to potential electrical issues.

Symptoms of a bad terminal box include:

• The dishwasher not starting or failing to complete cycles
• Intermittent power issues
• Burning smells or visible burns around the terminal box
• Electrical shorts or tripped circuit breakers

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Junction Box Cover is an OEM part for Bosch dishwashers. Located at the rear of the appliance, the junction box houses connections to the power supply and control board wiring. The junction box cover protects these internal electronic parts.

Symptoms of a bad junction box cover can include:

• Cracks, breaks or missing pieces of the plastic casing
• Exposed wires posing risk of electric shock
• Difficulties accessing internal components for service or repairs
• Potential water damage into electrical components

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This replacement screw secures appliance panels and internal brackets so components stay tight and aligned during everyday use. Replacing missing or stripped hardware restores a solid fit and helps minimize vibration and rattling.

• Fastens covers, panels, and brackets to their mounting points
• Helps maintain alignment of the attached component
• Reduces movement that can cause noise or wear
• Typical reasons to replace: missing screw, stripped head/threads, loose panel or bracket

• Disconnect power and, if applicable, shut off water before servicing
• Use the driver bit specified for your model; hand start threads to avoid cross-threading
• Tighten snugly without over-torquing to prevent stripping
• Replace screws one at a time to maintain alignment

This front leveling leg supports and adjusts the appliance at the front, helping it sit stable and truly level. Replace a damaged or missing leg to restore proper height, stability, and smooth door alignment during everyday use.

• Provides height adjustment at the front to level the appliance
• Helps prevent rocking, vibration, and rattling
• Maintains correct cabinet/door alignment for proper operation
• Replace if the foot is cracked, stripped, missing, or won't adjust
• Common signs: unit wobbles, sits unevenly, or is difficult to level

• Disconnect power; if applicable, shut off water or gas. Pull the appliance forward and remove the toe-kick/access panel for clearance.
• Protect the floor; tilt or raise the front slightly to reach the leg.
• Unscrew the damaged leg; thread the new leg in by hand to avoid cross-threading.
• Adjust height until level front-to-back and side-to-side; verify stability before returning to service.

This adjuster socket is the replacement socket used with a cabinet/appliance leveling foot to adjust and stabilize the unit. It lets you raise or lower the appliance for a level installation and steadier operation. What it does:

• Engages the appliance leveling foot so you can turn and set the height
• Restores proper leveling to reduce rocking, uneven doors, and drainage issues
• Provides a secure interface between the leg and adjustment tool or nut
• Durable replacement for worn or damaged socket components

• One adjuster socket

• Turn power off and unplug the appliance before accessing leveling components
• Access may require tipping or partially removing the front grill or toe panel per your model's service manual
• Verify correct socket orientation and thread engagement before lowering appliance back to floor

The Water Valve Assembly is an OEM part for Bosch dishwashers. This assembly controls the flow of water into the dishwasher, ensuring that the correct amount of water is used during the wash cycle for optimal cleaning performance.

Causes of a bad water valve assembly can include mineral deposits from hard water, wear and tear over time, or electrical issues that prevent the valve from opening or closing properly. These issues can lead to improper water flow or leaks.

Symptoms of a bad water valve assembly include:

• Dishwasher not filling with water
• Insufficient water during the wash cycle
• Water leaks from the valve area
• Unusual noises when the valve is operating

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Float is an OEM part for Bosch dishwashers. This float senses water levels inside the dishwasher, signaling the inlet valve to refill when needed.

Causes of a float malfunctioning can be mineral deposits accumulating and weighing it down over time, or cracks in the plastic housing allowing water in.

Symptoms of a bad float include:

• The dishwasher not filling or filling slowly
• Error codes related to fill issues
• Improper water levels impacting wash results

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This float switch lever is the actuator that moves the dishwasher's tub float to operate the water-level/flood-sensing switch, helping the appliance detect overfill and control fill/drain cycles. Replaces a worn or broken lever to restore proper float activation. What it does:

• Transfers movement from the tub float to the float switch so the machine senses water level correctly
• Commonly needed when a cracked or detached lever prevents the float from engaging the switch
• Can stop overfill-safety trips or no-fill symptoms caused by a non-responsive float assembly
• Works with the existing float and float switch; restores mechanical linkage function

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove lower access panels or tub components as required to reach the float assembly
• Inspect surrounding clips and the float for damage; replace any broken hardware
• Tighten securely but avoid over-torquing; test float movement and switch activation before reassembly

This shaft for the float switch is the replacement shaft that secures and guides the dishwasher float to accurately detect water level, helping the appliance fill and shut off properly. Direct-fit design replaces the worn or broken float shaft. What it does

• Guides the float so the level-sensing switch can detect low or high water levels.
• Prevents overfilling by ensuring the float actuates the water-level switch reliably.
• Commonly replaces a cracked, bent or missing shaft that causes inconsistent fill, continuous filling, or water-level errors.

• One replacement float switch shaft.

• Disconnect power to the appliance before starting any repair.
• Remove the access panels and float assembly per your model's service instructions to reach the shaft.
• Inspect the float and switch for damage; replace only the failed components as needed.
• Reassemble carefully and test fill/stop operation before returning the appliance to service.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Drain hose clamp

This drain hose adapter connects the appliance's drain hose to another hose or a compatible fitting, providing a secure, leak-resistant joint so wastewater can be routed to the household drain. Replace when the original adapter is cracked or loose.

• Couples the drain hose to another hose or to a sink/disposal/standpipe fitting
• Helps seal the joint to reduce leaks and hose slippage
• Restores a tight fit when the original adapter is worn, brittle, or missing
• Symptoms of a bad adapter: leaking at the connection, hose won't stay attached, visible cracks

• Disconnect power and turn off water before servicing
• Place a towel or pan to catch residual water from the hose
• Fully seat hose ends over the adapter barbs and secure with appropriate hose clamps
• Run a short test cycle and inspect all connections for leaks

2 clamps included.

The Hinge Lever (LH) is an OEM part for Bosch dishwashers. This left-hand lever is responsible for assisting in the opening and closing of the dishwasher door through a pivoting motion. The hinge lever works with other door components like springs and cables to provide smooth, balanced movement of the door.

Symptoms of a bad Hinge Lever include:

• Difficulty opening or closing the dishwasher door
• The door not staying securely closed during the cycle
• Excessive noise or creaking coming from the door area
• Misalignment of the door

Causes of a bad Hinge Lever can include normal wear and tear over time, damage from excessive force or weight on the door, or loose mounting hardware.

Note: Left hinge lever

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.


The Hinge Lever (LH) is an OEM part for Bosch dishwashers. This left-hand lever is responsible for assisting in the opening and closing of the dishwasher door through a pivoting motion. The hinge lever works with other door components like springs and cables to provide smooth, balanced movement of the door.

Symptoms of a bad Hinge Lever include:

• Difficulty opening or closing the dishwasher door
• The door not staying securely closed during the cycle
• Excessive noise or creaking coming from the door area
• Misalignment of the door

Causes of a bad Hinge Lever can include normal wear and tear over time, damage from excessive force or weight on the door, or loose mounting hardware.

Note: Left hinge lever

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.


The Hinge Lever (LH) is an OEM part for Bosch dishwashers. This left-hand lever is responsible for assisting in the opening and closing of the dishwasher door through a pivoting motion. The hinge lever works with other door components like springs and cables to provide smooth, balanced movement of the door.

Symptoms of a bad Hinge Lever include:

• Difficulty opening or closing the dishwasher door
• The door not staying securely closed during the cycle
• Excessive noise or creaking coming from the door area
• Misalignment of the door

Causes of a bad Hinge Lever can include normal wear and tear over time, damage from excessive force or weight on the door, or loose mounting hardware.

Note: Left hinge lever

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.


This is the left side hinge plate. For right side use 00298570.

This insulating part is a small thermal insulator used to reduce heat transfer and protect nearby components in the appliance. It helps maintain proper internal temperatures and limits heat-related wear on surrounding parts. What it does

• Provides thermal separation between hot components and adjacent panels or wiring
• Helps reduce heat-related failure of nearby parts by slowing heat transfer
• Can reduce localized hot spots that cause odor or premature component wear
• Can help dampen minor vibration noise when fitted correctly

• Disconnect power to the appliance before accessing internal panels
• Remove outer panels or components as needed to reach the old insulating piece
• Handle gently; insulation materials can be fragile or have adhesive backing
• Reassemble panels securely and verify normal operation after installation

The Toe Panel Screw is an OEM replacement part for Bosch dishwashers. It secures the toe panel to the dishwasher.

Causes may involve normal wear and tear over time, improper installation, or damage from excessive force or impact. Replacing with this genuine OEM screw will reinforce your Bosch dishwasher's integrity for reliable performance.

Symptoms of a bad toe panel screw can include:

• The toe panel becoming loose, cracked, or removable
• Internal components visible underneath a loose toe panel
• Strange noises or vibration emanating from the toe panel area

This OEM Bosch part is also compatible with Thermador, Gaggenau and some Kenmore models.

This cotton insulation piece provides noise- and heat-damping for the appliance cabinet area, helping reduce operating sound and limiting heat transfer around the tub. Designed to replace worn or damaged insulation for a snug fit and quieter operation. What it does:

• Reduces operating noise by adding a sound-dampening layer around the tub area
• Helps limit heat transfer from the heater/tub to surrounding panels
• Provides a protective barrier to reduce vibration-related noise
• Restores the original insulation barrier when the old material is compressed or torn

• One cotton insulation panel, white, 46 dB variant

• Disconnect power and water supply before beginning any service
• Handle the insulation gently to avoid tearing; wear gloves and a dust mask if needed
• Remove access panels and old insulation, then position and secure the new piece in the same orientation
• Reinstall panels and restore power; test for proper operation and reduced noise

This dishwasher door seal fits into the channel around the tub opening to create a tight, water-resistant barrier when the door closes. Replacing a worn seal helps stop leaks at the front of the unit and keeps cycles running efficiently. What it does:

• Forms a watertight perimeter seal between the tub and door
• Helps contain water and steam during wash and rinse cycles
• Aids proper door compression for reliable closing
• Common symptoms: water on the floor at the front, drips from door corners, visible cracks/flattening, or gaps in the gasket

• 1 door seal

• Disconnect power and turn off water supply before servicing
• Remove the old seal and clean the gasket channel thoroughly
• Start at the top center and press the new seal evenly into the groove without stretching
• Close the door to check for uniform compression, then run a short test cycle to inspect for leaks

The Control Unit is an OEM part for Bosch dishwashers. It is responsible for controlling receiving and interpreting signals from the control panel and other sensors in the dishwasher. It coordinates the timing and sequencing of different parts, such as the motor, water inlet valve, and heating element.

A bad control unit can occur due to electrical malfunctions, power surges, or part failure. Signs of a faulty module include the dishwasher not starting, error codes on the display, or erratic behavior during the cycle.

Symptoms of a bad control unit include:

• The dishwasher not starting or responding
• Error codes displayed
• Interruptions of the cycle

Replace your faulty control unit with this genuine OEM Bosch part to restore your dishwasher. This Bosch part can also be used on Thermador and Gaggenau appliances.


The Impeller Jug is an OEM part for Bosch dishwashers. Located inside the wash chamber, the impeller jug is responsible for evenly distributing water throughout the dish rack during the wash cycle. It features strategically placed holes and channels that work with the spray arms to direct water flow and ensure all dishes receive thorough coverage.

Symptoms of a bad impeller jug include:

• Incomplete cleaning even on short or heavy wash cycles
• Dirty dishes remaining at the end of the cycle
• A buildup of food or grime deposits inside the wash chamber
• Off-balanced or excessive noise levels during washing

Causes of failure can be mineral or scale buildup inhibiting water flow, cracked or damaged casing allowing leaks, or worn impeller fins no longer efficiently dispersing water. Over time, hard water deposits and normal use can degrade performance.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
