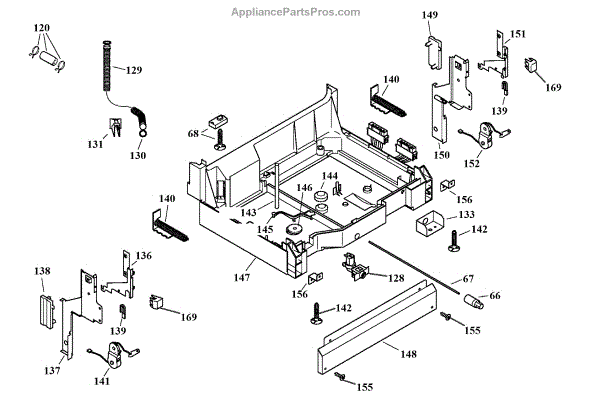

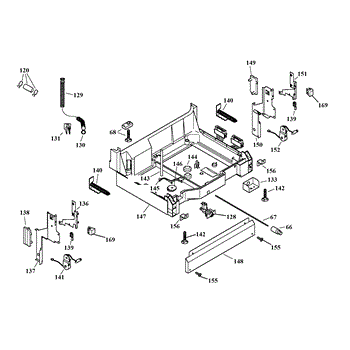

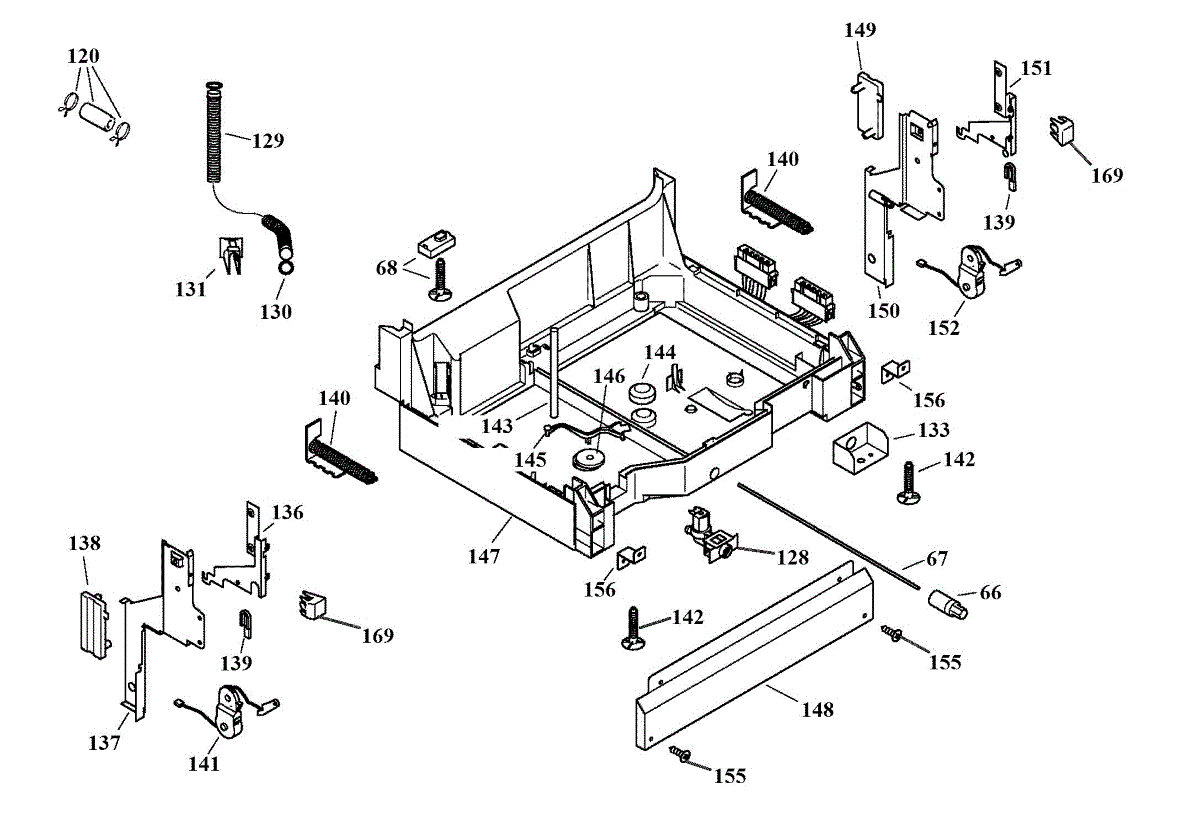

Parts for Bosch SHU5302UC/12: Base Assy Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This adjuster socket is the replacement socket used with a cabinet/appliance leveling foot to adjust and stabilize the unit. It lets you raise or lower the appliance for a level installation and steadier operation. What it does:

• Engages the appliance leveling foot so you can turn and set the height
• Restores proper leveling to reduce rocking, uneven doors, and drainage issues
• Provides a secure interface between the leg and adjustment tool or nut
• Durable replacement for worn or damaged socket components

• One adjuster socket

• Turn power off and unplug the appliance before accessing leveling components
• Access may require tipping or partially removing the front grill or toe panel per your model's service manual
• Verify correct socket orientation and thread engagement before lowering appliance back to floor

2 clamps included.

The Water Inlet Valve is an OEM part for Bosch dishwashers. This component is responsible for controlling the flow of water into the dishwasher. It operates via electrical signals from the dishwasher's control board, opening to allow water to enter during the filling phase and closing to halt water flow once the correct level is achieved.

Causes for replacement can include wear and tear over time, mineral deposits from hard water that obstruct the valve, or electrical failures that prevent the valve from opening or closing properly.

Symptoms of a bad Water Inlet Valve include:

• Insufficient water filling the dishwasher, leading to poor cleaning results.
• No water entering the dishwasher, resulting in dry cycles.
• Water leaking from the valve, which could indicate a crack or failure in the valve mechanism.

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Drain Hose is an OEM part for Bosch dishwashers, designed to facilitate the efficient and reliable expulsion of wastewater from the appliance to the household drainage system. This component ensures that used water is properly drained out after each wash cycle, preventing water from backing up and causing issues within the dishwasher.  The hose measures 5 feet. This Bosch dishwasher drain hose comes with one O-ring. For the 1-foot drain hose order 00298556.

Causes for replacement may include clogs from food particles or debris, physical damage such as cracks or splits that lead to leaks, or a hose that has become stiff and noncompliant over time.

Symptoms of a bad Drain Hose include:

• Water remaining in the bottom of the dishwasher after the cycle has completed, indicating a failure to drain.
• Leaks under the dishwasher, which may be a sign of a cracked or damaged hose.
• Poor dishwasher performance or error codes related to drainage problems.

This genuine Bosch OEM replacement part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This O-ring is the sealing gasket between mating components, keeping fluid contained inside the system. Replacing a worn ring restores a tight, leak-free connection and helps prevent drips, moisture, and leak-related error indications.

• Creates a compressible seal between parts to prevent leaks at the joint
• Helps maintain proper system flow by stopping seepage or air ingress
• Direct replacement for rings that are flattened, cracked, brittle, swollen, or missing
• Common symptoms include dripping at the connection, moisture beneath the unit, or leak/float error alerts

• Disconnect power and shut off the water supply before servicing; wear appropriate PPE.
• Note the original ring's location; clean the groove and mating surfaces before installation.
• Apply a light coat of compatible silicone grease; avoid twisting or overstretching the ring.
• Seat evenly, reassemble, restore service, and check for leaks during a test cycle.

Drain hose clamp

Bushing included. To order bushing separately use 00165296. This is the left side hinge. For right side hinge use 00263119.

This is the left side hinge plate. For right side use 00298570.

This is the left hinge cap. For right hinge cap use 00165295.

The Hinge Bushing is an OEM component for Bosch dishwasher models. This bushing acts as a guide and support component for the dishwasher door hinge assembly. It facilitates smooth and quiet opening and closing of the door.

Symptoms of a bad hinge bushing include:

• noise or squeaking coming from the door hinges
• excess play or looseness feeling in the hinge movement
• difficulty fully closing or opening the dishwasher door

Causes of a bad hinge bushing can be normal wear and tear over the life of the appliance. Small metal particles embedded in the bushing material during manufacturing may also cause premature wear.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This replacement foot is the leveling support at the base of your appliance. It helps set the height and keep the unit stable and level, reducing wobble, vibration, and noise for smoother, quieter operation.

• Supports the appliance base and provides solid floor contact
• Allows height/leveling adjustment as designed by the unit
• Helps correct rocking, vibration, walking, or door misalignment caused by an unlevel appliance
• Replace if the foot is cracked, missing, worn, or stripped and won't hold adjustment

• Disconnect power; shut off water supply if applicable
• Protect flooring and have a helper steady or move the unit
• Remove the damaged foot; install the new foot per the mounting style (threaded or push-in)
• Adjust height to level the cabinet and stability at all corners

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This shaft for the float switch is the replacement shaft that secures and guides the dishwasher float to accurately detect water level, helping the appliance fill and shut off properly. Direct-fit design replaces the worn or broken float shaft. What it does

• Guides the float so the level-sensing switch can detect low or high water levels.
• Prevents overfilling by ensuring the float actuates the water-level switch reliably.
• Commonly replaces a cracked, bent or missing shaft that causes inconsistent fill, continuous filling, or water-level errors.

• One replacement float switch shaft.

• Disconnect power to the appliance before starting any repair.
• Remove the access panels and float assembly per your model's service instructions to reach the shaft.
• Inspect the float and switch for damage; replace only the failed components as needed.
• Reassemble carefully and test fill/stop operation before returning the appliance to service.

This float switch lever is the actuator that moves the dishwasher's tub float to operate the water-level/flood-sensing switch, helping the appliance detect overfill and control fill/drain cycles. Replaces a worn or broken lever to restore proper float activation. What it does:

• Transfers movement from the tub float to the float switch so the machine senses water level correctly
• Commonly needed when a cracked or detached lever prevents the float from engaging the switch
• Can stop overfill-safety trips or no-fill symptoms caused by a non-responsive float assembly
• Works with the existing float and float switch; restores mechanical linkage function

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove lower access panels or tub components as required to reach the float assembly
• Inspect surrounding clips and the float for damage; replace any broken hardware
• Tighten securely but avoid over-torquing; test float movement and switch activation before reassembly

The Float is an OEM part for Bosch dishwashers. This float senses water levels inside the dishwasher, signaling the inlet valve to refill when needed.

Causes of a float malfunctioning can be mineral deposits accumulating and weighing it down over time, or cracks in the plastic housing allowing water in.

Symptoms of a bad float include:

• The dishwasher not filling or filling slowly
• Error codes related to fill issues
• Improper water levels impacting wash results

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This is the right hinge cap. For left hinge cap use 00165292.

This is the right side hinge plate. For left side use 00298567.

Bushing included. To order bushing separately use 00165296. This is the right side hinge. For left side hinge use 00263115.

The Screw (Toe Kick) is an OEM part for Bosch dishwashers. It is a mounting fastener that secures the toe kick panel to the bottom frame of the appliance. As a low-profile screw, it serves an important aesthetic purpose while maintaining structural integrity.

Causes of a failed screw can include wear and deterioration from constant vibrations during cycles, or physical damage if the toe kick panel is impacted.

Symptoms of loose or missing toe kick screws include:

• Sagging or detachment of the toe kick panel from the dishwasher
• Unsightly gaps appearing below the appliance
• Possible shifting of the entire dishwasher if not properly secured
• Access issues for cleaning beneath the unit

Replacing with this genuine Bosch screw restores proper mounting of the external panels. It is also compatible with some Asko, Thermador, and Jenn-Air specialty dishwashers.
