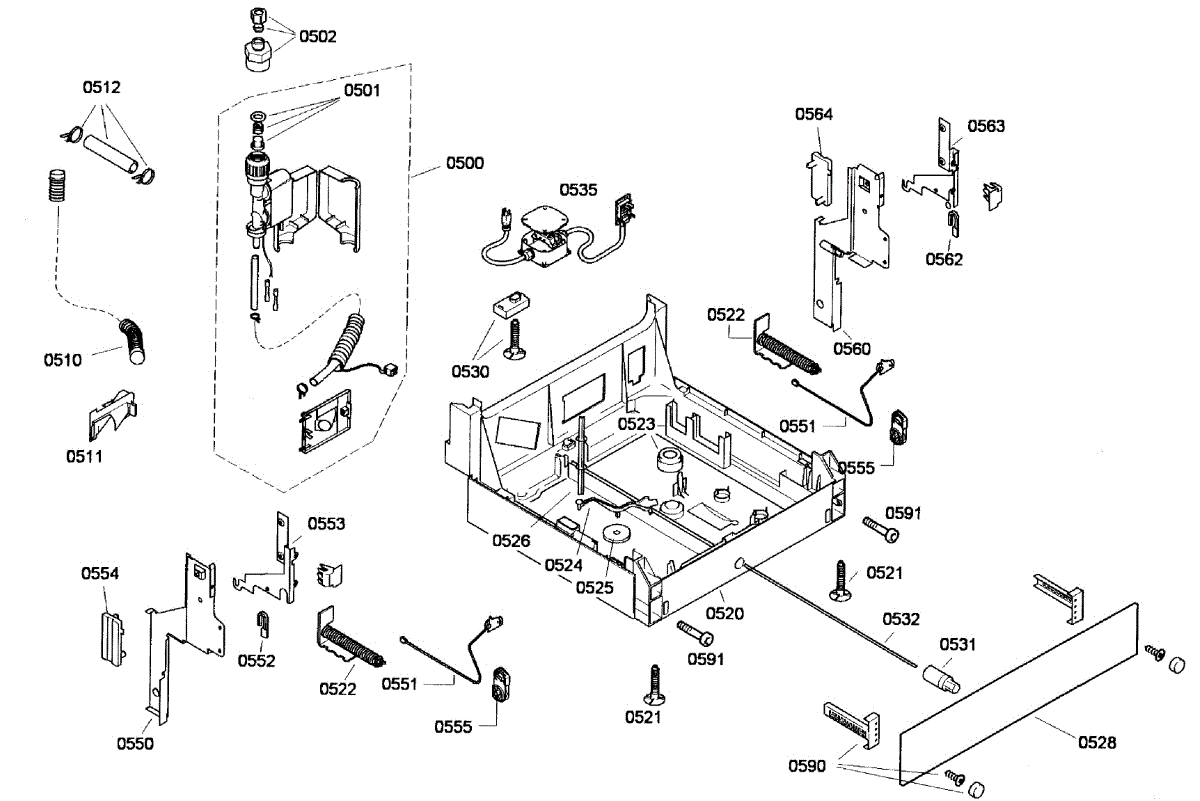

Parts for Bosch SRV53C13UC/01: Base Assembly Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This AquaStop is an anti-flood inlet device that helps stop water flow if a leak is detected, protecting the dishwasher and surrounding floor from water damage. It replaces a failed or damaged leak-sensing inlet assembly. What it does

• Detects leaks or excess water and shuts off the incoming water supply to prevent flooding.
• Protects the dishwasher base and surrounding floor from water damage.
• Commonly replaced when there is water in the dishwasher base, visible leaks, or when the dishwasher repeatedly shuts off or displays a leak/flood condition.
• Works with the dishwasher's inlet/fill system to interrupt water flow when a fault is present.

• One AquaStop anti-flood inlet device (single assembly)

• Turn off and disconnect the dishwasher's power and shut off the water supply before starting.
• Installation typically requires access to the water inlet area (toe-kick/panel removal) and basic hand tools.
• Inspect hose and inlet connections for damage; replace any damaged hoses or fittings.
• After installation, restore power and water, then run a short cycle and check all connections for leaks.

This inlet seal is a small rubber gasket that creates a watertight connection at the dishwasher's water inlet. Replacing a worn seal helps stop leaks and ensures the inlet valve can fill the appliance properly. What it does:

• Seals the water inlet connection to prevent drips or steady leaks underneath the dishwasher
• Maintains a tight seal at the inlet valve so the fill cycle can operate normally
• Commonly replaced when there is visible wear, cracking, or persistent water on the floor
• Helps avoid water damage and the nuisance of repeated drainage or fill errors tied to leaking

• One inlet seal

• Turn off the water supply and disconnect power before servicing
• Remove the inlet valve or access panel as needed to reach the seal; replace with the old seal removed
• Make sure the new seal is seated evenly and the mating surfaces are clean before reassembly

The Water Inlet Fill Hose is an OEM part for Bosch dishwashers. This part is responsible for safely and efficiently connecting the dishwasher to your home's water supply, ensuring that water flows into the dishwasher at the correct pressure and volume for optimal cleaning performance.

Over time, the Water Inlet Fill Hose can become susceptible to wear and tear, leaks and blockages.

Symptoms indicating the need for a new Water Inlet Fill Hose include:

• Water pooling around the dishwasher base, pointing to a potential leak in the hose.
• The dishwasher not filling with water properly, or filling very slowly, suggesting a blockage or damage to the hose.
• A visible inspection reveals cracks, bulges, or signs of corrosion on the hose connectors.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Drain Hose is an OEM part for Bosch dishwashers, designed to facilitate the efficient and reliable expulsion of wastewater from the appliance to the household drainage system. This component ensures that used water is properly drained out after each wash cycle, preventing water from backing up and causing issues within the dishwasher.  The hose measures 5 feet. This Bosch dishwasher drain hose comes with one O-ring. For the 1-foot drain hose order 00298556.

Causes for replacement may include clogs from food particles or debris, physical damage such as cracks or splits that lead to leaks, or a hose that has become stiff and noncompliant over time.

Symptoms of a bad Drain Hose include:

• Water remaining in the bottom of the dishwasher after the cycle has completed, indicating a failure to drain.
• Leaks under the dishwasher, which may be a sign of a cracked or damaged hose.
• Poor dishwasher performance or error codes related to drainage problems.

This genuine Bosch OEM replacement part is also compatible with Thermador, Gaggenau, and some Kenmore models.

Drain hose clamp

2 clamps included.

This front leveling leg supports and adjusts the appliance at the front, helping it sit stable and truly level. Replace a damaged or missing leg to restore proper height, stability, and smooth door alignment during everyday use.

• Provides height adjustment at the front to level the appliance
• Helps prevent rocking, vibration, and rattling
• Maintains correct cabinet/door alignment for proper operation
• Replace if the foot is cracked, stripped, missing, or won't adjust
• Common signs: unit wobbles, sits unevenly, or is difficult to level

• Disconnect power; if applicable, shut off water or gas. Pull the appliance forward and remove the toe-kick/access panel for clearance.
• Protect the floor; tilt or raise the front slightly to reach the leg.
• Unscrew the damaged leg; thread the new leg in by hand to avoid cross-threading.
• Adjust height until level front-to-back and side-to-side; verify stability before returning to service.

The Float is an OEM part for Bosch dishwashers. This float senses water levels inside the dishwasher, signaling the inlet valve to refill when needed.

Causes of a float malfunctioning can be mineral deposits accumulating and weighing it down over time, or cracks in the plastic housing allowing water in.

Symptoms of a bad float include:

• The dishwasher not filling or filling slowly
• Error codes related to fill issues
• Improper water levels impacting wash results

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This float switch lever is the actuator that moves the dishwasher's tub float to operate the water-level/flood-sensing switch, helping the appliance detect overfill and control fill/drain cycles. Replaces a worn or broken lever to restore proper float activation. What it does:

• Transfers movement from the tub float to the float switch so the machine senses water level correctly
• Commonly needed when a cracked or detached lever prevents the float from engaging the switch
• Can stop overfill-safety trips or no-fill symptoms caused by a non-responsive float assembly
• Works with the existing float and float switch; restores mechanical linkage function

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove lower access panels or tub components as required to reach the float assembly
• Inspect surrounding clips and the float for damage; replace any broken hardware
• Tighten securely but avoid over-torquing; test float movement and switch activation before reassembly

This shaft for the float switch is the replacement shaft that secures and guides the dishwasher float to accurately detect water level, helping the appliance fill and shut off properly. Direct-fit design replaces the worn or broken float shaft. What it does

• Guides the float so the level-sensing switch can detect low or high water levels.
• Prevents overfilling by ensuring the float actuates the water-level switch reliably.
• Commonly replaces a cracked, bent or missing shaft that causes inconsistent fill, continuous filling, or water-level errors.

• One replacement float switch shaft.

• Disconnect power to the appliance before starting any repair.
• Remove the access panels and float assembly per your model's service instructions to reach the shaft.
• Inspect the float and switch for damage; replace only the failed components as needed.
• Reassemble carefully and test fill/stop operation before returning the appliance to service.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This adjuster socket is the replacement socket used with a cabinet/appliance leveling foot to adjust and stabilize the unit. It lets you raise or lower the appliance for a level installation and steadier operation. What it does:

• Engages the appliance leveling foot so you can turn and set the height
• Restores proper leveling to reduce rocking, uneven doors, and drainage issues
• Provides a secure interface between the leg and adjustment tool or nut
• Durable replacement for worn or damaged socket components

• One adjuster socket

• Turn power off and unplug the appliance before accessing leveling components
• Access may require tipping or partially removing the front grill or toe panel per your model's service manual
• Verify correct socket orientation and thread engagement before lowering appliance back to floor

This is the left side hinge plate. For right side use 00298570.

The Hinge Rope is an OEM replacement part for Bosch dishwashers. It serves as a flexible hinge, enabling smooth and controlled opening of the dishwasher door. Proper torsion and tension of the hinge rope allow for easy loading and unloading while keeping the door securely closed during operation.

Causes of a bad hinge rope include cuts, abrasions, or weakened fibers developing over extensive use cycles. Moisture exposure could potentially degrade material integrity if not properly dried.

Symptoms of a bad hinge rope include:

• Difficulty smoothly opening or closing the door
• The door unable to securely latch or lock into position
• Excessive sagging causes the door to hang unevenly
• Rope fibers protruding or frayed edges developing

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Hinge Bushing is an OEM component for Bosch dishwasher models. This bushing acts as a guide and support component for the dishwasher door hinge assembly. It facilitates smooth and quiet opening and closing of the door.

Symptoms of a bad hinge bushing include:

• noise or squeaking coming from the door hinges
• excess play or looseness feeling in the hinge movement
• difficulty fully closing or opening the dishwasher door

Causes of a bad hinge bushing can be normal wear and tear over the life of the appliance. Small metal particles embedded in the bushing material during manufacturing may also cause premature wear.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

Bushing included. To order bushing separately use 00165296. This is the left side hinge. For right side hinge use 00263119.

This is the left hinge cap. For right hinge cap use 00165295.

This is the right side hinge plate. For left side use 00298567.

The Hinge Bushing is an OEM component for Bosch dishwasher models. This bushing acts as a guide and support component for the dishwasher door hinge assembly. It facilitates smooth and quiet opening and closing of the door.

Symptoms of a bad hinge bushing include:

• noise or squeaking coming from the door hinges
• excess play or looseness feeling in the hinge movement
• difficulty fully closing or opening the dishwasher door

Causes of a bad hinge bushing can be normal wear and tear over the life of the appliance. Small metal particles embedded in the bushing material during manufacturing may also cause premature wear.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

Bushing included. To order bushing separately use 00165296. This is the right side hinge. For left side hinge use 00263115.

This is the right hinge cap. For left hinge cap use 00165292.

This M6 x 26 screw secures the dishwasher door tension/adjusting assembly so the door opens and closes smoothly. Replacement helps restore proper door alignment and reduces sagging, rattling, or uneven closing. What it does:

• Fastens the door tension/adjusting mechanism to the door assembly
• Maintains correct tension so the door stays level during use
• Helps stop door sag, uneven closing, or vibration noises related to a loose fastener

• Disconnect power and water supply before beginning any repair
• Use the correct M6 driver/socket and avoid stripping the head
• Thread the screw in straight and tighten until secure; do not overtighten
