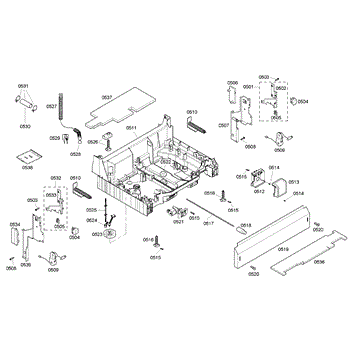

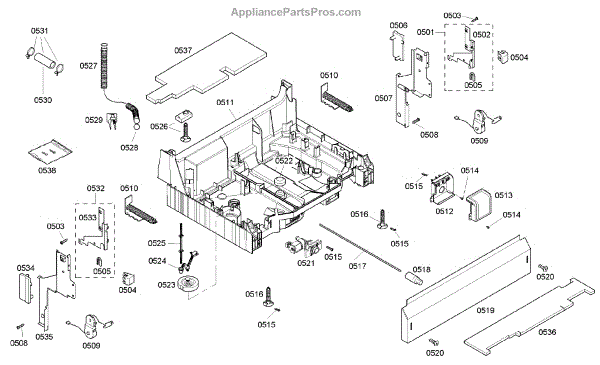

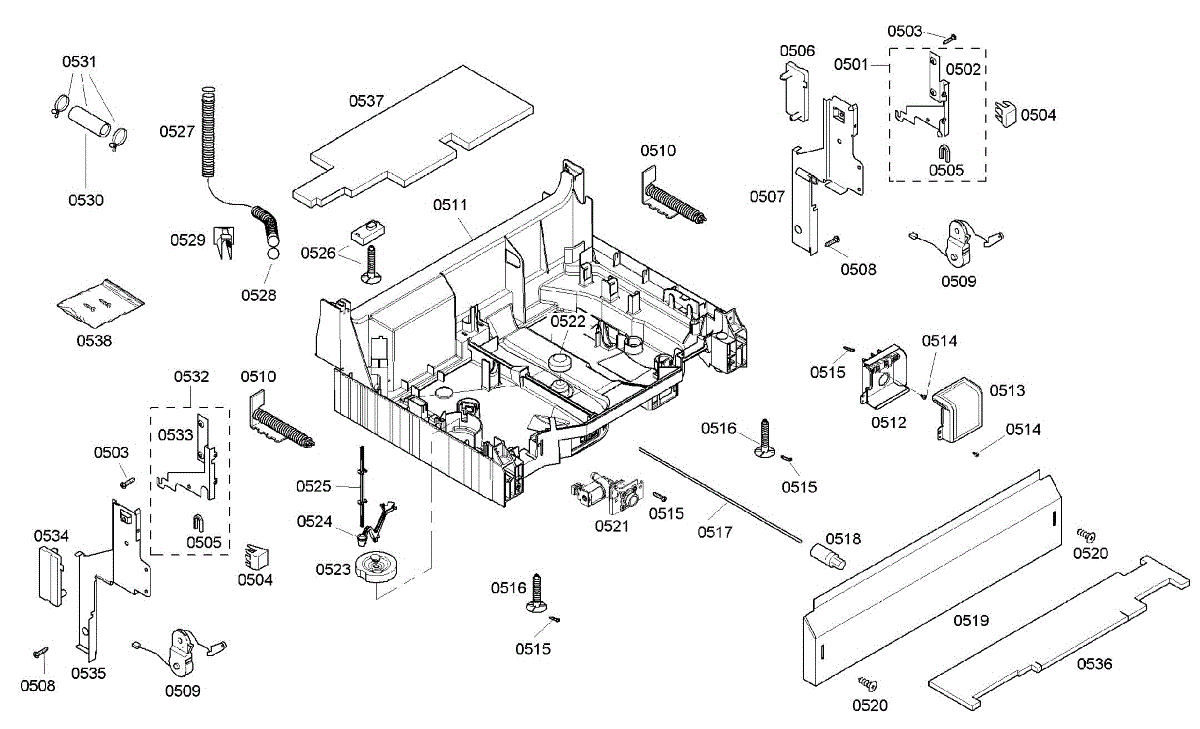

Parts for Kenmore 630.16302404 (63016302404, 630 16302404): Base Assy Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

The Hinge Lever (RH) is an OEM component specifically designed for Bosch dishwashers. This right-hand lever is a part of the dishwasher door hinge assembly, working to open and close the door during each use.

Causes of a bad hinge lever can include wear and fatigue over thousands of opening and closing cycles. Damage can also potentially occur from any impact or denting of the door surface near the lever mechanism.

Symptoms of an ineffective hinge lever include:

• The dishwasher door sagging or becoming misaligned
• Difficulty fully opening or closing the door
• Loud squeaks or grinding noises coming from the hinges
• The door potentially detach from the hinge if broken

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers.

This hinge cover is a molded trim piece that protects and conceals a refrigerator door hinge for a clean finished look. It helps keep hinge hardware free of dust and reduces sharp edges while restoring appearance. What it does

• Covers the door hinge area to hide hardware and improve the appliance's appearance
• Helps block dust and debris from accumulating on hinge components
• Reduces the risk of clothes or fingers catching on exposed hinge parts
• Matches OEM fit and shape to maintain proper clearance and alignment

• One hinge cover

• High-level replacement: remove the old cover and snap or screw the new cover into place (specific fasteners vary by model)
• Use basic hand tools if required; for model-specific instructions
• Disconnect power (or follow appliance-specific safety steps) before working near electrical components
• Inspect hinge and hardware while replacing the cover; replace damaged hinge components as needed

Right side door hinge plate for dishwashers. Secures the door hinge mechanism to the frame. Replace if cracked, broken, or damaged to restore proper fit.

Single Torx T20 screw secures dishwasher panels, brackets, and trim. Replace missing, stripped, or damaged fasteners to keep components tight.

The Roller and Cable Assembly is an OEM part for Bosch dishwashers. This assembly includes the roller and cable, which work together to facilitate the smooth operation of the dishwasher door, allowing it to open and close effortlessly.

Over time, the roller and cable can wear out or become damaged due to regular use, friction, or accidental mishandling. If either component fails, it can affect the balance and movement of the dishwasher door, making it difficult to operate.

Symptoms of a bad roller and cable assembly include:

• Difficulty in opening or closing the dishwasher door
• A sagging or misaligned door
• Unusual noises when operating the door
• The door not staying securely in place

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

Spring with blue dot.

Replace a missing or damaged junction box cover on your dishwasher. Protects power supply and control board wiring connections. Easy DIY repair.

The 4 x 16 Screw is an OEM component for Bosch dishwashers.

Common causes of faulty screws include standard wear from years of housing vibrations during wash cycles. Mineral deposits lingering around screw heads also risk eventual corrosion and seizing issues.

Symptoms of potentially loose or damaged screws comprise:

• Odd knocking or buzzing noises from inside cabinets
• Detached or misaligned door panels
• Water leaks developing between internal seams
• Components unable to be fully secured down during repairs

This screw type is additionally suited for Thermador, Gaggenau as well as some premium Kenmore dishwashers.

Replace a broken, worn, or missing dishwasher leveling leg. This adjustable foot installs at the front corner to stabilize and level your appliance.

Replacement rod for your dishwasher. Restores proper function when the original is bent, broken, or missing. Direct fit installation.

Replacement adjuster socket for dishwasher leveling feet. Installs at cabinet base to raise or lower the unit for level installation. Replace if cracked or stripped.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

The Toe Panel Screw is an OEM replacement part for Bosch dishwashers. It secures the toe panel to the dishwasher.

Causes may involve normal wear and tear over time, improper installation, or damage from excessive force or impact. Replacing with this genuine OEM screw will reinforce your Bosch dishwasher's integrity for reliable performance.

Symptoms of a bad toe panel screw can include:

• The toe panel becoming loose, cracked, or removable
• Internal components visible underneath a loose toe panel
• Strange noises or vibration emanating from the toe panel area

This OEM Bosch part is also compatible with Thermador, Gaggenau and some Kenmore models.

The Float is an OEM part for Bosch dishwashers. This float senses water levels inside the dishwasher, signaling the inlet valve to refill when needed.

Causes of a float malfunctioning can be mineral deposits accumulating and weighing it down over time, or cracks in the plastic housing allowing water in.

Symptoms of a bad float include:

• The dishwasher not filling or filling slowly
• Error codes related to fill issues
• Improper water levels impacting wash results

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

Dishwasher overfilling or won't stop filling? This float switch lever activates the water level sensor. Simple DIY fix restores proper fill control.

Replaces cracked, kinked, or leaking dishwasher drain hose. Connects unit to household drainage system. Essential when hose is damaged or worn.

O-ring seal prevents leaks between dishwasher components. Replace when you notice water drips or moisture buildup. Confirm fit with your model number.

Black adapter connects dishwasher drain hose to another hose or fitting for secure wastewater routing. Replace when cracked, loose, or missing for leak-free.

Left-hand hinge lever for dishwasher doors. Assists door opening and closing through pivoting motion. Replace if cracked, broken, or damaged from overextension.

Left side door hinge plate for your dishwasher. Replaces cracked, broken, or worn hinge plates that cause door misalignment or instability.

Installation kit with mounting hardware and connection pieces to secure and level your dishwasher. Replace missing, damaged, or worn installation components.
