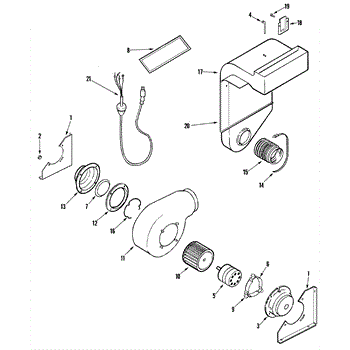

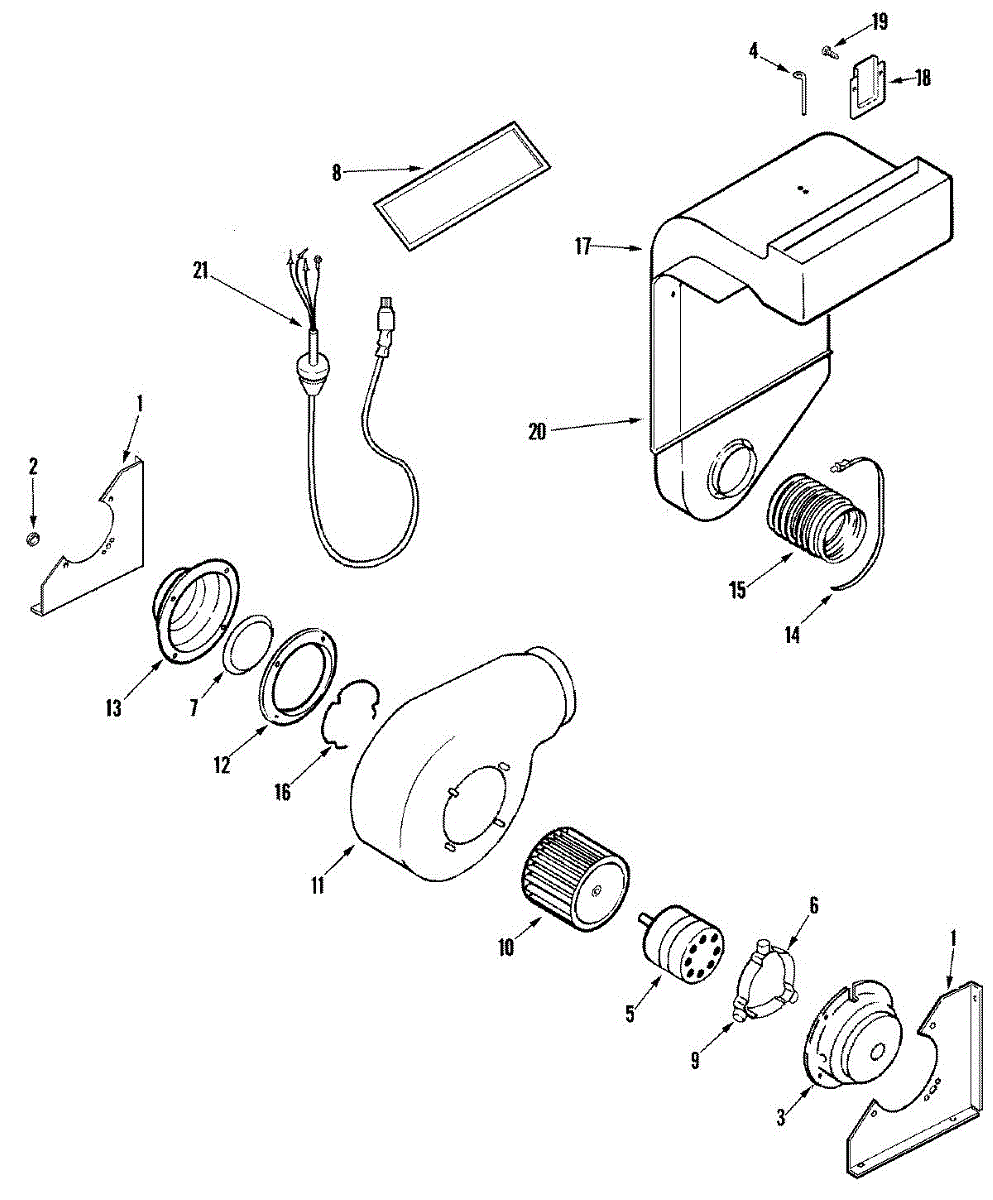

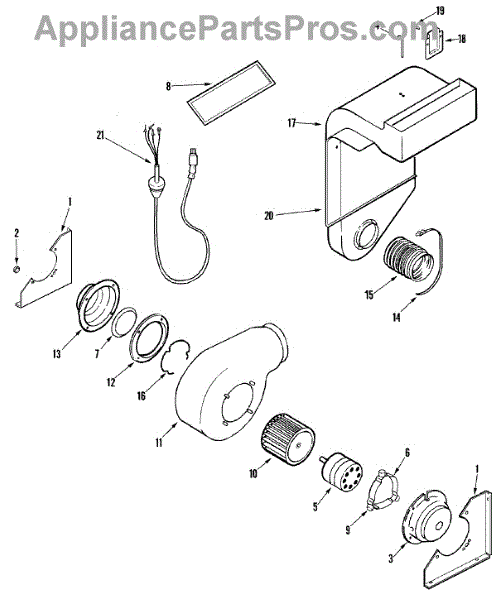

Parts for Jenn-Air JES9800BAS: 01 - Blower Assembly (Plenum) Parts

This locknut is a small threaded retaining nut used to secure rotating and stationary appliance components, helping keep assemblies tight and stable during operation. It prevents parts from loosening and reduces vibration-related issues. What it does:

• Secures shafts, pulleys, or fittings to prevent axial movement
• Keeps assemblies fastened under normal vibration and load
• Helps stop wobble, grinding, or part separation caused by a loose connection
• Works with the matching threaded stud, shaft, or fitting for a proper hold

• Disconnect power and follow appliance safety procedures before servicing
• Use the matching thread size and engage threads fully; hand-start before tightening
• Tighten securely without overtightening; use the correct driver or socket for the nut
• Inspect mating threads and replace if damaged

Fastening screw for securing components inside appliances. Replaces lost, stripped, or damaged screws during repairs or part installations.

This blower motor moves air through the dryer to help vent heat and moisture so clothes dry efficiently. Replaces a worn or failed blower motor to restore proper airflow and drying performance. What it does:

• Spins the blower wheel to force air through the drum and exhaust vent
• Restores normal airflow when the dryer has little or no air movement
• Helps stop rattling, squealing, or grinding noises caused by a failing motor
• Helps reduce long dry times and overheating caused by restricted or weak airflow

• One blower motor

• Disconnect power to the appliance before starting any repairs
• Installation typically requires removing the dryer front or rear panel and accessing the blower housing
• Inspect the blower wheel and housing for lint or damage while replacing the motor

Replace your cooktop's downdraft blower motor when ventilation fails or makes unusual noise. Restores proper exhaust function. Verify fit with your model.

Range grease filter captures cooking grease and particles to keep your ventilation system clean. Replace when clogged or discolored. Confirm fit by model.

This motor isolator is a vibration-damping grommet that cushions the motor mount to reduce noise and prevent metal-to-metal contact. Replacing worn isolators helps keep the motor seated correctly and the appliance running quieter and smoother.

• Cushions the motor to minimize vibration transfer to the chassis
• Helps reduce rattling or buzzing noises during fan/blower operation
• Supports proper motor alignment and mounting stability
• A common maintenance item when rubber mounts become cracked, hardened, or missing

• Disconnect power and allow hot components to cool before service
• Access the motor mounting points; replace isolators in matched locations
• Inspect adjacent mounts and hardware; replace additional isolators as needed
• Do not overtighten fasteners—compress the grommet evenly without deforming it

This 10-32 terminal block nut fastens wire lugs to the appliance's terminal studs. Replacing a missing, stripped, or corroded nut restores a tight, reliable connection and helps prevent heat damage or intermittent power at the connection.

• Secures wire lugs to a 10-32 terminal stud for a solid electrical connection
• Restores proper clamping force when the original nut is stripped, corroded, or missing
• Helps address loose/burned terminal connections, heat discoloration, or intermittent power at the block
• Suitable for terminal block and similar 10-32 stud applications on compatible appliances

• Disconnect power at the breaker or unplug the appliance before servicing
• Inspect the terminal block, studs, and wiring for heat damage; replace any damaged components
• Clean threads and start the nut by hand to avoid cross-threading; tighten firmly without overtightening
• If the stud turns while tightening, hold it with an appropriate tool to protect the block

Fastening screw for securing components inside appliances. Replaces lost, stripped, or damaged screws during repairs or part installations.

This blower wheel mounts on the drive motor and pushes air through the dryer drum and out the exhaust. Replacing a worn wheel restores proper airflow for consistent drying and helps prevent overheating and nuisance shutdowns. What it does:

• Moves air across the heater, through the drum, and out the vent to remove moisture
• Helps maintain proper airflow and temperature inside the dryer
• Common failure symptoms: reduced or no airflow at the exterior vent, longer dry times, unusual scraping/thumping or vibration from the blower area, or overheating/shutoff
• Cracked fins or a stripped hub can cause the wheel to slip on the motor shaft

• 1 blower wheel

• Disconnect power and turn off gas supply before servicing
• Access the blower housing per your model's service instructions; remove the retaining hardware and replace the wheel in the same orientation
• Clean lint from the blower housing and vent path; inspect the motor shaft and blower seal for wear
• Reassemble and verify the wheel spins freely without rubbing; check airflow at the exterior vent

Plenum assembly for your range oven. Installs in the ventilation system to direct airflow. Replace if cracked, damaged, or missing to restore proper fit.

Replace your range's control panel cover if it's cracked, broken, or missing. This housing protects internal electronics and maintains your range's appearance.

This screw secures components inside your range. Replace it if the original is stripped, lost, or damaged during repairs to ensure proper assembly.

Vent plenum duct component for range ventilation systems. Replaces cracked, damaged, or missing plenum sections. Ensures proper airflow routing.

This replacement power cord provides the main electrical connection for your appliance so it can receive household power and operate safely. It restores a secure, insulated link between the appliance and the wall outlet. What it does:

• Replaces a damaged or worn appliance power cord to restore safe power delivery
• Ensures a secure connection to household electrical supply so controls and components operate
• Helps eliminate intermittent power or sparking caused by frayed or broken cord insulation
• Suitable where the original cord has cuts, exposed wires, or loose/melted ends

• One replacement power cord as pictured

• Disconnect power at the breaker and verify the appliance is de-energized before starting
• Route and secure the cord per the appliance's wiring instructions and strain-relief location
• Tighten terminals firmly and replace any terminal block cover
