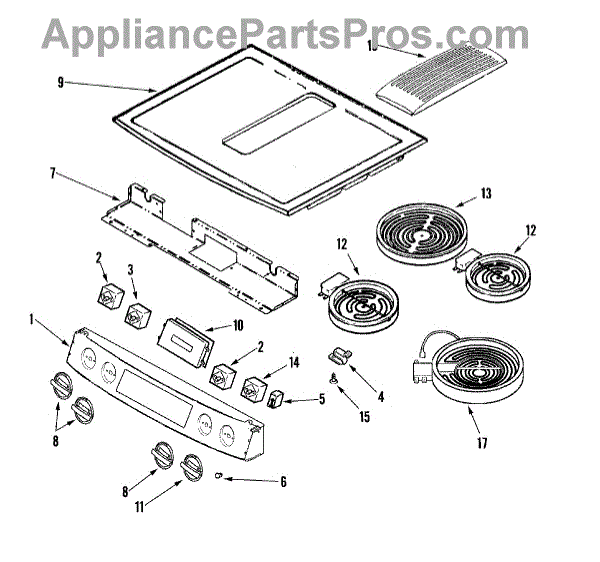

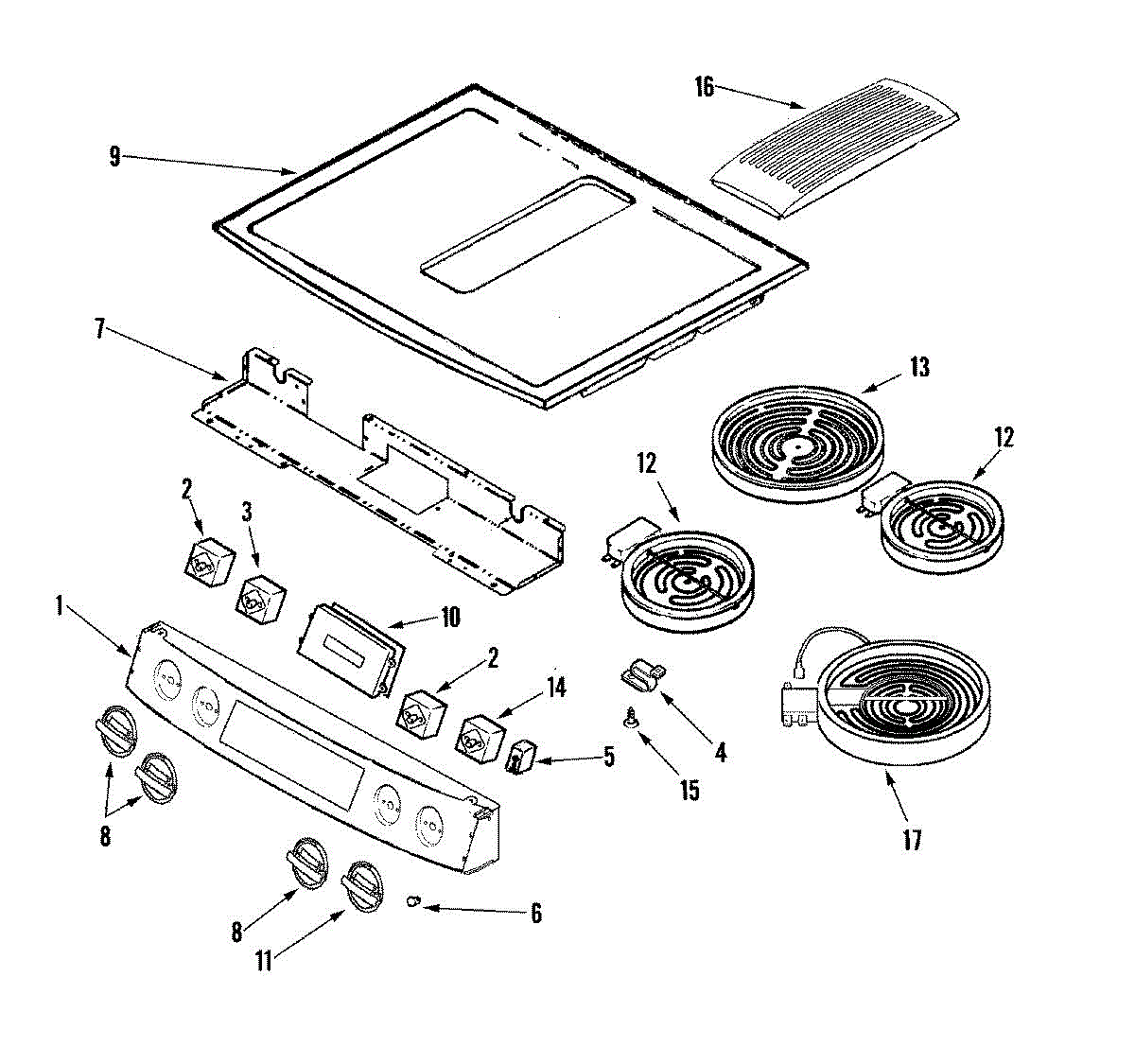

Parts for Jenn-Air JES9800BAS: 03 - Control Panel / Top Asy Parts

This control panel assembly is the front console that houses the oven/range user interface and display, restoring visible controls and user input so you can select cycles, set temperatures, and monitor settings. What it does

• Contains the control interface (buttons/touchpad and display) used to select functions, temperatures and timers.
• Re-establishes visible feedback and input when buttons are unresponsive or the display is blank or flickering.
• Helps restore control of oven/range functions when the console is cracked, damaged, or failing.
• Works as the direct replacement for the damaged or nonworking control console to return normal user operation.

• Disconnect power at the breaker or unplug the appliance before starting—electrical shock hazard.
• Handle the display and trim carefully to avoid damage; some wiring harnesses or connectors must be disconnected and reattached.
• Keep track of screws and retainers; a basic screwdriver set is usually required.

The Whirlpool Infinite Switch is an OEM part for Whirlpool ranges. Whirlpool electric ranges. This switch controls the multiple heat settings of the small element, allowing the user to select their desired cooking temperature. It is an important electrical component that regulates burner heating cycles.

Symptoms of a bad infinite switch include:

• The element not heating up adequately or failing to maintain temperature
• Inability to select or change heat settings on the
• Burner operates intermittently or fails to heat properly

Causes of a bad infinite switch can include failure over many heating cycles. The electrical contacts within the switch may become corroded or deteriorate from repeated exposure to cooktop temperatures and cooking residue.

It is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore electric range models.

The Whirlpool Infinite Switch is an OEM part for Whirlpool ranges. Whirlpool electric ranges. This switch controls the multiple heat settings of the large element, allowing the user to select their desired cooking temperature. It is an important electrical component that regulates burner heating cycles.

Symptoms of a bad infinite switch include:

• The element not heating up adequately or failing to maintain temperature
• Inability to select or change heat settings on the
• Burner operates intermittently or fails to heat properly

Causes of a bad infinite switch can include failure over many heating cycles. The electrical contacts within the switch may become corroded or deteriorate from repeated exposure to cooktop temperatures and cooking residue.

It is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore electric range models.

This indicator light installs in the control panel and illuminates when its corresponding function is active. Replace a failed lamp to restore clear status indication, so you can see at a glance when the appliance is operating.

• Lights to indicate a selected function is on (e.g., surface units or oven circuits—varies by model)
• Provides visual confirmation of appliance status during use
• Common symptoms: light will not turn on, stays on constantly, flickers, or the lens is damaged
• Restores proper visual feedback when controls are engaged

• Disconnect power at the breaker before servicing; allow the appliance to cool
• Access the console/control panel and remove the rear cover as needed
• Note wire positions; transfer leads to the new light and secure it in the panel opening
• Reassemble and restore power to test operation

To order indicator light use WP903115.

The Burner Control Knob is an OEM part for Whirlpool ranges and cooktops. This knob allows you to control the heat level of the burners, providing precise adjustments for cooking various dishes. It is designed to fit securely on the burner control shaft and is marked with temperature settings for easy operation.

Over time, the burner control knob can become worn or damaged due to frequent use, exposure to heat, or accidental impact. Replacing a faulty knob ensures accurate control of the burners and maintains the functionality of the range.

Symptoms of a bad burner control knob include:

• Cracks or breakage in the knob
• Difficulty turning or adjusting the burner
• The knob not staying securely on the control shaft
• Inaccurate temperature control

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

This electronic clock control helps manage and monitor the features on an oven. This part is located on the front of the oven so the user can easily see the clock and start and stop times for cooking. The display can also show error codes if one of the oven parts is not working correctly. If this part is damaged, cooking may take longer, overheating may occur, or the foods may come out unevenly cooked.Replacing the part is simple and requires only a Phillips screwdriver. Disconnect the oven from power or turn off the appropriate breaker box. Open the door and access the bottom of the control panel assembly. Remove the screws and lift up on the electronic clock control to unhook it from the appliance. Unplug the wire harnesses before removing the clock. Attach the new part to the wires and screw it into the oven.This electronic clock control is made for use as a genuine OEM replacement part for Jenn Air ovens. It is sold on an individual basis and comes directly sourced from the manufacturer. This part is offered as an individual component.

Color: stainless steel. Measures about 2 inches in diameter.

The Surface Element is an OEM component for Whirlpool ranges. It is responsible for heating the cooktop surface to the desired temperature selected by the user. Made of durable metal coil construction, the element surface quickly distributes heat evenly across burners to boil, sauté or simmer foods effectively.

Causes of a bad element includes baked-on grime or mineral buildup inhibiting heat transfer or damage due to the use of improper cookware that has cracked or warped the coils over time.

Symptoms of a bad element includes:

• Burners failing to heat up fully or taking a long time
• Inconsistent or uneven heating across coils
• Hotspots or deadzones in cooking areas
• Visible damage like cracks or bends in coil construction

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, and Kenmore range models.

The Large Element Switch is an OEM part for Whirlpool ranges. It regulates the heat output of the large heating element on the cooktop, allowing users to adjust the cooking temperature as needed.

Causes of a bad switch can include wear and tear from regular use, electrical issues, or damage from high heat exposure over time.

Symptoms of a bad large element switch include:

• The large element not heating or staying on continuously
• Inconsistent or incorrect heat levels
• The switch not responding or feeling loose
• The element turning off unexpectedly during use

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This is a replacement screw used to secure panels and components on compatible Whirlpool appliances, sold as a pack to replace multiple fasteners at once. It provides a simple way to restore missing or worn screws and stop rattles or loose trim. What it does

• Fastens appliance panels, trim, brackets or internal components
• Restores proper fit where screws are missing or corroded
• Helps eliminate vibration noise and loose parts
• Matches OEM fit for the listed part number when used in the intended locations

• Use the correct screwdriver or nut driver to avoid stripping the head
• Keep screws organized and install only where the OEM diagram specifies
• Disconnect power and follow appliance safety procedures before servicing
• Wear safety glasses and avoid over-tightening to prevent damage

The Large Surface Element is an OEM component for Whirlpool ranges. As a key heat source, it withstands significant thermal stresses each use for cooking tasks. This surface element measures approximately 10” in diameter.

Over time, microfractures may accumulate in the ceramic glass from repetitive heating/cooling cycles. Mineral deposits also build up on the surface, reducing heat transfer effectiveness.

Symptoms involve:

• Inconsistent or diminished heat from the designated zone
• Noticeable cracks, clouding or chips in the glass material
• Safety hazards if integrity is lost, exposing electrical/gas

The element is compatible also for select KitchenAid and Maytag appliances.
