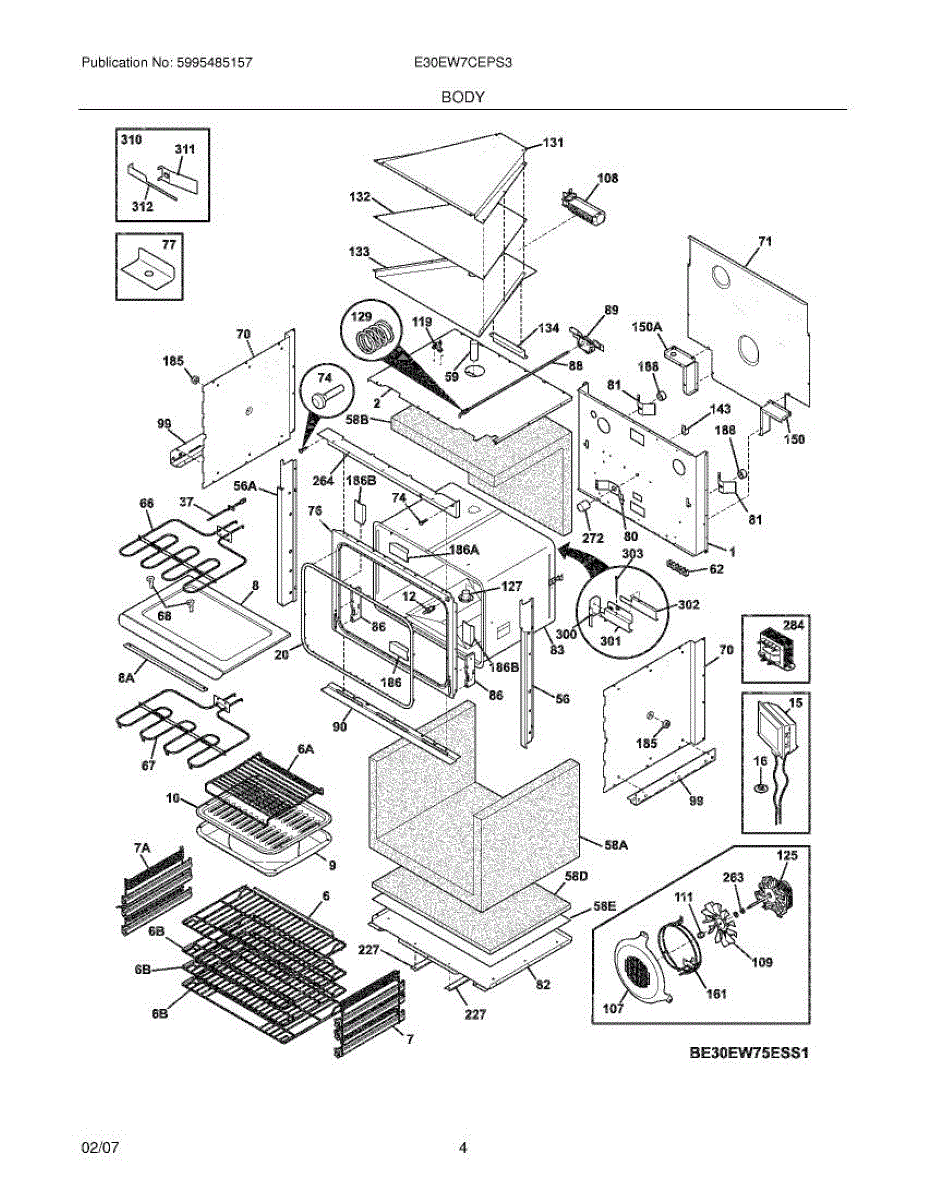

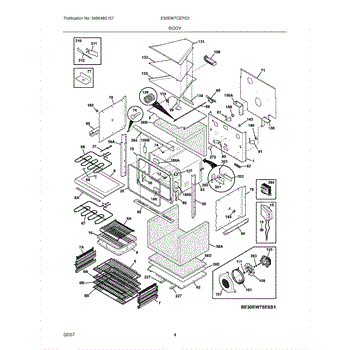

Parts for Electrolux E30EW7CEPS3: 05 - Body Parts

This broiler insert is the oven pan insert that sits under the broiler burner to catch drips and help direct heat for even browning. It restores a stable cooking surface and keeps the broiler area cleaner. What it does:

• Holds food and catches grease and drips during broiling to prevent mess and flare-ups
• Directs heat from the broiler for consistent browning and searing
• Replaces damaged, warped, or corroded inserts that cause uneven cooking
• Helps prevent food from falling into the burner area

• One broiler insert

• Disconnect power to the appliance and allow the oven to cool completely before servicing
• Remove oven racks and slide the old insert out; position the new insert so it seats securely in the broiler cavity
• Wear heat-resistant gloves when testing the broiler after installation and inspect for proper fit before use
• Do not modify the part; use only as designed for the oven broiler assembly

This control-panel switch restores reliable on/off control of a selected function on your range or wall oven. Replacing a worn or intermittent switch helps ensure the appliance responds consistently when you toggle that function.

• Directs power to the associated circuit when switched on or off
• Common symptoms: function won't turn on/off, intermittent operation, or the switch feels loose/sticks
• Helps restore positive, consistent control from the backguard/control panel

• Disconnect power at the breaker before servicing
• Access the switch from the control panel/backguard; retain screws/clips
• Label/photograph wire positions and transfer leads one at a time to the new switch
• Ensure firm terminal connections, reassemble, restore power, and test operation

The Oven Temperature Probe is an OEM part for Frigidaire ovens. This part monitors the oven's internal temperature, ensuring that it accurately reflects the set temperature on the oven's control. By measuring the heat inside the oven, the temperature probe helps in maintaining consistent cooking results, preventing undercooking or overcooking of food.

Over time, the oven temperature probe can fail or become inaccurate due to wear and tear, exposure to extreme temperatures, or damage from cleaning and handling. This can lead to uneven cooking results, with food being overcooked or undercooked, despite setting the oven to the correct temperature.

Symptoms of a bad Oven Temperature Probe include:

• Oven not reaching the set temperature
• Oven temperature fluctuating more than usual
• Food not cooking evenly or within expected time frames
• Error codes displayed on the oven indicating a temperature sensor issue

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This cabinet foam insulation panel replaces worn or missing refrigerator insulation to help maintain consistent internal temperatures and reduce energy loss. It fits inside the cabinet behind liners to restore proper thermal performance. What it does:

• Replaces damaged or missing cabinet insulation to improve temperature stability
• Helps reduce heat transfer and eases cooling system workload
• Can reduce condensation and frost buildup when installed correctly
• Restores the intended factory thermal barrier after repairs

• Disconnect power before starting and remove food from the appliance
• Remove interior liners or trim panels as needed to access the insulation cavity
• Handle gently to avoid tearing; position per factory location and secure with existing clips or adhesive
• If adhesive is needed, use manufacturer-recommended materials and avoid blocking airflow or channels

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This is the radiant surface heating element that powers one burner on a glass-ceramic cooktop. Replacing a failed element restores fast, even heat and reliable temperature control for everyday cooking.

• Converts electrical energy into heat for a single cooktop zone
• Works with the burner control to cycle on/off and maintain temperature
• Common symptoms include no heat, intermittent heat, or very slow heating
• Visible hot spots, blisters, or cracks on the element indicate failure

• Disconnect power to the range/cooktop before servicing; high voltage is present
• Allow the glass top to cool; lift or remove it to access the element as your model requires
• Transfer wires one at a time to the new element; secure using existing brackets/mounts
• Ensure the element is centered under the glass and test operation before reassembly

The Bake Element is an OEM part for Frigidaire ovens. It is responsible for providing the necessary heat for baking by converting electrical energy into heat within the oven cavity, ensuring even and consistent cooking results. It measures 19-1/2" wide, 15" long, and has 3-1/2" inserts, with a rating of 3400 watts and 240 volts.

Causes of a bad bake element can include normal wear and tear over time, damage from high temperatures, or electrical malfunctions that cause the element to short out or break.

Symptoms of a bad bake element include:

• Uneven baking results
• The oven not reaching the desired temperature
• Visible damage or breakage on the element
• The element not glowing red when in use

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This element hanger support secures a cooktop surface heating element to the range and keeps the element aligned for reliable contact and stable cooking. Replaces a worn or bent bracket to restore proper element positioning. What it does:

• Holds the surface heating element in the correct position under the cooktop
• Stabilizes the element to maintain solid electrical contact and even heating
• Helps prevent element wobble, arcing, or intermittent power to the burner
• Fits where the element connects to the terminal/anchor point on the cooktop

• 1 element hanger support bracket

• Disconnect power to the appliance before attempting any service
• Remove the cooktop or element as required to access the hanger; follow OEM disassembly steps
• Inspect element terminals and surrounding parts for damage while replacing the bracket

This refrigerator interior liner replaces a damaged or worn plastic shell that forms the cabinet's inside surface and supports shelves and drawers. Restores a clean, sealed interior for proper storage and easy cleaning. What it does:

• Serves as the interior wall and mounting surface for shelves, bins, and trim
• Covers insulation and structural cavity to help maintain proper airflow
• Replaces liners that are cracked, warped, or gouged and causing hygiene or fit issues
• Helps prevent items from contacting insulation or wiring behind the wall

• Disconnect power and remove food, shelves, and removable trim before starting
• Replace using manufacturer-approved fasteners and follow OEM alignment so doors and drawers fit correctly
• Handle carefully to avoid cracking; some adhesives or clips may be used depending on model

This replacement fan blade mounts to the appliance's fan motor to move air as designed. Installing a new blade restores proper airflow and helps reduce vibration or noise caused by bent, cracked, or worn fins. What it does

• Attaches to the fan motor shaft to move air through the cavity or across internal components
• Supports even air circulation or cooling performance, depending on model
• Helps resolve issues such as loud scraping/whirring, vibration/wobble, weak airflow, or visible blade damage

• One fan blade

• Disconnect power at the breaker and allow the appliance to cool completely before servicing
• Access the fan assembly from the rear panel or inside the oven behind the fan cover (varies by model); wear gloves—edges can be sharp
• Note blade orientation/rotation and securely reinstall using the original fastener(s)
• Hand-spin the blade to ensure clearance and free movement before reassembly and testing

This is a nut that is used in many microwave ovens. It is typically used to hold interior fan in place. A nut is a fastener that is used to hold two items together or keep one component secure against a surface. Use and time can cause the nut to become stripped, damaged, or broken. If the nut is broken, it will no longer hold the fan in the right location. The nut will need to be replaced.Before replacing this part, the microwave should be unplugged. Open the refrigerator door and remove the cover that goes over the fan. The nut can then be removed using a nut driver. Replace the other parts before using the appliance.This nut is used in microwave ovens manufactured by Crosley, Electrolux, Frigidaire, and Kenmore. It is sold as a single part. This is an authentic OEM replacement part is sourced directly from the manufacturer.

This thermal switch is a temperature-sensitive safety device used in many ranges and wall ovens. It opens or closes an electrical circuit at a set temperature to protect internal components and help maintain safe operation. What it does:

• Monitors temperature and opens/closes a circuit at a specified threshold
• Protects the appliance from overheat conditions
• Cuts power to heating circuits or controls a cooling/vent fan, depending on model
• Common symptoms of failure include: oven or certain functions won't run, unit shuts off mid-cycle, or operation returns only after cooling

• 1 thermal switch

• Disconnect power at the breaker before servicing
• Access location varies by model
• Move wires over one at a time to the new switch and secure it firmly to its mounting surface
• After replacement, verify proper airflow and cooling to prevent repeat overheating

This adapter assembly joins and aligns mating parts inside the appliance so they fit securely and operate as designed. Replace a cracked or missing adapter to restore proper fit and eliminate looseness or misalignment after service. What it does:

• Provides the correct spacing and alignment between connected components
• Helps secure parts to reduce vibration, rattling, or shifting
• Restores proper fitment after a component replacement or repair
• Replace if the original is cracked, warped, or missing mounting features

• One adapter assembly

• Disconnect power and allow the appliance to cool before servicing
• Note the original orientation and take photos to aid reassembly
• Transfer any reusable screws/clips from the old part if needed
• Test fit and alignment before fully tightening fasteners

This oven heating element replaces a failed bake element to restore even, reliable oven heat for baking and roasting. It's a direct-replacement style part that heats the oven cavity when the bake function is used. What it does

• Heats the oven cavity during bake cycles so food cooks evenly
• Commonly used when the oven won't reach or hold baking temperatures
• Can fail visibly (broken or burned) or electrically (open circuit)
• Works with the oven's temperature control to maintain set temperature

• Disconnect power at the breaker before starting any repair to avoid shock.
• Handle the element carefully; connectors and terminals can be fragile.
• Confirm wire terminal fit and secure mounting; replace only with the correct OEM-style element.

This spacer positions and supports components to maintain proper alignment and clearance in the appliance. It prevents rubbing and ensures panels or parts sit correctly for reliable operation. What it does:

• Keeps panels, brackets or assemblies spaced correctly to prevent contact and wear
• Restores proper alignment to reduce vibration, noise or rubbing symptoms
• Maintains clearance for airflow or moving parts where specified
• Provides a stable mounting point for adjacent components

• One spacer

• Install in the location shown in the service diagram and secure with the original fasteners
• Disconnect power to the appliance before beginning service to avoid shock or injury
• If the original spacer shows damage or distortion, replace it to restore correct fit

This replacement mounting bracket secures internal components or panels to the appliance frame for proper alignment and stable operation. It restores a solid attachment point to reduce movement and prevent noise or part misalignment. What it does:

• Provides a secure mount for internal assemblies or trim panels.
• Keeps components aligned to prevent rubbing, rattling or vibration.
• Restores proper fit where a bent, broken or missing bracket caused loose parts.
• Helps maintain safe operation by keeping wiring and piping routed away from moving parts.

• One mounting bracket.

• Disconnect power to the appliance before beginning any repair.
• Basic hand tools commonly required; handle edges carefully to avoid cuts.
• Inspect surrounding fasteners and replaced parts; reuse original screws only if in good condition.

These are replacement countertop mounting screws that secure the appliance to the countertop or cabinet, restoring a stable, flush fit and preventing movement or gaps. Sold as a 2-pack for quick, direct replacement. What it does

• Secures the appliance countertop or trim to the cabinet or counter to keep the unit from shifting.
• Helps eliminate rocking, gaps, or uneven alignment caused by missing or loose mounting screws.
• Restores proper fit and finish where original mounting hardware has been lost or damaged.
• Works with factory mounting points and standard driver heads for straightforward replacement.

• Two countertop mounting screws.

• Use the correct-size driver to avoid stripping the screw head.
• Tighten until snug; avoid over-tightening which can strip threads or damage the cabinet/countertop.
• Keep original brackets and hardware; replace only the missing or damaged screws as needed.

Size: 3/4 inch od x 1/4 inch id.

Note: Quantity is one tool (right side)

Left side tool is part # AP3778569

Right side tool part # AP3778556

This part has been discontinued by the manufacturer and is no longer available.

This replacement wire harness routes power and signals between components so your appliance can operate reliably. It restores electrical connections worn or damaged by age, vibration, or heat. What it does:

• Provides the correct wiring and connectors to re-establish electrical continuity
• Replaces burnt, frayed, or broken wires that can cause intermittent operation
• Helps resolve symptoms such as no power to components, controls not responding, or frequent electrical faults
• Maintains OEM-style connector fit and wiring layout for proper function

• One complete wire harness as shown

• Disconnect power to the appliance before starting any repairs
• Match connector shapes and wire colors to ensure correct connections
• Handle connectors by the housings and avoid pulling on wires

This hex flange nut secures components where a broader bearing surface is needed to resist loosening and distribute load. It fits 10-32 threaded studs and is used on fastened assemblies in appliances. What it does:

• Provides a secure threaded connection for 10-32 screws and studs
• Flange spreads clamping force to reduce panel or bracket damage
• Hex shape allows tightening with a wrench for a reliable hold
• Commonly replaces worn or missing nuts that cause loose panels or rattling

• One hex flange nut

• Use the correct 10-32 screw or stud and hand-start threads to avoid cross-threading
• Tighten with an appropriately sized wrench; do not overtighten to prevent thread or part damage
• Disconnect power and follow appliance safety instructions before servicing
• Replace only like-for-like; confirm size and thread match your application

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation
