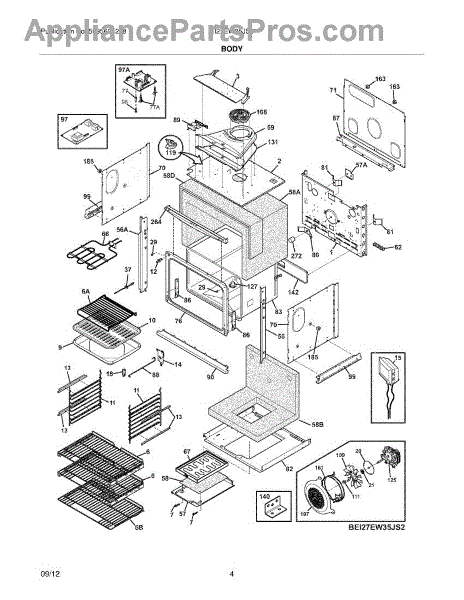

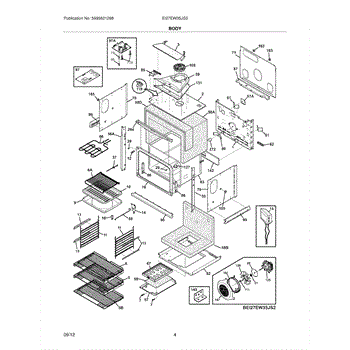

Parts for Electrolux EI27EW35JS3: 05 - Body Parts

This broiler insert is the oven pan insert that sits under the broiler burner to catch drips and help direct heat for even browning. It restores a stable cooking surface and keeps the broiler area cleaner. What it does:

• Holds food and catches grease and drips during broiling to prevent mess and flare-ups
• Directs heat from the broiler for consistent browning and searing
• Replaces damaged, warped, or corroded inserts that cause uneven cooking
• Helps prevent food from falling into the burner area

• One broiler insert

• Disconnect power to the appliance and allow the oven to cool completely before servicing
• Remove oven racks and slide the old insert out; position the new insert so it seats securely in the broiler cavity
• Wear heat-resistant gloves when testing the broiler after installation and inspect for proper fit before use
• Do not modify the part; use only as designed for the oven broiler assembly

This replacement switch restores reliable control of a selected function by opening or closing an electrical circuit inside your appliance. When the original switch wears out, buttons may stop responding or features may not activate consistently.

• Opens/closes an electrical circuit when the button/actuator is engaged
• Routes power or sends a signal to the control or component
• Common symptoms: no response when pressed, intermittent operation, or function won't start
• May show signs of heat damage, loose terminals, or inconsistent "click" feel

• Disconnect power at the breaker before servicing
• Photograph or label wire positions to ensure correct transfer to the new switch
• Move wires one at a time; fully seat connectors on the correct terminals
• Reassemble, restore power, and test the function activated by the switch

This small replacement spacer positions and secures appliance components to maintain correct alignment and fit. Installing the spacer restores proper panel spacing and reduces vibration where a worn or missing spacer causes looseness or rubbing. What it does:

• Maintains the correct gap between panels, trim, or assemblies to ensure parts fit flush
• Keeps components aligned to prevent rubbing, binding, or uneven wear
• Helps reduce vibration and rattling caused by a missing or damaged spacer
• Preserves original part spacing for reliable operation of the surrounding components

• Disconnect power to the appliance before any service to avoid shock or injury
• Remove any trim or fasteners that block access; keep track of screws and small parts
• Match the new spacer's orientation to the original; do not force parts into place

The Temperature Sensor is an OEM part for Frigidaire ovens. It monitors and helps regulate the oven's internal temperature, ensuring consistent cooking results by accurately detecting temperature changes. This sensor is crucial for the oven's control system to maintain the desired cooking temperature.

Symptoms of a bad Temperature Sensor include:

• Inaccurate oven temperature readings,
• Oven not heating to the set temperature,
• Oven overheating,
• Frequent temperature fluctuations during use.

Causes of a sensor failure can include prolonged exposure to high temperatures, electrical surges, or a breakdown of the sensor's components due to normal wear and tear.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement radiant surface element restores consistent burner heating under the glass cooktop on compatible electric ranges. It helps your cooking zone reach and maintain temperature so pots and pans heat evenly.

• Converts electrical energy into radiant heat beneath the glass surface
• Maintains set temperature by cycling on and off during operation
• Common symptoms: burner won't heat, heats weakly or unevenly, or only part of the ring glows
• May show visible scorching or breaks when inspected after access

• Disconnect power at the breaker before servicing and allow the cooktop to cool completely
• Lift/prop the glass top or remove the burner pan as your model requires to access the element
• Label and transfer wires one at a time; ensure all terminals are firmly seated
• Handle the element carefully to avoid bending or stressing the coil and supports

This electronic control board regulates the refrigerator's functions and user interface, restoring reliable operation when the original board fails. Replacing a faulty board can stop erratic behavior and restore normal temperature and display control. What it does:

• Manages compressor, fan, defrost and other timed cycles to maintain proper cooling
• Processes user inputs and controls the display/LEDs
• Can stop erratic cycling, unresponsive controls, or incorrect temperature behavior
• Helps resume normal operation when the original board is damaged by power surges or component failure

• Disconnect power to the appliance before starting any work
• Handle the board by the edges and avoid static discharge; use an anti-static wrist strap if available
• Confirm connectors match and seat fully; do not force plugs

This electronic oven control board governs the cooking functions and display. Replace it to restore accurate temperature control, timer/clock operation, and responsive keypad when the existing board is faulty.

• Regulates bake and broil heating to reach and maintain set temperatures
• Powers and manages the clock, timer, and display readout
• Interprets keypad inputs to start/stop modes and set temps/times
• Failure symptoms: oven won't heat or heats erratically
• Failure symptoms: unresponsive controls, blank/flickering display, or error codes

• Disconnect power at the breaker before servicing
• Handle the board by the edges; avoid static discharge
• Access through the control panel/rear cover; photograph wiring before removal
• Move wires and any mounting hardware one at a time to the new board; reassemble and test

This mounting bracket secures appliance components in place to restore stable operation and alignment. It's a simple, durable replacement that helps prevent loose parts and rattling for safer, quieter performance. What it does:

• Provides structural support for internal components and assemblies
• Holds panels, modules or hardware in correct alignment to prevent movement
• Helps eliminate rattling, vibration noise, or loose-fitting parts
• Restores proper fit where a worn or broken bracket allowed misalignment

• Turn off power to the appliance and unplug before beginning work
• Remove only the panels or fasteners necessary to access the old bracket
• Reuse original fasteners or replace with equivalent-size hardware; tighten securely

This access panel cover secures and protects internal components behind an appliance opening, keeping parts safe from dust and preventing accidental contact. It restores the appliance's finished appearance and helps maintain proper airflow around covered areas. What it does:

• Shields wiring and components from dirt, dust and accidental contact
• Helps prevent small items from entering service areas
• Restores a clean, finished look to the appliance exterior or interior
• Supports safe airflow patterns when installed as intended

• One replacement cover

• Disconnect power before servicing; follow all safety guidelines for your appliance
• Typically secures with screws or clips—retain original fasteners or use OEM replacements
• Align cover to mounting points and fasten evenly to avoid gaps or stress

This motor powers the oven's fan to move air through the cavity or chassis, depending on the model. Replacing a weak or failed motor restores proper airflow, helping maintain stable temperatures and protect internal components during cooking and cool-down. What it does and common symptoms:

• Drives the oven's fan for cooling and/or convection airflow
• Fan does not run or starts intermittently
• Loud humming, squealing, or grinding from the fan area
• Control area feels unusually hot or oven struggles to maintain temperature
• Uneven baking performance when using convection (on applicable models)

• One motor

• Disconnect power at the breaker before servicing; allow the oven to cool
• Access is typically from the rear or top; remove panels to reach the motor
• Note wire locations and any rotation markings before removal; transfer any attached fan wheel/bracket as required
• After installation, rotate the fan by hand to check for clearance, then restore power and test operation

This replacement fan blade mounts to the appliance's fan motor to move air as designed. Installing a new blade restores proper airflow and helps reduce vibration or noise caused by bent, cracked, or worn fins. What it does

• Attaches to the fan motor shaft to move air through the cavity or across internal components
• Supports even air circulation or cooling performance, depending on model
• Helps resolve issues such as loud scraping/whirring, vibration/wobble, weak airflow, or visible blade damage

• One fan blade

• Disconnect power at the breaker and allow the appliance to cool completely before servicing
• Access the fan assembly from the rear panel or inside the oven behind the fan cover (varies by model); wear gloves—edges can be sharp
• Note blade orientation/rotation and securely reinstall using the original fastener(s)
• Hand-spin the blade to ensure clearance and free movement before reassembly and testing

This is a nut that is used in many microwave ovens. It is typically used to hold interior fan in place. A nut is a fastener that is used to hold two items together or keep one component secure against a surface. Use and time can cause the nut to become stripped, damaged, or broken. If the nut is broken, it will no longer hold the fan in the right location. The nut will need to be replaced.Before replacing this part, the microwave should be unplugged. Open the refrigerator door and remove the cover that goes over the fan. The nut can then be removed using a nut driver. Replace the other parts before using the appliance.This nut is used in microwave ovens manufactured by Crosley, Electrolux, Frigidaire, and Kenmore. It is sold as a single part. This is an authentic OEM replacement part is sourced directly from the manufacturer.

The Thermostat is an OEM replacement part for Frigidaire ranges. It monitors the oven's temperature and cuts power if temperatures surpass safe levels. The high-limit thermostat allows protection against overheating.

Causes of a bad thermostat include wear and tear over time, damage due to exposure to extreme heat, or malfunctioning electronic components.

Symptoms of a bad thermostat include:

• Oven does not start at all.
• Excessive temperature fluctuations
• Risk of overheating as thermostat fails to shut off gas or electric coils
• Smoking or burning smells from the oven

This genuine Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore gas ranges.

This convection fan motor powers the fan that circulates heated air during convection cooking, helping your appliance maintain even temperatures and consistent results. Replacing a weak or noisy motor restores proper airflow and quieter operation.

• Drives the convection fan to move hot air throughout the cooking cavity
• Promotes even heat distribution for baking and roasting in Convection modes
• Activates when the control calls for convection airflow
• Common symptoms: fan not spinning, intermittent or slow operation, rattling or squealing noises, uneven cooking

• Disconnect power and allow the appliance to cool completely. Microwaves can retain dangerous high voltage even when unplugged.
• Access the motor behind the rear or interior fan cover per your model's design.
• Note wire positions; transfer the existing fan blade and any mounting hardware to the new motor if required.
• Ensure the fan spins freely before reassembly; restore power and test a Convection cycle.

NOTE: The factory has removed the catalyst (honeycomb) from this tube adapter. The catalyst is no longer available.

This oven heating element replaces a failed bake element to restore even, reliable oven heat for baking and roasting. It's a direct-replacement style part that heats the oven cavity when the bake function is used. What it does

• Heats the oven cavity during bake cycles so food cooks evenly
• Commonly used when the oven won't reach or hold baking temperatures
• Can fail visibly (broken or burned) or electrically (open circuit)
• Works with the oven's temperature control to maintain set temperature

• Disconnect power at the breaker before starting any repair to avoid shock.
• Handle the element carefully; connectors and terminals can be fragile.
• Confirm wire terminal fit and secure mounting; replace only with the correct OEM-style element.

This spacer positions and supports components to maintain proper alignment and clearance in the appliance. It prevents rubbing and ensures panels or parts sit correctly for reliable operation. What it does:

• Keeps panels, brackets or assemblies spaced correctly to prevent contact and wear
• Restores proper alignment to reduce vibration, noise or rubbing symptoms
• Maintains clearance for airflow or moving parts where specified
• Provides a stable mounting point for adjacent components

• One spacer

• Install in the location shown in the service diagram and secure with the original fasteners
• Disconnect power to the appliance before beginning service to avoid shock or injury
• If the original spacer shows damage or distortion, replace it to restore correct fit

Specs: 8 x 0.750

This hex flange nut secures components where a broader bearing surface is needed to resist loosening and distribute load. It fits 10-32 threaded studs and is used on fastened assemblies in appliances. What it does:

• Provides a secure threaded connection for 10-32 screws and studs
• Flange spreads clamping force to reduce panel or bracket damage
• Hex shape allows tightening with a wrench for a reliable hold
• Commonly replaces worn or missing nuts that cause loose panels or rattling

• One hex flange nut

• Use the correct 10-32 screw or stud and hand-start threads to avoid cross-threading
• Tighten with an appropriately sized wrench; do not overtighten to prevent thread or part damage
• Disconnect power and follow appliance safety instructions before servicing
• Replace only like-for-like; confirm size and thread match your application

This mounting bracket secures internal panels or components to the appliance frame, restoring stable support and alignment for proper operation. Use when a bracket is bent, broken or missing to reduce rattling and keep parts positioned correctly. What it does:

• Anchors panels or components to the cabinet/frame to prevent movement and vibration
• Restores proper alignment of doors, panels or internal assemblies
• Stops rattling or buzzing caused by loose or damaged support hardware
• Helps maintain safe clearance between parts and wiring or moving components

• Disconnect power to the appliance before starting any repair
• Basic hand tools typically required; follow OEM instructions for correct fastener locations
• Inspect adjacent fasteners and mounting surfaces; replace any damaged screws or clips
• If bracket is corroded or severely deformed, replace rather than re-bend to ensure proper fit

This wiring harness assembly routes power and signals between an appliance's control and its components to restore reliable electrical connections and operation. It replaces a damaged or corroded harness to help eliminate intermittent power or control issues. What it does

• Carries power and control signals between the appliance control board and internal components.
• Restores reliable electrical connections when wires are frayed, broken, or connectors are loose.
• Helps resolve intermittent operation, components not receiving power, or controls that don't respond.
• Prevents shorts caused by exposed wiring or damaged insulation.

• One pre-assembled wiring harness with factory-style connectors.

• Disconnect power (unplug appliance or shut off breaker) before starting work.
• Compare the new harness to the old one to confirm connector types and lengths before installation.
• Route and secure the harness away from moving parts and heat sources; use existing wire-retaining clips.

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

This appliance screw fastens panels, brackets, and other components inside the unit. Replace a missing, rusty, or stripped fastener to restore a secure fit and help prevent rattles, misalignment, or premature wear.

• Secures appliance components such as panels, brackets, and covers
• Restores proper fit when an original screw is missing or stripped
• Helps reduce vibration and noise from loose parts
• Common signs: loose or misaligned parts, rattling, or a missing screw

• Disconnect power before servicing
• Match the new screw to the original for size and thread before installing
• Hand-start threads to avoid cross-threading; do not overtighten
• Reuse any original washers or clips if they were used with the old screw

This oven light bulb illuminates the interior of your range or wall oven. Replace a burned-out bulb to restore clear visibility while cooking, checking doneness through the window, and cleaning.

• Provides interior illumination when the oven light is activated
• Common fix for no oven light, dim or flickering light, or a failed bulb
• Helps you monitor food without opening the door

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the oven to cool completely to avoid burns
• Remove the lens/cover if present; replace the bulb per your model's socket; do not overtighten
• Restore power and test; if the light still doesn't work, inspect the socket and switch
