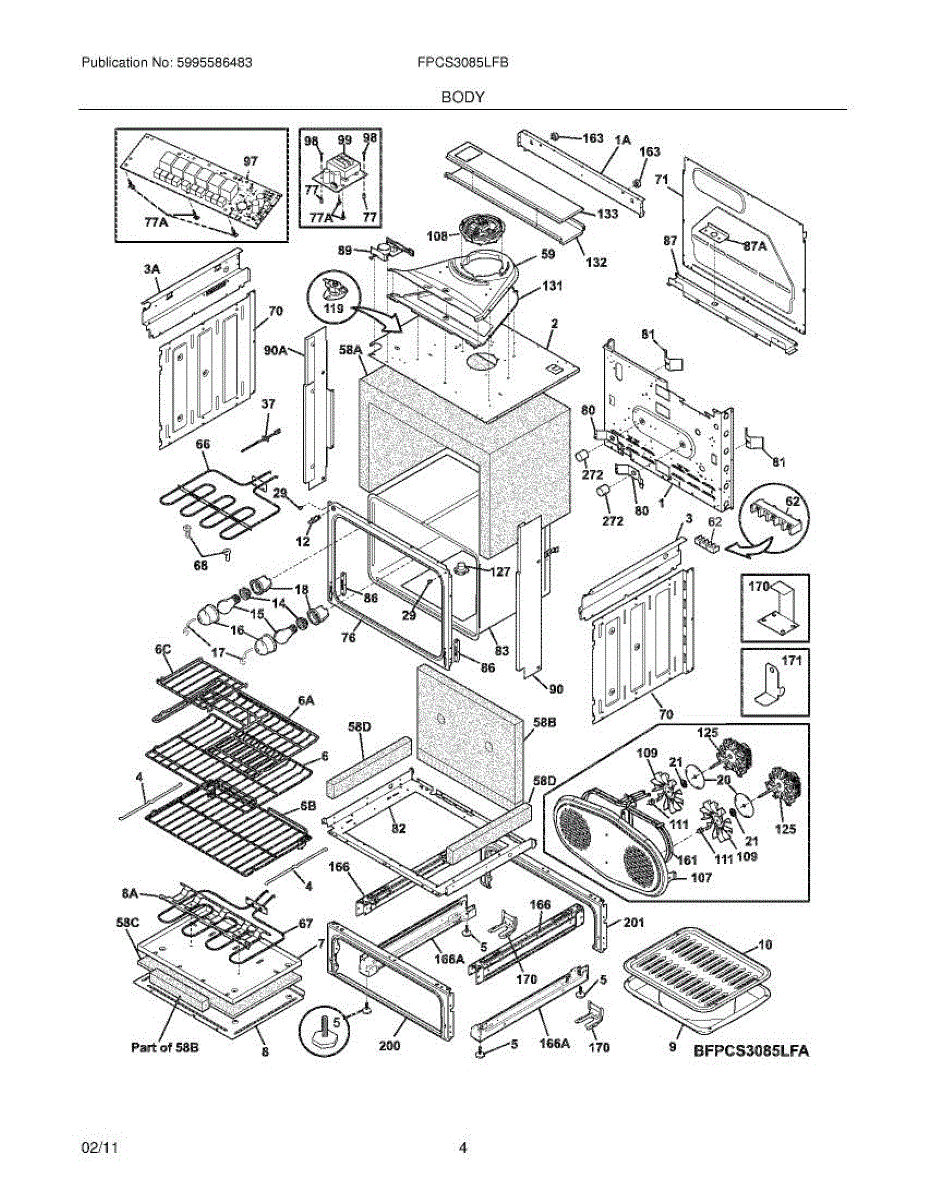

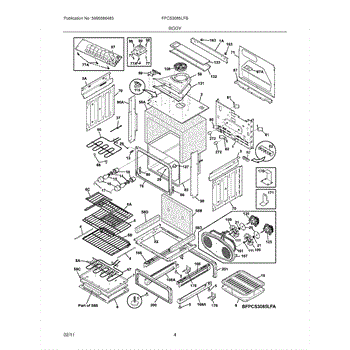

Parts for Frigidaire FPCS3085LFB: 05 - Body Parts

This machine screw adjusts and secures the leveling leg or bracket, helping you set the appliance stable and plumb. Replacing a stripped, bent, or missing screw restores a solid footing and makes accurate leveling possible.

• Threads into the base or leveling bracket to raise or lower the appliance for proper leveling
• Helps reduce rocking, wobbling, and vibration from an unlevel installation
• Common signs of wear: stripped threads, bent hardware, corrosion, or a missing screw
• Useful during installation or when the existing adjustment screw no longer holds

• Disconnect power; shut off gas before working
• Support the appliance to relieve weight on the leveling point
• Remove the damaged screw; inspect and clean mating threads
• Start the new screw by hand to avoid cross-threading, then adjust height and snug

This oven rack provides a stable, level surface for cookware and restores smooth sliding performance in your range or wall oven. Replace a bent, rusted, or missing rack to maintain proper spacing and safe support while cooking. What it does:

• Supports pans and dishes at the correct height inside the oven
• Slides on the side rails for easy loading and access
• Replace if warped, heavily rusted, or no longer sliding smoothly
• A damaged or missing rack can make loading unsafe and affect results

• Disconnect power and allow the oven to cool completely before servicing
• Pull the old rack forward to the stop, lift the front, and remove
• Insert the new rack with the rear stops toward the back; engage both side rails evenly
• Check your owner's manual—many ovens require removing racks before a self-clean cycle

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This control-panel switch restores reliable on/off control of a selected function on your range or wall oven. Replacing a worn or intermittent switch helps ensure the appliance responds consistently when you toggle that function.

• Directs power to the associated circuit when switched on or off
• Common symptoms: function won't turn on/off, intermittent operation, or the switch feels loose/sticks
• Helps restore positive, consistent control from the backguard/control panel

• Disconnect power at the breaker before servicing
• Access the switch from the control panel/backguard; retain screws/clips
• Label/photograph wire positions and transfer leads one at a time to the new switch
• Ensure firm terminal connections, reassemble, restore power, and test operation

The Oven Light Socket is an OEM replacement part for Frigidaire electric ranges and wall ovens. It houses the bulb that illuminates the interior of the oven cavity.

Causes of a bad light socket can include a loose or broken connection due to regular use, scorched or burnt terminals from overheating, or damage from moisture.

Symptoms of a bad light socket include:

• The oven light not turning on when activated
• Flickering or intermittent bulb operation
• Signs of corrosion or oxidation around the bulb base
• Excessive heat emission from the light area

This OEM Frigidaire replacement part is also compatible with ranges and wall ovens from Electrolux, Gibson, and Kelvinator.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This small replacement spacer positions and secures appliance components to maintain correct alignment and fit. Installing the spacer restores proper panel spacing and reduces vibration where a worn or missing spacer causes looseness or rubbing. What it does:

• Maintains the correct gap between panels, trim, or assemblies to ensure parts fit flush
• Keeps components aligned to prevent rubbing, binding, or uneven wear
• Helps reduce vibration and rattling caused by a missing or damaged spacer
• Preserves original part spacing for reliable operation of the surrounding components

• Disconnect power to the appliance before any service to avoid shock or injury
• Remove any trim or fasteners that block access; keep track of screws and small parts
• Match the new spacer's orientation to the original; do not force parts into place

The Temperature Sensor is an OEM part for Frigidaire ovens. It monitors and helps regulate the oven's internal temperature, ensuring consistent cooking results by accurately detecting temperature changes. This sensor is crucial for the oven's control system to maintain the desired cooking temperature.

Symptoms of a bad Temperature Sensor include:

• Inaccurate oven temperature readings,
• Oven not heating to the set temperature,
• Oven overheating,
• Frequent temperature fluctuations during use.

Causes of a sensor failure can include prolonged exposure to high temperatures, electrical surges, or a breakdown of the sensor's components due to normal wear and tear.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This is the radiant surface heating element that powers one burner on a glass-ceramic cooktop. Replacing a failed element restores fast, even heat and reliable temperature control for everyday cooking.

• Converts electrical energy into heat for a single cooktop zone
• Works with the burner control to cycle on/off and maintain temperature
• Common symptoms include no heat, intermittent heat, or very slow heating
• Visible hot spots, blisters, or cracks on the element indicate failure

• Disconnect power to the range/cooktop before servicing; high voltage is present
• Allow the glass top to cool; lift or remove it to access the element as your model requires
• Transfer wires one at a time to the new element; secure using existing brackets/mounts
• Ensure the element is centered under the glass and test operation before reassembly

This bake element is the oven heating element that provides the heat for baking and roasting. Replace a damaged or failed element to restore normal bake performance and even cooking results. What it does:

• Converts electrical power into radiant heat for the oven bake cycle.
• Heats and glows when operating; failure can cause little or no bake heat.
• Common symptoms: oven won't reach set temperature, food cooks unevenly, or element shows visible breaks or heavy corrosion.
• Fits as the direct replacement heating element for the bake function when matched to your model.

• Disconnect power to the appliance at the breaker or fuse box before starting any work.
• Allow the oven to cool completely and wear gloves to protect hands from sharp edges.
• Confirm terminal orientation and secure electrical connections; ensure the element is seated and fastened per your model's instructions.

This element hanger support secures a cooktop surface heating element to the range and keeps the element aligned for reliable contact and stable cooking. Replaces a worn or bent bracket to restore proper element positioning. What it does:

• Holds the surface heating element in the correct position under the cooktop
• Stabilizes the element to maintain solid electrical contact and even heating
• Helps prevent element wobble, arcing, or intermittent power to the burner
• Fits where the element connects to the terminal/anchor point on the cooktop

• 1 element hanger support bracket

• Disconnect power to the appliance before attempting any service
• Remove the cooktop or element as required to access the hanger; follow OEM disassembly steps
• Inspect element terminals and surrounding parts for damage while replacing the bracket

This motor drives the fan or mechanism in your cooking appliance to move air as designed. Replacing a worn or seized motor restores proper airflow and quieter operation for consistent baking, cooling, or venting performance, depending on model.

• Powers the appliance's fan or drive to circulate air or move exhaust
• Helps maintain even temperatures or ventilation during operation
• Replaces a noisy, slow, or non-spinning motor
• Common signs: fan won't run, weak airflow, humming/grinding noise, overheating, or a tripped breaker

• Disconnect power at the breaker; shut off gas supply for gas models
• Access location varies by model; remove the necessary panels to reach the motor
• Note wiring and rotation; transfer any brackets, grommets, or the fan blade from the original, if required
• After installation, verify smooth, quiet operation and correct airflow

This control panel is the front console fascia that houses the oven/range controls and display, restoring the unit's user interface and appearance. It replaces a cracked, faded, or damaged console face to make controls accessible and look like new. What it does:

• Provides the visible bezel and button/display surface for the unit's electronic controls
• Restores a secure mounting surface for control buttons, knobs, and display elements
• Helps resolve issues with broken, cracked, or cosmetically damaged console areas
• Supports proper alignment of control electronics

• Disconnect power to the appliance before starting any repair to avoid electric shock
• Basic disassembly (removing trim screws and console fasteners) is typically required; keep hardware for reassembly
• Handle carefully to avoid scratching or cracking the new panel during install
• If control electronics or trim pieces are damaged, verify those parts separately; this panel is the fascia only

This is a Frigidaire cooktop relay control board, which monitors and regulates the burners on a stove. The control board can short out due to power surge or exposure to excessive heat. For example, if the oven's self clean function is run too long or too frequently, parts of the control board could melt or otherwise malfunction. If the control board has failed, the stovetop burners may not work at all.Before installing this part, ensure that power to the range has been cut. A screwdriver will be needed to remove the old control panel and secure the new one.This is a genuine OEM part compatible with ranges manufactured by Frigidaire brands, including Electrolux, Gibson, Kelvinator, Westinghouse, and others. No other hardware is included with this product.

This is the electronic control board that governs the appliance's main functions and user interface, replacing a failed board to restore normal control and cycle operation. It fits the OEM form and connects to factory wiring. What it does:

• Manages timed cycles, user inputs, and electronic commands for the appliance
• Controls display and indicator responses so settings register correctly
• Helps resolve symptoms like unresponsive controls, incorrect cycle behavior, or blank/error displays
• Interfaces with sensors and relays to coordinate heating, motor, and valve operation

• Disconnect power to the appliance before attempting service to avoid shock
• Handle the board by its edges and avoid static discharge; use an anti-static strap if available

This motor drives the oven's convection fan to circulate hot air throughout the cavity for more even baking and roasting. Replacing a weak or noisy motor restores proper airflow and consistent cooking performance. What it does:

• Rotates the convection fan to move hot air uniformly across racks
• Helps maintain steady cavity temperatures during convection cycles
• Can resolve symptoms like a non-spinning fan, intermittent operation, or buzzing/grinding noises
• Improve uneven baking, poor browning, or extended cook times when convection is selected

• One motor

• Disconnect power at the breaker and allow the oven to cool completely
• Access the motor from the rear or through the oven cavity per your model's service procedure
• Note wire positions; transfer the fan blade and any mounting hardware from the old motor if required
• Ensure the fan spins freely by hand, secure wiring, then restore power and test convection operation

This replacement fan blade mounts to the appliance's fan motor to move air as designed. Installing a new blade restores proper airflow and helps reduce vibration or noise caused by bent, cracked, or worn fins. What it does

• Attaches to the fan motor shaft to move air through the cavity or across internal components
• Supports even air circulation or cooling performance, depending on model
• Helps resolve issues such as loud scraping/whirring, vibration/wobble, weak airflow, or visible blade damage

• One fan blade

• Disconnect power at the breaker and allow the appliance to cool completely before servicing
• Access the fan assembly from the rear panel or inside the oven behind the fan cover (varies by model); wear gloves—edges can be sharp
• Note blade orientation/rotation and securely reinstall using the original fastener(s)
• Hand-spin the blade to ensure clearance and free movement before reassembly and testing

This is a nut that is used in many microwave ovens. It is typically used to hold interior fan in place. A nut is a fastener that is used to hold two items together or keep one component secure against a surface. Use and time can cause the nut to become stripped, damaged, or broken. If the nut is broken, it will no longer hold the fan in the right location. The nut will need to be replaced.Before replacing this part, the microwave should be unplugged. Open the refrigerator door and remove the cover that goes over the fan. The nut can then be removed using a nut driver. Replace the other parts before using the appliance.This nut is used in microwave ovens manufactured by Crosley, Electrolux, Frigidaire, and Kenmore. It is sold as a single part. This is an authentic OEM replacement part is sourced directly from the manufacturer.

This convection fan motor powers the fan that circulates heated air during convection cooking, helping your appliance maintain even temperatures and consistent results. Replacing a weak or noisy motor restores proper airflow and quieter operation.

• Drives the convection fan to move hot air throughout the cooking cavity
• Promotes even heat distribution for baking and roasting in Convection modes
• Activates when the control calls for convection airflow
• Common symptoms: fan not spinning, intermittent or slow operation, rattling or squealing noises, uneven cooking

• Disconnect power and allow the appliance to cool completely. Microwaves can retain dangerous high voltage even when unplugged.
• Access the motor behind the rear or interior fan cover per your model's design.
• Note wire positions; transfer the existing fan blade and any mounting hardware to the new motor if required.
• Ensure the fan spins freely before reassembly; restore power and test a Convection cycle.

NOTE: The factory has removed the catalyst (honeycomb) from this tube adapter. The catalyst is no longer available.

This mounting bracket secures internal components to the appliance cabinet, restoring proper alignment and stable support where factory brackets have broken or come loose. A direct-fit replacement that helps stop shifting, rattles, and misalignment. What it does:

• Provides a secure mounting point for panels, assemblies, or components inside the cabinet
• Restores correct alignment when a damaged bracket allows parts to sag or move
• Reduces vibration and rattling caused by loose or missing support
• Helps maintain proper clearances for doors and internal assemblies

• One replacement mounting bracket

• Disconnect power to the appliance before starting any repair
• Remove any obstructing panels, shelves, or components to access the bracket
• Keep original fasteners; replace only if explicitly specified by OEM instructions

Specs: 8 x 0.750

This is a 10-24 x 1/2 inch machine screw used to secure temperature probes, thermistor brackets, shields and drawer/box components. It provides a simple, reliable fastener for small appliance assemblies. What it does:

• Secures probe or thermistor brackets to the appliance chassis or housing
• Holds shielding or small drawer/box parts in place to prevent movement or rattling
• Helps maintain correct sensor positioning so temperature readings stay stable
• Common replacement when a stripped, corroded, or missing screw causes loose parts or vibration

• One 10-24 x 1/2 in. screw

• Use the matching 10-24 threaded hole; avoid over-tightening to prevent stripping or cracking nearby plastic
• If replacing a corroded screw, inspect mating threads and components for damage before reuse
• Turn off and unplug the appliance or disconnect power before accessing internal components

This shoulder screw secures moving or fixed appliance components by providing a built-in spacer and pivot point for proper alignment and smooth operation. It restores correct fit where a worn or missing shoulder fastener causes play. What it does:

• Provides a precision spacer and pivot for hinges, drawers, or linkage assemblies
• Holds components at the correct distance to prevent rubbing and binding
• Helps stop wobble, misalignment, rattling, or uneven movement when the original shoulder screw is worn or missing
• Works where a headed screw with an integrated shoulder is required for smooth rotation or exact spacing

• One shoulder screw

• Disconnect power and remove the appliance panel or access covers before replacing hardware
• Handle small parts carefully to avoid dropping them into assemblies; magnetic pickup tool can help
• Install in the original location and tighten securely but avoid overtightening; do not modify the shoulder or thread
• If the screw secures a load-bearing hinge or mechanism, verify alignment and operation after installation

This hex flange nut secures components where a broader bearing surface is needed to resist loosening and distribute load. It fits 10-32 threaded studs and is used on fastened assemblies in appliances. What it does:

• Provides a secure threaded connection for 10-32 screws and studs
• Flange spreads clamping force to reduce panel or bracket damage
• Hex shape allows tightening with a wrench for a reliable hold
• Commonly replaces worn or missing nuts that cause loose panels or rattling

• One hex flange nut

• Use the correct 10-32 screw or stud and hand-start threads to avoid cross-threading
• Tighten with an appropriately sized wrench; do not overtighten to prevent thread or part damage
• Disconnect power and follow appliance safety instructions before servicing
• Replace only like-for-like; confirm size and thread match your application

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

This appliance screw fastens panels, brackets, and other components inside the unit. Replace a missing, rusty, or stripped fastener to restore a secure fit and help prevent rattles, misalignment, or premature wear.

• Secures appliance components such as panels, brackets, and covers
• Restores proper fit when an original screw is missing or stripped
• Helps reduce vibration and noise from loose parts
• Common signs: loose or misaligned parts, rattling, or a missing screw

• Disconnect power before servicing
• Match the new screw to the original for size and thread before installing
• Hand-start threads to avoid cross-threading; do not overtighten
• Reuse any original washers or clips if they were used with the old screw
