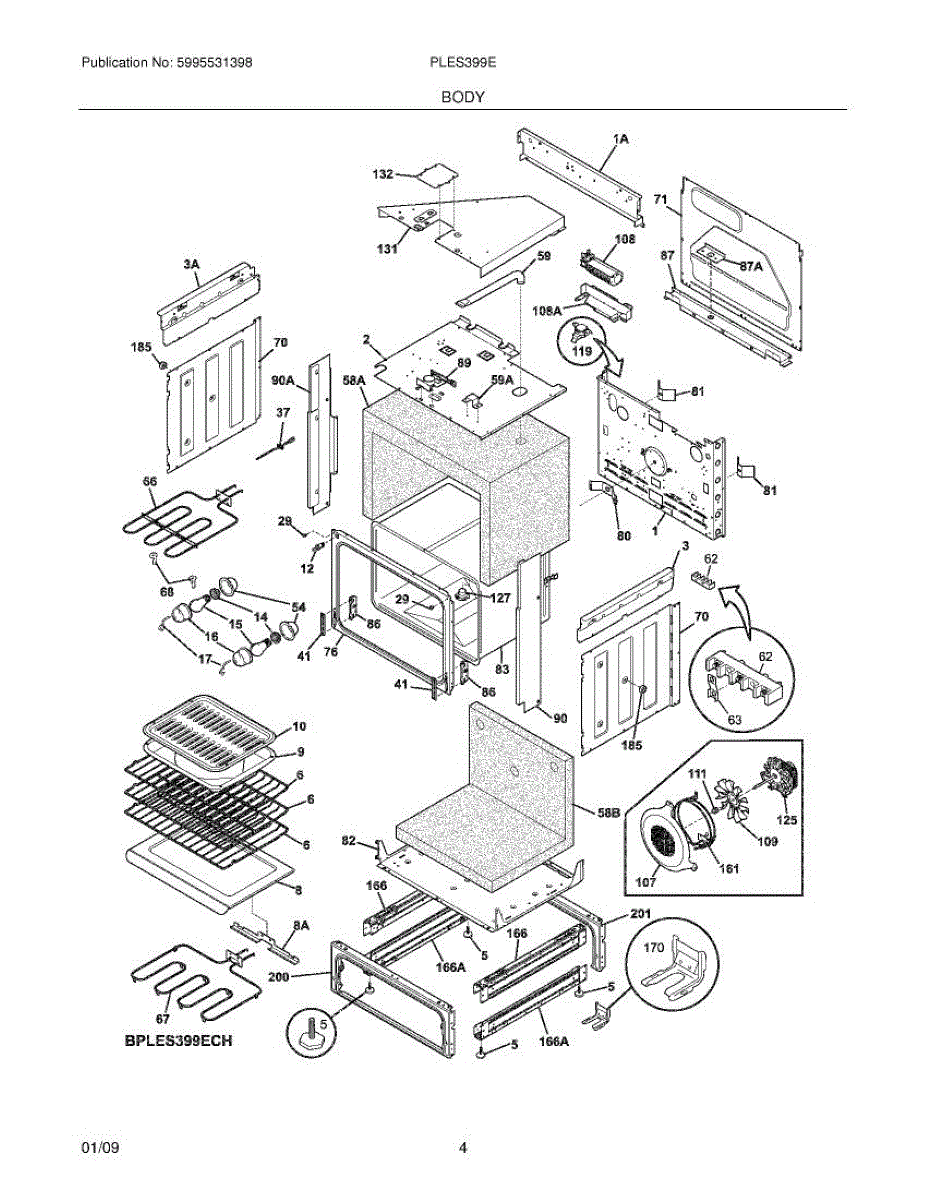

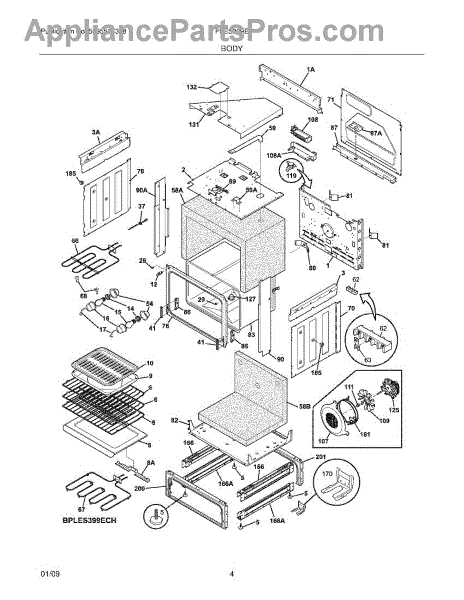

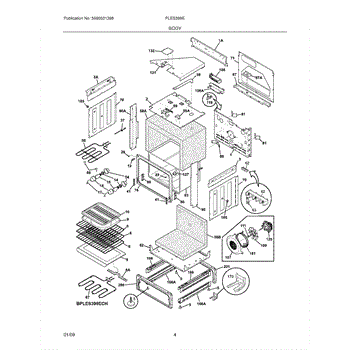

Parts for Frigidaire PLES399ECH: 05 - Body Parts

This machine screw adjusts and secures the leveling leg or bracket, helping you set the appliance stable and plumb. Replacing a stripped, bent, or missing screw restores a solid footing and makes accurate leveling possible.

• Threads into the base or leveling bracket to raise or lower the appliance for proper leveling
• Helps reduce rocking, wobbling, and vibration from an unlevel installation
• Common signs of wear: stripped threads, bent hardware, corrosion, or a missing screw
• Useful during installation or when the existing adjustment screw no longer holds

• Disconnect power; shut off gas before working
• Support the appliance to relieve weight on the leveling point
• Remove the damaged screw; inspect and clean mating threads
• Start the new screw by hand to avoid cross-threading, then adjust height and snug

The Rack is an OEM part for Frigidaire ovens. This rack provides a sturdy and reliable surface for baking and broiling. It's engineered to withstand high temperatures and support heavy dishes, ensuring your culinary creations are cooked evenly and efficiently.

Over time, oven racks can become warped or damaged due to the high heat they're exposed to or from supporting heavy cookware. This can lead to uneven cooking or difficulty sliding the rack in and out of the oven.

Symptoms of a bad rack include:

• Difficulty sliding the rack in and out of the oven
• Uneven cooking or baking results
• Visible warping or damage
• Difficulty fitting the rack properly inside the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This genuine OEM part is an oven door cover. The oven door cover is the main door that covers the interior of the oven.To replace, begin by shutting off power to the appliance. Then open the old oven door. Once opened, locate the hinges that secure the door to the frame of the oven. Remove the screws attached to the hinges. Lift the old door off the hinges and set to the side. Take the new door and place it on the hinges and fasten the screws to secure the door. Close the door and make sure it shuts smoothly. This replacement part is sold individually and is compatible with Frigidaire, Electrolux, Gibson, Kelvinator, and Westinghouse brand ovens.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This control-panel switch restores reliable on/off control of a selected function on your range or wall oven. Replacing a worn or intermittent switch helps ensure the appliance responds consistently when you toggle that function.

• Directs power to the associated circuit when switched on or off
• Common symptoms: function won't turn on/off, intermittent operation, or the switch feels loose/sticks
• Helps restore positive, consistent control from the backguard/control panel

• Disconnect power at the breaker before servicing
• Access the switch from the control panel/backguard; retain screws/clips
• Label/photograph wire positions and transfer leads one at a time to the new switch
• Ensure firm terminal connections, reassemble, restore power, and test operation

The Oven Light Socket is an OEM replacement part for Frigidaire electric ranges and wall ovens. It houses the bulb that illuminates the interior of the oven cavity.

Causes of a bad light socket can include a loose or broken connection due to regular use, scorched or burnt terminals from overheating, or damage from moisture.

Symptoms of a bad light socket include:

• The oven light not turning on when activated
• Flickering or intermittent bulb operation
• Signs of corrosion or oxidation around the bulb base
• Excessive heat emission from the light area

This OEM Frigidaire replacement part is also compatible with ranges and wall ovens from Electrolux, Gibson, and Kelvinator.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This small replacement spacer positions and secures appliance components to maintain correct alignment and fit. Installing the spacer restores proper panel spacing and reduces vibration where a worn or missing spacer causes looseness or rubbing. What it does:

• Maintains the correct gap between panels, trim, or assemblies to ensure parts fit flush
• Keeps components aligned to prevent rubbing, binding, or uneven wear
• Helps reduce vibration and rattling caused by a missing or damaged spacer
• Preserves original part spacing for reliable operation of the surrounding components

• Disconnect power to the appliance before any service to avoid shock or injury
• Remove any trim or fasteners that block access; keep track of screws and small parts
• Match the new spacer's orientation to the original; do not force parts into place

The Oven Temperature Probe is an OEM part for Frigidaire ovens. This part monitors the oven's internal temperature, ensuring that it accurately reflects the set temperature on the oven's control. By measuring the heat inside the oven, the temperature probe helps in maintaining consistent cooking results, preventing undercooking or overcooking of food.

Over time, the oven temperature probe can fail or become inaccurate due to wear and tear, exposure to extreme temperatures, or damage from cleaning and handling. This can lead to uneven cooking results, with food being overcooked or undercooked, despite setting the oven to the correct temperature.

Symptoms of a bad Oven Temperature Probe include:

• Oven not reaching the set temperature
• Oven temperature fluctuating more than usual
• Food not cooking evenly or within expected time frames
• Error codes displayed on the oven indicating a temperature sensor issue

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Broil Element is an OEM part for Frigidaire ovens and ranges. It is specifically designed to provide the high heat necessary for broiling food, such as meats and vegetables. Located at the top of the oven interior, the broil element radiates heat downwards, creating a high-temperature environment ideal for browning and caramelizing the exterior of dishes while locking in juices.

Over time, the broil element can burn out or become damaged due to high temperatures and frequent use.

Symptoms of a bad Broil Element include:

• Lack of heat when broiling
• Uneven cooking or browning of food
• Visible damage or breaks in the element
• No visible glow from the element during operation

This genuine Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore gas ranges.

The Bake Element is an OEM part for Frigidaire ovens. It is responsible for providing the necessary heat for baking by converting electrical energy into heat within the oven cavity, ensuring even and consistent cooking results. It measures 19-1/2" wide, 15" long, and has 3-1/2" inserts, with a rating of 3400 watts and 240 volts.

Causes of a bad bake element can include normal wear and tear over time, damage from high temperatures, or electrical malfunctions that cause the element to short out or break.

Symptoms of a bad bake element include:

• Uneven baking results
• The oven not reaching the desired temperature
• Visible damage or breakage on the element
• The element not glowing red when in use

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This element hanger support secures a cooktop surface heating element to the range and keeps the element aligned for reliable contact and stable cooking. Replaces a worn or bent bracket to restore proper element positioning. What it does:

• Holds the surface heating element in the correct position under the cooktop
• Stabilizes the element to maintain solid electrical contact and even heating
• Helps prevent element wobble, arcing, or intermittent power to the burner
• Fits where the element connects to the terminal/anchor point on the cooktop

• 1 element hanger support bracket

• Disconnect power to the appliance before attempting any service
• Remove the cooktop or element as required to access the hanger; follow OEM disassembly steps
• Inspect element terminals and surrounding parts for damage while replacing the bracket

This motor drives the fan or mechanism in your cooking appliance to move air as designed. Replacing a worn or seized motor restores proper airflow and quieter operation for consistent baking, cooling, or venting performance, depending on model.

• Powers the appliance's fan or drive to circulate air or move exhaust
• Helps maintain even temperatures or ventilation during operation
• Replaces a noisy, slow, or non-spinning motor
• Common signs: fan won't run, weak airflow, humming/grinding noise, overheating, or a tripped breaker

• Disconnect power at the breaker; shut off gas supply for gas models
• Access location varies by model; remove the necessary panels to reach the motor
• Note wiring and rotation; transfer any brackets, grommets, or the fan blade from the original, if required
• After installation, verify smooth, quiet operation and correct airflow

This control panel is the front console fascia that houses the oven/range controls and display, restoring the unit's user interface and appearance. It replaces a cracked, faded, or damaged console face to make controls accessible and look like new. What it does:

• Provides the visible bezel and button/display surface for the unit's electronic controls
• Restores a secure mounting surface for control buttons, knobs, and display elements
• Helps resolve issues with broken, cracked, or cosmetically damaged console areas
• Supports proper alignment of control electronics

• Disconnect power to the appliance before starting any repair to avoid electric shock
• Basic disassembly (removing trim screws and console fasteners) is typically required; keep hardware for reassembly
• Handle carefully to avoid scratching or cracking the new panel during install
• If control electronics or trim pieces are damaged, verify those parts separately; this panel is the fascia only

Evaporator fan motor that circulates cold air over the evaporator coil to help maintain even refrigerator temperatures. Replacing a failing motor restores airflow, reduces warm spots and frost buildup, and cuts down on excessive fan noise. What it does:

• Spins the evaporator fan blade to move cold air through the evaporator and into the cabinet.
• Promotes even cooling to prevent warm zones and food spoilage.
• Stops or reduces abnormal noises caused by a worn or seized motor.
• Helps prevent frost accumulation linked to poor airflow.

• Disconnect power to the appliance before beginning any repair.
• Handle the motor and fan blade carefully; ensure the fan blade is seated properly on the shaft.
• Remove evaporator/fan housing panels and retain screws and clips for reassembly; verify wiring connectors match before reconnecting.

This replacement fan blade mounts to the appliance's fan motor to move air as designed. Installing a new blade restores proper airflow and helps reduce vibration or noise caused by bent, cracked, or worn fins. What it does

• Attaches to the fan motor shaft to move air through the cavity or across internal components
• Supports even air circulation or cooling performance, depending on model
• Helps resolve issues such as loud scraping/whirring, vibration/wobble, weak airflow, or visible blade damage

• One fan blade

• Disconnect power at the breaker and allow the appliance to cool completely before servicing
• Access the fan assembly from the rear panel or inside the oven behind the fan cover (varies by model); wear gloves—edges can be sharp
• Note blade orientation/rotation and securely reinstall using the original fastener(s)
• Hand-spin the blade to ensure clearance and free movement before reassembly and testing

This is a nut that is used in many microwave ovens. It is typically used to hold interior fan in place. A nut is a fastener that is used to hold two items together or keep one component secure against a surface. Use and time can cause the nut to become stripped, damaged, or broken. If the nut is broken, it will no longer hold the fan in the right location. The nut will need to be replaced.Before replacing this part, the microwave should be unplugged. Open the refrigerator door and remove the cover that goes over the fan. The nut can then be removed using a nut driver. Replace the other parts before using the appliance.This nut is used in microwave ovens manufactured by Crosley, Electrolux, Frigidaire, and Kenmore. It is sold as a single part. This is an authentic OEM replacement part is sourced directly from the manufacturer.

This thermal switch is a temperature-sensitive safety device used in many ranges and wall ovens. It opens or closes an electrical circuit at a set temperature to protect internal components and help maintain safe operation. What it does:

• Monitors temperature and opens/closes a circuit at a specified threshold
• Protects the appliance from overheat conditions
• Cuts power to heating circuits or controls a cooling/vent fan, depending on model
• Common symptoms of failure include: oven or certain functions won't run, unit shuts off mid-cycle, or operation returns only after cooling

• 1 thermal switch

• Disconnect power at the breaker before servicing
• Access location varies by model
• Move wires over one at a time to the new switch and secure it firmly to its mounting surface
• After replacement, verify proper airflow and cooling to prevent repeat overheating

This convection fan motor powers the fan that circulates heated air during convection cooking, helping your appliance maintain even temperatures and consistent results. Replacing a weak or noisy motor restores proper airflow and quieter operation.

• Drives the convection fan to move hot air throughout the cooking cavity
• Promotes even heat distribution for baking and roasting in Convection modes
• Activates when the control calls for convection airflow
• Common symptoms: fan not spinning, intermittent or slow operation, rattling or squealing noises, uneven cooking

• Disconnect power and allow the appliance to cool completely. Microwaves can retain dangerous high voltage even when unplugged.
• Access the motor behind the rear or interior fan cover per your model's design.
• Note wire positions; transfer the existing fan blade and any mounting hardware to the new motor if required.
• Ensure the fan spins freely before reassembly; restore power and test a Convection cycle.

This adapter assembly joins and aligns mating parts inside the appliance so they fit securely and operate as designed. Replace a cracked or missing adapter to restore proper fit and eliminate looseness or misalignment after service. What it does:

• Provides the correct spacing and alignment between connected components
• Helps secure parts to reduce vibration, rattling, or shifting
• Restores proper fitment after a component replacement or repair
• Replace if the original is cracked, warped, or missing mounting features

• One adapter assembly

• Disconnect power and allow the appliance to cool before servicing
• Note the original orientation and take photos to aid reassembly
• Transfer any reusable screws/clips from the old part if needed
• Test fit and alignment before fully tightening fasteners

Bake element restores oven heat by producing the radiant heat needed for baking and roasting. Replacing a worn or damaged bake element helps the oven reach and maintain set temperatures for more consistent cooking results. What it does:

• Heats the oven cavity to provide direct radiant heat for baking and roasting.
• Use when the element shows visible breaks, blistering, or does not glow when the oven is set to high.
• Common symptom indicators: oven won't reach set temperature, uneven baking, or longer-than-normal cook times.
• Works as a direct replacement for the oven's lower/bake heating element.

• Disconnect power at the breaker or unplug the appliance before starting any repair.
• Allow the oven to cool completely and wear gloves to avoid sharp edges.
• Match the part to your model and terminal layout before installing; tighten connections securely.

This mounting bracket secures internal components to the appliance cabinet, restoring proper alignment and stable support where factory brackets have broken or come loose. A direct-fit replacement that helps stop shifting, rattles, and misalignment. What it does:

• Provides a secure mounting point for panels, assemblies, or components inside the cabinet
• Restores correct alignment when a damaged bracket allows parts to sag or move
• Reduces vibration and rattling caused by loose or missing support
• Helps maintain proper clearances for doors and internal assemblies

• One replacement mounting bracket

• Disconnect power to the appliance before starting any repair
• Remove any obstructing panels, shelves, or components to access the bracket
• Keep original fasteners; replace only if explicitly specified by OEM instructions

This spacer sets the correct gap between mating parts in your appliance's assembly, preventing rubbing and misalignment. Replace a missing or worn spacer to restore a solid fit, reduce noise, and protect surrounding components.

• Maintains proper spacing between components for correct alignment and operation
• Reduces metal-to-metal contact, squeaks, and premature wear
• Helps fasteners and panels seat securely
• Typical symptoms when failed: loose or rattling parts, uneven gaps, or visible wear marks

• Disconnect power; for gas models, shut off the gas. Allow the appliance to cool completely.
• Access the assembly per your model's diagram; note the original orientation/stack-up before removal.
• Reuse original fasteners if serviceable; hand-start threads and tighten snugly to avoid damaging the spacer.
• Verify alignment and clearances before fully reassembling. Quantity and location vary by model.

Specs: 8 x 0.750

This wiring harness connects appliance controls and components to deliver electrical signals and power where needed, restoring reliable circuitry and operation. Ideal when original wiring is damaged, frayed, or has loose connector ends. What it does:

• Provides the factory-style electrical connections between control boards, motors, switches, or sensors.
• Replaces damaged or corroded wires and connectors that can cause intermittent operation or component failure.
• Helps restore proper signal and power flow to the affected circuit.
• Addresses symptoms such as components not powering on, erratic behavior, or visible wire damage.

• One complete wiring harness as shown.

• Disconnect all power (unplug or shut off breaker) before beginning any repair.
• Compare the new harness to the original to verify connector types and wire lengths before installation.
• Route and secure wiring the same way as the original to avoid pinching or contact with hot/moving parts.

This hex flange nut secures components where a broader bearing surface is needed to resist loosening and distribute load. It fits 10-32 threaded studs and is used on fastened assemblies in appliances. What it does:

• Provides a secure threaded connection for 10-32 screws and studs
• Flange spreads clamping force to reduce panel or bracket damage
• Hex shape allows tightening with a wrench for a reliable hold
• Commonly replaces worn or missing nuts that cause loose panels or rattling

• One hex flange nut

• Use the correct 10-32 screw or stud and hand-start threads to avoid cross-threading
• Tighten with an appropriately sized wrench; do not overtighten to prevent thread or part damage
• Disconnect power and follow appliance safety instructions before servicing
• Replace only like-for-like; confirm size and thread match your application

This shoulder screw secures moving or fixed appliance components by providing a built-in spacer and pivot point for proper alignment and smooth operation. It restores correct fit where a worn or missing shoulder fastener causes play. What it does:

• Provides a precision spacer and pivot for hinges, drawers, or linkage assemblies
• Holds components at the correct distance to prevent rubbing and binding
• Helps stop wobble, misalignment, rattling, or uneven movement when the original shoulder screw is worn or missing
• Works where a headed screw with an integrated shoulder is required for smooth rotation or exact spacing

• One shoulder screw

• Disconnect power and remove the appliance panel or access covers before replacing hardware
• Handle small parts carefully to avoid dropping them into assemblies; magnetic pickup tool can help
• Install in the original location and tighten securely but avoid overtightening; do not modify the shoulder or thread
• If the screw secures a load-bearing hinge or mechanism, verify alignment and operation after installation

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts
