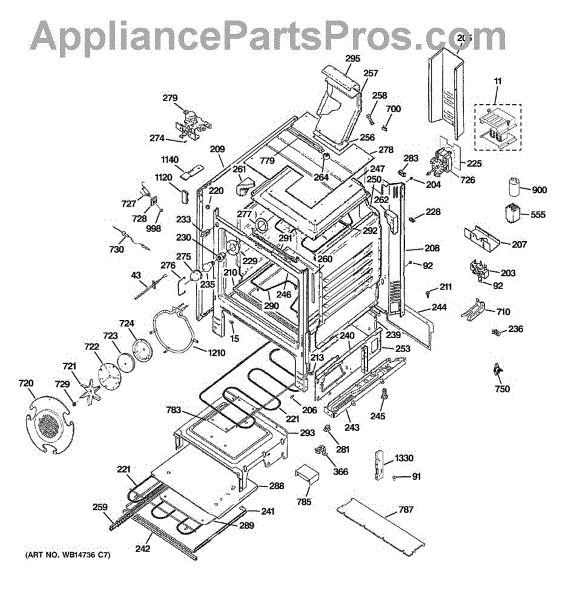

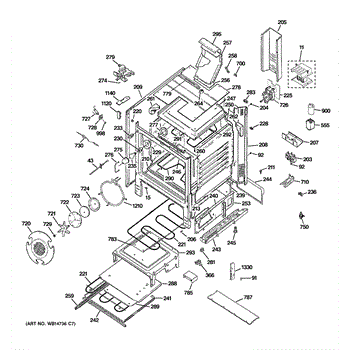

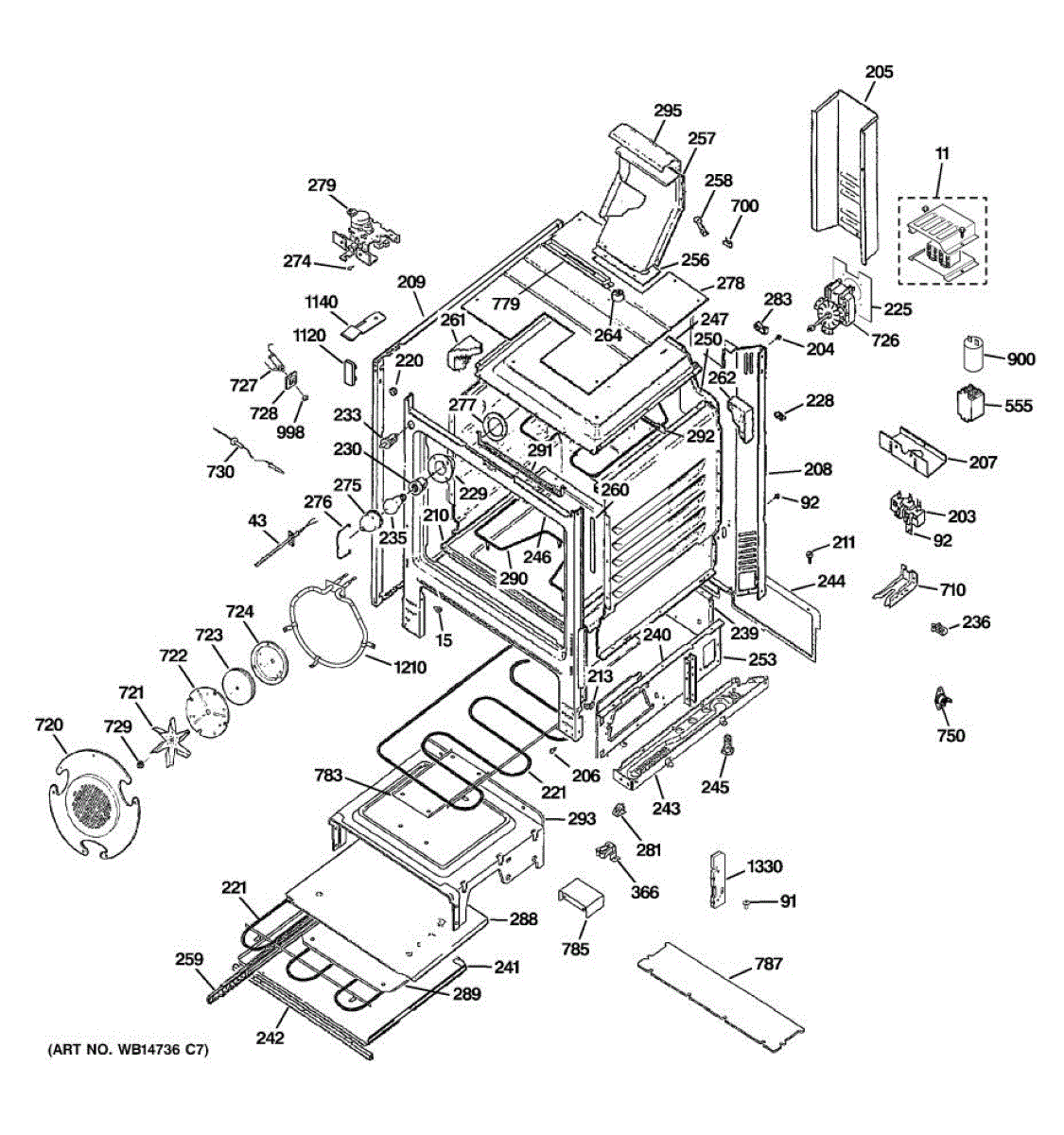

Parts for Ge CS980ST2SS: 03 - Body Parts

Fix a griddle burner that won't heat or sparks when turned on. This relay assembly controls power to your range griddle element. Moderate repair skill.

If your oven won't preheat or shows an F3 error code, this temperature sensor monitors oven heat and safety features. Direct plug replacement, 15-minute fix.

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Range won't heat or burners stopped working? A burnt or melted terminal block may be the cause. This wiring connection hub routes power to elements. DIY repair in 10-20 minutes.

Mounting screw for range installation and assembly. Replace missing, stripped, or damaged screws to secure panels, brackets, or components properly.

Single fastening screw for range components. Replaces missing, stripped, or damaged screws that secure panels, brackets, and trim pieces in place.

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

Protective housing cover for your range's convection fan motor. Replace if cracked, damaged, or missing to shield internal motor components from debris.

Panel mounting screw secures trim, bezels, and internal components on ranges and cooktops. Replace when stripped, corroded, or missing to restore fit.

This bottom oven cavity is the lower oven enclosure that holds racks, cookware, and heating components, restoring a sealed cooking chamber for reliable baking and roasting. It replaces damaged, dented, or corroded lower oven tubs. What it does

• Replaces the lower oven enclosure to restore a sealed cavity for even heating and safe cooking.
• Helps eliminate issues like heat loss, uneven cooking, or smoke from damaged inner surfaces.
• Supports oven racks and heating element mounting locations so accessories align correctly.
• Restores proper airflow and clearance inside the lower oven for consistent temperature performance.

• This part may require removal of surrounding panels and disconnecting electrical components.
• Always disconnect power to the appliance before starting work to avoid shock or injury.
• Check existing fasteners, gaskets, and insulation — replace any damaged items separately as needed.
• Handle carefully to avoid damaging finish or any attached mounting tabs during installation.

8-18 x 1/2 inch screw for gas range assembly. Replace when missing, stripped, or corroded during oven repairs or maintenance work.

Speed nut for electric and gas ranges. Secures panels and components inside your range. Replace if stripped, missing, or no longer holding parts firmly.

Burner won't heat or heats unevenly? This radiant surface element restores proper cooking heat to your electric range cooktop. Direct fit replacement.

Oven not heating or baking unevenly? This bottom bake element restores proper heating for baking and roasting. Common fix for failed oven performance.

Replace your range's light receptacle socket when the oven light flickers or won't turn on. Easy DIY fix restores proper bulb connection. Confirm fit by model.

Oven light stuck on or won't turn off? This push-type plunger switch restores proper on/off control. Simple fix—pull old switch, plug in new one.

Replaces dim, flickering, or burnt-out bulbs in refrigerators, ovens, and microwaves. Restores interior lighting for visibility. Verify fit with model.

Side panel for range broil compartment. Replaces damaged, scratched, or discolored exterior panels. Restores structural integrity and appearance.

This bottom range panel is the lower interior/exterior panel that supports and protects the oven cavity and heating components. It restores proper airflow and keeps the oven underside sealed from spills and debris. What it does:

• Replaces a bent, rusted or missing lower oven panel to improve oven cleanliness and safety
• Helps maintain proper airflow under the oven cavity for consistent heating
• Covers and protects wiring and components beneath the oven from food and moisture
• Reduces drafts into the oven cavity caused by damaged or ill-fitting panels

• One bottom range panel

• High-level swap: remove oven drawer or lower access, unfasten retaining screws, replace panel, and refasten
• Disconnect power to the range before beginning any service
• Wear gloves to avoid sharp edges on metal panels and protect finished surfaces during installation

Support base for electric ranges. Secures and stabilizes internal components. Replace if cracked, broken, or warped to restore proper structure.

Structural mounting piece that secures the range cabinet and keeps components aligned. Replace if cracked, broken, or worn to restore cabinet support.

Replacement leveling leg for ranges. Installs at base corners to stabilize and level your range on uneven floors. Needed when leg is broken or missing.

This vent gasket provides a reliable seal between appliance venting components to help prevent air and lint leaks and maintain proper airflow. It's a simple replacement that restores a snug vent connection. What it does:

• Seals the joint between vent parts to reduce air leakage and improve airflow
• Helps contain lint and moisture within the vent path for safer operation
• Dampens minor vibration and reduces rattling where vent pieces meet
• Commonly used when you notice reduced airflow, escaping air or lint, or loose vent connections

• Disconnect power (and gas if applicable) before servicing the appliance.
• Access may require removing an exterior vent cover or internal access panel—follow the OEM service manual.
• Verify orientation and seating of the gasket for a full seal; replace any damaged mating parts.
• Replace any excessively corroded or damaged vent components.

Replaces a damaged, cracked, or missing exhaust vent assembly on your range. Routes air from the appliance to the outside or internal ducting system.

Replaces worn or broken drawer slide assembly in your refrigerator. Install this bearing track when drawer slides are cracked, sagging, or missing.

Replaces the worn or broken slide and bearing assembly that guides your oven rack. Restores smooth in-and-out movement when hardware is damaged or missing.

Cushions your range oven door perimeter to prevent metal contact and reduce heat loss. Replace when worn, compressed, or door closes harshly. Confirm fit.

Insulation wrap for range ovens. Installs around the oven cavity to reduce heat loss and dampen sound. Replace if torn, compressed, or missing.

Replacement insulation for the back wall of your range oven cavity. Replaces worn, damaged, or missing insulation to maintain proper heat retention.

Support plate that secures the vent extension housing on electric ranges. Replaces cracked, broken, or missing catalyst support plates. Installs inside vent.

Replacement mounting screw for electric and gas range panels, trim, and brackets. Needed when original fastener is stripped, missing, or damaged.

Clear glass lens that protects your oven light bulb. Replace if cracked, broken, or cloudy to safely view cooking progress. Confirm fit with model number.

Secures range door handles and attaches components. Replace when cracked, bent, or missing to restore stable grip. Confirm fit with your model number.

Secures the thermostat sensing bulb to the oven cavity wall for accurate temperature control. Replace if missing or damaged to prevent sagging bulb.

Wire clip secures electrical connections to heating elements in ranges. Replace if worn, cracked, or loose to restore proper contact. Verify fit with model.

Insulation panel that installs on top of the range warming drawer cavity. Replace if the original insulation is torn, compressed, or missing. Fits select models.

Oven not heating or baking unevenly? The bake element often fails and causes these issues. This DIY repair takes just 5-10 minutes with basic tools.

Secures the upper broil element to the oven cavity top. Replace if your original bracket is cracked, broken, or missing to restore stable mounting.

Broil element not heating or burned out? This upper oven heating element restores broiling function. Easy DIY repair—remove 4 screws and reconnect wires.

This insulation vent is a replacement venting piece that helps direct heat and protect internal components in the oven cavity. Replacing a damaged vent restores proper heat routing and helps maintain safe operation. What it does:

• Directs heat and airflow away from sensitive components behind the oven cavity
• Helps prevent heat-soak and reduces risk of heat damage to wiring and insulation
• Commonly replaced when vent is cracked, missing, or shows heat-related deterioration
• Works as part of the oven's thermal management to support consistent cooking performance

• Inspect surrounding insulation and mounting area before installing; replace any damaged insulation per OEM guidance
• Use basic hand tools; avoid sharp edges and wear gloves to protect against fiberglass/insulation irritation
• Disconnect power to the appliance before accessing the oven cavity or removing panels

Fix a range door that won't stay closed or latch properly with this door catch. Common fix for loose or misaligned oven doors. Moderate DIY repair.

Fix burners that won't heat or cycle properly with this infinite switch. Controls surface element temperature by regulating power flow. Easy DIY fix.

Mounting clip secures appliance components to prevent movement and wear. Replace if parts shift, vibrate, or become loose. Verify fit with your model number.

Oven convection fan not working or making noise? This shaft-mount fan blade restores proper airflow and cooling. Easy DIY repair in under an hour.

Protective cover for your range's cooling fan assembly. Replaces cracked, broken, or missing fan covers. Installs over the fan housing to shield components.

Insulating pad that cushions and isolates the fan assembly in electric and gas ranges. Replace if cracked, compressed, or missing to reduce vibration noise.

Support plate that secures the cooling fan assembly inside your electric range. Replace if the original is cracked, bent, or damaged during repairs.

Fix uneven oven cooking with this range convection fan motor. Replaces worn motors causing hot spots or temperature inconsistencies in convection ovens.

Range won't power on or burners not heating? This terminal block receptacle connects power to your range. Moderate DIY repair for electric & gas ranges.

Replacement mounting nut secures components and panels inside your electric range or wall oven. Replaces stripped, lost, or damaged nuts causing loose parts.

Oven meat probe not working or wire exposed? This thermistor monitors interior temperature for accurate cooking. Common DIY fix, installs in minutes.

Fix an overheating oven with this range limit thermostat. Stops heating when temperatures exceed safe limits. Straightforward repair for most DIYers.

This support smoke eliminator bracket secures the oven/range smoke eliminator assembly so it stays aligned and helps channel smoke and cooking vapors away from controls. It restores correct mounting and reduces rattling or misalignment during use. What it does:

• Secures the smoke eliminator/smoke baffle assembly to the appliance frame
• Helps maintain proper airflow path to reduce smoke and odor reaching controls
• Prevents movement or vibration that can cause noise or misalignment
• Common symptom: visible sagging, loose bracket, or rattling near the smoke eliminator area

• One smoke eliminator support bracket

• Disconnect power to the appliance before starting any repair
• Requires basic hand tools; access may involve removing oven door or rear panels depending on model
• Inspect surrounding fasteners and the smoke eliminator for damage; replace as needed

Replace your range oven door gasket seal to prevent heat loss and improve cooking efficiency. Install when you notice gaps or worn sealing around the door.

This capacitor holder is the molded mounting retainer that secures a dryer/motor capacitor in place, preventing movement and ensuring stable connections for reliable motor and control operation. What it does

• Holds the capacitor firmly in the appliance cabinet to prevent vibration and contact with other components.
• Keeps capacitor terminals accessible and positioned for secure electrical connections.
• Helps stop intermittent motor starts or noise caused by a loose or shifting capacitor.
• Provides the correct fit and alignment for compatible OEM capacitors and wiring harnesses.

• One capacitor holder mounting retainer

• Disconnect power to the appliance before beginning work.
• Discharge the capacitor fully before handling to avoid shock.
• Use basic hand tools; inspect surrounding wiring and fasteners and replace any damaged components.

If your range microwave isn't heating food, the magnetron may have failed. This critical component generates the microwaves that heat your meals.

Replacement mounting nut for ovens and ranges. Secures internal components and panels. Order a new nut if yours is stripped, missing, or damaged.

Replace a cracked, worn, or missing bumper on your range. This protective bumper cushions and prevents surface damage where components meet or move.

Support bracket for range manifold panel assembly. Secures and stabilizes the control panel mounting. Replace if bent, broken, or damaged during repairs.
