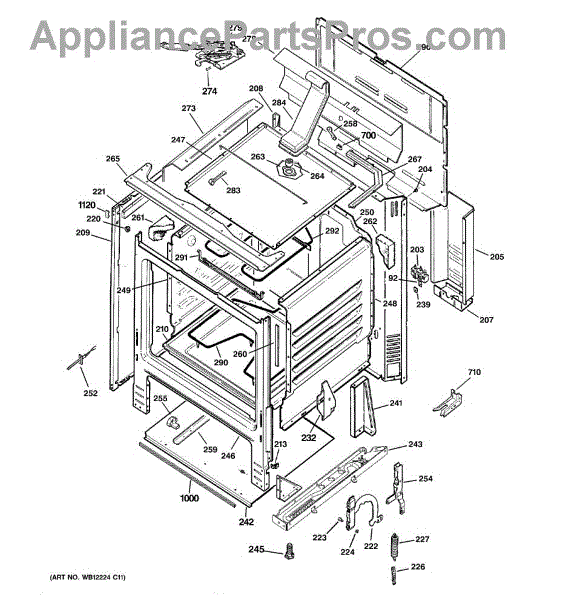

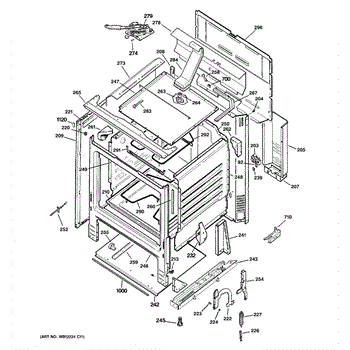

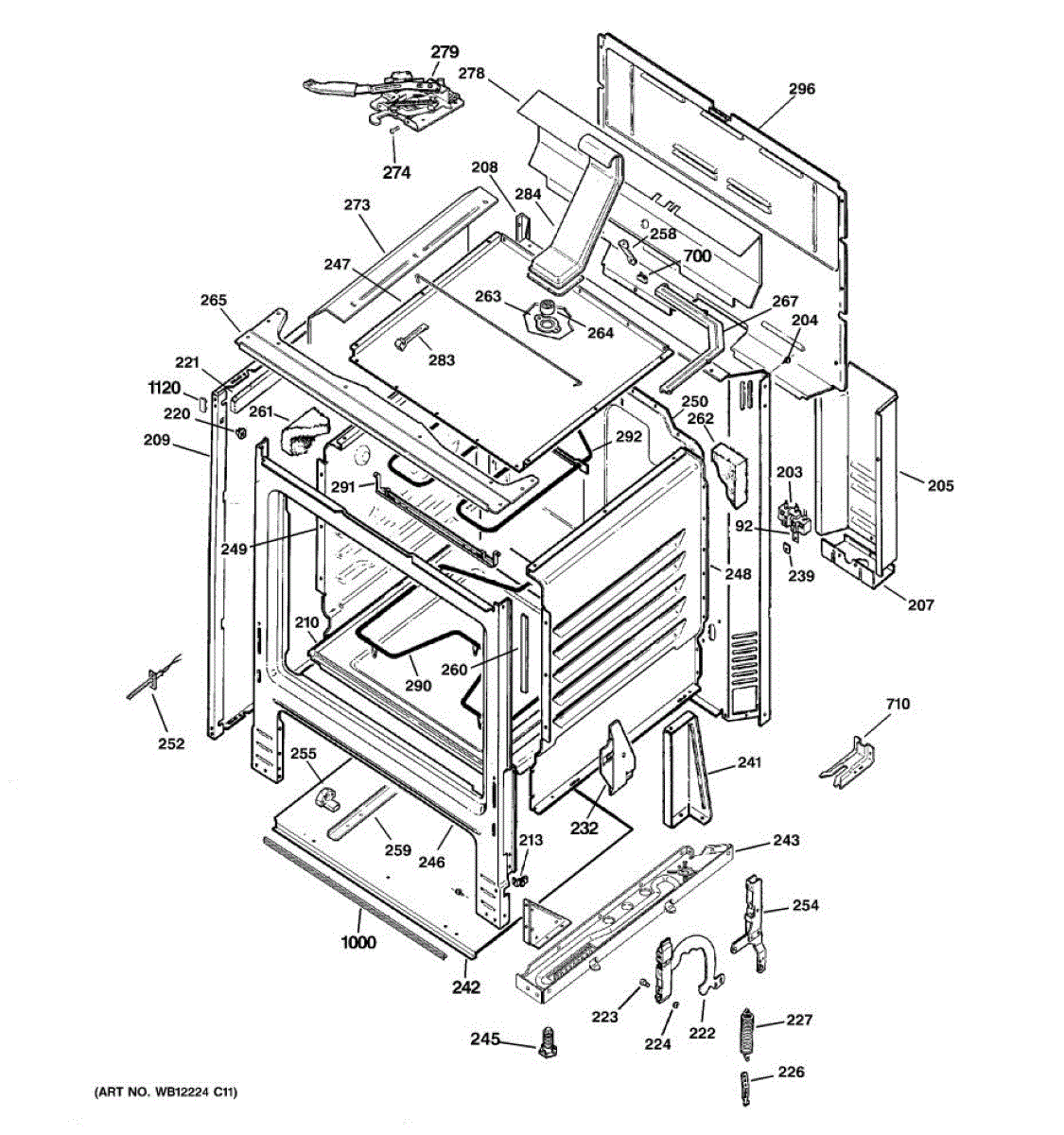

Parts for Ge JBP60BM2WH: 02 - Body Parts

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

The Terminal Block Assembly is an OEM replacement part for GE electric stoves. It acts as the central wiring connection hub, routing power to critical heating components such as the oven bake/broil elements and stovetop burners.

Symptoms of a bad terminal block include:

• Intermittent or unpredictable burner/heating element operation
• Inability to achieve proper cooking temperatures
• Buzzing or crackling noises from inside the stove cabinet

Causes stem from normal wear over time, as vibration and heat cycling can cause cracks or corrosion in the block's electrical connections.

This OEM GE part is compatible with Hotpoint, RCA, and some Kenmore electric stove models.

Package of 12

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This guard terminal protects and shields wire connection points on your appliance, helping prevent accidental contact and shorting while keeping terminals organized for reliable operation. What it does:

• Covers and insulates exposed terminal connections to reduce risk of arcing or short circuits
• Keeps wiring routed and separated for consistent electrical contact
• Helps avoid accidental contact during maintenance or part replacement
• Supports safe operation by protecting fragile terminal ends from bending or snagging

• Disconnect power to the appliance before inspecting or replacing electrical parts
• Replace only with the correct terminal guard
• Use basic hand tools; avoid bending terminals or over-tightening fasteners

This bracket mounting terminal secures the appliance's main electrical terminal block to the cabinet, keeping wiring stable for a safe, reliable power connection. It's a direct-fit replacement where terminal block support is damaged or loose. What it does

• Physically mounts and supports the main terminal block so incoming power wires stay secure
• Keeps wiring strain-relieved to reduce the risk of loose connections or arcing
• Restores a stable electrical connection when a broken or bent bracket causes intermittent power or poor contact
• Helps prevent overheating at the terminal connection by maintaining proper alignment

• One bracket mounting terminal

• Disconnect all power before servicing; lock out and tag if needed
• Use basic hand tools; avoid overtightening terminal screws to prevent damage
• Inspect wiring and terminal block; replace any damaged wires or connectors when present

USE GEH WB63K10122

Hex

This oven door hinge assembly controls the door's movement and keeps it sealed against the frame. Replacing a worn hinge restores smooth opening and a tight close, helping maintain temperature and consistent cooking performance.

• Provides spring-assisted pivot to support the oven door during opening and closing
• Maintains alignment and helps the door stay fully closed against the gasket
• Direct replacement for bent, weak, or broken hinges
• Common symptoms: door won't close fully, drops or slams open, sits uneven, squeaks, or allows heat to escape

• Disconnect power and allow the oven to cool completely before servicing
• Remove the door; engage hinge locks or insert hinge pins and support the door while lifting it off
• Springs are under tension—use caution and wear gloves/eye protection
• After replacement, check door alignment and gasket seal; many replace both hinges together for even operation

Clip for door hinge.

This hook door spring helps restore proper tension and support to an oven or range door, improving door balance and smooth opening/closing. Designed to replace a worn or broken door tension spring. What it does:

• Provides tension to counterbalance the oven/range door for controlled opening and closing
• Helps prevent the door from sagging or dropping unexpectedly
• Restores proper door alignment and feel after spring wear or breakage
• Useful when the door hangs unevenly or doesn't stay open at intended positions

• One hook door spring

• Disconnect power to the appliance and allow components to cool before starting repairs
• Springs are under tension; wear eye protection and gloves and follow OEM instructions for safe removal and installation
• Installation may require partial door removal or support

This is the right side hinge guard. For left side use WB34K4.

This is the left side hinge guard. For right side use WB34K3.

This leveling leg is an authentic OEM replacement part sourced directly from the manufacturer. Leveling legs are used on the bottom of stoves to correct imbalances on the cooking top caused by floors being unlevel. The leveling leg is threaded so that it can be adjusted up or down as needed. There are four holes for leveling legs on the stove's bottom. Each leg can be adjusted independently. If the legs are missing or lost, these replacements will help level the stove for more even cooking. When the stove is not level, the food inside pans will be unlevel and not cook evenly.Make sure the power is disconnected before installing the leveling leg. Tilt the stove back and place a chock underneath one side so that the leg can be screwed up or down as needed. Remove the chock and check for level. If the stove is still unlevel, repeat the procedure on the side that is not level. Continue to adjust until the stove is level. Restore the power to the stove.This leveling leg is a black part that is sold individually. It is designed for use on ranges manufactured by General Electric, Kenmore, and Hotpoint.

The Oven Sensor Kit is an OEM replacement part for GE ranges. It contains critical sensors that monitor the oven's temperature, functions, and safety features during the cooking process. An accurate and fully functioning sensor kit is essential for reliable oven performance.

Causes of a bad oven sensor kit can include failures in individual sensors due to prolonged use and heat exposure over time. Electrical issues affecting communication between sensors and the control board may also require sensor replacement.

Symptoms of a bad oven sensor kit include:

• The oven not heating or cooling as expected
• Inability to properly select or maintain temperature settings
• Error codes or failure messages appearing
• Safety features like the door lock not activating

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Drawer Support is an OEM part for GE ovens. This component provides structural stability and support to the oven drawer, ensuring it slides in and out smoothly and securely holds baking pans and other items stored within.

Causes of a bad drawer support can include regular wear and tear, excessive weight placed on the drawer, or physical damage from impacts or misalignment.

Symptoms of a bad drawer support include:

• Difficulty in opening or closing the oven drawer
• The drawer sagging or appearing misaligned
• Unstable or wobbly drawer when in use
• Noise or friction when sliding the drawer

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A replacement oven door gasket that seals the oven cavity to help maintain temperature and reduce heat loss. Replacing a worn or torn gasket improves cooking performance and can prevent heat leaks around the door. What it does:

• Seals the oven door to keep heat and moisture inside for more consistent cooking
• Helps prevent excessive heat from escaping into the kitchen
• Reduces hot spots and improves bake/roast results when the seal is intact
• Common symptom: visible gaps, cracks, or a loose, compressed gasket letting heat escape

• High-level task: Typically installs around the oven door frame; may require removing the door for easier access
• Use gloves to avoid sharp edges and allow the oven to fully cool before starting
• Inspect mounting tabs or adhesive and replace any damaged retaining hardware

Right hand side

Left hand side

This is a replacement screw used to secure appliance panels and small components. It restores proper fastening and helps eliminate loose parts, rattling, or misaligned panels for a tight, safe fit. What it does:

• Secures panels, trim, brackets, or small assemblies to restore proper alignment
• Stops rattling or vibration caused by missing or loose fasteners
• Provides the correct threaded fastening where the original screw is lost or damaged
• Matches OEM fastening function for reliable reassembly

• Disconnect power or unplug the appliance before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread the screw in by hand first, then tighten snugly—do not overtighten to avoid stripping or cracking
• Keep small parts away from children and pets during installation

This latch assembly secures and releases the oven door as designed, including during self-clean on many models. Replacing a worn latch restores proper door engagement so cycles start reliably and the door locks when required.

• Engages the door strike to lock and unlock the door
• Supports the self-clean safety interlock on applicable ranges
• Helps resolve issues like a door that won't lock/unlock or a latch that sticks/feels loose
• Clears control errors related to door lock status

• Disconnect power (and gas, if applicable) and allow the oven to cool completely
• Access the latch from the control area or beneath the cooktop/top panel, per model
• Note spring/linkage routing; transfer reusable hardware and align the latch with the door strike
• After reassembly, hand-check smooth latch movement and verify lock/unlock operation

This vent gasket provides a reliable seal between appliance venting components to help prevent air and lint leaks and maintain proper airflow. It's a simple replacement that restores a snug vent connection. What it does:

• Seals the joint between vent parts to reduce air leakage and improve airflow
• Helps contain lint and moisture within the vent path for safer operation
• Dampens minor vibration and reduces rattling where vent pieces meet
• Commonly used when you notice reduced airflow, escaping air or lint, or loose vent connections

• Disconnect power (and gas if applicable) before servicing the appliance.
• Access may require removing an exterior vent cover or internal access panel—follow the OEM service manual.
• Verify orientation and seating of the gasket for a full seal; replace any damaged mating parts.
• Replace any excessively corroded or damaged vent components.

The Bake Element is an OEM replacement part for GE electric ranges. It is the internal heating element located at the bottom of the oven cavity that provides heat for baking and convection cooking functions. This heating element measures 17 1/2 x 18 1/2 inches.

Causes of a bad bake element include failure due to normal wear and tear over extended use. Exposure to spills or splatters inside the oven can potentially damage heating coils or insulators.

Symptoms of a bad bake element are:

• Inconsistent or uneven baking temperatures
• Element does not heat up or turns red but puts out no heat
• Buzzing/humming sounds from beneath oven cavity
• Failure of oven to operate or preheat as expected

This OEM part is also compatible with ranges sold under the Hotpoint, RCA and some Kenmore brands.

This broil element support bracket secures the upper heating element to the oven cavity, maintaining proper spacing and alignment. Replacing a damaged or missing support restores stable mounting and helps prevent sagging or arcing.

• Holds the broil element in position at the top of the oven
• Maintains safe clearance from the liner to reduce shorts/sparking
• Helps promote even broiling by keeping the element level and centered
• Common symptoms include a broken/missing support, a sagging or loose element, rattling, or scorch marks near the mount

• Disconnect power at the breaker and allow the oven to cool completely
• Remove oven racks; support the broil element while removing the existing support and screw
• Position the new support and secure it with the mounting screw; do not overtighten
• The element sits level with adequate clearance before restoring power and testing

The Oven Broil Element is an OEM replacement part for GE ovens. It is located in the upper portion of the oven cavity and is responsible for generating intense heat for broiling foods. This element provides even heat distribution, ensuring proper cooking and browning of food during the broil cycle.

Over time, broil elements can wear out or fail due to frequent use, high temperatures, or electrical issues. A damaged element will affect the oven's ability to broil properly.

Symptoms of a bad broil element include:

• The broil function not working or producing insufficient heat
• Uneven browning or cooking of food during broiling
• Visible damage, such as breaks or blisters on the element
• Sparking or tripping of the circuit breaker when the broil setting is used

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This retainer is a small mounting clip that secures compatible appliance components in place to prevent movement and wear. It restores proper alignment so related parts stay seated and operate quietly and safely. What it does:

• Holds a specific component or harness firmly to the appliance frame or assembly
• Prevents rubbing, vibration noise, or parts shifting during operation
• Helps maintain correct part alignment for reliable function
• Common symptom: loose, rattling, or misaligned components where the retainer is missing or damaged

• One retainer

• Disconnect power and any fuel sources before starting work
• Inspect surrounding parts for damage before installing the retainer
• Typically installs with basic hand tools; avoid over-tightening nearby fasteners

This surface burner gasket seals the burner assembly to the cooktop. Replacing a worn gasket restores a tight seal to help support reliable ignition, a stable flame, and keeps spills and moisture from entering the burner well. What it does:

• Seals between the surface burner assembly and cooktop
• Helps maintain proper airflow for consistent ignition and flame
• Helps prevent liquids, crumbs, and grease from seeping below the burner
• Common symptoms of failure: distorted or hardened gasket, visible cracks, uneven/weak flame, or persistent clicking during ignition

• 1 gasket

• Disconnect power and shut off gas supply; allow the appliance to cool completely
• Remove grate, burner cap, and burner head to access the gasket
• Clean mating surfaces; seat the gasket flat and do not use sealants or adhesives unless specified by the manufacturer
• Reassemble, restore gas, and verify burner operation; leak-check with soapy water if any gas fittings were disturbed
