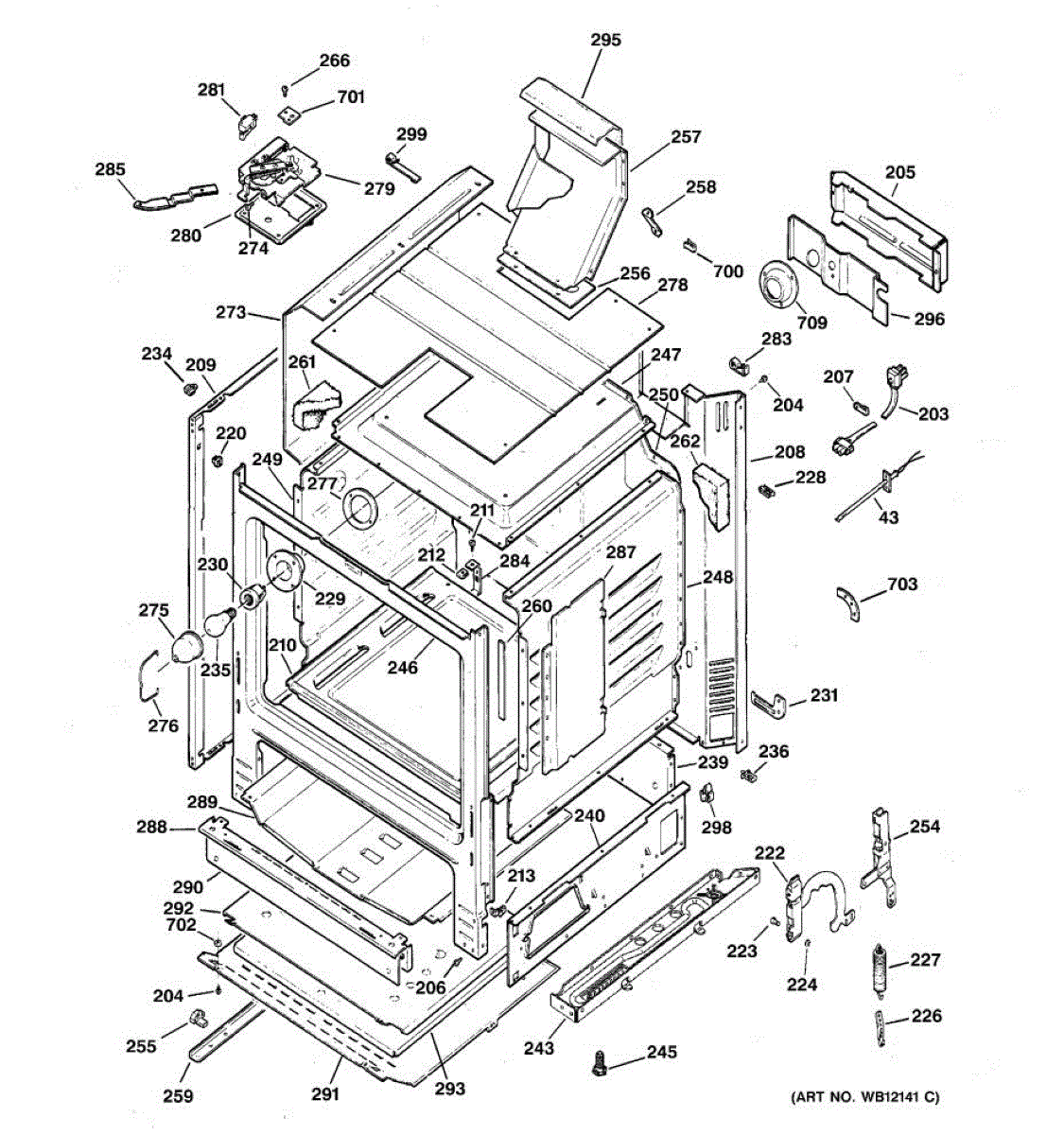

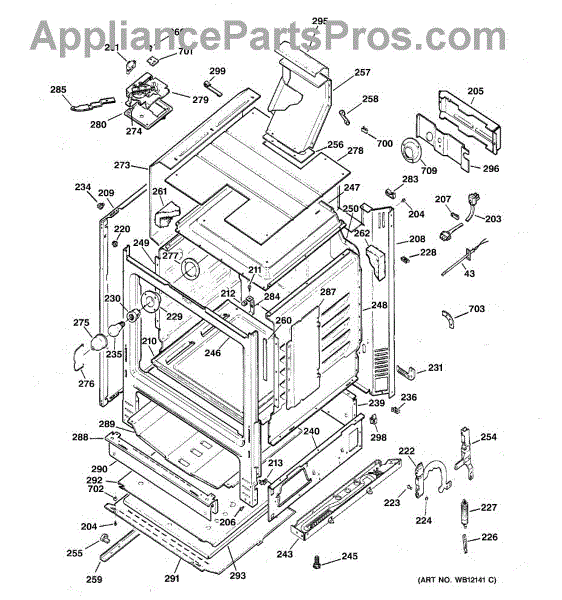

Parts for Ge JGBP30BEA1CT: 03 - Body Parts

Fix oven not reaching set temperature or F2/F3 error codes. This temperature sensor monitors internal heat for accurate cooking. Easy DIY repair.

Replacement power cord for gas ranges. Connects your unit to the wall outlet. Replace if cord is worn, cut, heat-damaged, or causing burning smells.

Package of 12

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

Rear housing panel that covers the back of your range. Replace this cover if it's cracked, dented, rusted, or missing to restore your appliance's appearance.

Size: 10-32 GXTT FLP.595 S

Secures your range power cord at cabinet entry to prevent wire damage and disconnection. Replace if cord is loose or clamp is cracked. Confirm fit with your model number.

Back panel for gas ranges. Installs on the rear exterior of the unit. Replace if the original panel is cracked, dented, rusted, or missing.

Color: Biscuit

Size: 8-18 x 1/2 inch.

Speed nut for electric and gas ranges. Secures panels and components inside your range. Replace if stripped, missing, or no longer holding parts firmly.

Replacement oven door hinge assembly for ranges. Installs on the door frame to control opening and closing. Replace if broken, cracked, or no longer springs.

This retainer secures the oven door hinges in place and is located at the bottom corners of the oven door frame. Replace if the oven door sags, won't stay closed properly, or if the hinges appear loose or misaligned.

This bulb housing assembly holds and protects the light bulb inside your oven or range hood while providing electrical connections. It secures the bulb in the correct position and shields it from heat, grease, and food splatter during cooking. Replace this housing if the interior light doesn't work, bulbs burn out frequently, or the housing is cracked or damaged.

Replace your range's light receptacle socket when the oven light flickers or won't turn on. Easy DIY fix restores proper bulb connection. Confirm fit by model.

Metal safety bracket that secures freestanding ranges to the floor or wall. Replace if bent, broken, or missing to prevent appliance tipping hazards.

Right-side guide support secures sliding drawer or shelf rails on your range. Replace if cracked, broken, or worn to restore smooth tracking and alignment.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Secures wiring harnesses in your range. Replace if broken, loose, or missing to prevent wire damage. Verify fit with your model number before ordering.

Left hand side

Right hand side

Support base for electric and gas ranges. Provides structural support for internal components. Replace if cracked, broken, or missing to restore stability.

Support base plate for electric and gas ranges. Mounts underneath to provide structural stability. Replace if cracked, broken, or missing for secure installation.

Adjustable leveling leg for electric ranges. Installs on the bottom corner of the unit. Replace if broken, cracked, or missing to level your range.

Frame weld assembly for ranges. Structural component that forms part of the cabinet framework. Replace if bent, cracked, or damaged during installation or use.

Right hand side

Left side panel for gas range ovens. Replaces cracked, damaged, or missing exterior side panels. Structural component for oven cabinet assembly.

Mounting screw that secures the hinge assembly on electric and gas ranges. Replace this fastener if the original is stripped, missing, or damaged.

Left hand side

This support rivet securely fastens internal components within your range or oven structure. It provides structural stability for mounting brackets and panels inside the appliance. Replace this rivet if you notice loose parts rattling inside your oven or range components shifting during use.

Structural support bracket that mounts inside the range storage drawer cavity. Replaces broken, cracked, or worn supports that fail from heavy items.

Oven vent assembly for gas ranges. Mounts inside the oven cavity to channel heat and steam. Replace if cracked, damaged, or missing for proper ventilation.

A replacement vent brace that secures the appliance vent assembly and helps keep vent components aligned for steady airflow and quiet operation. Restores proper support to a loose or sagging vent assembly. What it does:

• Supports and stabilizes the vent/duct assembly so it stays aligned during use
• Reduces vibration and rattling caused by a loose vent bracket
• Helps maintain proper airflow by keeping vent components in the correct position
• Fits where the original vent brace mounts to the appliance frame

• Disconnect power (and gas, if applicable) before servicing the appliance
• Remove the appropriate access panels to reach the vent area; keep fasteners for reassembly
• Verify bracket orientation and screw locations match the original before tightening

Drawer slide rail for electric and gas ranges. Mounts to the drawer box to enable smooth gliding. Replace if bent, broken, or worn for proper operation.

Cushions your range oven door perimeter to prevent metal contact and reduce heat loss. Replace when worn, compressed, or door closes harshly. Confirm fit.

Insulation wrap that lines the oven cavity to reduce heat loss and dampen sound. Replace if torn, compressed, missing, or damaged during repairs.

Replaces cracked or missing oven back insulation in your range. Installs behind the oven cavity to provide heat protection and sound dampening.

A replacement 10-24 x 1/4 machine screw that secures panels and components in place, restoring proper fit and reducing rattles or loose parts. Small but essential for assembly and trim fastening on compatible appliances. What it does:

• Fastens appliance panels, brackets, and small components using a 10-24 threaded connection
• Stops loose or rattling trim, control panels, and internal brackets when the original screw is missing or damaged
• Matches OEM thread and length for correct fit where specified
• Used wherever a short 10-24 machine screw is required to secure parts

• Use the correct screwdriver or nut driver to avoid stripping the head
• Tighten until snug; avoid overtightening which can strip threads or crack plastic
• Replace with the same part number to ensure proper thread engagement and fit
• Disconnect power and follow appliance safety procedures before accessing internal areas

Left hand side

Right hand side

The range latch screw is a small fastener used to secure the door latch mechanism or latch strike plate firmly to the range frame. It keeps the latch components from shifting or loosening over time with repeated use. Replace this screw when the original is stripped, missing, or corroded, causing the latch assembly to feel loose or the oven door to not close securely.

Clear glass lens that protects your oven light bulb. Replace if cracked, broken, or cloudy to safely view cooking progress. Confirm fit with model number.

Secures range door handles and attaches components. Replace when cracked, bent, or missing to restore stable grip. Confirm fit with your model number.

Replacement shield latch for electric ranges. Installs over the door latch mechanism to protect internal components. Order a new one if broken or missing.

Wire clip secures electrical connections to heating elements in ranges. Replace if worn, cracked, or loose to restore proper contact. Verify fit with model.

Support bracket for gas ranges. Secures internal components in place. Replace if bracket is bent, cracked, broken, or missing to restore proper fit.

Right hand side

Left hand side

Secures and supports internal components in your range. Replace this brace if it's bent, broken, or missing to ensure proper alignment and stability.

Stamped metal shield that protects the oven's lower cavity and insulation from excessive heat. Replace if cracked, rusted, corroded, or damaged.

Metal radiation shield that mounts inside your range to protect internal components from heat. Replace if cracked, bent, or dislodged during service.

Bottom guard for gas ranges. Installs at the base to protect internal components. Replace if cracked, damaged, or missing to maintain appliance integrity.

Protective bottom guard for your range. Shields internal components from debris and damage. Replace if cracked, bent, or missing for proper protection.

Middle

Mounting clip secures appliance components to prevent movement and wear. Replace if parts shift, vibrate, or become loose. Verify fit with your model number.

Mounting bracket secures oven components inside your range. Replace if bracket is bent, cracked, broken, or missing to restore proper structural support.
