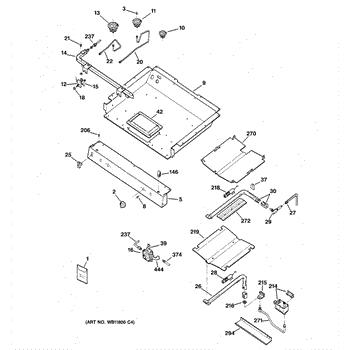

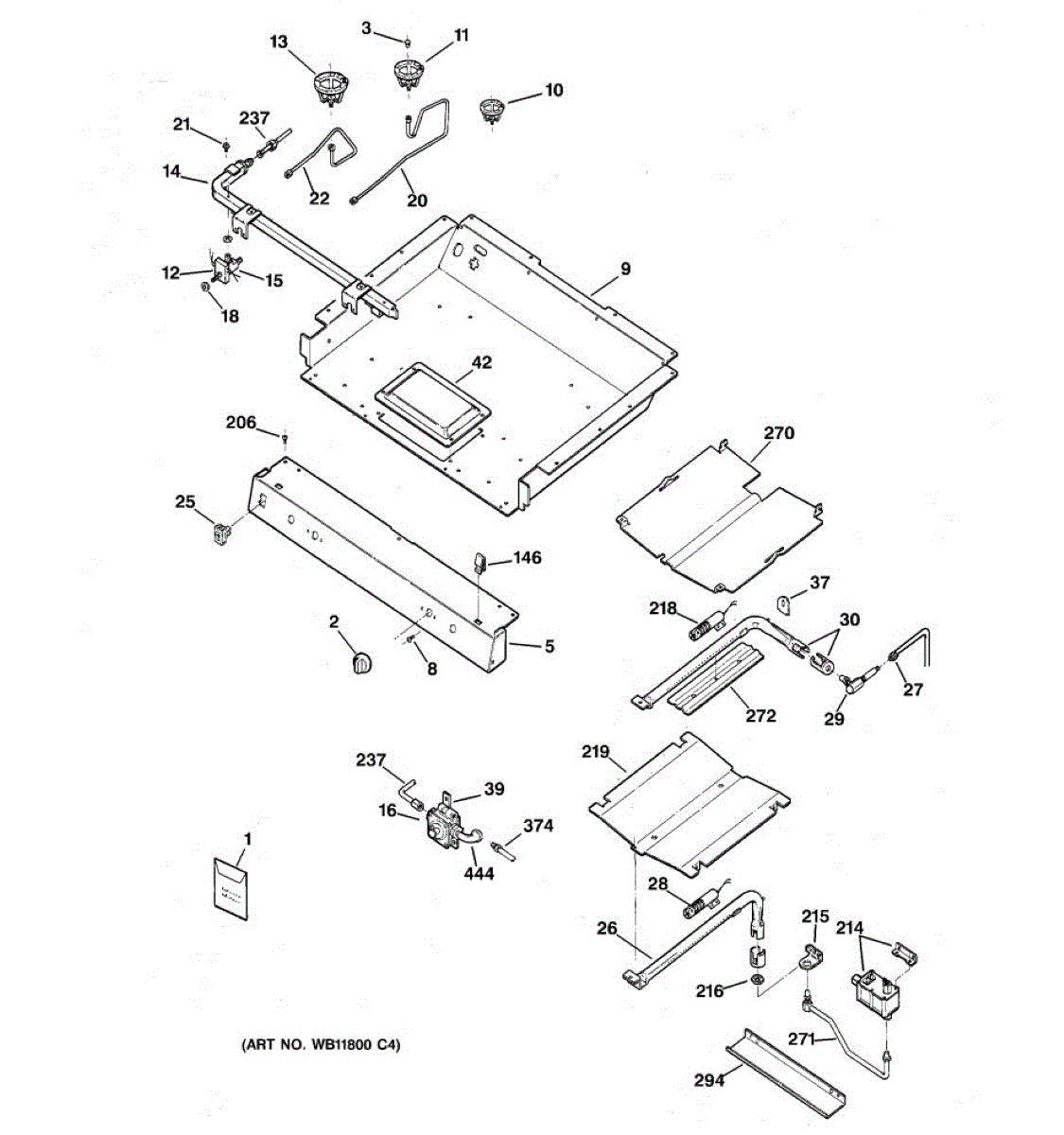

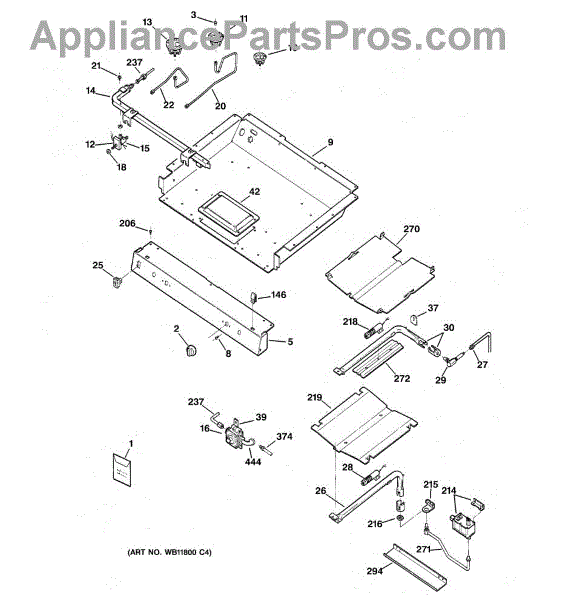

Parts for Ge JGBP30BEA1CT: 01 - Gas Burner Parts

Anti-tip bracket kit installs to the floor behind your range or wall oven to prevent tipping. Replace if missing, damaged, or moving to a new home.

Black control knob for gas range top burners. Mounts on valve stem to adjust heat settings. Replace worn, cracked, or missing knobs to restore control.

Natural gas. Med 1.50mm

Gas burner orifice spud for range cooktop conversion between LP and natural gas. Replace when converting fuel types or if missing or damaged.

Burner orifice spud for gas range conversion between natural gas and LP. Replace broken, missing, or incorrect size orifices when converting fuel type.

LP gas burner orifice spud for gas ranges and cooktops. Needed when converting fuel type or replacing a cracked, missing, or incorrect size orifice spud.

Burner orifice spud for gas ranges. Controls gas flow to each burner. Replace if cracked, clogged, or when converting between LP and natural gas.

Burner orifice spud regulates gas flow to the burner on your range or cooktop. Replace if missing, damaged, or when converting between LP and natural gas.

This is a black manifold panel that mounts on the front of the range behind the control knobs. It houses the gas valve connections and provides a finished surface for the burner controls. Replace this panel if it is cracked, warped from heat exposure, or if the finish is damaged, making it difficult to properly mount or operate the control knobs.

Size: 8 - 32 inch.

Small

This valve switch includes a gray hub and sparks at the 7 o'clock position. For the orange hub valve switch order WB24K10002.

Fix a burner that won't light, leaks gas, or has a broken control stem. This gas valve regulates flow to one cooktop burner. Moderate DIY repair.

Protective cover that slips over the gas valve shaft to shield valve components from spills, food debris, and moisture. Replace if cracked or missing.

Rear Burner Tube

Left rear

Secures the burner valve assembly to your gas range. Replace this mounting screw if worn, missing, or stripped to restore proper valve alignment and support.

Replaces cracked, bent, or broken left front burner tube on gas ranges. Delivers gas from valve to burner head. Common wear part needing replacement.

Delivers gas to your range's right front burner. Replace if cracked, bent, or leaking. Installs between valve and burner with wrench. Quick DIY fix.

Color: Black

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

Oven won't heat or takes too long to preheat? A faulty igniter is the most common cause. This round-style gas range igniter is a 15-30 minute DIY fix.

Protective shield that covers the oven igniter. Replace if cracked, broken, or missing to shield the igniter from spills, drips, and falling debris.

Replace your damaged or missing range burner box cover. This protective housing installs over the burner assembly. Ideal for cracked or broken covers.

Size: 10-32 GXTT FLP.595 S

Oven won't heat but broiler works? This safety valve controls gas flow to bake and broil burners. Common when one side fails but the other still works.

Secures the gas safety valve to the chassis. Replace if worn, bent, broken, or missing to maintain proper valve alignment and stable positioning.

Oven won't heat or takes too long to preheat? A faulty igniter is the most common cause. This round-style gas range igniter is a 15-30 minute DIY fix.

Tube burner supply for gas ranges. Connects the orifice to the burner assembly. Replace if cracked, damaged, or when converting between fuel types.

Broil shield for gas ranges. Mounts inside the oven cavity to protect components from direct heat. Replace if cracked, warped, or damaged.
