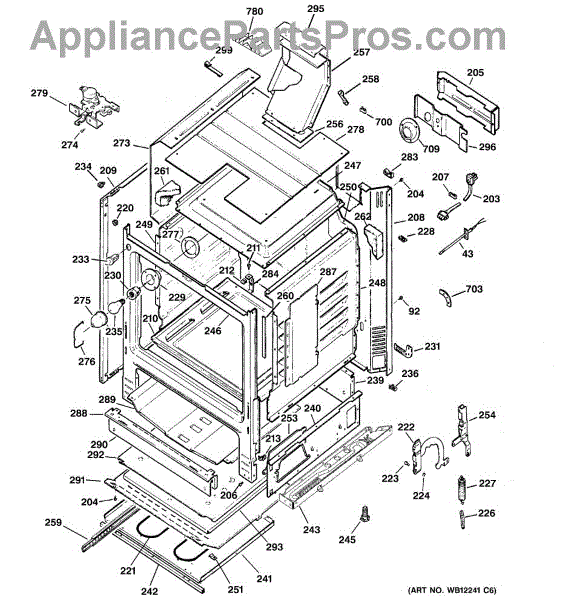

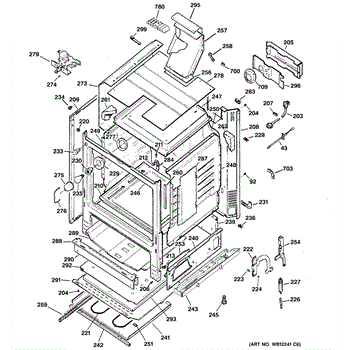

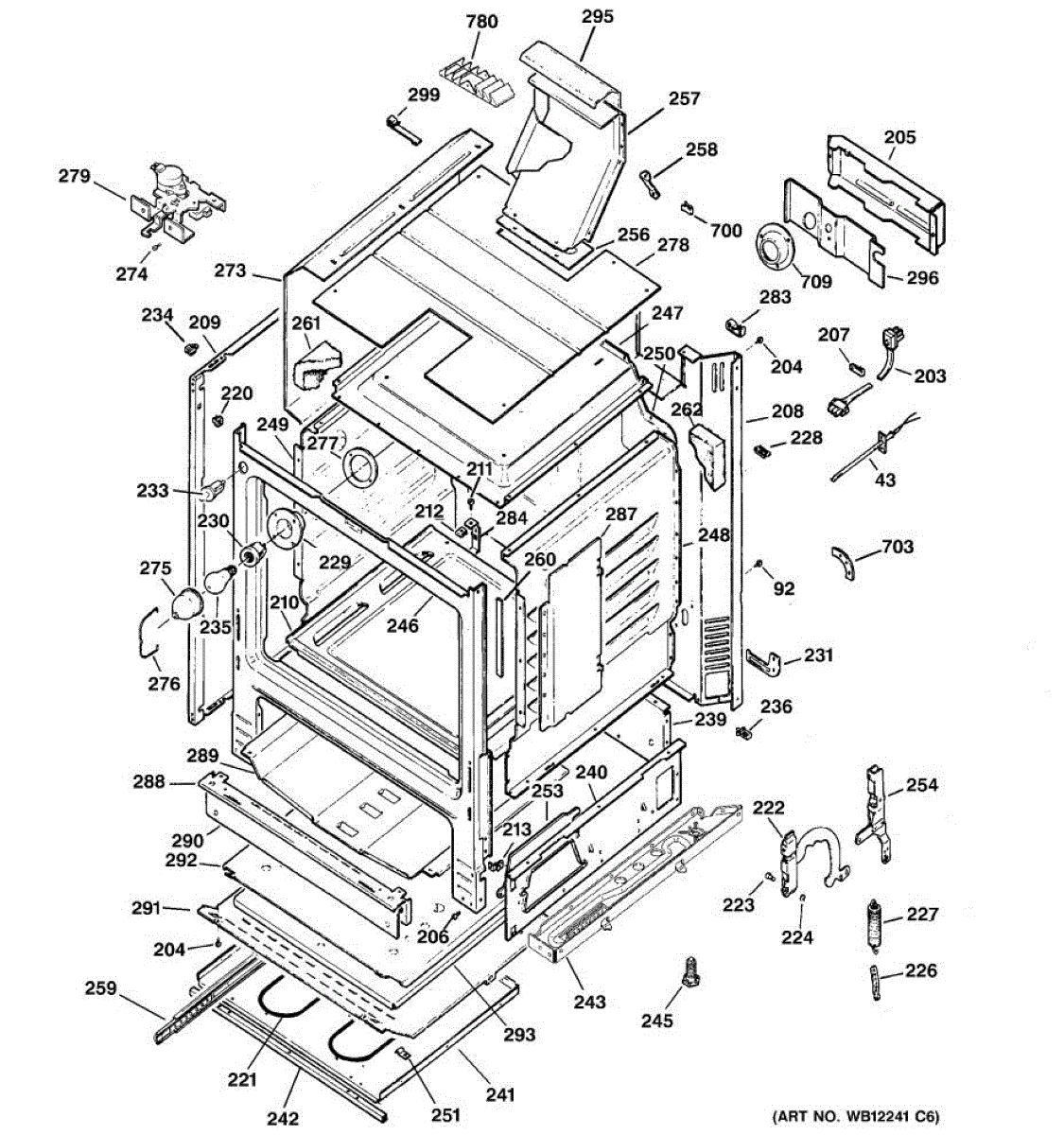

Parts for Ge JGBP83BEJ4BB: 03 - Body Parts

The Temperature Sensor is an OEM part for GE ovens. This sensor plays a role in monitoring and regulating the oven's internal temperature during cooking. It ensures that the oven heats to the set temperature and maintains it consistently throughout the cooking process, resulting in evenly cooked meals.

Symptoms of a bad Temperature Sensor include:

• Oven overheating or not heating to the set temperature.
• Inconsistent cooking results or undercooked food.
•  Frequent error messages from the oven related to temperature issues.
• The oven cycling on and off too frequently.

Causes of a bad temperature sensor can include prolonged exposure to high temperatures which might degrade its responsiveness, electrical issues such as short circuits, or physical damage that affects its ability to measure temperature accurately.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

This line cord supplies electrical power from the wall outlet to the appliance. Replacing a worn, cut, or heat-damaged cord restores safe, reliable power and can help resolve no-power or intermittent operation issues.

• Delivers AC power from the outlet to the unit's electrical system
• Helps correct no-power or intermittent power when the cord is moved
• Ideal replacement for cords with cuts, fraying, or burn/discoloration on the plug
• Supports proper grounding and safe operation when installed correctly

• Disconnect power before servicing; ensure the appliance is fully de-energized
• Match wire routing and connections to the product's wiring diagram; ensure a secure ground
• Use an appropriate strain relief if required by the product to prevent abrasion
• Route the cord away from sharp edges, moving parts, and hot surfaces

Package of 12

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Size: 10-32 GXTT FLP.595 S

This cable clamp secures the appliance power cord where it enters the cabinet, protecting wiring from pull and chafe for safer, more reliable operation. Designed to hold the cord firmly in place and prevent accidental disconnection. What it does:

• Acts as a strain relief to prevent the power cord from pulling into or away from the appliance
• Protects wiring from abrasion and sharp edges at the entry point
• Helps maintain a secure electrical connection to reduce intermittent power issues
• Commonly used where the cord passes through a rear or bottom access panel

• Disconnect power before inspecting or replacing the clamp to avoid shock or injury
• Install at the cord entry so the clamp captures the cord jacket; tighten fastener securely but do not over-torque
• Verify the cord is correctly routed and not pinched when reassembling panels
• If any wiring or the cord jacket is damaged, replace the cord before restoring power

Color: Black

The Bottom Oven and Deflector Assembly is an OEM part for GE ovens. It serves the dual purpose of acting as a base for the oven and deflecting heat for more efficient cooking.

Causes of a bad Bottom Oven and Deflector Assembly can include exposure to high heat over extended periods, accidental impact or mishandling, and general wear and tear from regular use.

Symptoms of a bad Bottom Oven and Deflector Assembly include:

• Uneven cooking or baking results
• Visible cracks, warping, or damage to the assembly
• Unusual noises during oven operation
• Difficulty in maintaining set oven temperatures

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 8-18 x 1/2 inch.

This bake element heats the oven cavity so food cooks evenly on bake settings. It replaces a failed or damaged element to restore proper baking performance and clear heating issues. What it does:

• Heats the bottom of the oven for bake cycles
• Replaces elements that are broken, visibly burnt, or not producing heat
• Helps resolve uneven cooking, no-heat on bake, or error codes related to open elements
• Works with matched oven control settings to maintain set temperatures

• One bake/heating element

• Disconnect power to the appliance before starting any repair
• Handle the element carefully to avoid bending or damaging terminals
• Verify electrical connections are tight and secure; replace mounting screws if worn

This oven door hinge assembly controls the door's movement and keeps it sealed against the frame. Replacing a worn hinge restores smooth opening and a tight close, helping maintain temperature and consistent cooking performance.

• Provides spring-assisted pivot to support the oven door during opening and closing
• Maintains alignment and helps the door stay fully closed against the gasket
• Direct replacement for bent, weak, or broken hinges
• Common symptoms: door won't close fully, drops or slams open, sits uneven, squeaks, or allows heat to escape

• Disconnect power and allow the oven to cool completely before servicing
• Remove the door; engage hinge locks or insert hinge pins and support the door while lifting it off
• Springs are under tension—use caution and wear gloves/eye protection
• After replacement, check door alignment and gasket seal; many replace both hinges together for even operation

Clip for door hinge.

The Receptacle Push-In is an OEM replacement part for GE ranges. This component securely holds the electrical receptacle/plug in place on the back of the range. Proper functioning of the receptacle push-in allows for a stable electrical connection and safe cord positioning.

Causes of a bad receptacle push-in include normal wear over time, bending/stress on the receptacle area, or damage affecting its securing ability.

Symptoms of a bad receptacle push-in are:

• Loose or wobbly electrical plug connection
• Exposed wiring or fragile cord positioning
• Tripped breakers or recurring electrical issues

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This anti-tip arm is a metal safety bracket that helps secure a freestanding range to the floor or wall to reduce the risk of the appliance tipping forward. It provides a simple, passive safeguard that improves kitchen safety. What it does:

• Anchors the range to help prevent forward tipping when a heavy load is placed on the open oven door
• Reduces rocking or shifting of the appliance during normal use
• Addresses the symptom of a range moving forward when the door is opened or when the cooktop is bumped
• Works as a passive restraint that engages when the range is tilted forward

• One anti-tip arm

• Follow the appliance manufacturer's instructions and local codes for proper attachment location and method
• Installation may require lifting or tilting the range; have a second person assist for safety
• Verify the mounting surface is suitable for secure fastening and use appropriate fasteners
• Disconnect power and ensure the appliance is stable and cool before positioning or fastening the bracket

Anti-tip kit.

This high-amp SPDT switch routes power between circuits in cooking appliances to control items such as locks, element relays, or fans. Replacing a worn switch restores dependable operation and helps eliminate intermittent on/off issues. What it does:

• Single-pole, double-throw action directs power between NO/NC circuits based on actuator position
• Used to signal or control a component per the model's design (e.g., latch/lock, relay, fan)
• Failure symptoms can include no activation, stuck-on/off behavior, intermittent operation, or heat-damaged terminals
• Electrical tests may show incorrect continuity between COM–NO/NC when pressed or released

• Includes: 1 SPDT high-amp switch

• Disconnect power at the breaker or unplug the appliance before servicing
• Label or photograph wiring; move leads to matching COM/NO/NC terminals on the new switch
• Mount with the correct actuator orientation and secure any bracket or screws
• Inspect connectors for heat damage; ensure tight spade fits, restore power, and test operation

This is a right-side guide support that secures and aligns a sliding component so drawers or shelves operate smoothly and stay on track. Replaces a worn or broken guide support to restore proper movement and seating. What it does:

• Holds the right-side guide rail or track in place so the drawer or shelf slides evenly
• Prevents the drawer or shelf from sagging, binding, or falling off the track
• Restores proper alignment when the original guide is cracked, broken, or worn
• Works with the existing rail, clips, and mounting hardware to maintain smooth travel

• Disconnect power or unplug the appliance before accessing internal components
• Access may require removing the drawer, shelf, or front panel—use basic hand tools
• Inspect related clips, rails, and fasteners and replace any damaged pieces for best results

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Left hand side

Right hand side

This leveling leg is an authentic OEM replacement part sourced directly from the manufacturer. Leveling legs are used on the bottom of stoves to correct imbalances on the cooking top caused by floors being unlevel. The leveling leg is threaded so that it can be adjusted up or down as needed. There are four holes for leveling legs on the stove's bottom. Each leg can be adjusted independently. If the legs are missing or lost, these replacements will help level the stove for more even cooking. When the stove is not level, the food inside pans will be unlevel and not cook evenly.Make sure the power is disconnected before installing the leveling leg. Tilt the stove back and place a chock underneath one side so that the leg can be screwed up or down as needed. Remove the chock and check for level. If the stove is still unlevel, repeat the procedure on the side that is not level. Continue to adjust until the stove is level. Restore the power to the stove.This leveling leg is a black part that is sold individually. It is designed for use on ranges manufactured by General Electric, Kenmore, and Hotpoint.

Right hand side

Left hand side

Right hand side

A replacement vent brace that secures the appliance vent assembly and helps keep vent components aligned for steady airflow and quiet operation. Restores proper support to a loose or sagging vent assembly. What it does:

• Supports and stabilizes the vent/duct assembly so it stays aligned during use
• Reduces vibration and rattling caused by a loose vent bracket
• Helps maintain proper airflow by keeping vent components in the correct position
• Fits where the original vent brace mounts to the appliance frame

• Disconnect power (and gas, if applicable) before servicing the appliance
• Remove the appropriate access panels to reach the vent area; keep fasteners for reassembly
• Verify bracket orientation and screw locations match the original before tightening

Right hand side

Left hand side

This oven felt seal fits around the door perimeter to cushion the door and help reduce heat loss. It restores the intended door clearance and soft contact between the oven door and frame for safer, quieter operation. What it does:

• Cushions the oven door edge to prevent metal-on-metal contact and reduce rattling
• Helps limit heat and smoke from escaping the oven cavity when the door closes
• Restores proper door clearance to prevent scraping or uneven sealing
• Commonly replaced when felt is worn, compressed, torn, or missing

• One oven felt seal as shown

• High-level replacement; remove the oven door or open hinge per your service manual before replacing the seal
• Work with the oven powered off and fully cooled; disconnect power for safety
• Press the felt into the channel or adhesive area; ensure even fit around the full perimeter

Right hand side

Left hand side

This is a replacement screw used to secure appliance panels and small components. It restores proper fastening and helps eliminate loose parts, rattling, or misaligned panels for a tight, safe fit. What it does:

• Secures panels, trim, brackets, or small assemblies to restore proper alignment
• Stops rattling or vibration caused by missing or loose fasteners
• Provides the correct threaded fastening where the original screw is lost or damaged
• Matches OEM fastening function for reliable reassembly

• Disconnect power or unplug the appliance before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread the screw in by hand first, then tighten snugly—do not overtighten to avoid stripping or cracking
• Keep small parts away from children and pets during installation

The Oven Light Lens is an OEM part for GE ovens, designed to protect and cover the oven light bulb. It allows for a clear view of the oven's interior, making it easier to monitor the cooking progress without opening the oven door, thus maintaining a consistent temperature.

Over time, the oven light lens can become discolored or cloudy from exposure to high temperatures, grease, and food splatters, which can diminish its effectiveness. Additionally, accidental bumps or cleaning can lead to cracks or breaks in the lens.

Symptoms of a bad Oven Light Lens include:

• Diminished light output, making it hard to see inside the oven
• Cracks or damage to the lens itself
• Discoloration or cloudiness that cannot be cleaned off
• The lens becoming loose or falling off

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bail is the replacement door/handle support used to secure a handle or attach components to an appliance door or panel. It restores a stable grip and proper attachment when the original bail is cracked, bent, or missing. What it does

• Replaces a worn, broken, or missing bail that supports a door handle or accessory
• Restores a secure connection so the handle or component doesn't wobble or detach
• Helps prevent further damage from a loose or improperly supported handle
• Fits into the existing mounting points to re-establish proper alignment

• One replacement bail

• Disconnect power and remove any removable panels or doors before starting
• Use basic hand tools; retain original screws and fasteners unless damaged
• Align bail with existing mounting holes and secure without over-tightening

Right hand side

Left hand side

This lower heat shield is a stamped metal shield that protects the oven's lower cabinet area and surrounding components from excessive heat. It helps maintain safe operation and reduces heat transfer to nearby parts. What it does:

• Shields the oven's lower cavity and insulation from direct heat
• Prevents heat-related damage to the range cabinet and nearby components
• Can reduce hotspots that cause smoking or burning odors
• Restores proper airflow and clearance under the oven when damaged or missing

• One lower heat shield

• Disconnect power (and gas, if applicable) before servicing the appliance
• Remove oven drawer and access panels to reach and replace the shield
• Use gloves to protect hands from sharp metal edges during installation
• Tighten fasteners securely but do not overtighten—replace any damaged mounting hardware

Inner

Middle

This retainer is a small mounting clip that secures compatible appliance components in place to prevent movement and wear. It restores proper alignment so related parts stay seated and operate quietly and safely. What it does:

• Holds a specific component or harness firmly to the appliance frame or assembly
• Prevents rubbing, vibration noise, or parts shifting during operation
• Helps maintain correct part alignment for reliable function
• Common symptom: loose, rattling, or misaligned components where the retainer is missing or damaged

• One retainer

• Disconnect power and any fuel sources before starting work
• Inspect surrounding parts for damage before installing the retainer
• Typically installs with basic hand tools; avoid over-tightening nearby fasteners
