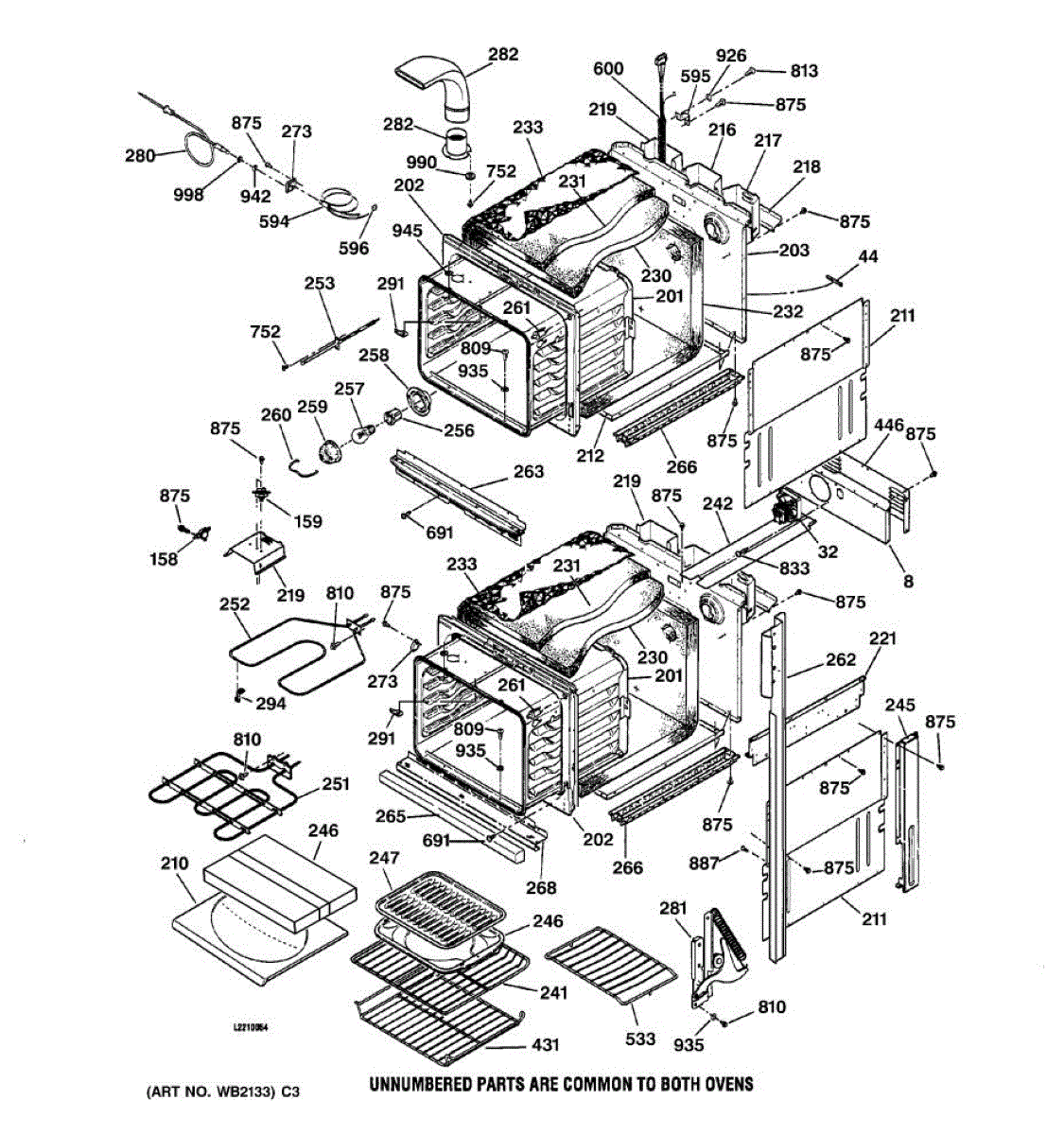

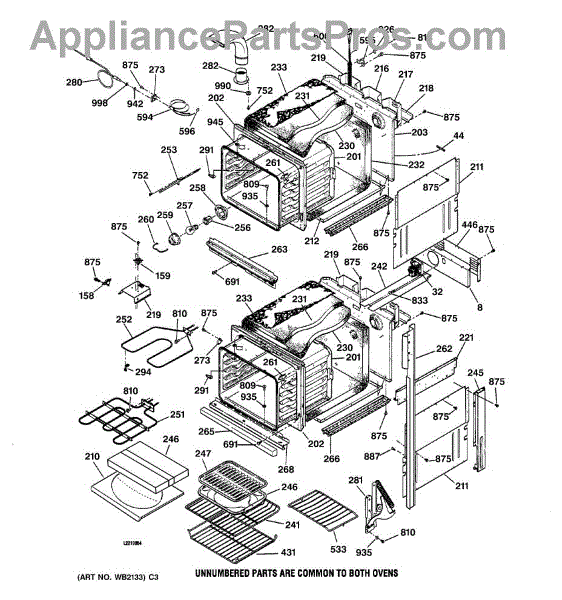

Parts for Ge JK950AA2AA: 02 - Body Parts

This lower cooling fan assembly circulates air to cool internal components and help maintain proper airflow in the appliance. Replacing a worn fan restores quieter operation and helps prevent overheating of electrical parts. What it does:

• Moves air through the appliance cabinet to aid component cooling and temperature regulation.
• Reduces hot spots around controls, electronics, and motors that can cause premature failure.
• Commonly used when you hear unusual noise from the lower area or detect reduced airflow.
• Supports overall appliance performance and reliability by maintaining designed ventilation.

• One lower cooling fan assembly as shown

• Disconnect power before attempting any service to avoid electric shock.
• Inspect surrounding mounts and ducts for damage; replace any broken clips or supports.
• Use basic hand tools; confirm correct orientation and secure mounting before restoring power.

Replacement fan blade that mounts to the motor shaft to circulate air inside the appliance, restoring airflow and reducing vibration or noise from damaged or bent blades. Works with the fan motor to help maintain proper cooling and ventilation. What it does:

• Spins on the motor shaft to move air through the appliance's cabinet or evaporator area.
• Restores even airflow for more consistent cooling and performance.
• Reduces excessive noise and vibration caused by cracked, warped, or missing blades.
• Helps prevent airflow-related issues such as warm spots or slow cooling when the fan is not operating properly.

• Disconnect power to the appliance before servicing to avoid electric shock or injury.
• Remove interior panels or housing to access the fan; handle the blade carefully — edges can be sharp.
• Slide the blade onto the motor shaft and secure per OEM method (set screw, clip, or hub); ensure proper alignment and rotation direction.
• Test fan operation after installation and reassemble panels securely.

This limit switch is a snap-action safety/position switch used in many cooking appliances. It opens or closes an electrical circuit when a mechanism reaches its limit, enabling safe operation and helping protect components when conditions aren't met.

• Provides snap-action switching to confirm a mechanical limit or interlock within the appliance
• Changes state to allow or interrupt power when the limit is reached
• Common failure symptoms: self-clean won't start or complete, oven won't heat/start, or door lock-related error codes
• May fail a continuity test or lose its distinct "click" when actuated

• Disconnect power before service; allow appliance to cool completely
• Access and mounting vary by model—take photos and transfer wires one at a time
• Mount in the same orientation; ensure the actuator/lever aligns with the mechanism and is not bent
• After installation, verify switch operation with a continuity test while actuating the mechanism

A replacement limit switch that helps prevent overheating by cutting power when temperature reaches a set point. Fits into the appliance's temperature control/safety system to keep operation safer and more reliable. What it does:

• Acts as a temperature-activated safety cutoff to stop heating when temperatures exceed safe limits
• Helps appliances recover from overheating by interrupting power to heating elements or circuits
• Can cause loss of heat, intermittent heating, or failure to reach temperature when faulty
• Commonly used in ranges/ovens to protect internal components and maintain safe operation

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Handle electrical connectors and terminals carefully; note wiring location before removal
• Minor disassembly of the appliance's control or access panel may be required for access

This limit switch is a safety control for compatible cooking appliances. It opens or closes an electrical circuit when a preset limit is reached—commonly temperature or travel—helping protect components and ensure proper operation of heating and latch systems.

• Monitors a specific limit at its mounting point (temperature or mechanism travel, depending on model)
• Opens/closes the circuit to interrupt or allow power to related components
• A failed switch can prevent heating, stop self-clean from starting, or keep the door from locking/unlocking
• Helps protect wiring and controls from damage during abnormal conditions

• Disconnect power to the appliance and allow all components to cool before servicing
• Access location varies by model; take photos and label wires before removal
• Transfer wires one at a time to the new switch; secure with existing hardware
• If the old switch tripped due to overheating or binding, inspect fans, vents, and latch/linkages to correct the root cause

This oven cavity wrapper assembly replaces the damaged or corroded inner oven liner to restore the oven's interior surface and help maintain even cooking and easier cleaning. Designed to fit the oven cavity and support mounting of oven components. What it does:

• Replaces a warped, dented, or corroded oven cavity surface to restore interior integrity
• Provides the proper mounting surface for heating elements and internal components
• Helps reduce hotspots and improves heat containment when the cavity is intact
• Improves cleanability by restoring a smooth, continuous inner surface

• One oven cavity wrapper assembly

• Requires basic disassembly of the oven door and removal of internal components
• Disconnect power at the breaker before starting work to avoid electric shock
• Handle edges carefully — sheet metal may be sharp; wear gloves and eye protection
• Verify alignment and fastener torque per OEM instructions

This Back main is the oven's rear chassis panel that supports internal components and protects wiring. It restores structural support and helps prevent contact with hot or moving parts for safe operation. What it does:

• Replaces a damaged or corroded rear oven chassis panel that no longer secures components
• Protects controls, wiring, and electrical connections from heat, debris, and accidental contact
• Helps eliminate rattling or vibration caused by a loose or bent back panel
• Restores proper mounting for internal parts to ensure stable operation

• One Back main rear chassis panel

• Recommended for users familiar with appliance repair; disconnect power before starting
• Handle sharp metal edges carefully and wear gloves and eye protection
• Verify fasteners and grounding are secure when reinstalling internal components

This side cabinet is the outer refrigerator cabinet panel that restores the unit's exterior structure and appearance. It replaces a cracked, dented, or missing outer side panel to help protect internal components and improve cosmetic look. What it does

• Covers and protects the refrigerator's side area and internal components from damage and debris.
• Restores a smooth, finished exterior surface when the original panel is dented, cracked, or missing.
• Helps maintain proper airflow around sealed sections by keeping the cabinet enclosure intact.
• Common symptom: visible dents, cracks, holes, or loose/missing side panel affecting appearance and protection.

• One (1) side cabinet panel as pictured.

• Disconnect power and empty nearby shelves before beginning work.
• Removal/installation may require removing trim, doors, or adjacent panels—use proper tools and follow the service manual.
• Handle edges carefully; panels and sheet metal can be sharp.

The Rack is an OEM part for GE ranges, designed to provide a sturdy and reliable surface for baking and roasting your favorite dishes. This high-quality metal rack fits perfectly inside GE ovens, allowing for optimal air circulation around the food for even cooking.

Causes of a bad Oven Rack can range from excessive weight placed on the rack, improper cleaning methods leading to rust, or general wear and tear over time.

Symptoms of a bad Oven Rack include:

• Difficulty sliding the rack in and out, which can be caused by warping or damage
• Rust or corrosion, which can contaminate food and affect the overall cleanliness of the oven
• Unstable positioning, leading to uneven cooking or the risk of dishes tipping over

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Broil Element is an OEM part for GE ovens. This element is located at the top of the oven and is crucial for the broiling function, providing high heat for cooking dishes such as meats and vegetables directly under the heat source. The broil element glows red hot when in use, creating the necessary temperature to sear food and lock in flavors.

Symptoms of a failing Broil Element include:

• The element not heating up when the broil setting is activated
• Uneven cooking or lack of browning on food intended to be broiled
• Visible damage to the element, such as blistering, bubbling, or breaks in the element coil
• No visible glow from the element during operation

Causes of a bad broil element often involve burnout from regular use, electrical issues such as faulty wiring or a malfunctioning thermostat that doesn't cycle the heat correctly.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Sensor Assembly is an OEM part for GE ovens. This part monitors the oven's internal temperature, ensuring it matches the set temperature on the oven's controls. By accurately measuring the heat inside the oven, the sensor assembly communicates with the oven's control system to adjust the temperature accordingly.

Over time, the oven sensor can become faulty due to wear or damage, leading to inaccurate temperature readings. This can manifest as unevenly cooked food, longer cooking times, or an oven that fails to reach the desired temperature setting.

Symptoms of a bad Oven Sensor Assembly include:

• The oven temperature is inconsistent with the setting
• Food is not cooking evenly or as expected
• The oven fails to heat to the set temperature
• Error codes appearing on the oven display related to temperature regulation

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This oven lamp holder is the heat-resistant socket that secures the interior light bulb and connects it to the appliance's wiring, restoring dependable visibility so you can check food and rack positions without opening the door as often.

• Holds and powers the oven light bulb inside the cooking cavity
• Maintains a solid electrical connection to prevent flickering or intermittent lighting
• Replace if the light won't turn on with a known-good bulb
• Also replace if the socket is cracked, charred, loose, or shows signs of arcing

• Disconnect power at the breaker or unplug the appliance; allow the oven to cool completely
• Remove the lens and bulb to access the holder; some models require access from the rear panel
• Transfer wires to the new holder one at a time and secure the mounting clip/tabs
• Reinstall the bulb and lens, restore power, and test; use the bulb type specified for your model

The Oven Light Lens is an OEM part for GE ovens, designed to protect and cover the oven light bulb. It allows for a clear view of the oven's interior, making it easier to monitor the cooking progress without opening the oven door, thus maintaining a consistent temperature.

Over time, the oven light lens can become discolored or cloudy from exposure to high temperatures, grease, and food splatters, which can diminish its effectiveness. Additionally, accidental bumps or cleaning can lead to cracks or breaks in the lens.

Symptoms of a bad Oven Light Lens include:

• Diminished light output, making it hard to see inside the oven
• Cracks or damage to the lens itself
• Discoloration or cloudiness that cannot be cleaned off
• The lens becoming loose or falling off

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Probe Thermistor is an OEM replacement part for GE wall ovens and ranges. Located inside the oven cavity, this temperature-sensitive probe precisely monitors interior heat to safeguard against overcooking.

Causes of a faulty thermistor involve exposure to excessive cooking temperatures, moisture infiltration from spills or steam, or basic failure due to old age.

Symptoms of an inadequate probe thermistor include:

• Inaccurate temperature readings and baking inconsistencies
• Oven temperature exceeding desired setting risking fire

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Support Bracket is an OEM part for GE ovens, designed to provide stability and support for the broiling element. This bracket is essential for ensuring the broiling element is securely positioned at the top of the oven, allowing for even heat distribution and optimal cooking performance when broiling foods.

Causes of damage to the support bracket often involve high heat exposure, accidental impacts during cleaning or cooking, or general wear and tear over time.

Symptoms of a bad Support Bracket include:

• The broiling element hanging lower than usual or touching the oven cavity, which can affect cooking performance and potentially damage the oven's interior.
• Unstable or loose broiling element, leading to uneven cooking or broiling.
• Visible signs of wear, damage, or corrosion on the bracket itself, indicating it may no longer provide adequate support.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This roast rack is an oven insert that holds roasts and pans above the oven floor to improve air circulation and promote even browning. It restores proper clearance for drip pans and helps keep food out of accumulating juices. What it does

• Supports roasts, poultry and bakeware above the oven floor so hot air circulates evenly
• Prevents food from sitting in drippings for crisper browning and better roasting results
• Replaces bent, warped or missing oven racks that interfere with cookware stability
• Fits into oven side supports for secure placement during roasting

• One roast rack

• Allow the oven to cool and disconnect power before handling or replacing parts
• Slide the rack into the oven side supports until secure; ensure it sits level before use
• Use oven mitts when placing or removing hot cookware from the rack
• Clean by hand washing with warm, soapy water; avoid abrasive cleaners that can damage the finish

This conduit wire assembly routes and protects electrical wiring between appliance components, keeping connections secure and reducing risk of shorts. It's a direct-fit harness used where a protected wire run is required for reliable power and signal delivery. What it does:

• Provides a protected conduit for multiple conductors to route power or signals between control and functional modules
• Keeps wire bundles organized and secured to prevent chafing and accidental disconnection
• Helps prevent electrical shorts and arcing by shielding wires from heat and abrasion
• Commonly replaced when wiring is frayed, connectors are damaged, or intermittent power/operation occurs

• Always disconnect the appliance from power before beginning service.
• Match connector types and routing to the original harness; secure with existing clips/fasteners.
• Inspect nearby terminals and components for damage; replace any corroded connectors.

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or control components where a small black screw is required
• Restores secure mounting to eliminate vibration, rattling or misaligned parts
• Matches finished appliance surfaces for a clean, unobtrusive look
• Simple hardware replacement for small fastener loss or damage

• One black screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver to seat the screw; avoid overtightening to prevent stripping or cracking surrounding material
• Keep track of small fasteners during disassembly and handle with care
• Replace with the exact part number if the original screw is damaged or the thread/length differs

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

This replacement screw secures appliance components so panels, brackets, and assemblies stay tight and aligned. Replace stripped or missing hardware to eliminate rattles and keep your unit assembled safely and correctly.

• Fastens panels, brackets, or components to the appliance frame
• Restores a secure fit when the original screw is lost, stripped, or corroded
• Helps prevent vibration noise and movement during operation
• Supports proper alignment of trim and assemblies

• Disconnect power; for gas units, also shut off the gas supply
• Use the correct driver to avoid stripping the head; do not overtighten
• Inspect and address damaged mating threads, clips, or brackets before reinstalling
• Refer to your model's parts diagram to confirm location and quantity

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Black. 8-18 AB HXW 3/8
