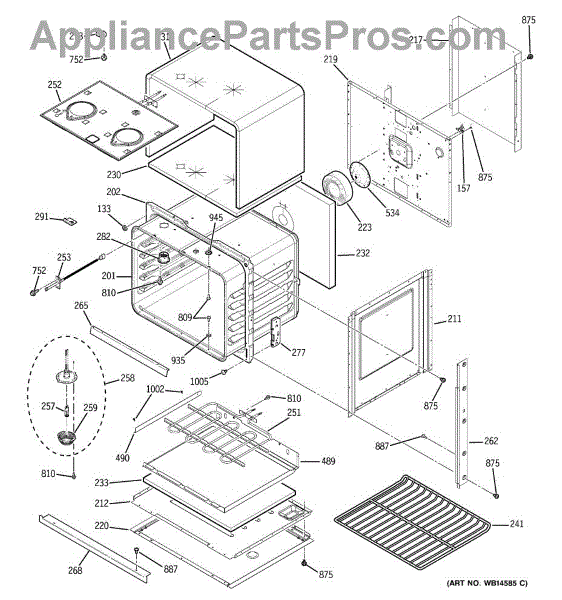

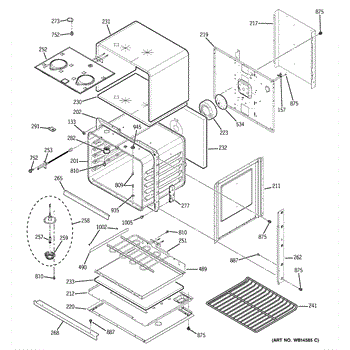

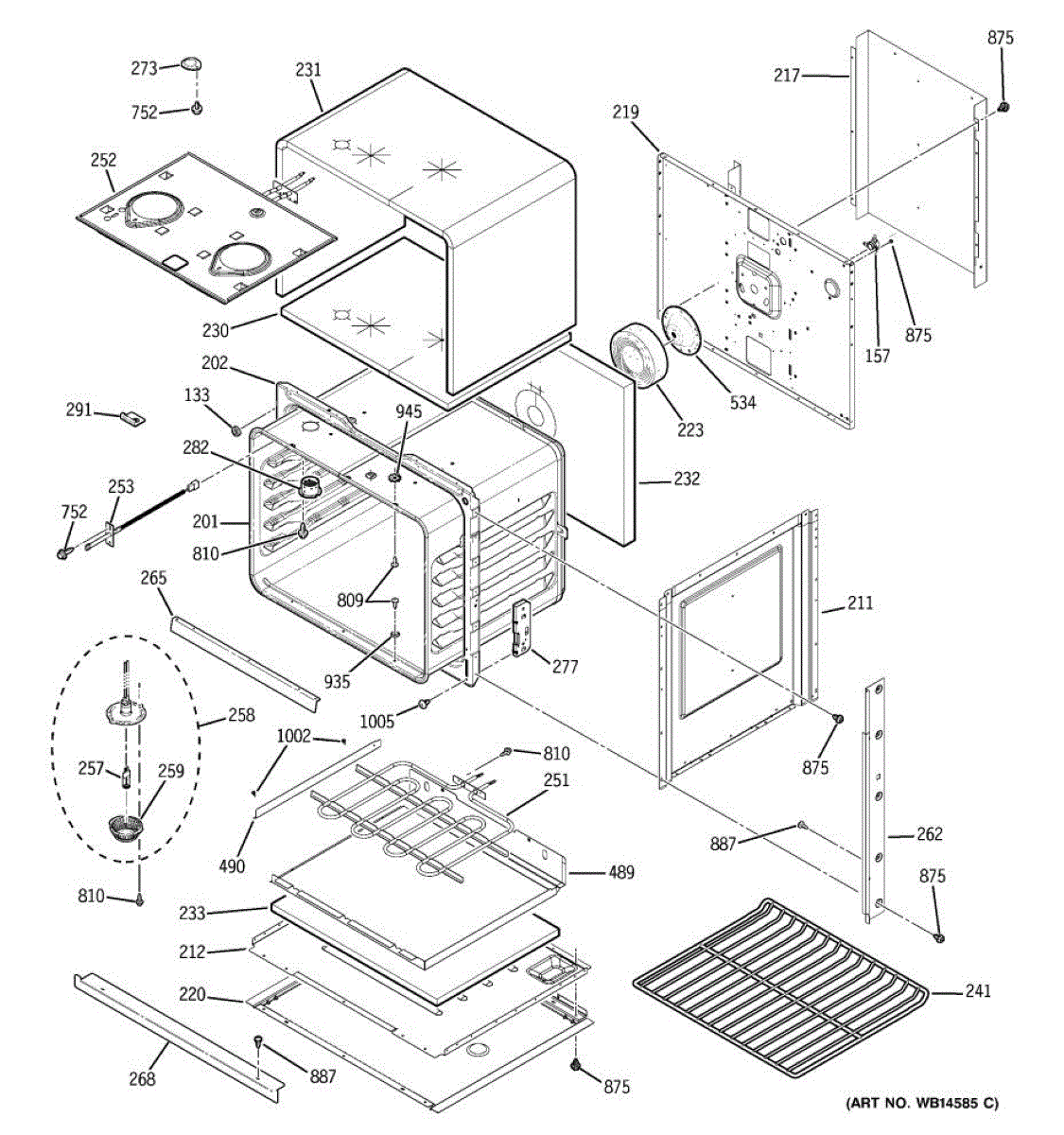

Parts for Ge JTP30SM1SS: 02 - Body Parts

This foam tape seals and cushions the oven door assembly to reduce vibration and help keep the door glass and inner components stable. It restores proper spacing and helps reduce rattling or light air leaks around the door. What it does:

• Provides a soft, compressible seal between the door and frame to reduce noise and movement
• Cushions and protects glass and trim from contact and vibration
• Helps limit minor air leakage that can allow heat or odors to escape
• Commonly used when door trim or glass is loose, rattling, or shows visible gaps

• One adhesive-backed foam tape strip

• Clean and dry mating surfaces before applying to ensure good adhesive contact
• Measure and trim to fit; press firmly along the full length for proper adhesion
• Replace only with the same style of tape—do not use electrical or non-heat-rated foam in high-temperature areas
• Disconnect power/cool the appliance before working on the door assembly to avoid burns or injury

A small rubber door bumper that cushions the contact point between the appliance door and cabinet to reduce noise, prevent chipping, and help the door close smoothly. Simple replacement restores quiet operation and protects finishes. What it does:

• Cushions the door edge to stop metal-on-metal or door-on-cabinet contact
• Helps the door sit and close more evenly to reduce misalignment symptoms
• Reduces banging, rattling, and scraping noises when the door closes
• Prevents wear and cosmetic damage at the door contact point

• Inspect the door/cabinet contact area to locate the bumper before replacing
• Most installations press the bumper into a hole or recess; use steady, even pressure to seat it
• If the old bumper is glued or fastened, remove residue and check the mounting method in your parts diagram
• Turn off power to the appliance before working near electrical components or wiring

The Hi-Limit Switch is an OEM replacement part for GE ranges. It is a safety component responsible for monitoring internal oven temperatures. The hi-limit switch helps prevent overheating by detecting when excessive heat has built up inside the oven cavity. It will automatically cut power to the bake/broil elements if temperatures rise too high.

Causes of a bad hi limit switch can include normal failure after years of exposure to heat, or issues with the electronic components or calibration.

Symptoms of a bad hi-limit switch include:

• The oven failing to heat up or bake/broil food properly
• Frequent thermal cut outs requiring the oven to be unplugged
• Delays in the oven reaching the set temperature
• Oven will not turn on

This is a genuine OEM part that works for some models of GE, and Hotpoint models.

This top cabinet insulation pad replaces the foam insulation in the refrigerator's upper cabinet to help reduce heat transfer and minimize frost buildup around the freezer compartment. It restores the original thermal barrier for consistent cooling performance. What it does:

• Replaces worn or damaged top-cabinet insulation that can let heat into the freezer area
• Helps reduce frost accumulation and relieves added compressor workload from heat gain
• Restores the appliance's designed thermal barrier for more even internal temperatures
• Fits into the cabinet ceiling area above the freezer compartment

• Disconnect power to the appliance before beginning any service
• Access usually requires removing interior liners, shelves, or the evaporator cover
• Handle insulation gently; avoid compressing or tearing the foam during installation
• Secure in original orientation and location; follow OEM fasteners or adhesive points

This oven cavity insulation panel helps reduce heat loss and protect surrounding components for more even baking and safer exterior temperatures. It replaces worn or damaged insulation to restore proper thermal performance. What it does:

• Provides thermal barrier between the oven cavity and outer cabinet to help maintain oven temperature
• Reduces heat transfer to adjacent components and exterior surfaces
• Helps the oven reach and hold set temperatures more efficiently
• Commonly replaced when insulation is burned, torn, compressed, or missing

• One oven cavity insulation panel

• Disconnect power and gas before starting any repair
• Access may require removing the oven door, back panel, or cooktop per your model's service manual
• Wear gloves and a dust mask; insulation fibers can irritate skin and lungs
• Follow OEM instructions and torque specifications

This replacement oven rack slides into the side supports to hold cookware securely at the desired baking level. Replacing a bent, worn, or missing rack restores safe, level support and smooth sliding when loading or removing pans.

• Provides a stable, level surface for bakeware and roasting pans
• Positions food at the proper height relative to the heat source
• Slides on the oven's side rails for easy access
• Common replaceable conditions: bent/warped wires, peeling finish or rust, won't slide smoothly, or missing rack

• Allow the oven to cool fully; disconnect power or shut off gas and wear gloves
• Align the rack side rods with the support guides; insert with safety stops oriented correctly and slide in fully
• To remove, pull forward to the stop and lift the front slightly to clear the stop
• Do not force; if the rack binds, verify orientation and rack level

This bake element assembly restores dependable bottom-oven heat during the Bake cycle. Replace a burned-out element so your oven can reach and maintain the set temperature for even preheating and consistent baking results.

• Provides the primary heat source from the lower oven cavity during Bake
• Helps the oven reach and hold the temperature you set
• Common failure signs: no heat in Bake, very slow or uneven preheating, visible blistering or a break in the element
• A shorted element may spark or trip a breaker when Bake is selected

• Disconnect power at the breaker before servicing
• Remove oven racks, take out the element's mounting screws, and gently pull the element forward to access the wires
• Transfer wires to the new element one at a time; ensure tight connections and prevent wires from retracting into insulation
• Secure the element, restore power, and run a Bake test to confirm proper heating

The Broil Element is an OEM part for GE ranges. This part provides the high heat necessary for broiling, ensuring even cooking and browning of food placed in the upper section of the oven.

Causes of a bad broil element can include electrical issues such as short circuits or burnt-out connections, physical damage from impact, or wear and tear from frequent use.

Symptoms of a bad broil element include:

• Oven not heating properly during the broil setting
• Visible signs of damage such as breaks or burns on the element
• Uneven broiling results
• Element not glowing red when in use

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Temperature Sensor is an OEM part for GE ovens. It plays a role in monitoring and regulating the oven's internal temperature, ensuring accurate heating and cooking performance. This sensor works by detecting the temperature inside the oven cavity and communicating with the main control board to maintain the set temperature throughout the cooking process.

Causes of a bad Temperature Sensor can include exposure to extreme temperatures leading to sensor failure, wear and tear over time, or damage from oven cleaning agents or spills that may affect its functionality.

Symptoms of a bad Temperature Sensor include:

• Oven not reaching the set temperature.
• Overheating or underheating, leading to unevenly cooked food.
• Frequent error messages from the oven's electronic control.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Lamp Holder is an OEM part for GE ovens. This component securely holds the oven light bulb in place, ensuring proper illumination inside the oven cavity for better visibility during cooking and baking.

Causes of a bad lamp holder can include repeated exposure to high temperatures, physical damage, or electrical issues. A malfunctioning lamp holder can lead to the oven light not functioning correctly or at all.

Symptoms of a bad oven lamp holder include:

• The oven light not turning on
• Flickering or intermittent operation of the light
• Visible damage or corrosion to the lamp holder
• The light bulb not staying securely in place

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This oven bulb lens covers and protects the interior light bulb while letting you clearly see food as it cooks. Replace a cracked or missing lens to restore safe, even illumination inside the oven cavity.

• Covers the oven light bulb and diffuses light for better visibility
• Shields the bulb from grease, splatter, and moisture
• Helps keep the bulb securely enclosed
• Common signs it's needed: lens is cracked, missing, discolored, or won't stay in place

• Disconnect power at the breaker or unplug the appliance; allow the oven to cool completely
• Wear gloves to protect hands from sharp edges and hot surfaces
• Remove the existing lens by releasing the retainer or turning it, per your model's design; retain any clip or gasket for reuse
• Seat the new lens fully and restore power to test the light

This vent tube assembly routes exhaust air and helps direct airflow away from the appliance to maintain proper ventilation and operation. It replaces a damaged, cracked, or disconnected tube to restore correct air discharge. What it does:

• Channels exhaust airflow from the appliance to the external vent path
• Prevents air leaks that can reduce venting efficiency or cause mild odors
• Replaces tubes that are cracked, split, corroded, or otherwise damaged
• Helps maintain consistent airflow for proper appliance performance

• One vent tube assembly as shown

• Disconnect power (and gas if applicable) and unplug the appliance before beginning work
• Use appropriate tools and fasteners; do not overtighten clamps to avoid crushing the tube

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

This is a 6-20 machine screw, 3/8 inch length, used to secure trim, panels, or small components on compatible cooking appliances. Replacing a missing or damaged screw helps keep parts tight and prevents rattles or shifting during use.

• Fastens brackets, panels, or trim in the appliance chassis
• Helps restore a secure fit when the original screw is stripped or lost
• Can resolve issues like loose trim, minor rattling, or misaligned panels
• Nickel finish for corrosion resistance in warm, humid environments

• Disconnect power and allow appliance to cool before servicing
• Remove only the necessary adjacent fasteners to access the mounting point
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Replace any missing clips or spacers originally used with the screw

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

This replacement screw secures appliance components so panels, brackets, and assemblies stay tight and aligned. Replace stripped or missing hardware to eliminate rattles and keep your unit assembled safely and correctly.

• Fastens panels, brackets, or components to the appliance frame
• Restores a secure fit when the original screw is lost, stripped, or corroded
• Helps prevent vibration noise and movement during operation
• Supports proper alignment of trim and assemblies

• Disconnect power; for gas units, also shut off the gas supply
• Use the correct driver to avoid stripping the head; do not overtighten
• Inspect and address damaged mating threads, clips, or brackets before reinstalling
• Refer to your model's parts diagram to confirm location and quantity

Black. 8-18 AB HXW 3/8

A replacement black trim screw that secures exterior trim and small panels on appliances, restoring proper fit and finish so pieces stay aligned and rattle-free. What it does

• Fastens appliance trim, bezels, and small decorative panels
• Keeps trim aligned to prevent gaps, rattling, and vibration noise
• Replaces missing or stripped trim fasteners to restore secure attachment
• Works wherever the OEM specifies a black trim screw of this style

• One black trim screw

• Disconnect power or unplug the appliance before starting any work
• Use the correct screwdriver size to avoid stripping the screw head
• Hand-start the screw, then snug—do not overtighten to prevent cracking the trim
• If access is tight, a magnetic screwdriver or bit holder can help

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
