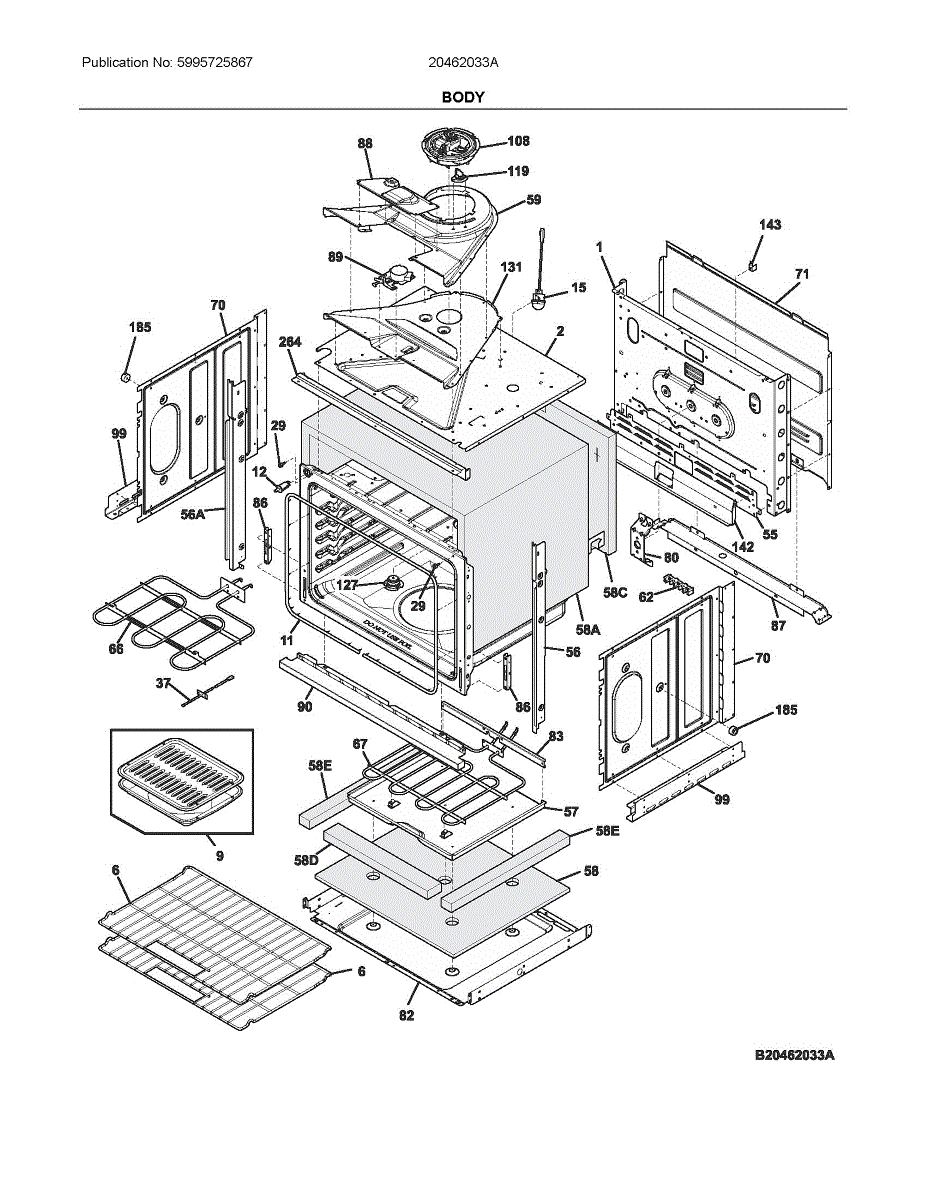

Parts for Ikea 20462033A: Body Parts

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This refrigerator door gasket replaces a worn or damaged outer door seal to help maintain an airtight closure and improve cooling efficiency. It restores a proper seal to reduce drafts, moisture buildup and energy loss. What it does:

• Seals the refrigerator door to keep cold air in and warm air out
• Helps prevent frost buildup and water accumulation on the cabinet floor
• Reduces compressor run time by maintaining consistent internal temperature
• Common symptom: visible cracks, tears, or areas that no longer seat against the cabinet
• Common symptom: warm spots at the door edge or excess condensation

• One refrigerator door gasket

• Disconnect power to the appliance before beginning any work
• Remove the old gasket by loosening retainer screws or pulling out the retainer, then press the new gasket into the retainer channel, working around the perimeter
• For tight fits, gently warm the gasket (low heat) to make it more pliable—do not overheat or use open flame
• Inspect the seal for even seating and, if applicable, torque retainer screws to manufacturer spec

This replacement switch restores reliable control of a selected function by opening or closing an electrical circuit inside your appliance. When the original switch wears out, buttons may stop responding or features may not activate consistently.

• Opens/closes an electrical circuit when the button/actuator is engaged
• Routes power or sends a signal to the control or component
• Common symptoms: no response when pressed, intermittent operation, or function won't start
• May show signs of heat damage, loose terminals, or inconsistent "click" feel

• Disconnect power at the breaker before servicing
• Photograph or label wire positions to ensure correct transfer to the new switch
• Move wires one at a time; fully seat connectors on the correct terminals
• Reassemble, restore power, and test the function activated by the switch

The Range Lamp Assembly is an OEM part for Frigidaire stoves and ranges. It consists of the halogen light bulb, lens cover, and wiring harness necessary to illuminate the oven cavity. This lamp assembly provides light to the cooking and baking space, making it easier to view food and monitor cooking progress.

Symptoms of a bad range lamp assembly include:

• The oven light not turning on at all
• Dim, flickering, or intermittent light
• Burned out or blown light bulb
• Cracks or damage to the lens cover

Causes of failure can be a burned out light bulb, broken wiring, or damage from impact or heat over time.

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This small replacement spacer positions and secures appliance components to maintain correct alignment and fit. Installing the spacer restores proper panel spacing and reduces vibration where a worn or missing spacer causes looseness or rubbing. What it does:

• Maintains the correct gap between panels, trim, or assemblies to ensure parts fit flush
• Keeps components aligned to prevent rubbing, binding, or uneven wear
• Helps reduce vibration and rattling caused by a missing or damaged spacer
• Preserves original part spacing for reliable operation of the surrounding components

• Disconnect power to the appliance before any service to avoid shock or injury
• Remove any trim or fasteners that block access; keep track of screws and small parts
• Match the new spacer's orientation to the original; do not force parts into place

The Temperature Sensor is an OEM part for Frigidaire ovens. It monitors and helps regulate the oven's internal temperature, ensuring consistent cooking results by accurately detecting temperature changes. This sensor is crucial for the oven's control system to maintain the desired cooking temperature.

Symptoms of a bad Temperature Sensor include:

• Inaccurate oven temperature readings,
• Oven not heating to the set temperature,
• Oven overheating,
• Frequent temperature fluctuations during use.

Causes of a sensor failure can include prolonged exposure to high temperatures, electrical surges, or a breakdown of the sensor's components due to normal wear and tear.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Broil Heating Element is an OEM part for Frigidaire ranges. Located inside the oven compartment, it provides heat energy for the broil cooking function.

Causes of a bad broil element can include mineral buildup over time, surface corrosion or internal wire fatigue from ongoing temperature cycling.

Symptoms of a bad broil element include:

• Inadequate or uneven broiling temperatures
• Element failing to glow red or turn on fully
• Burning or charring of foods below the element
• Oven display showing error code related to element failure

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This evaporator fan motor circulates cold air inside the refrigerator compartment to maintain even cooling and proper airflow. Replaces a failed or noisy fan motor to restore consistent temperature distribution. What it does:

• Spins the evaporator fan blade to move air across the evaporator coils and throughout the fresh-food compartment
• Helps prevent uneven cooling, warm spots, and excessive frost buildup when operating correctly
• Reduces or eliminates grinding, rattling, or humming caused by a worn or failing motor
• Works as part of the refrigerator's airflow system to support normal compressor and defrost operation

• One evaporator fan motor (single unit as shown)

• Disconnect power before servicing to avoid shock or injury
• Access typically requires removing interior panels; handle evaporator fins and wiring with care
• Verify fan blade clearance and secure electrical connectors before restoring power

This mounting bracket secures appliance components in place to restore stable operation and alignment. It's a simple, durable replacement that helps prevent loose parts and rattling for safer, quieter performance. What it does:

• Provides structural support for internal components and assemblies
• Holds panels, modules or hardware in correct alignment to prevent movement
• Helps eliminate rattling, vibration noise, or loose-fitting parts
• Restores proper fit where a worn or broken bracket allowed misalignment

• Turn off power to the appliance and unplug before beginning work
• Remove only the panels or fasteners necessary to access the old bracket
• Reuse original fasteners or replace with equivalent-size hardware; tighten securely

This replacement motor drives the oven's fan to circulate air through the cavity, helping maintain even heat distribution. A weak or failed motor can cause the fan to stop or run noisily, affecting cooking performance. What it does:

• Powers the oven fan to move air through the cavity for consistent temperatures
• Helps support even baking and roasting results
• Common symptoms include the fan not spinning, intermittent operation, or loud humming/squealing from the rear of the oven
• Helps resolve poor convection performance when the fan is not turning

• 1 motor

• Disconnect power at the breaker before servicing
• Access may require removing the oven from the cabinet and the rear cover; follow your model's service procedure
• Transfer the existing fan blade and any mounting hardware from the old motor if required
• After installation, spin the fan by hand to ensure it turns freely and doesn't rub before restoring power

The Thermostat is an OEM replacement part for Frigidaire ranges. It monitors the oven's temperature and cuts power if temperatures surpass safe levels. The high-limit thermostat allows protection against overheating.

Causes of a bad thermostat include wear and tear over time, damage due to exposure to extreme heat, or malfunctioning electronic components.

Symptoms of a bad thermostat include:

• Oven does not start at all.
• Excessive temperature fluctuations
• Risk of overheating as thermostat fails to shut off gas or electric coils
• Smoking or burning smells from the oven

This genuine Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore gas ranges.

This Tube Assembly routes water inside the refrigerator to the dispenser and ice-maker, restoring proper water flow and preventing leaks when the original line is damaged. Reliable replacement for delivery and fill connections. What it does:

• Transports water from the inlet to the ice maker/dispenser assembly
• Replaces cracked, kinked, or leaking tubing that causes puddles or low water flow
• Helps restore normal ice production and dispenser operation when the tube is the fault
• Matches OEM routing and connector types for correct fit and seal

• One tube assembly as shown

• Disconnect power and shut off the water supply before starting
• Remove ice maker or access panel as needed to reach routing; follow OEM service instructions
• Inspect fittings and replace any damaged clamps or seals; avoid kinking the new tube
• After installation, turn on water, check for leaks, and run dispenser/ice cycles to confirm proper flow

This spacer positions and supports components to maintain proper alignment and clearance in the appliance. It prevents rubbing and ensures panels or parts sit correctly for reliable operation. What it does:

• Keeps panels, brackets or assemblies spaced correctly to prevent contact and wear
• Restores proper alignment to reduce vibration, noise or rubbing symptoms
• Maintains clearance for airflow or moving parts where specified
• Provides a stable mounting point for adjacent components

• One spacer

• Install in the location shown in the service diagram and secure with the original fasteners
• Disconnect power to the appliance before beginning service to avoid shock or injury
• If the original spacer shows damage or distortion, replace it to restore correct fit

The Vent Trim is an OEM part for Frigidaire wall ovens. This trim piece is located along the top front of the wall oven and serves an important functional and aesthetic purpose.

The vent trim facilitates proper airflow and ventilation around the top heating elements and glass door. It ensures heat and gases can safely escape during the cooking process. Over time, high heat exposure may cause damage, discoloration or warping of the original trim piece.

Causes can be standard wear and tear or accidental impact damage. Replacing with this OEM part restores your wall oven's appearance and ventilation system.

Symptoms of a bad front vent trim include:

• Excessive temperatures around the door glass or control panel areas
• Reduced airflow leading to decreased cooking performance
• Visual deformities, cracks or pieces missing from the trim

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This harness assembly is the factory-style wiring harness that connects electrical components to restore reliable electrical paths and component control. It replaces damaged or worn harnesses to stop intermittent or failed component operation. What it does:

• Provides factory routing and multi-pin connections between control, sensors, and powered components
• Restores power and signal continuity to components that are intermittent, dead, or non-responsive
• Prevents electrical shorts and poor connections caused by frayed or broken wires
• Maintains OEM-fit routing to reduce strain and interference with moving parts

• Disconnect power (unplug or shut off breaker) before beginning any work
• Handle connectors by the housings, not the wires; avoid pulling on wires
• Route and secure harness with existing clips or fasteners to prevent pinching or abrasion
• If connectors are corroded or pins are bent, replace the harness rather than attempting repair

This wiring harness assembly routes power and signals between an appliance's control and its components to restore reliable electrical connections and operation. It replaces a damaged or corroded harness to help eliminate intermittent power or control issues. What it does

• Carries power and control signals between the appliance control board and internal components.
• Restores reliable electrical connections when wires are frayed, broken, or connectors are loose.
• Helps resolve intermittent operation, components not receiving power, or controls that don't respond.
• Prevents shorts caused by exposed wiring or damaged insulation.

• One pre-assembled wiring harness with factory-style connectors.

• Disconnect power (unplug appliance or shut off breaker) before starting work.
• Compare the new harness to the old one to confirm connector types and lengths before installation.
• Route and secure the harness away from moving parts and heat sources; use existing wire-retaining clips.

This mounting bracket secures internal panels or components to the appliance frame, restoring stable support and alignment for proper operation. Use when a bracket is bent, broken or missing to reduce rattling and keep parts positioned correctly. What it does:

• Anchors panels or components to the cabinet/frame to prevent movement and vibration
• Restores proper alignment of doors, panels or internal assemblies
• Stops rattling or buzzing caused by loose or damaged support hardware
• Helps maintain safe clearance between parts and wiring or moving components

• Disconnect power to the appliance before starting any repair
• Basic hand tools typically required; follow OEM instructions for correct fastener locations
• Inspect adjacent fasteners and mounting surfaces; replace any damaged screws or clips
• If bracket is corroded or severely deformed, replace rather than re-bend to ensure proper fit

This hex flange nut secures components where a broader bearing surface is needed to resist loosening and distribute load. It fits 10-32 threaded studs and is used on fastened assemblies in appliances. What it does:

• Provides a secure threaded connection for 10-32 screws and studs
• Flange spreads clamping force to reduce panel or bracket damage
• Hex shape allows tightening with a wrench for a reliable hold
• Commonly replaces worn or missing nuts that cause loose panels or rattling

• One hex flange nut

• Use the correct 10-32 screw or stud and hand-start threads to avoid cross-threading
• Tighten with an appropriately sized wrench; do not overtighten to prevent thread or part damage
• Disconnect power and follow appliance safety instructions before servicing
• Replace only like-for-like; confirm size and thread match your application

This is a replacement mounting screw used to secure the appliance power/control board, restoring a solid electrical board connection and preventing vibration or loose contacts. Ideal for repairs where the original screw is missing or damaged. What it does:

• Fastens the power/control board to the appliance chassis to keep connections stable
• Helps prevent board movement that can cause intermittent electrical issues or noise
• Restores proper mounting after service or component replacement

• Turn off and unplug the appliance before starting any repair
• Use appropriate screwdriver and avoid over-tightening to prevent board or thread damage
• Wear eye protection and keep small parts away from children and pets

This factory screw secures components in your appliance, restoring a tight, rattle-free fit. Replace missing or damaged hardware to keep panels, brackets, and trim properly fastened and aligned for safe, reliable operation.

• Secures panels, brackets, trim, or internal components to the chassis
• Replaces lost, rusty, stripped, or cross-threaded screws
• Helps eliminate looseness, gaps, and vibration/rattling
• Common signs: loose/misaligned panels or trim, rattling noises, missing or rounded screw heads

• Disconnect power (and shut off gas if applicable); allow the unit to cool completely
• Match to the original location and replace one at a time to maintain alignment
• Hand-start to prevent cross-threading; tighten snugly—do not overtighten
• Use light torque when threading into plastic or thin sheet metal

This spacer sets the correct gap between mating parts in your appliance's assembly, preventing rubbing and misalignment. Replace a missing or worn spacer to restore a solid fit, reduce noise, and protect surrounding components.

• Maintains proper spacing between components for correct alignment and operation
• Reduces metal-to-metal contact, squeaks, and premature wear
• Helps fasteners and panels seat securely
• Typical symptoms when failed: loose or rattling parts, uneven gaps, or visible wear marks

• Disconnect power; for gas models, shut off the gas. Allow the appliance to cool completely.
• Access the assembly per your model's diagram; note the original orientation/stack-up before removal.
• Reuse original fasteners if serviceable; hand-start threads and tighten snugly to avoid damaging the spacer.
• Verify alignment and clearances before fully reassembling. Quantity and location vary by model.

Replacement screw that secures panels, trim and internal components in compatible appliances. Restores proper fit and helps reduce rattling or loose parts when the original fastener is missing, worn, or damaged. What it does:

• Fastens panels, brackets, trim pieces and small component assemblies to the appliance frame
• Helps eliminate noise and vibration caused by loose or missing fasteners
• Replaces stripped, corroded or missing screws to restore secure mounting
• Matches OEM fit when the identical screw is required for proper alignment

• Disconnect power to the appliance before starting any repair
• Use the correct driver size to avoid cam-out or damage to the screw head
• Do not overtighten; overtightening can strip threads or crack plastic parts

This replacement light bulb restores bright, dependable illumination inside your oven so you can monitor cooking without opening the door. Swap it in when the oven light is out, very dim, or flickers during use. What it does:

• Illuminates the oven cavity in a range or wall oven
• Lets you check food without opening the door and losing heat
• Common fix for no light, dim light, or intermittent flickering
• Replaces a burned-out/broken bulb as the first step in troubleshooting

• One light bulb

• Disconnect power at the breaker or unplug the appliance; allow the oven to cool completely.
• Remove the light cover/lens per your model; handle glass components carefully.
• Install the new bulb securely; avoid touching the glass with bare hands—use a clean cloth or gloves.
• Reinstall the cover, restore power, and test the oven light.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
