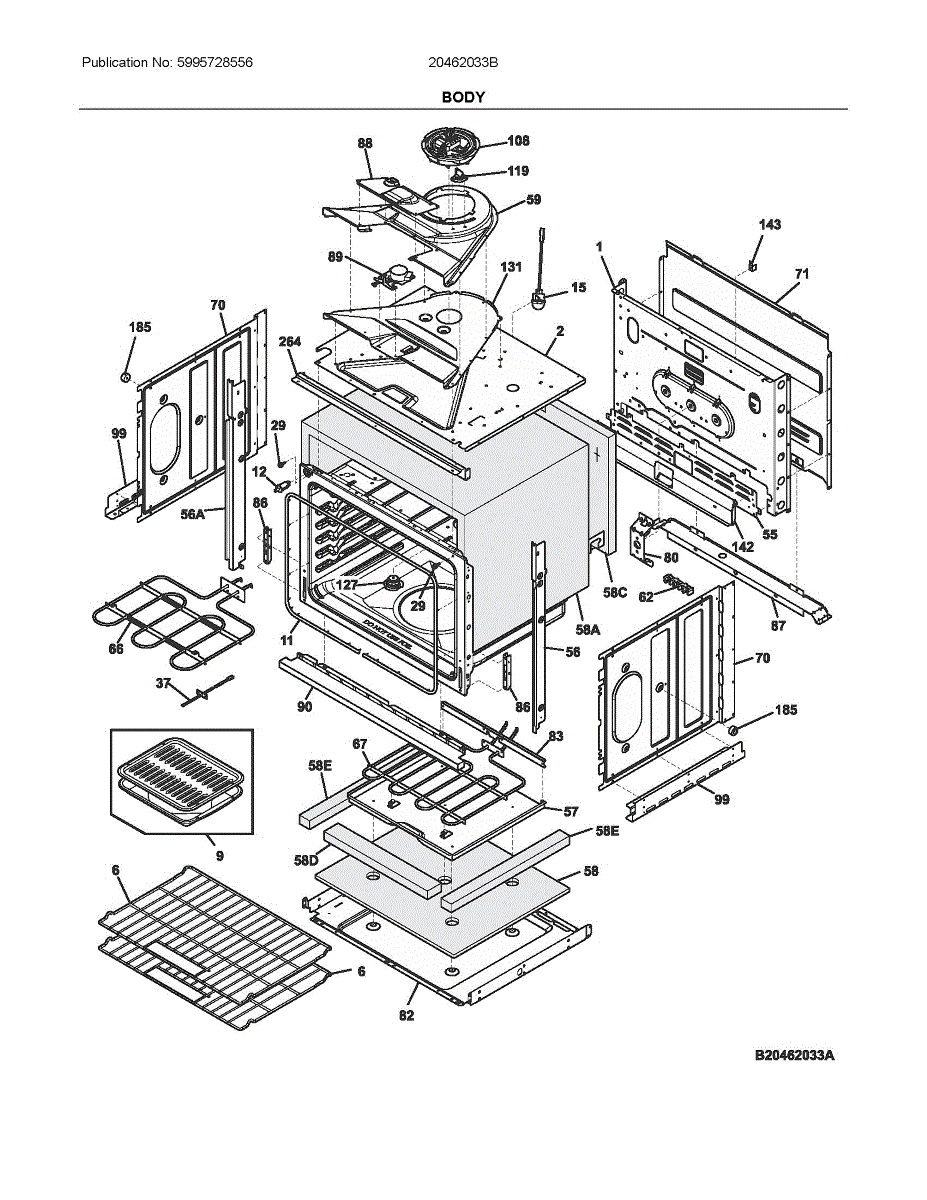

Parts for Ikea 20462033B: Body Parts

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This is a flexible gray gasket that lines the perimeter of the oven door to create an airtight seal when the door is closed. It prevents heat from escaping the oven cavity, helping maintain consistent cooking temperatures. Replace this seal if you feel excessive heat radiating from around the oven door, notice uneven cooking, or see visible wear, cracks, or gaps in the existing gasket.

This is a door-activated switch that detects whether the oven door is open or closed. It controls functions such as the oven light or signals the control board about door position. Replace this switch if the oven light stays on or off regardless of door position, or if the oven does not operate correctly due to a faulty door signal.

The Range Lamp Assembly is an OEM part for Frigidaire stoves and ranges. It consists of the halogen light bulb, lens cover, and wiring harness necessary to illuminate the oven cavity. This lamp assembly provides light to the cooking and baking space, making it easier to view food and monitor cooking progress.

Symptoms of a bad range lamp assembly include:

• The oven light not turning on at all
• Dim, flickering, or intermittent light
• Burned out or blown light bulb
• Cracks or damage to the lens cover

Causes of failure can be a burned out light bulb, broken wiring, or damage from impact or heat over time.

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Replace a cracked, broken, or missing oven door spacer that maintains proper alignment and gap between door components. Installs in door assembly.

Oven won't reach or hold set temperature? A faulty temperature sensor causes inaccurate heating. This monitor probe ensures consistent cooking results.

Junction box for wall ovens. Installs at the rear electrical connection area. Replace if cracked, damaged, or missing to safely house wiring connections.

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Broiler not heating or working? This broil element restores high-heat cooking. Easy DIY fix with four screws and wire connectors. Takes about 30 minutes.

Oven not heating or baking unevenly? This hidden bake element restores proper bottom heat. Moderate DIY repair—requires removing oven racks and panels.

Heat shield for ranges and wall ovens. Protects internal components from excessive heat. Replace if cracked, warped, or damaged to prevent overheating.

Replace a cracked, damaged, or missing shield in your wall oven or microwave combo. This protective panel installs behind components to prevent wear.

Receptacle for electric and gas ranges and wall ovens. Installs as a connector component. Replace if cracked, damaged, or missing to restore proper fit.

This assembly includes the motor and switch that control the automatic door lock mechanism on a wall oven. It engages the door lock during the self-cleaning cycle and releases it once the oven has cooled to a safe temperature. Replace this part if the oven door fails to lock or unlock during self-clean, or if the self-clean cycle will not start.

Replacement trim for wall ovens. Covers the gap between the oven cabinet and cutout for a finished look. Order if original is cracked or damaged.

Replacement mounting bracket that secures internal oven components. Install when original is cracked, bent, or missing to restore proper alignment and support.

Fix loud rattling or grinding noise from your oven fan. This convection fan motor restores quiet operation and even heat distribution. DIY repair.

Oven won't heat after self-cleaning? This high-limit thermostat cuts power when temperatures get too high. Moderately easy DIY repair fix.

This Tube Assembly routes water inside the refrigerator to the dispenser and ice-maker, restoring proper water flow and preventing leaks when the original line is damaged. Reliable replacement for delivery and fill connections. What it does:

• Transports water from the inlet to the ice maker/dispenser assembly
• Replaces cracked, kinked, or leaking tubing that causes puddles or low water flow
• Helps restore normal ice production and dispenser operation when the tube is the fault
• Matches OEM routing and connector types for correct fit and seal

• One tube assembly as shown

• Disconnect power and shut off the water supply before starting
• Remove ice maker or access panel as needed to reach routing; follow OEM service instructions
• Inspect fittings and replace any damaged clamps or seals; avoid kinking the new tube
• After installation, turn on water, check for leaks, and run dispenser/ice cycles to confirm proper flow

Reinforces and supports oven door glass panels. Replace if original stiffener is bent, cracked, or missing to properly secure glass in the door frame.

Positions and supports range components to maintain proper alignment. Replace if cracked, broken, or missing to prevent rubbing and ensure panels fit correctly.

The Vent Trim is an OEM part for Frigidaire wall ovens. This trim piece is located along the top front of the wall oven and serves an important functional and aesthetic purpose.

The vent trim facilitates proper airflow and ventilation around the top heating elements and glass door. It ensures heat and gases can safely escape during the cooking process. Over time, high heat exposure may cause damage, discoloration or warping of the original trim piece.

Causes can be standard wear and tear or accidental impact damage. Replacing with this OEM part restores your wall oven's appearance and ventilation system.

Symptoms of a bad front vent trim include:

• Excessive temperatures around the door glass or control panel areas
• Reduced airflow leading to decreased cooking performance
• Visual deformities, cracks or pieces missing from the trim

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Fix intermittent or failed component operation with this wiring harness assembly. Restores reliable electrical connections between range components.

Wiring harness assembly that routes power and signals between your wall oven's control and components. Replace when harness is damaged or corroded.

This is a metal mounting bracket used to secure an over-the-range microwave to the wall or cabinet during installation. It provides structural support and helps keep the microwave properly aligned and stable. Replace this bracket if it is bent, broken, or missing, which can cause the microwave to sit unevenly or become unsafe.

Hex flange nut with 10-32 thread secures components in appliances. Replace if stripped, missing, or damaged. Flange provides broader bearing surface.

Replacement mounting screw for range power and control boards. Secures electrical board connections. Needed when original screw is missing or damaged.

Mounting screw for electric and gas ranges. Secures internal components and panels. Replace if stripped, missing, or damaged during appliance maintenance.

Replacement mounting screw for ovens and ranges. Secures panels, brackets, trim, and internal components. Replace missing or stripped screws to restore fit.

Spacer that maintains proper gap between components in your range or oven assembly. Replace if missing, worn, or damaged to restore correct fit and alignment.

Replacement screw secures panels, trim, and internal components in your appliance. Needed when original fastener is missing, stripped, or damaged.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
