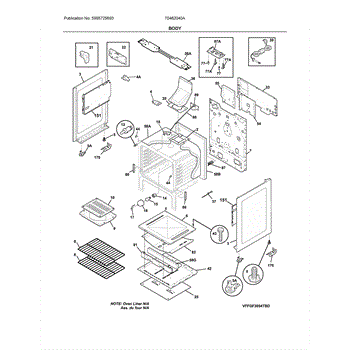

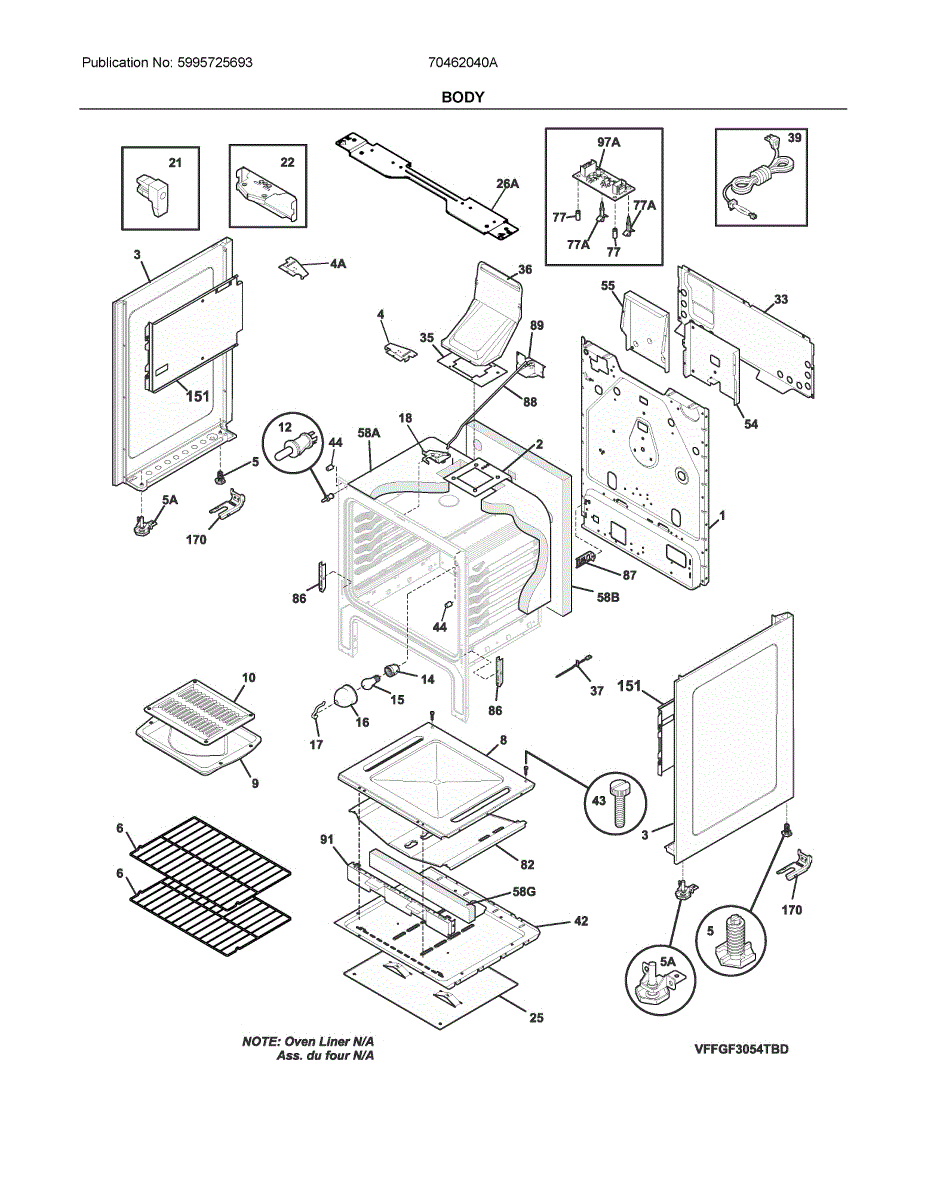

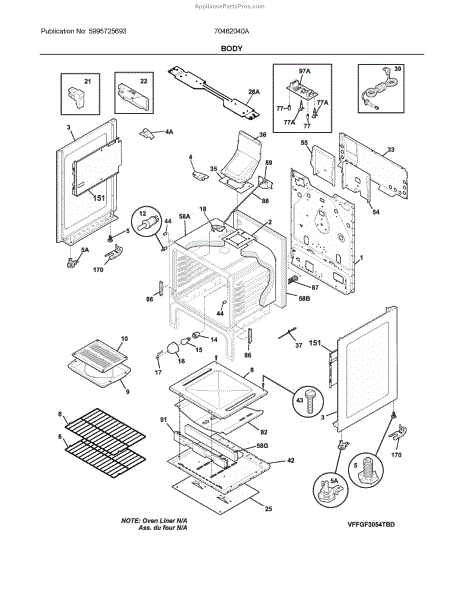

Parts for Ikea 70462040A: Body Parts

Rear panel for gas ranges. Installs on the back of the unit to enclose internal components. Replace if cracked, damaged, or missing to restore appearance.

Mounting bracket for gas ranges. Secures components in place during installation. Replace if cracked, bent, or missing to restore proper support.

Control panel trim for electric and gas ranges. Replaces cracked, faded, or damaged panel trim. Installs on the front control area to restore appearance.

Exterior trim panel that houses and protects your range's control interface and display. Replace if cracked, broken, or worn to restore a clean appearance.

Metal mounting bracket that secures the main top of your gas range to the chassis. Replace if bent, cracked, or missing to restore proper cooktop stability.

This factory screw secures panels, brackets, and other components in your cooking appliance. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and keep parts properly aligned during use.

• Fastens components to maintain proper alignment and stability
• Helps prevent vibration, rattling, and loose parts during operation
• Replace if threads are stripped, the head is damaged, or the screw is missing
• Commonly used to mount internal or exterior parts in ranges and wall ovens

• Disconnect power and allow the appliance to cool; shut off gas supply if applicable
• Use the correct driver bit to avoid stripping the screw head
• Install in the original location and do not overtighten
• If the receiving threads are damaged, repair or replace the mating part before installation

Leveling leg assembly installs at the front corners of your range. Replace if broken, rusted, missing, or no longer adjusts to level your appliance.

Oven rack for electric and gas ranges. Provides a cooking surface inside the oven cavity. Replace if discolored, warped, rusted, or damaged.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This control-panel switch restores reliable on/off control of a selected function on your range or wall oven. Replacing a worn or intermittent switch helps ensure the appliance responds consistently when you toggle that function.

• Directs power to the associated circuit when switched on or off
• Common symptoms: function won't turn on/off, intermittent operation, or the switch feels loose/sticks
• Helps restore positive, consistent control from the backguard/control panel

• Disconnect power at the breaker before servicing
• Access the switch from the control panel/backguard; retain screws/clips
• Label/photograph wire positions and transfer leads one at a time to the new switch
• Ensure firm terminal connections, reassemble, restore power, and test operation

Oven light not working or saw a flash near the bulb? This light socket houses the oven bulb and is a straightforward DIY fix in under 30 minutes.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Secures the glass light cover to your range oven cavity. Replace if the retainer is cracked, broken, or missing to keep the lens firmly in place.

Fix an oven door that won't lock during self-clean or clean cycle errors. This door latch assembly secures the door and reports lock status to the control.

Secures range trim, panels, and components to prevent rattles and loosening. Replace when clips break or lose tension. Confirm fit with your model number.

Secures cabinet panels to your range frame, maintaining proper alignment and structural stability. Replace if bracket is cracked, bent, or missing.

Mounting bracket for electric and gas ranges. Secures components in place. Replace if bent, cracked, or broken to restore proper fitment and stability.

Shield guard for gas ranges. Protects internal components from heat and debris. Replace if cracked, damaged, or missing to maintain proper coverage.

Replace your gas range flue gasket to seal the flue opening and prevent heat loss. Install when worn, cracked, or damaged. Confirm fit with model number.

Flue for gas ranges. Vents hot air from the oven cavity to the cooktop surface. Replace if cracked, damaged, or missing to restore proper ventilation.

Fix F10 error codes or inaccurate oven temperatures with a new sensor probe. Common fix for ovens that overheat or won't reach set temp. Easy DIY repair.

Shield for gas ranges. Protects internal components from heat and debris. Replace if cracked, damaged, or missing to maintain proper coverage.

Secures the oven bottom panel in place. Replace if screw is stripped, missing, or no longer holds the panel securely. Sold individually.

Replace a cracked, broken, or missing oven door spacer that maintains proper alignment and gap between door components. Installs in door assembly.

Insulates the oven cavity to reduce heat transfer and improve energy efficiency. Replace if damaged, compressed, or missing to restore proper insulation.

This insulation panel fits inside the refrigerator cabinet to help maintain interior temperatures and reduce heat transfer to the outer shell, supporting more consistent cooling and helping limit frost buildup. What it does:

• Forms a thermal barrier between the interior liner and outer cabinet to help hold cold air inside.
• Helps reduce frost and moisture buildup around the liner when intact.
• Worn, torn, or missing insulation can contribute to longer run times, uneven cooling, or more frequent defrost cycles.
• Replaces damaged insulation to restore proper temperature retention and improve appliance efficiency.

• Always disconnect power to the appliance before starting any repair.
• Panel may be secured with clips, adhesive, or foam sealant; remove and install carefully to avoid damaging the liner.
• Inspect surrounding seals, gaskets, and fasteners while accessing the cavity; replace any damaged components.

Replace a cracked or missing power board spacer in your range. This insulating bushing mounts between the control board and chassis for proper spacing.

Spacer for ranges and ovens. Maintains proper spacing between components. Replace if worn, cracked, or missing to ensure correct alignment and fit.

Protective shield that covers internal components on your gas range. Replace if cracked, broken, or missing to restore protection from debris and moisture.

This electrical receptacle is the small connector that secures a wiring plug to an appliance component, restoring a reliable electrical connection and preventing intermittent operation or arcing. What it does:

• Provides a secure plug-in connection between a wire harness and a component
• Restores power to a component when the original connector is cracked, melted, or corroded
• Helps prevent loose connections that can cause intermittent operation or sparks
• Fits the OEM-style wiring configuration for a direct replacement

• Disconnect power to the appliance before starting any repair
• Remove the damaged connector and match the replacement to the harness before installing
• Use basic hand tools; avoid forcing terminals to prevent damage

Replace your range oven door hinge pin rod if cracked, bent, or missing. This structural rod keeps the door aligned and securely attached to the hinge.

Fix F95 error code or oven door that won't lock during self-clean cycle. This door lock motor assembly repair takes about 15 minutes with basic tools.

Fix a gas range that won't heat, has a blank display, or shows error codes with this control board. Moderate DIY repair typically takes 30-45 minutes.

Anti-tip bracket kit secures your range to the floor or wall, preventing tipping when the oven door is opened or heavy cookware is placed on extended racks.

Replacement screw for electric and gas ranges. Used to secure various components and panels. Order a new screw if the original is stripped, missing, or damaged.

Secures components inside your range. Replace if broken, loose, or missing to prevent rattling and ensure proper part alignment. Verify fit with your model.

Replacement mounting screw for range power and control boards. Secures electrical board connections. Needed when original screw is missing or damaged.

Black mounting screw that secures range body side panels. Replace if stripped, missing, or corroded. 8-18 x 11/16 inch fastener for structural assembly.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

This wiring harness connects appliance controls and components to restore reliable electrical paths. It replaces a damaged or worn harness so switches, lights, motors, or sensors get proper power and signal routing. What it does

• Re-establishes electrical connections between control board and components.
• Restores power/signals to items like lights, motors, valves, or sensors when a broken harness causes intermittent or no operation.
• Prevents shorts and arcing that can occur from cracked insulation or loose terminals.
• Helps resolve symptoms such as no power to specific functions, intermittent operation, or visible damage to wiring.

• One complete wiring harness as shown.

• Disconnect power (unplug or shut off breaker) before starting work.
• Verify wire routing and connector orientation before removing the old harness; take photos for reference.
• Secure harness with existing clips or ties; avoid contact with heat sources or moving parts.

Replacement mounting screw for ovens and ranges. Secures panels, brackets, trim, and internal components. Replace missing or stripped screws to restore fit.

Mounting screw for securing range panels, brackets, and igniters. Replace if stripped, missing, or damaged to restore proper fastening and alignment.

Replacement screw secures panels, trim, and internal components in your appliance. Needed when original fastener is missing, stripped, or damaged.

Hex head screw that secures panels, brackets, and internal components in refrigerators and appliances. Replace when missing, stripped, or damaged.

Size: 8-32t x 0.500 inch. Color: Black.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
