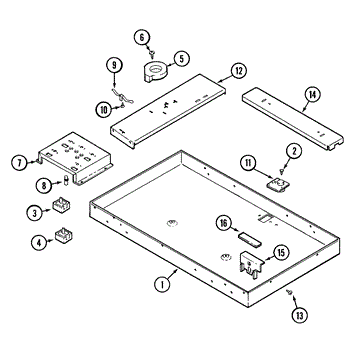

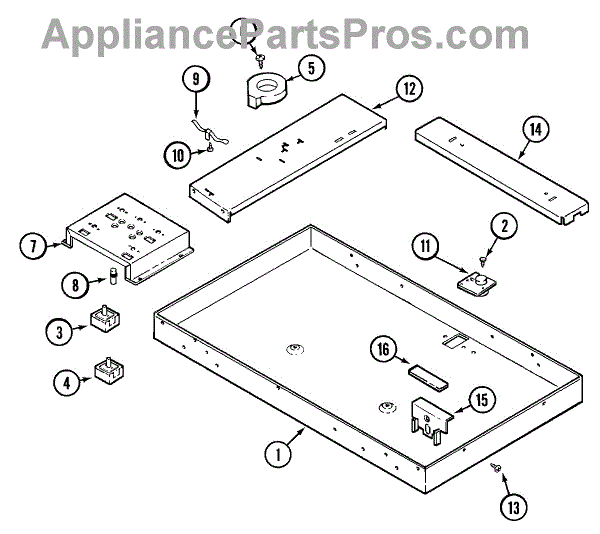

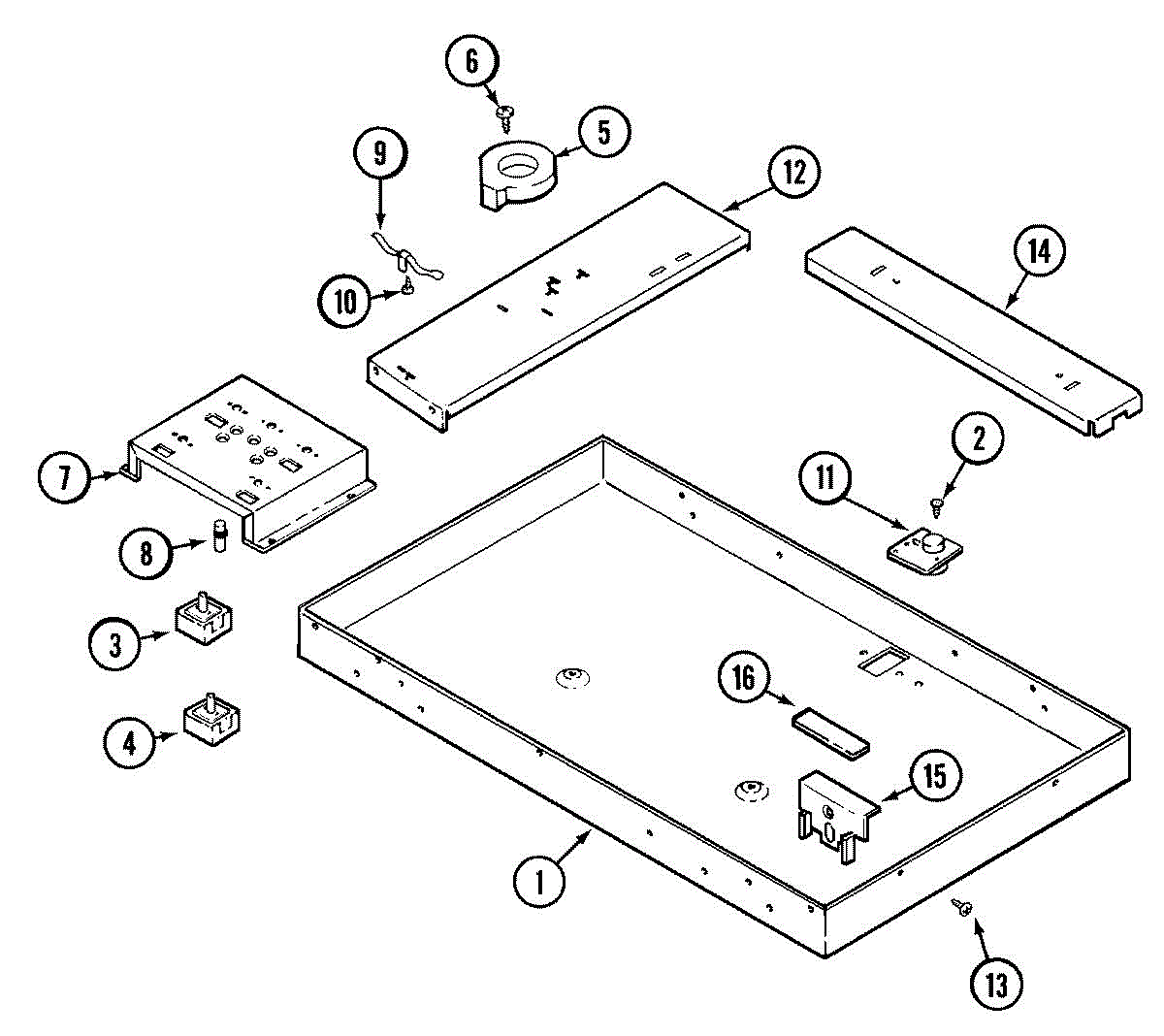

Parts for Jenn-Air CCE3530W: 01 - Body Parts

This burner box is the metal housing that holds a cooktop/oven burner in place and protects internal components from heat and spills. It restores safe burner placement and helps maintain even heating when undamaged. What it does

• Secures the burner assembly and keeps it properly aligned for reliable ignition and flame.
• Shields internal wiring and components from grease, spills and direct heat.
• Helps direct heat away from surrounding parts to prevent damage and hot spots.
• A damaged or corroded box can cause burner misalignment, poor ignition, or uneven cooking.

• Disconnect power and gas before starting any repair.
• Follow the appliance's service manual or wiring diagram for safe removal and reassembly.
• Use basic hand tools; replace any damaged mounting screws or gaskets as needed.

If your dual burner only works on high or won't heat at all, this dual infinite switch kit restores full temperature control. Moderate difficulty install.

Burner stuck on high or won't adjust temperature? This infinite switch controls heat levels on cooktop elements. DIY repair takes 1-2 hours with power off.

This genuine replacement screw secures appliance components so panels, brackets, and assemblies stay tight and properly aligned. Replacing stripped, rusted, or missing hardware restores a solid fit and helps prevent rattles, shifting, or looseness over time.

• Fastens panels, brackets, and internal parts to maintain proper alignment
• Helps resolve issues caused by missing or damaged screws
• Restores secure mounting after service where original hardware is lost
• Use when threads are stripped or the screw head is damaged and won't tighten

• Disconnect power; turn off gas supply if applicable before servicing
• Match screw location and length to your model's parts diagram for correct placement
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Snug firmly but do not overtighten to prevent damage to mounting points

Secures and stabilizes your range heating element in proper position. Replace if your current spring is worn, broken, or missing and allows sagging.

Replacement 6-32 x 3/8" screw secures panels, brackets, and trim pieces on appliances. Restores proper fastening when original screws are lost or stripped.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This violet insulated wire is a direct-replacement wiring lead used to restore a factory routing and color-coded connection in compatible appliances. It provides a ready-made, properly sized length for repairs and wiring continuity. What it does:

• Replaces a damaged, frayed, or missing violet lead to restore an electrical connection
• Preserves factory color coding for correct circuit identification during repairs
• Helps resolve intermittent connections or component failures caused by broken wiring
• Suitable for use where an 18" single-conductor, insulated lead is required

• Disconnect power to the appliance before beginning any repair.
• Use proper connectors/crimps or solder and insulating heat-shrink or approved electrical tape.
• Route the wire following the original path and secure away from moving or hot components.
