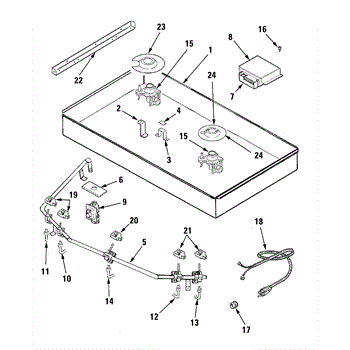

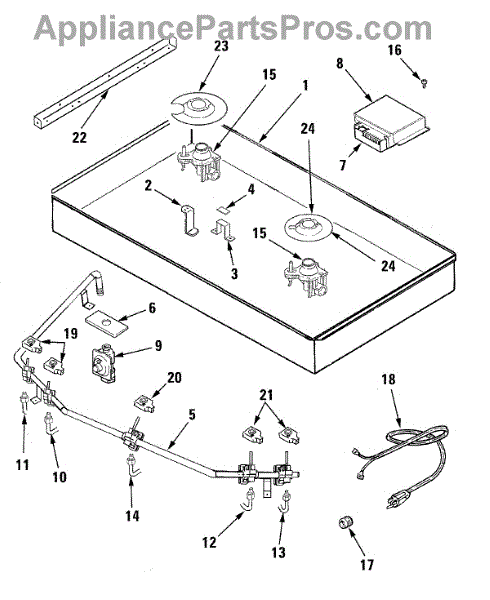

Parts for Jenn-Air JGC9536BDF: 01 - Body Parts

This reignition spark module controls the surface-burner ignition system, sending high-voltage to the igniters and re-lighting the flame if it goes out. Replace a weak or failed module to restore dependable burner lighting and safety re-ignition.

• Sends high-voltage spark pulses to the surface burner igniters when a knob is turned on
• Stops sparking once flame is detected and re-ignites if the flame is lost
• Helps resolve symptoms such as no spark at the burners, intermittent ignition, or continuous clicking
• Central control for multiple burner ignition circuits

• Disconnect electrical power and shut off gas supply before servicing
• Handle electronics carefully; avoid static discharge
• Note wire locations and terminal labels; move connectors one at a time to the new module
• Mount securely and ensure a proper chassis ground before testing burner ignition

This gas pressure regulator controls and stabilizes incoming fuel supply to the appliance's burner system, helping ensure consistent flames and reliable operation. Replace it if pressure is unstable or burners/oven won't heat or ignite correctly. What it does:

• Reduces household gas supply to the appliance-rated pressure for proper burner performance
• Maintains steady pressure as burner demand changes to prevent over/under-firing
• Helps prevent yellow, lifting, or flickering flames and sooting caused by pressure issues

• 1 gas pressure regulator

• Shut off gas supply and disconnect power before servicing
• Observe flow-direction arrow on the regulator body; install between supply and appliance manifold
• Use approved gas-rated thread sealant on threaded connections; do not overtighten
• After installation, check all joints for leaks with a non-corrosive leak-detection solution; correct any leaks before use

This orifice holder secures the gas orifice for a 17K burner, ensuring consistent fuel delivery for reliable burner operation. It replaces worn or damaged holders to restore proper gas flow and stable flames. What it does:

• Holds the burner orifice in the correct position for consistent gas flow to the burner
• Helps maintain an even, steady flame and predictable heat output
• Can address symptoms like weak or uneven flames or burners that fail to light reliably
• Works with the corresponding burner assembly to prevent orifice movement or leakage

• One orifice holder (17K) as shown

• Turn off gas supply and disconnect power before servicing the range
• Handle gas fittings carefully; confirm proper seating of the orifice in the holder
• If you smell gas, stop immediately
• Use manufacturer diagrams to verify fit

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This snap-in bushing provides a low-profile bearing surface to support rotating shafts and reduce wear and noise in appliance assemblies. It restores smooth operation where the original bushing is worn or damaged. What it does:

• Provides a replaceable bearing/sleeve for rotating shafts and posts
• Reduces friction and wear on housing and moving parts
• Helps eliminate rubbing, grinding, or rattling noises during operation
• Maintains correct shaft alignment for smooth rotation

• One snap-in bushing

• Disconnect power before servicing and follow all safety instructions
• Access may require removing panels or covers; inspect surrounding parts for wear
• Press or snap the bushing squarely into the housing until fully seated; avoid deforming it
• Replace any damaged retainers or seals and test operation after reassembly

This burner switch controls the power and heat settings for a surface cooking element, restoring reliable on/off operation, accurate temperature selection, and consistent element cycling on compatible electric ranges. What it does

• Regulates electrical power to a surface burner so the element heats to selected settings and cycles to maintain temperature.
• Replaces a worn or failed switch that causes a burner to not heat, not respond to knob changes, or only work on certain settings.
• Stops intermittent operation or arcing at the switch caused by worn contacts.
• Helps resolve a burner that stays on or will not turn on when the switch is faulty.

• Always disconnect power at the breaker before starting any repair to avoid shock.
• Photograph and/or label wires before removal so you can reconnect terminals correctly.
• Handle terminals gently and ensure secure, tight connections; replace any damaged wiring or connectors.
• Test the range on all heat settings after installation; if you see arcing, burning smell, or continued malfunction, cut power.

This right-side burner switch controls heat output on the cooktop so burners respond correctly to your knob settings. It restores proper power and temperature control for a single right-side heating element. What it does:

• Replaces a worn or faulty right burner control to restore variable heat settings
• Enables proper on/off function and temperature regulation for the right cooktop element
• Commonly used when a burner won't heat, only works at certain settings, or cycles unexpectedly
• Works with ranges that use a separate switch for the right front/right rear heating element

• Disconnect power at the breaker before attempting any repair to avoid shock
• Handle wiring terminals carefully; verify connections match the original before reassembly
• Use proper tools and avoid overtightening mounting hardware to prevent damage
