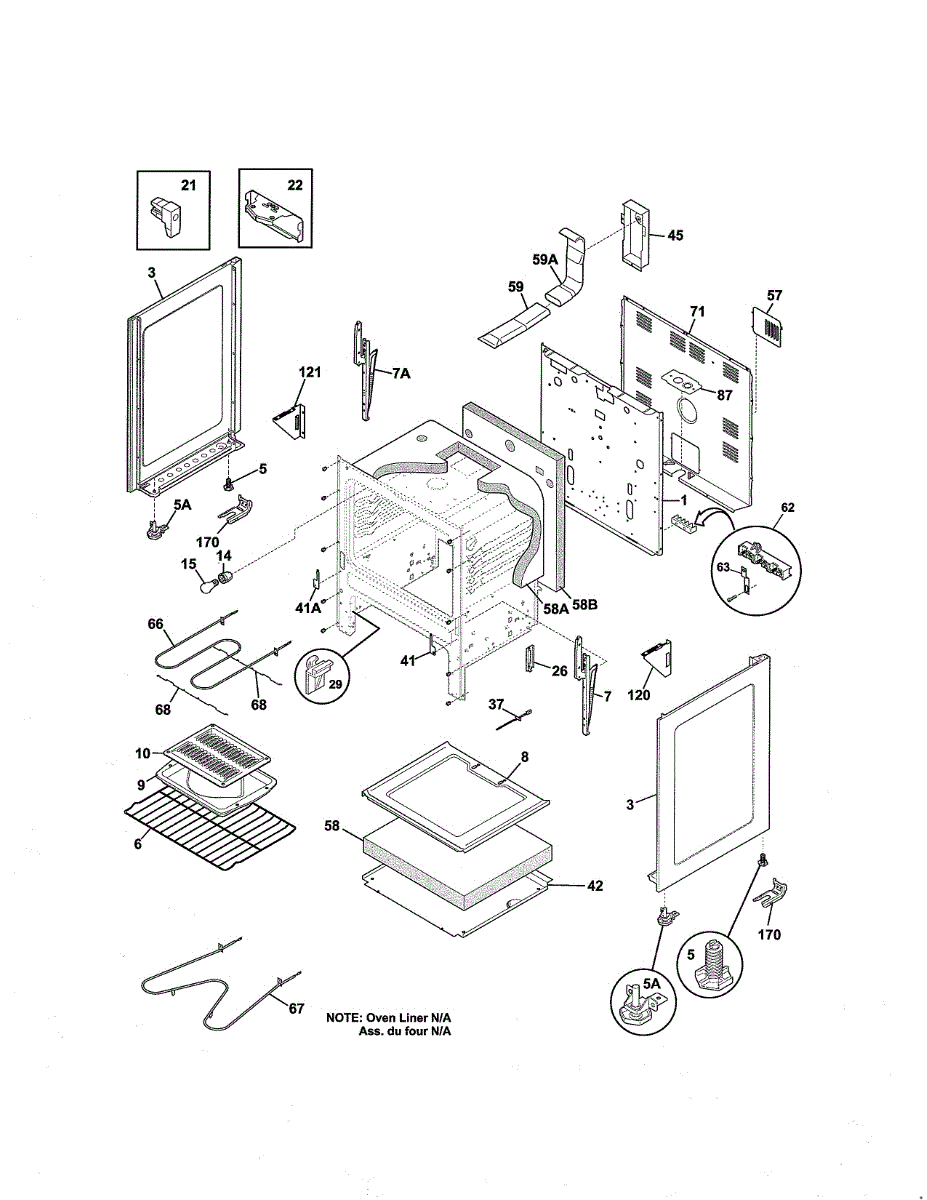

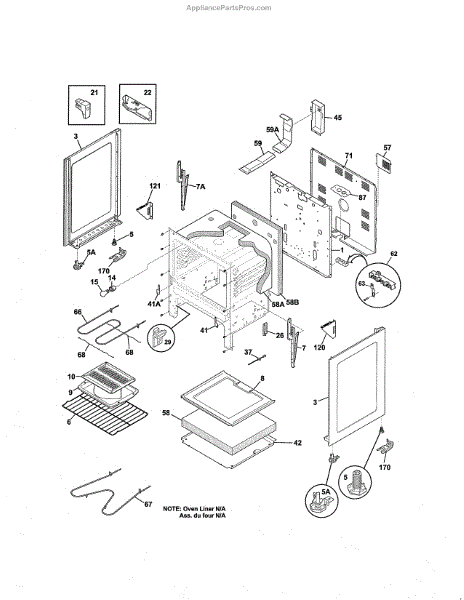

Parts for Kenmore 790.91319011 (79091319011, 790 91319011): Body Parts

This parts catalog is a service parts list used to identify and order replacement components for compatible appliances. It provides a consolidated reference of part numbers and diagram callouts to speed accurate ordering and repairs. What it does:

• Lists OEM part numbers and diagram callouts
• Helps diagnose which component is failing when a part is worn, broken, or missing
• Reduces ordering errors by matching part numbers to the appliance's service diagrams
• Serves as a reference for technicians and DIYers during troubleshooting and repairs

• This is a reference document, not a wearable or electrical component; no installation required
• Keep catalog with service records and model information when ordering parts
• Always check part numbers against your appliance model before ordering
• If using diagrams for repair, follow all safety precautions and disconnect power before servicing

Replacement back panel for your electric range. Covers the rear of the range chassis. Order a new panel if yours is cracked, damaged, or missing.

Replaces cracked, dented, or discolored side panel trim on your range. This exterior body panel restores the clean finished look of your appliance.

This is a black metal side panel that attaches to the left exterior side of the range, providing a finished appearance and structural support. It helps enclose and protect the internal components of the oven cavity. Replace this panel if it is dented, rusted, scratched, or damaged from heat exposure.

Side panel for electric and gas ranges. Replaces damaged, cracked, or missing exterior panels. Installs on the body side to restore appearance.

This is the right-side outer panel for a freestanding range, providing the exterior surface that faces outward when the unit is installed at the end of a counter run. It gives the range a finished appearance and protects internal components. Replace this panel if it is dented, scratched, rusted, or otherwise damaged.

This factory screw secures panels, brackets, and other components in your cooking appliance. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and keep parts properly aligned during use.

• Fastens components to maintain proper alignment and stability
• Helps prevent vibration, rattling, and loose parts during operation
• Replace if threads are stripped, the head is damaged, or the screw is missing
• Commonly used to mount internal or exterior parts in ranges and wall ovens

• Disconnect power and allow the appliance to cool; shut off gas supply if applicable
• Use the correct driver bit to avoid stripping the screw head
• Install in the original location and do not overtighten
• If the receiving threads are damaged, repair or replace the mating part before installation

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Leveling leg assembly installs at the front corners of your range. Replace if broken, rusted, missing, or no longer adjusts to level your appliance.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Replace your cracked, warped, or hard-to-clean oven rack. This durable rack installs inside your range oven to support cookware during baking and roasting.

Mounting screw for securing range panels, brackets, and igniters. Replace if stripped, missing, or damaged to restore proper fastening and alignment.

Replaces broken or worn oven door hinge that causes sagging or won't hold door in position. Restores smooth pivot and secure closure for proper fit.

Supports and guides your range oven door for smooth opening and closing. Replace if hinge is broken, collapsed, or causing door misalignment issues.

This is a small plug designed to fill an unused opening on the range's control panel or body. It provides a clean, finished appearance and prevents debris or moisture from entering the appliance through the open hole. Replace this plug if the original is cracked, missing, or no longer fits securely in the opening.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Size: 8-18ab x 0.5 inch.

Replacement mounting screw for range power and control boards. Secures electrical board connections. Needed when original screw is missing or damaged.

Wire harness for electric ranges. Connects electrical components inside your range. Replace if wires are frayed, damaged, or connections are loose.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

Oven light not working or saw a flash near the bulb? This light socket houses the oven bulb and is a straightforward DIY fix in under 30 minutes.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Secures range trim, panels, and components to prevent rattles and loosening. Replace when clips break or lose tension. Confirm fit with your model number.

Secures cabinet panels to your range frame, maintaining proper alignment and structural stability. Replace if bracket is cracked, bent, or missing.

Mounting bracket that secures the range cabinet and internal components for proper alignment. Replace if cracked, bent, or broken to restore stability.

Plastic glide that attaches to the front of your range body to support the bottom storage drawer. Replace if cracked, broken, or missing for smooth operation.

Fixes oven not reaching correct temperature or displaying error codes. This temperature sensor probe monitors and regulates oven heat. Easy DIY fix.

Black hinge washer for electric and gas ranges. Replaces worn, cracked, or missing washers on door hinges to ensure proper door alignment and support.

This is the right side cover. For left side use 316233500.

This is the left side cover. For right side use 316233400.

Size: 8-32t x 0.500 inch. Color: Black.

Shield protects the wire harness near the vent tube in your range. Replace if cracked, damaged, or missing to prevent wire exposure and ensure safe operation.

Insulation wrap that surrounds the oven cavity to retain heat and protect outer panels. Replace if damaged, torn, or missing to restore heat retention.

Fiberglass insulation panel that installs behind the oven cavity. Replaces missing, damaged, or rodent-chewed insulation to restore heat containment.

Insulation blanket surrounds the oven cavity to retain heat. Replace if burnt, deteriorated, or damaged by pests to restore proper heat retention.

Upper oven vent tube for gas and electric ranges. Channels hot air from the oven cavity to the exterior vent. Replace if cracked, damaged, or missing.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Hex flange nut with 10-32 thread secures components in appliances. Replace if stripped, missing, or damaged. Flange provides broader bearing surface.

Replacement mounting screw for ovens and ranges. Secures panels, brackets, trim, and internal components. Replace missing or stripped screws to restore fit.

Fix sparks, tripped breakers, or burnt connections at your range's power cord junction. Terminal block replacement takes about 5-10 minutes with basic tools.

Oven won't broil or heats unevenly? The broil element provides high heat from above for browning. DIY-friendly repair, usually takes 10 minutes to replace.

Oven won't heat or bake? A faulty bake element is the most common cause. This lower heating element is an easy DIY fix—most users replace it in minutes.

Support bracket that secures the broil heating element in your range oven. Replace if cracked, broken, or missing to properly mount the broiler element.

Replace your range's heat shield if it's cracked, warped, or missing. This protective barrier installs between heating elements and components.

Mounting plate for electric and gas ranges. Secures components in place. Replace if cracked, bent, or broken to restore proper structural support.

Replacement screw for electric and gas ranges. Used to secure various components and panels. Order a new screw if the original is stripped, missing, or damaged.

Anti-tip bracket kit secures your range to the floor or wall, preventing tipping when the oven door is opened or heavy cookware is placed on extended racks.

Anti-tip bracket kit secures your range to the floor or wall, preventing tipping when the oven door is opened or heavy cookware is placed on extended racks.
