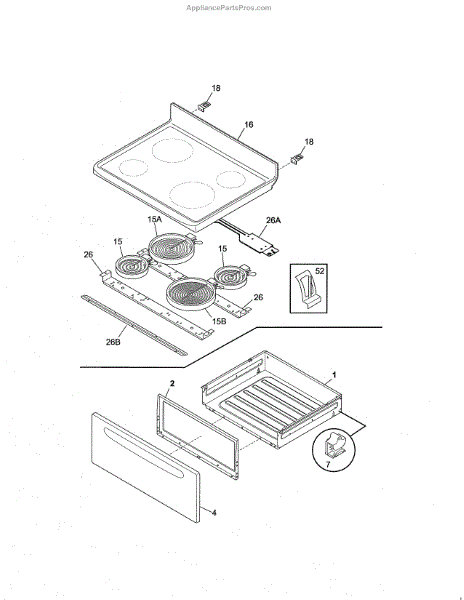

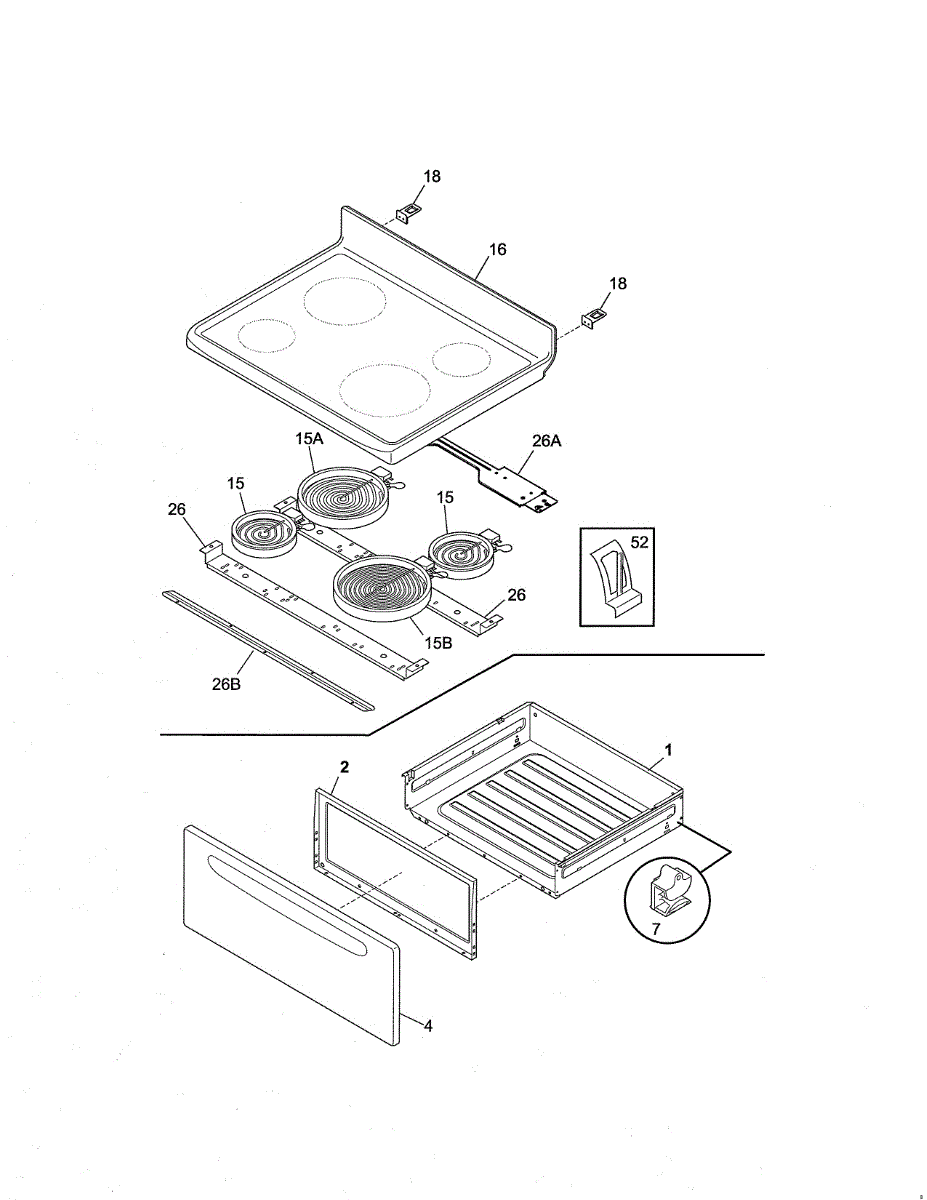

Parts for Kenmore 790.91319011 (79091319011, 790 91319011): Top / Drawer Parts

This parts catalog is a service parts list used to identify and order replacement components for compatible appliances. It provides a consolidated reference of part numbers and diagram callouts to speed accurate ordering and repairs. What it does:

• Lists OEM part numbers and diagram callouts
• Helps diagnose which component is failing when a part is worn, broken, or missing
• Reduces ordering errors by matching part numbers to the appliance's service diagrams
• Serves as a reference for technicians and DIYers during troubleshooting and repairs

• This is a reference document, not a wearable or electrical component; no installation required
• Keep catalog with service records and model information when ordering parts
• Always check part numbers against your appliance model before ordering
• If using diagrams for repair, follow all safety precautions and disconnect power before servicing

This is the front-facing panel for the storage drawer located beneath the oven cavity. It provides a finished exterior appearance and attaches to the drawer frame. Replace this panel if it is dented, scratched, warped, or if the black finish has become discolored or damaged.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Rear drawer glide for range storage drawers. Mounts to the back of the drawer to enable smooth sliding. Replace if broken, cracked, or missing.

This is a small plug designed to fill an unused opening on the range's control panel or body. It provides a clean, finished appearance and prevents debris or moisture from entering the appliance through the open hole. Replace this plug if the original is cracked, missing, or no longer fits securely in the opening.

Size: 8-18ab x 0.5 inch.

Replacement mounting screw for range power and control boards. Secures electrical board connections. Needed when original screw is missing or damaged.

Wire harness for electric ranges. Connects electrical components inside your range. Replace if wires are frayed, damaged, or connections are loose.

Burner not heating evenly or won't turn on? This surface coil element restores full heat output on electric ranges. Direct plug-in replacement.

This is a 9-inch radiant heating element that sits beneath the glass cooktop surface on an electric range. It converts electrical energy into heat to warm pots and pans placed above it. Replace this element if the burner won't heat, heats unevenly, glows only partially, or has visible damage such as cracks or burn spots.

Burner not heating? This 6-inch surface heating element restores cooktop function. DIY repair in 10-30 minutes with basic tools and simple instructions.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

This is a metal hinge bracket that secures the main cooktop to the range frame and allows it to be lifted for access to components underneath. It connects the cooktop panel to the body of the range at the hinge point. Replace this bracket if it is bent, broken, or missing, which can cause the main top to sit unevenly or not stay properly secured.

Mounting bracket for electric and gas ranges. Secures components in place. Replace if bent, cracked, or broken to restore proper fitment and stability.

Replace the channel trim on your range door when it becomes cracked, broken, or damaged. This structural component installs along the door edge for a secure fit.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Size: 6-20 x 0.312 inch.

This replacement part is a black element mounting clip used in ranges or wall ovens. This clip is used for surface elements on electric ranges and ovens. The clip itself connects the surface of the element to the support bracket which allows the stove to heat up. The user might need a new clip or clips if the heating element on the stove is loose, if the heating element is completely detached, or if the clip itself is bent or broken. This clip is black and made of sturdy metal that can withstand heat as well as strain on the clip itself. Installation of this clip is very simple as it just requires replacing the old one with a new one and making sure it is secure. Pliers might be required if the old clip is bent or stuck near or on the heating element. There are no special tools needed for this repair. This is an OEM part sourced directly from the manufacturer. It is sold individually. This part is compatible with machines from Frigidaire and other brands like Electrolux, Gibson, Kelvinator, Crosley, Westinghouse, and more.
