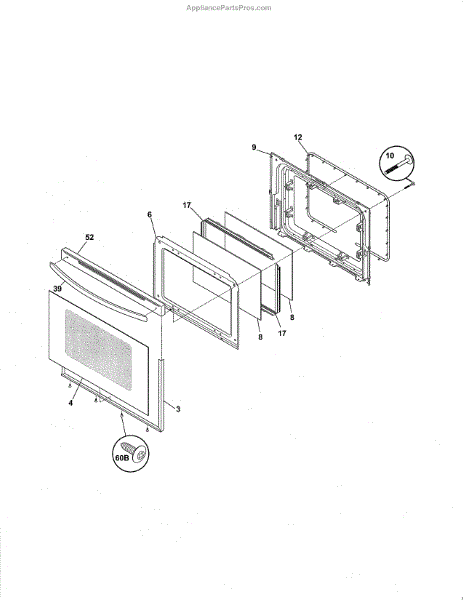

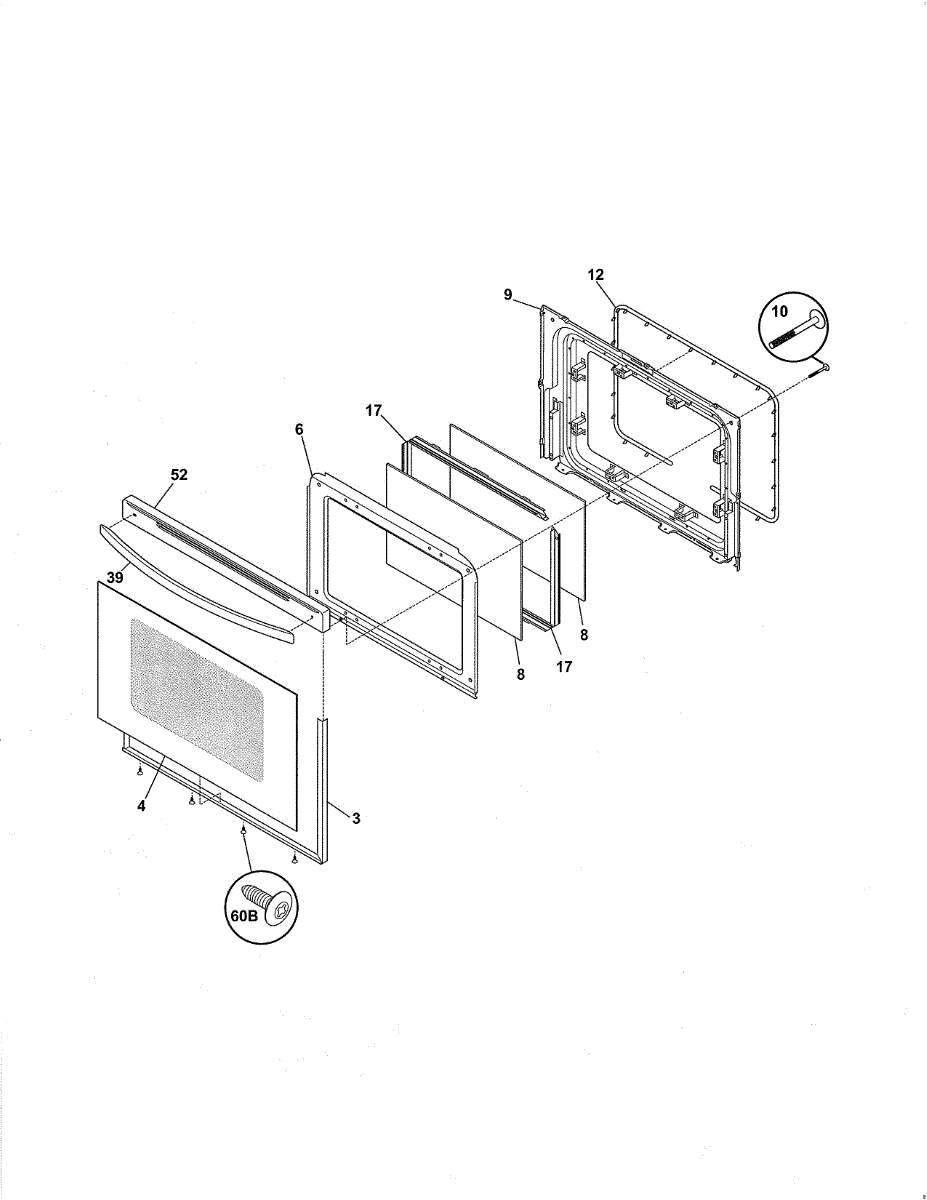

Parts for Kenmore 790.91319011 (79091319011, 790 91319011): Door Parts

This parts catalog is a service parts list used to identify and order replacement components for compatible appliances. It provides a consolidated reference of part numbers and diagram callouts to speed accurate ordering and repairs. What it does:

• Lists OEM part numbers and diagram callouts
• Helps diagnose which component is failing when a part is worn, broken, or missing
• Reduces ordering errors by matching part numbers to the appliance's service diagrams
• Serves as a reference for technicians and DIYers during troubleshooting and repairs

• This is a reference document, not a wearable or electrical component; no installation required
• Keep catalog with service records and model information when ordering parts
• Always check part numbers against your appliance model before ordering
• If using diagrams for repair, follow all safety precautions and disconnect power before servicing

This is the outer glass panel that fits on the front of the oven door, providing a finished appearance and helping to insulate heat within the oven cavity. It is black in color and sits in the outer door frame assembly. Replace this panel if it is cracked, shattered, chipped, or if you notice heat escaping from the front of the oven door during use.

This is the outer glass panel that forms the exterior surface of the oven door, finished in white. It provides a heat barrier and helps insulate the oven cavity to maintain consistent cooking temperatures. Replace this panel if the glass is cracked, shattered, or if the oven door feels excessively hot to the touch during use.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Inner door glass panel for range and wall oven doors. Replace if cracked, shattered, or slipped out of position. Installs between outer glass and oven cavity.

This is a small plug designed to fill an unused opening on the range's control panel or body. It provides a clean, finished appearance and prevents debris or moisture from entering the appliance through the open hole. Replace this plug if the original is cracked, missing, or no longer fits securely in the opening.

Size: 10-24 x 1.375 inch.

Size: 8-18ab x 0.5 inch.

Replace your range oven door seal when heat escapes or it's cracked. Seals oven perimeter for proper temperature control. Confirm fit with model number.

Replacement mounting screw for range power and control boards. Secures electrical board connections. Needed when original screw is missing or damaged.

Wire harness for electric ranges. Connects electrical components inside your range. Replace if wires are frayed, damaged, or connections are loose.

Replacement door handle for your range. Restores a secure grip for opening and closing the oven door. Replaces cracked, loose, or missing handles.

Replacement oven door handle for electric and gas ranges. Installs on front of oven door for secure grip when opening and closing. Order now if broken.

This replacement surface burner cap sits on top of the gas burner head to focus and distribute the flame for even, efficient heating. Replacing a damaged or missing cap can restore proper ignition and flame pattern. What it does:

• Covers and protects the burner head from spills and debris
• Spreads and concentrates the flame for consistent cooking performance
• Helps prevent yellow, lifting, or uneven flames when properly seated
• Common symptoms: uneven or yellow flames, poor simmer, delayed ignition, chipped/warped/missing cap

• 1 surface burner cap

• Allow the cooktop to cool; disconnect power and shut off gas if servicing beyond simple cap replacement
• Lift off the old cap and clean the burner head surface of residue or debris
• Center the new cap on the matching burner head so it sits level—do not force
• Use the correct cap for the burner position; test ignition and flame after installation

This vent grille is mounted on the range or oven and covers the ventilation opening that allows hot air and steam to escape during cooking. It helps direct airflow away from the appliance while keeping debris out of the vent duct. Replace this grille if it is cracked, warped from heat exposure, discolored, or if the vent louvers are broken and no longer directing airflow properly.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
