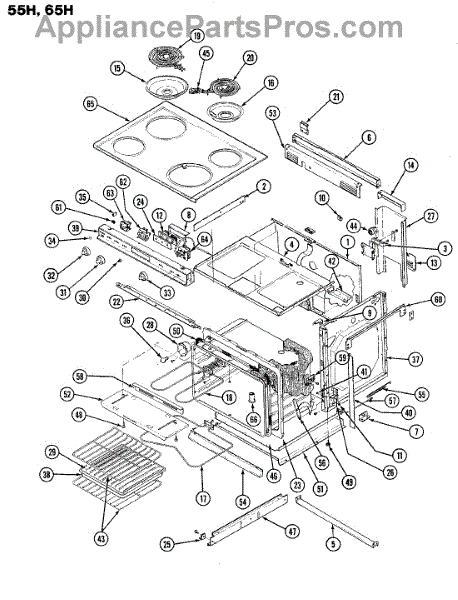

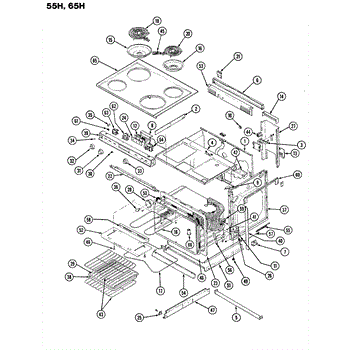

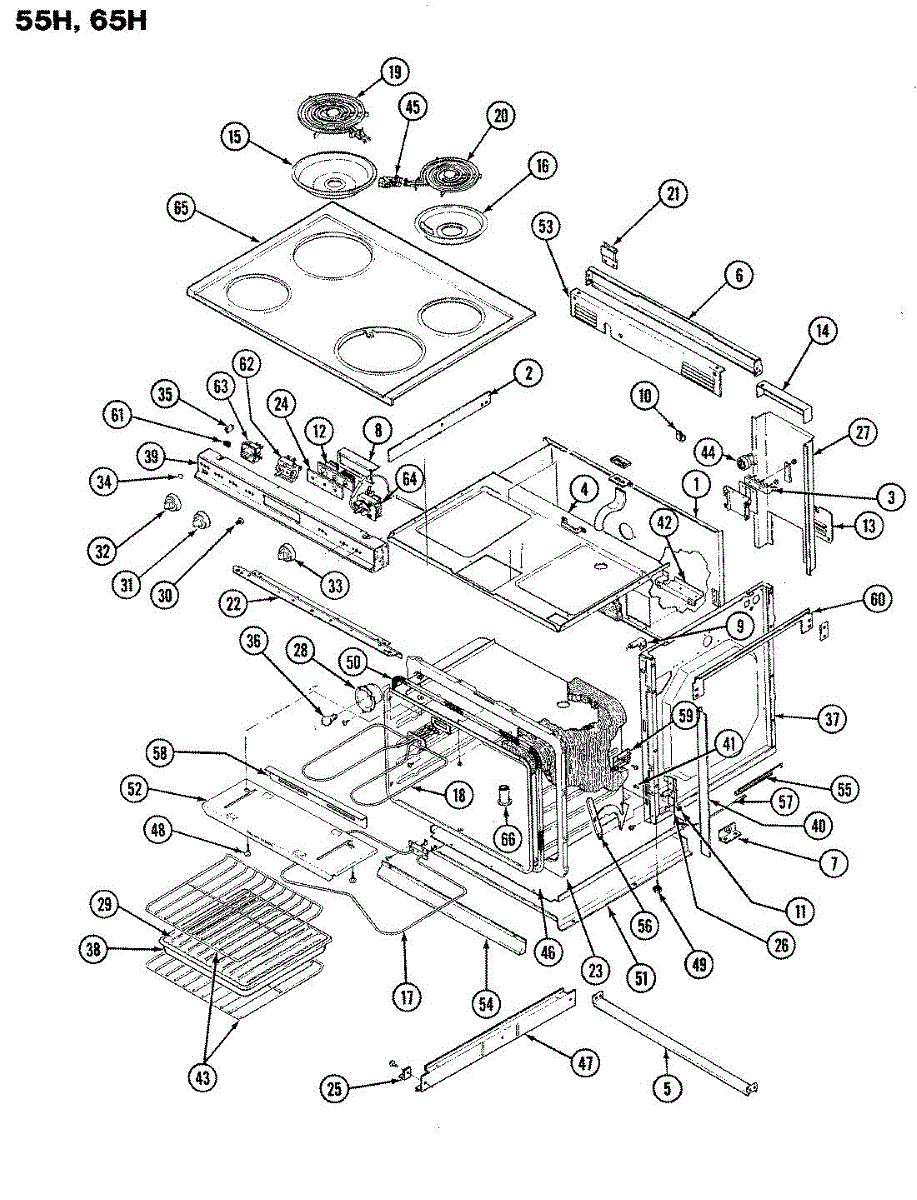

Parts for Magic Chef 65HN-1: 01 - Body Parts

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replace missing or stripped screws for your range anti-tip bracket. This 2-piece hardware set secures the bracket to the wall or floor for stability.

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing

Anti-tip bracket bolts to the floor behind your range to prevent tipping. Replace if missing, bent, or damaged during moving or installation.

Secures and stabilizes the washer drum assembly. Replace if loose, rattling, or causing excessive vibration during spin cycles. Verify fit with your model.

Secures the thermostat or temperature sensor in position for accurate temperature control. Replace this clip if broken, cracked, or missing during cleaning.

Shallow metal drip pan installs below burner elements to catch grease and spills. Replace when discolored, rusted, warped, or damaged for a clean cooktop.

Shallow metal pan that sits below burner elements to catch grease and food spills. Replace when cracked, rusted, discolored, or warped for easier cleanup.

This bake element supplies the primary heat from the bottom of the oven during the Bake cycle. Replace it to restore proper preheating and even results when the original is burned out, damaged, or no longer heating. What it does:

• Provides radiant heat for baking and preheating from the lower oven position
• Helps the oven reach and maintain the set temperature for consistent cooking
• Common symptoms: no heat in Bake, very slow preheating, uneven baking, or a visible blister/crack in the element
• Restores normal oven operation when the existing element has failed

• 1 bake element

• Disconnect power at the breaker or unplug the appliance before servicing
• Remove oven racks; take out the element's mounting screws and gently pull the element forward
• Support and disconnect the two wire terminals; prevent wires from slipping back into the insulation
• Attach wires to the new element, secure with existing hardware, restore power, and test

The Broil Element is an OEM part for Whirlpool ranges. This part provides the intense, direct heat necessary for broiling. This part is located at the top of the oven cavity and is essential for achieving high temperatures needed for tasks like browning and searing.

Causes of a bad broil element can include electrical issues such as short circuits, damage from spills or food debris, and general wear and tear from repeated use.

Symptoms of a bad Broil Element include:

• The oven not reaching broil temperatures
• Inconsistent or uneven broiling
• The element not glowing red when in use
• Visible signs of damage or burning on the element

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Range burner not heating? This 8-inch surface element restores even heating to your cooktop. Simple plug-in replacement takes under 10 minutes with no tools.

Burner not heating or heating unevenly? This 6-inch surface coil element restores consistent heat to your electric range. Simple plug-in replacement.

This part has been discontinued by the manufacturer and is no longer available.

Selector knob for range control panel. Replaces cracked, broken, or missing knobs. Attaches to control shaft to select cooking functions or settings.

Restores control over your range's temperature selector. Replaces a cracked, stripped, worn, or missing thermostat knob for smooth, precise adjustment.

Replacement broiler pan set for ovens. Includes pan and insert to catch drippings during broiling. Order if your original is missing, warped, or damaged.

Replacement door hinge pin for ovens and ranges. Secures and aligns the door for smooth pivoting. Needed when original pin is worn, broken, or missing.

This part has been discontinued by the manufacturer and is no longer available.

Burner not heating or intermittent power? Failed terminal block causes poor electrical connections. Direct plug-in replacement, basic tools needed.

Fastening screw for securing components inside appliances. Replaces lost, stripped, or damaged screws during repairs or part installations.

This part has been discontinued by the manufacturer and is no longer available.

Fix a burner stuck on high or unable to adjust temperature by replacing the infinite switch. This control lets you regulate heat from low to high.
