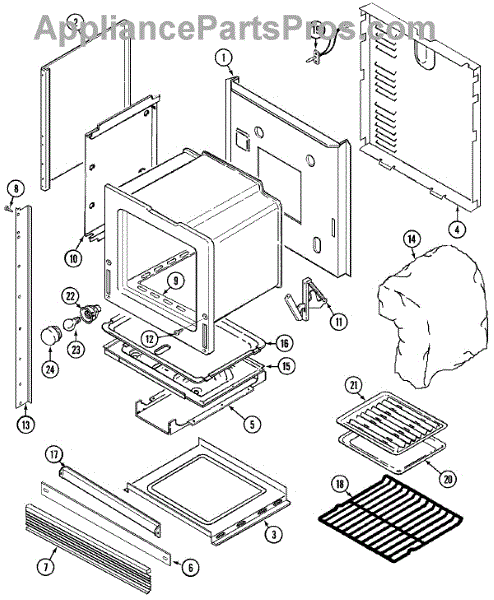

Parts for Magic Chef 9495XRB: 01 - Body Parts

Color: Black. For biscuit order 98008169. For white order WP98008544.

Size: 10-24X5/16-NI

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

The Oven Rack is an OEM part for Whirlpool ovens. It provides a sturdy and reliable surface for baking and roasting a variety of dishes. Designed to fit perfectly within Whirlpool models, this rack ensures optimal air circulation around the food, contributing to even cooking and browning.

Causes of a bad Oven Rack can include warping or damage from high heat, rusting from moisture exposure, or general wear and tear over time. Misshaping or instability can also result from placing too much weight on the rack or using it inappropriately.

Symptoms of a bad Oven Rack include:

• Difficulty sliding the rack in or out.
• Uneven cooking or baking due to improper leveling of the rack.
• The rack does not fit securely in the oven slots.
• Visible rust or damage, which could potentially contaminate food.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Oven Temperature Sensor is an OEM part for Whirlpool ovens. It measures the oven's internal temperature and sends this information to the control board to maintain the desired cooking temperature.

Causes of a bad temperature sensor can include exposure to high temperatures over long periods, electrical issues such as short circuits, or physical damage due to impact or mishandling.

Symptoms of a bad temperature sensor include:

• Inaccurate temperature readings
• Oven not heating to the set temperature
• Oven overheating
• Error codes displayed on the oven control panel

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For the long 6-inch sensor order 12001656.

This snap-in indicator light assembly mounts in the control panel and illuminates when a function is active. Replace a failed or damaged indicator to restore clear status feedback on your range or wall oven.

• Provides visual indication that a selected function is active
• Restores at-a-glance status on the control panel
• Common symptoms: indicator won't light, flickers, stays on constantly, or the lens/housing is damaged
• Direct replacement for the original snap-in lamp assembly

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the rear of the control panel; note wire locations or take a photo
• Depress the retaining tabs to release the old light; transfer wires to the new assembly and snap it fully into place
• Restore power and verify indicator operation

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Color: clear. Measures about 3 inches in diameter.
