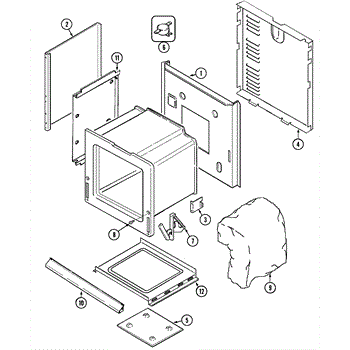

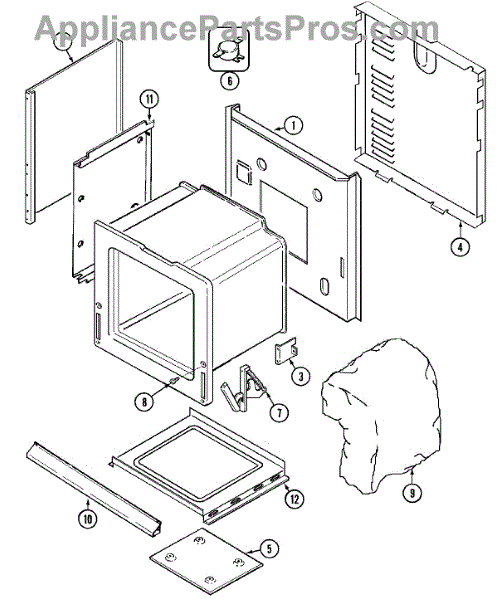

Parts for Magic Chef 9875XYB: 01 - Body Parts

This high-limit thermostat (hi-limit switch) is a temperature safety device that stops the heating circuit if the appliance overheats, helping protect the unit and restore proper heat control when replaced. What it does:

• Opens the heating circuit if internal temperature exceeds safe limits to prevent overheating.
• Controls whether the heater/element receives power based on temperature.
• When faulty, common symptoms include no heat or intermittent heating and repeated thermal cutouts.
• Can be tested for continuity to confirm electrical function.

• One high-limit thermostat (hi-limit switch).

• Disconnect power before inspecting or replacing; risk of shock or injury if energized.
• Note and label wire locations or take a photo before removal for correct reassembly.
• Verify part compatibility with your model before installing; confirm continuity after installation.

The Oven Door Hinge is an OEM part for Whirlpool ranges. It is essential for the smooth operation and stability of the oven door, allowing it to open and close properly. This hinge supports the weight of the door and ensures it stays securely in place during use.

Causes of a bad oven door hinge can include wear and tear from frequent use, rust or corrosion, and damage from accidental force or misalignment.

Symptoms of a bad oven door hinge include:

• The oven door not closing completely or evenly
• Difficulty in opening or closing the door
• The door feels loose or makes unusual noises when moved

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 10-24X5/16-NI

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.
