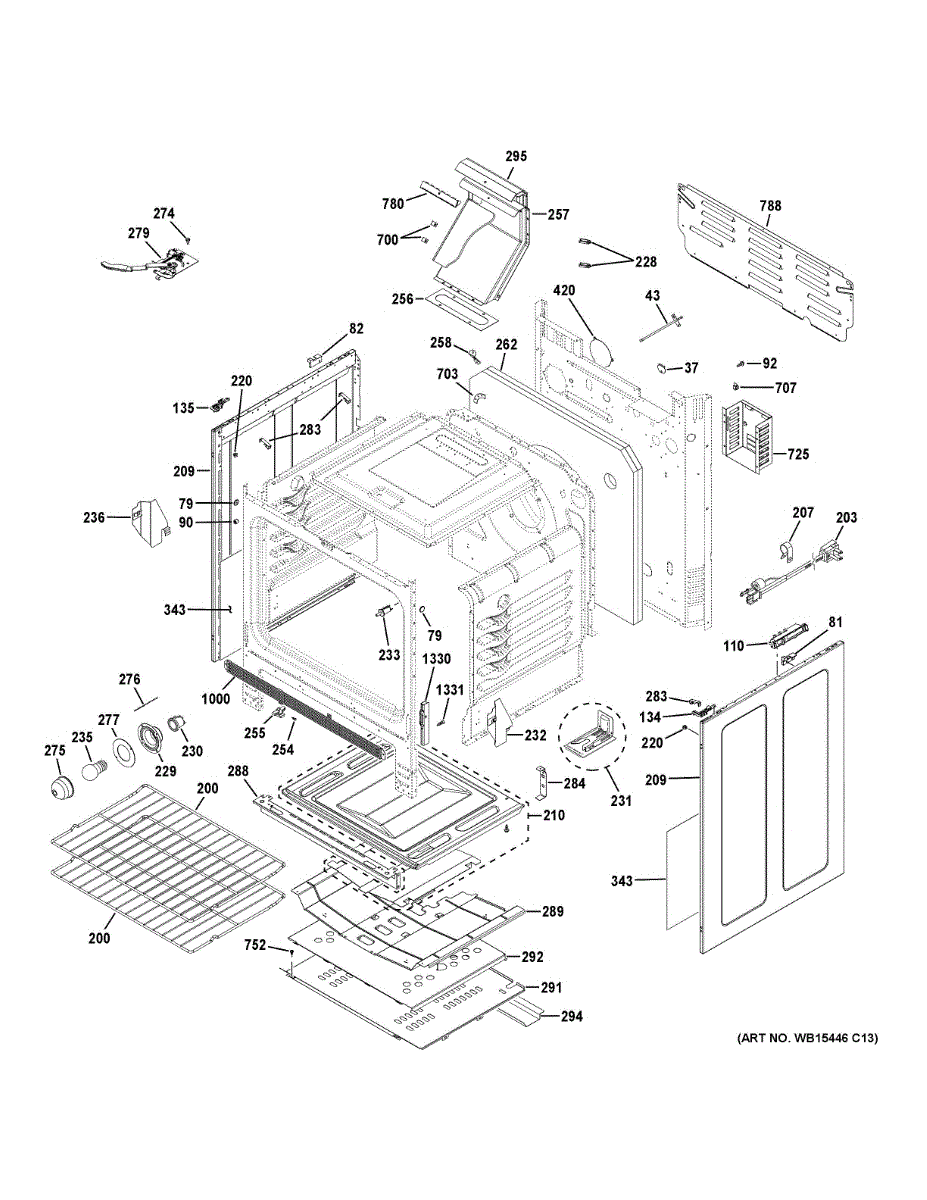

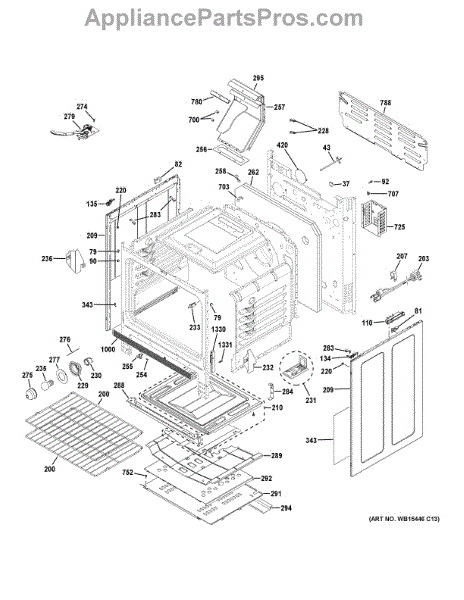

Parts for Ge JGB735FP1DS: Body Parts

This cover ignitor protects the oven or range ignitor assembly and helps keep the ignitor clear of drips and debris for reliable ignition. It's a simple replacement that restores the ignitor's protective shield. What it does

• Protects the ignitor element from spills, grease, and debris that can interfere with ignition
• Helps maintain consistent ignition by shielding the ignitor from direct contact
• Commonly used when the original cover is cracked, warped, or missing
• Can resolve ignition issues caused by physical damage or buildup on the ignitor area

• One cover ignitor

• Disconnect power (and gas supply on gas appliances) before starting any repair
• Handle the ignitor assembly carefully; avoid touching the ceramic or ignitor tip
• Use basic hand tools; ensure the cover seats properly without forcing or cracking it
• After installation, restore power/gas and test the burner or oven according to the appliance manual

Fix an oven that won't reach temperature or runs too hot/cold. This temperature sensor monitors oven heat accurately. Easy 15-minute DIY repair.

This rangetop holder secures the cooktop/rangetop assembly to the range frame, helping keep the surface stable and properly aligned for safe cooking. Durable replacement for worn or missing mounting hardware. What it does:

• Secures the rangetop/cooktop to the range body to prevent movement or rocking
• Keeps the cooktop flush and aligned for consistent burner operation
• Helps eliminate rattling or vibration caused by a loose mount
• Often replaced when the holder is bent, broken, or missing

• Disconnect power (and turn off gas if applicable) before starting work
• Basic hand tools required; follow OEM disassembly steps for access
• Inspect surrounding mounting points and hardware; replace any damaged fasteners
• Do not overtighten mounting screws; secure snugly to avoid stress on the bracket

This rangetop holder is a small support bracket that secures the cooktop/rangetop assembly and helps keep burners and trim properly aligned for safe, even cooking. It replaces a worn or damaged holder to restore stable cooktop support. What it does:

• Supports and stabilizes the rangetop/cooktop assembly to prevent shifting or sagging
• Keeps burner components and trim aligned for proper burner placement and operation
• Helps eliminate rattling or movement under normal use
• Addresses symptoms such as a loose or misaligned cooktop, noisy operation, or uneven burner spacing

• One rangetop holder support bracket

• Disconnect power and gas supply before beginning any repair
• Remove cooktop trim or grates as needed to access the holder; hand tools such as screwdrivers may be required
• Handle edges carefully to avoid cuts and protect finished surfaces from scratches
• Test fit and reassemble components to ensure proper alignment before restoring power/gas

Replacement front frame bumper that cushions and supports your range's door trim. Prevents metal-on-metal contact and reduces vibration. Needed when original is cracked, broken, or missing.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Fix burners that won't ignite with a new spark module. Generates the spark to light gas cooktop burners. Common DIY repair for multiple burners failing.

Replace your worn, bent, or warped oven rack. Provides a stable surface for baking sheets and pans inside your range oven. Fits standard ovens.

Fix a gas range that won't power on or has electrical issues with this power cord. Connects your range to household power safely. DIY-friendly install.

This side panel covers the exterior side of your range. Replace it if the original panel is dented, scratched, discolored, or missing for a complete look.

Bottom oven shield and deflector assembly protects the interior base of your gas range. Replace if cracked, warped, or damaged from spills and debris.

This bulb housing assembly holds and protects the light bulb inside your oven or range hood while providing electrical connections. It secures the bulb in the correct position and shields it from heat, grease, and food splatter during cooking. Replace this housing if the interior light doesn't work, bulbs burn out frequently, or the housing is cracked or damaged.

Replace your range's light receptacle socket when the oven light flickers or won't turn on. Easy DIY fix restores proper bulb connection. Confirm fit by model.

Safety bracket that anchors your range to the floor or wall, preventing tip-over. Replace if missing, damaged, or cracked to secure the appliance.

This is the right side hinge guard. For left side use WB34K4.

The Plunger Switch is an OEM part for GE gas ranges. It is an electro-mechanical component that activates the burners and bake/broil modes when the oven door is securely closed.

Causes of failure include worn contact points, damaged wiring, or defective internal components.

Symptoms of a bad plunger switch include:

• Inability to select oven cooking functions when door is closed
• Error messages related to unsafe door conditions
• Random activation of burners with door open
• Failure of door interlock safety feature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas range models.

The Light Bulb (40W) is an OEM component for GE refrigerators. As an essential task lamp, it illuminates the interior of the refrigerator and freezer compartments.

All light bulbs will eventually burn out with consistent use over many years. Vibration during compressor cycles can also potentially disrupt bulb filaments faster.

Symptoms of a burnt out refrigerator light bulb include:

• Dim or no light illuminating inside refrigerator shelves
• Shadows and dark spots making it difficult to find items
• Higher utility costs from leaving the door open to see inside

This bulb is also compatible with refrigerators from brands like Hotpoint, RCA, and some Kenmore models.

This is the left side hinge guard. For right side use WB34K3.

10-32 hex washer head screw secures range panels, brackets, and trim. Replace missing or stripped screws to keep components stable and eliminate rattling.

Replacement drawer support bracket for your range's storage or broiler drawer. Installs on the drawer rail to prevent sagging, crooked alignment, or binding.

A replacement vent brace that secures the appliance vent assembly and helps keep vent components aligned for steady airflow and quiet operation. Restores proper support to a loose or sagging vent assembly. What it does:

• Supports and stabilizes the vent/duct assembly so it stays aligned during use
• Reduces vibration and rattling caused by a loose vent bracket
• Helps maintain proper airflow by keeping vent components in the correct position
• Fits where the original vent brace mounts to the appliance frame

• Disconnect power (and gas, if applicable) before servicing the appliance
• Remove the appropriate access panels to reach the vent area; keep fasteners for reassembly
• Verify bracket orientation and screw locations match the original before tightening

Uneven cooking temperatures or excessive exterior heat? This oven cavity insulation assembly reduces heat loss for stable baking and roasting temps.

The range latch screw is a small fastener used to secure the door latch mechanism or latch strike plate firmly to the range frame. It keeps the latch components from shifting or loosening over time with repeated use. Replace this screw when the original is stripped, missing, or corroded, causing the latch assembly to feel loose or the oven door to not close securely.

Clear glass lens that protects your oven light bulb. Replace if cracked, broken, or cloudy to safely view cooking progress. Confirm fit with model number.

Secures range door handles and attaches components. Replace when cracked, bent, or missing to restore stable grip. Confirm fit with your model number.

Range door won't stay closed or lock properly? The automatic door latch secures your oven door when shut. Direct replacement part for most ranges.

Wire clip secures electrical connections to heating elements in ranges. Replace if worn, cracked, or loose to restore proper contact. Verify fit with model.

Support bracket for gas ranges. Secures internal components in place. Replace if bracket is bent, cracked, broken, or missing to restore proper fit.

Secures and supports internal components in your range. Replace this brace if it's bent, broken, or missing to ensure proper alignment and stability.

Stamped metal shield that protects the oven's lower cavity and insulation from excessive heat. Replace if cracked, rusted, corroded, or damaged.

Bottom guard for gas ranges. Installs at the base to protect internal components. Replace if cracked, damaged, or missing to maintain appliance integrity.

Bottom inner guard for gas ranges. Protects internal components from heat and debris. Replace if cracked, bent, or missing to maintain proper coverage.

This terminal cover protects the oven/range power connection by covering the appliance's rear terminal block, helping prevent accidental contact and keeping wiring secure. It's a direct-replacement exterior cover for the unit's power terminals. What it does:

• Covers the appliance's electrical terminal block to help protect wiring and connectors from damage
• Reduces risk of accidental contact with live terminals when the access panel is opened
• Keeps the terminal area tidier and helps prevent debris buildup around connections
• Commonly replaced when the original cover is cracked, broken, or missing

• One terminal cover

• High-level replacement: remove rear access panel to access the terminal block, then replace the cover and secure with existing screws
• Always disconnect power (unplug or switch off the breaker) before servicing electrical components
• No special tools required beyond a screwdriver; follow OEM instructions if available

Decorative side foil trim that covers the outer edge of your range panel. Replace when cracked, peeling, or missing to restore a finished look.

This insulation clip secures appliance insulation panels and blankets, helping maintain proper thermal separation and reduce vibration. It's a small but important fastener used where insulation needs to be held in place. What it does

• Holds insulation or fiberglass blankets against cabinet walls or inner panels
• Helps reduce heat transfer and prevents insulation from sagging or shifting
• Minimizes rattles or vibration caused by loose insulation
• Commonly replaced when clips are broken, missing, or corroded

• One insulation clip

• Inspect surrounding insulation for damage and replace any deteriorated material before installing the clip
• Use appropriate gloves to protect hands from insulation fibers
• Reinstall panels carefully to avoid pinching or dislodging the clip

Mounting bracket secures oven components inside your range. Replace if bracket is bent, cracked, broken, or missing to restore proper structural support.

Secures and routes wiring in your range. Replace if loose, broken, or wiring is exposed. Verify fit with your model number before ordering.

Package of 12

Diffuser vent trim for gas ranges. Installs on the cooktop surface to cover the vent opening. Replace if cracked, discolored, or missing.

Front trim frame for electric and gas ranges. Replaces cracked, broken, or missing trim around the control panel area. Restores appearance.

Oven door won't close properly or seal tight? This hinge receiver bracket anchors the door hinge arm to the frame, ensuring proper alignment and seal.

Mounting screw that secures the hinge assembly on electric and gas ranges. Replace this fastener if the original is stripped, missing, or damaged.
