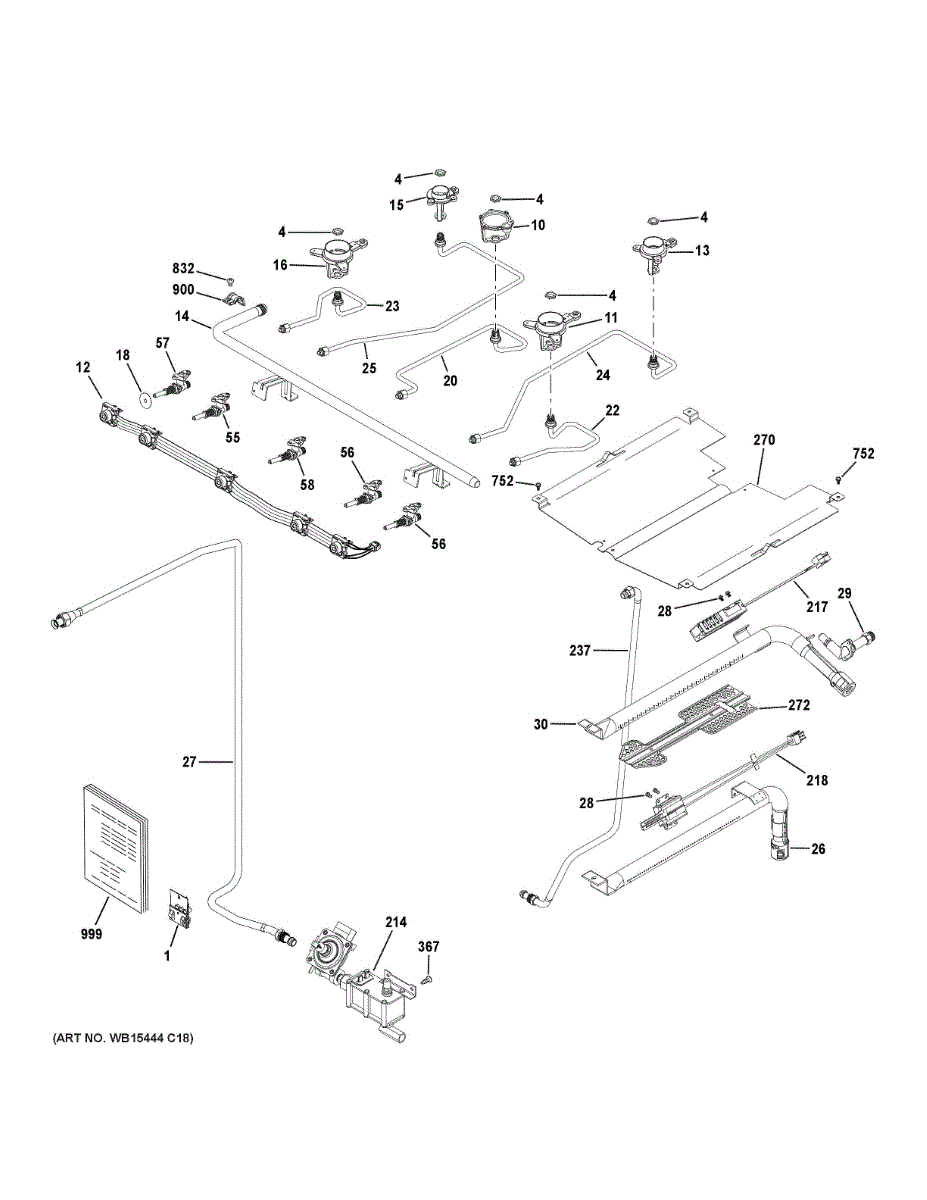

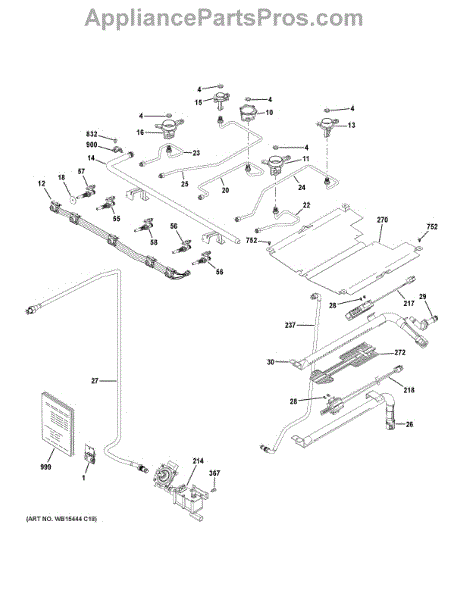

Parts for Ge JGB735FP1DS: Gas Burner Parts

Converts your gas range to liquid propane for high-altitude use. Ensures proper gas flow, easy ignition, and stable flames in low-pressure conditions. Confirm fit with your model number before ordering.

Convert your gas range for proper operation above 2000 feet elevation. This high altitude kit adjusts air-fuel mixture for optimal performance at altitude.

Converts your gas range from natural gas to liquid propane. Includes all burner orifices needed for safe LP operation. Required when switching fuel types.

Replacement fastener nut for gas ranges and cooktops. Secures panels and internal components. Needed when original nut is missing, stripped, or worn.

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mounting support for specific under-top components, per model design
• Helps maintain proper alignment and stability of cooktop parts
• Replace when visibly bent, cracked, or corroded

• Disconnect power; for gas models, also shut off gas and allow the unit to cool
• Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
• Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
• Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed

This is a medium-sized surface burner base (also called an orifice holder or injector) that supports and positions the burner on the cooktop. It ensures proper gas flow and flame alignment for the burner. Replace this part if your burner sits unevenly, has an irregular flame pattern, or if the original base is cracked or damaged.

Fix burner ignition or control issues with this gas range wire harness and switch assembly. Restores electrical connections between components.

Large burner injector for gas ranges and cooktops. Replaces cracked, worn, or missing injectors that control gas flow to the burner assembly.

Gas range burners not lighting evenly or weak flames? The manifold pipe distributes gas from the valve to each burner. Moderate DIY repair for most models.

This small V2 inlet jet directs water flow to the dispenser/ice-making area so the appliance fills and forms properly. It restores correct water routing for consistent filling and helps reduce weak or misshapen ice or slow dispensing. What it does:

• Channels water to the ice maker/dispenser so the correct amount reaches the fill area.
• Helps ensure uniform ice formation and consistent dispenser flow.
• Can resolve symptoms like weak/slow dispensing, underfilled ice trays, or uneven ice cubes.
• Works as the small replacement nozzle where the original inlet jet is worn or blocked.

• One small V2 inlet jet

• Disconnect power and shut off the water supply before beginning work.
• Access may require removing inner panels or the ice maker/dispenser housing; follow your model's service instructions.
• Inspect the seat and surrounding fittings for debris or damage before installing; replace other damaged components as needed.

This is a surface burner base with a built-in gas injector for a cooking range. The base supports the burner cap and head while the injector meters the gas flow to produce the correct flame size. Replace this component if you experience uneven flames, difficulty igniting the burner, or if the base is cracked or corroded.

Protective cover that slips over the gas valve shaft to shield valve components from spills, food debris, and moisture. Replace if cracked or missing.

Center burner won't light or has weak flame? This orifice holder routes gas from the valve to the burner and keeps the orifice aligned for proper ignition.

Secures the burner orifice in your gas range to maintain proper gas flow and consistent flame. Replace if damaged, cracked, or during conversion repairs.

Weak or uneven flame from your gas range burner? The orifice holder secures the gas spud for proper alignment and consistent fuel delivery to burners.

Fixes burner that won't ignite or produces weak flame. This orifice holder routes gas from valve to burner head. Moderately easy DIY repair for most.

Replace your gas range oven orifice holder if burners won't light or you're converting between LP and natural gas. Simple socket wrench repair for most DIYers.

Fix uneven flames or burner ignition issues with this gas range bake burner tube. Delivers gas from valve to burner for proper heating and baking.

Carries gas from the pressure regulator to the burner valve manifold on your gas range. Replace if the tube is damaged, cracked, or leaking to restore safe fuel flow.

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

Fix weak flames or uneven heating with this gas range burner elbow assembly. Connects burner piping at 90-degree angles to restore proper fuel flow.

Fix uneven browning or weak broiling with this oven broil burner. Restores high-temperature top-down cooking for proper searing and browning.

Burner won't ignite or flame is uneven? This surface burner valve regulates gas flow to each burner for precise temperature control on your gas range.

Fix a burner that won't ignite or produce gas with this surface burner valve. Controls gas flow to individual burners on your gas range or cooktop.

Gas burner won't light or heats unevenly? This burner valve controls gas flow to your cooktop. Moderate DIY repair requiring stovetop disassembly.

Burner won't light or flame won't adjust? This surface burner valve regulates gas flow to restore precise flame control on your gas range cooktop.

Fix oven ignition issues or gas smell problems with this valve control assembly. Controls gas flow to burners for precise flame regulation.

Oven won't heat or ignite? A failing igniter is the most common cause. This glow bar igniter heats up and draws current to open the gas valve. Easy DIY fix.

Fix a gas oven that won't heat or takes too long to preheat by replacing a weak or cracked igniter. This hot surface igniter lights the burner reliably.

Restores proper gas flow when burners won't light or flame is weak. This supply tube connects the valve to the burner for reliable ignition and heat.

Burner deflector guard for gas ranges. Installs around burner assembly to direct heat and protect components. Replace if cracked, warped, or missing.

This broil shield protects the oven interior above the broiler, helping direct heat and shielding the oven cavity from intense broiling temperatures for safer, more consistent broiling results. Durable metal construction resists warping. What it does:

• Shields the oven top and components from direct broiler heat to prevent damage and discoloration
• Helps maintain more even broiling by directing heat where food is placed
• Reduces the risk of flare-ups reaching wiring or insulation behind the oven liner
• Restores proper clearance between the burner and oven liner for safe operation

• One broil shield

• Disconnect power (and gas, if applicable) and allow the oven to cool completely before starting
• Remove oven racks and access the broiler area to unfasten and replace the shield using basic hand tools
• Inspect mounting tabs and surrounding liner; replace any damaged clips or screws as needed

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Package of 12

Secures the thermostat assembly to your gas range or oven frame. Replace this mounting screw if it's stripped, missing, or damaged during repairs.

Secures the gas valve assembly to the frame of your range. Replace this bracket if it's bent, broken, or missing to properly mount the valve components.
