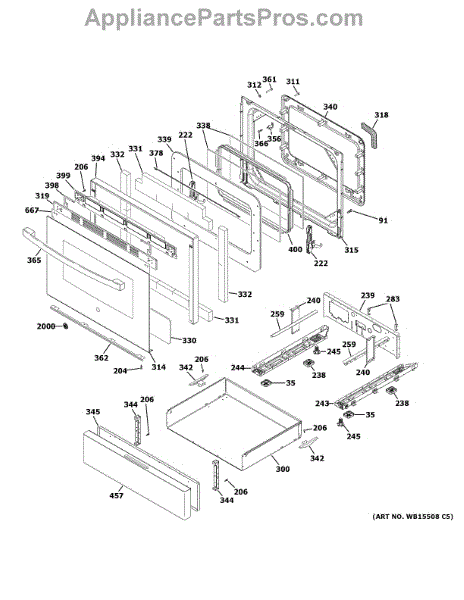

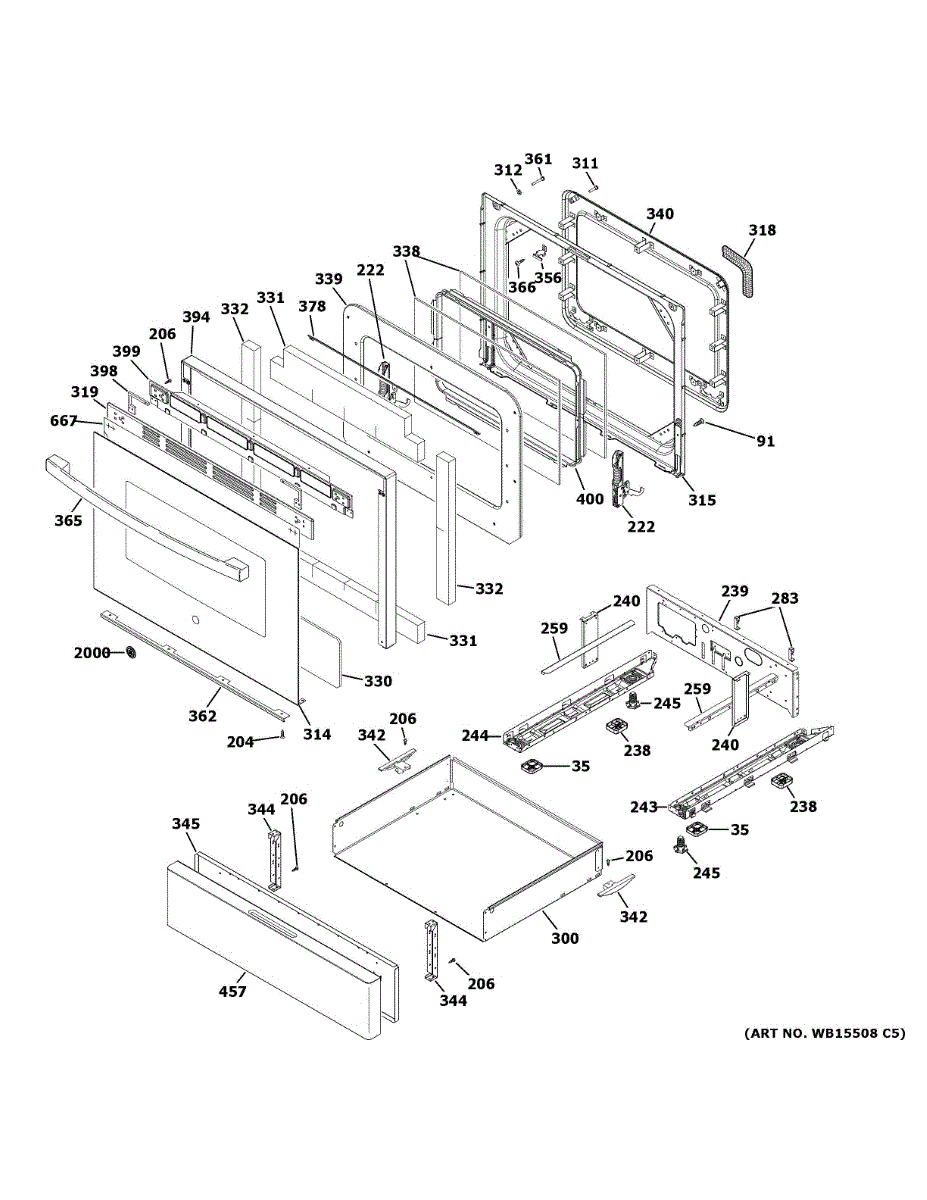

Parts for Ge JGB735FP1DS: Door Drawer Parts

Base spacer for gas ranges. Installs at the bottom of the range to provide proper spacing and support. Replace if cracked, broken, or missing.

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

Panel mounting screw secures trim, bezels, and internal components on ranges and cooktops. Replace when stripped, corroded, or missing to restore fit.

Replaces a broken, sprung, or damaged oven door hinge. Restores smooth opening and closing, prevents sagging doors that won't align or seal properly.

Positions and supports internal components to maintain proper alignment and clearance. Replace if cracked, broken, or missing to restore stability.

Support base for electric and gas ranges. Installs at the bottom to provide structural stability. Replace if cracked, broken, or damaged over time.

The GE Range Support Base is an OEM replacement part for GE wall ovens and ranges. It provides critical support and stability for the appliance, ensuring safe and reliable operation.

Causes of a bad support base could include cracks or breaks in the material over time due to repeated stresses and strains from the heavy appliance above it. The base may also become damaged or unstable if the unit is moved incorrectly and suffers impact.

Symptoms of a failing support base include:

• The oven or range rocking or becoming unlevel during use
• Noisy or squeaking sounds coming from the base
• Visible cracks or weaknesses in the material
• The appliance seeming loose or unstable on the countertop or floor

This genuine GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement leveling leg for ranges. Installs at base corners to stabilize and level your range on uneven floors. Needed when leg is broken or missing.

Drawer slide rail for electric and gas ranges. Mounts to the drawer box to enable smooth gliding. Replace if bent, broken, or worn for proper operation.

Wire clip secures electrical connections to heating elements in ranges. Replace if worn, cracked, or loose to restore proper contact. Verify fit with model.

Metal pan that forms your range's lower drawer assembly. Replace if bent, rusted, or damaged to restore proper alignment and smooth sliding on tracks.

Protective bumper that cushions the burner grate and prevents scratching or denting the cooktop surface. Replace if cracked, worn, or missing.

Contoured washer trim secures and cushions range components, maintaining proper alignment and reducing wear. Replace if worn or damaged. Verify fit with your model.

Replaces cracked, broken, or cloudy oven door glass. Restores safe viewing and proper heat containment. Includes finished outer surface for door opening.

Secures and reinforces your range oven door structure to maintain proper alignment and seal. Replace if door is misaligned or won't close properly.

Thermal insulation strip that attaches to the bottom of your range oven door. Replace if torn, compressed, missing, or no longer sealing properly.

Side door insulation panel for electric and gas ranges. Replaces worn, damaged, or missing insulation to restore proper heat retention and sound dampening.

Inner glass window for range oven doors. Mounts inside the door frame to provide visibility while cooking. Replace when cracked, broken, or shattered.

Replace worn range storage drawer glides to restore smooth sliding motion. Install on both sides of drawer for proper operation. Verify fit with model number.

Secures and supports your range drawer to prevent sagging and ensure smooth operation. Replace when drawer misaligns or wobbles. Confirm fit with your model.

This barrier door assembly replaces the oven/stove barrier used to block heat and fumes when the appliance is not in use, helping maintain proper airflow and appliance efficiency. It's a direct-fit replacement designed to restore the door's sealing and movement. What it does:

• Covers and seals the internal opening to prevent heat, smoke and cooking odors from escaping when closed.
• Helps maintain proper internal airflow and prevents drafts when the appliance is off.
• Restores smooth opening and closing action if the original barrier door is broken, warped, or cracked.
• Can reduce heat loss and improve the performance consistency of the oven cavity.

• Disconnect power to the appliance before starting any repair.
• Handle the door carefully to avoid damaging hinges or mounting tabs during removal and installation.
• Use common hand tools; follow OEM instructions for alignment and fastening to ensure proper fit and movement.

This is a replacement screw used to secure panels and components on compatible appliances, providing reliable fastening to stop loose parts and noise. It restores proper fit where the original fastener is missing or damaged. What it does:

• Fastens control panels, brackets, or trim to appliance chassis
• Keeps components aligned to prevent rattling or vibration
• Replaces stripped or corroded mounting screws
• Restores secure connections that can cause gaps or poor fit

• Disconnect power before servicing the appliance
• Use the correct-size driver or socket to avoid stripping the head
• Thread in carefully and avoid over-tightening to prevent damage
• Check that the screw seats flush and secures the component fully

Deflector plate that installs on the oven door of your gas range. Replace if cracked, damaged, or missing to restore proper door assembly and appearance.

Fix loose or rattling control panels with this range panel backer. Secures and aligns the control panel while protecting internal wiring and switches.

Positions and supports oven door glass to maintain proper alignment. Replace if worn, cracked, or missing to prevent glass rattling and gaps.

Aluminum foil tape seals vent connections in gas ranges. Replace when torn, degraded, or during vent repairs to maintain proper airflow. Verify fit.

Replace your range's badge assembly if the original is cracked, broken, or missing. This decorative nameplate installs on the control panel area.
