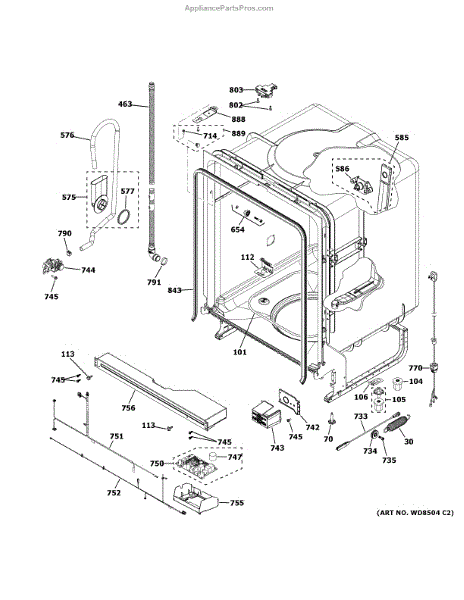

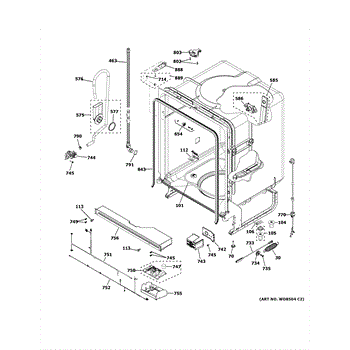

Parts for Ge GDF511PGM5BB: Body Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This dishwasher door spring counterbalances the door so it opens smoothly and doesn't drop. Replacing a fatigued or broken spring restores proper door action, prevents sudden slamming, and reduces stress on the hinges and link components.

• Provides the tension that counterbalances the door's weight during opening and closing
• Helps prevent the door from dropping quickly or feeling unusually heavy
• Supports smooth, even movement within the door hinge/counterbalance system
• Common signs of failure: door falls open, won't stay partially open, or binds/squeaks while moving

• Disconnect power and shut off water before servicing; wear gloves and eye protection
• Remove the toe-kick to access the spring and hinge area
• Support the door; carefully relieve spring tension and transfer the spring to the same anchor points as the original
• Test door balance and motion before reinstalling the toe panel

The Bearing Slide Assembly is an OEM component for GE electric clothes dryers. As an integral part of the dryer tumbler system, this assembly includes the bearing slides that allow smooth rotation of the tumbler drum during drying cycles.

Symptoms of faulty bearing slides include:

• Abnormal vibrations or shaking of the dryer cabinet
• Noisy operation that gets louder over time
• Rubbing or grinding sounds coming from inside the machine
• Reduced tumbler movement or inability to manually turn the drum

Causes involve general wear of plastic bearing surfaces from years of drum rotation as well as potential damage or misalignment from excess stress on the slides.

This GE OEM replacement helps maintain balanced tumbler movement. Compatible with Hotpoint, RCA, and some Kenmore dryers using the bearing slide assembly design.

The Heating Element is an OEM replacement part for GE dishwashers. It is responsible for heating the water during wash cycles and assisting in drying dishes at the end of the cycle. The heating element ensures optimal cleaning and drying performance by raising the water temperature and promoting evaporation.

Over time, heating elements can fail due to wear, mineral buildup, or electrical issues. A malfunctioning element may result in poor cleaning or drying performance.

Symptoms of a bad heating element include:

• Dishes remaining wet after the drying cycle
• Water not heating adequately during the wash cycle
• Error codes related to temperature or heating issues
• Visible damage, such as cracks or corrosion on the element

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This heater nut secures the dishwasher's heating element where it passes through the tub, helping maintain a tight connection and proper positioning. Replacing a damaged or missing nut can help prevent leaks and keep the element stable.

• Fastens the heating element to the tub from below to hold it firmly in place
• Helps support a watertight connection at the element pass-through when used with the proper seal
• Replace if the nut is cracked, heat-damaged, stripped, or missing
• Common symptoms include water leaking under the unit near the heater terminals and a loose or wobbly heating element

• Disconnect power at the breaker and shut off water before servicing
• Access the nut from beneath the dishwasher; remove the toe-kick and pull the unit forward if needed
• Support the element from inside the tub while tightening; snug gently and do not overtighten to avoid damage
• Restore power/water and run a short cycle to check for leaks

This grounding plate is a stamped metal bracket that provides a secure electrical ground connection for the appliance, helping protect components and reduce shock risk. It's a direct-replacement part used where the appliance chassis requires a dedicated grounding point. What it does:

• Provides a reliable chassis-to-ground connection for electrical safety.
• Maintains a stable grounding path for control boards and metal panels.
• Helps address symptoms such as intermittent electrical faults, tripped breakers, or grounding-related error codes when a damaged or missing bracket is suspected.
• Replaces a corroded, bent, or broken grounding/mounting plate to restore proper contact.

• One grounding plate

• Turn off power to the appliance at the breaker and unplug before servicing.
• Mount to the specified chassis location using the original screws or fasteners; ensure clean, bare metal contact for a good ground.
• Do not modify the part; if screw holes or fasteners are missing, replace with OEM-specified hardware.

This twist-lock clip secures the dishwasher's heating element to the tub floor, keeping it properly positioned for effective water heating and drying. Replacing a broken or missing clip stops rattles and keeps the element stable during cycles.

• Locks the heating element to the tub/base with a twist-to-secure design
• Maintains correct element alignment and clearance
• Helps reduce rattling or scraping noises from a loose element
• Common signs: element sagging or out of place, broken/missing clip, poor drying results

• Disconnect power at the breaker and allow the heating element to cool before servicing
• Remove the lower rack to access the clip on the tub floor
• Rotate the old clip to release; position the new clip over the mounting slot and twist to lock
• Ensure the element is fully seated in the clip and not contacting the tub or spray arm

The screw is an OEM replacement component for GE dishwashers. It is used to securely fasten parts inside the dishwasher tub assembly.

Causes of a damaged or defective screw usually involve wear from continuous mechanical stresses and vibration during dishwasher usage. Loose parts affect machine balance and performance.

Symptoms of a compromised screw placement include:

• Noises or abnormal sounds coming from inside the tub
• Intermittent error codes related to moving components
• Detached or misaligned spray arms or filters
• Insecure tub fixtures that can be jarred with normal operation

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This high loop drain hose creates the required elevated drain loop to help prevent dishwasher backflow and ensure proper drainage. It replaces a worn or damaged drain loop and restores correct drain routing for reliable performance. What it does:

• Forms the high loop in the dishwasher drain line to reduce risk of sink water siphoning back into the appliance
• Directs wastewater from the dishwasher into the household drain properly
• Helps avoid intermittent draining issues caused by a collapsed or split drain loop
• Fits into existing drain connections—used where an elevated drain loop is required

• Designed for in-line replacement; route the hose to create a high loop secured under the countertop or cabinet as shown in the appliance installer instructions
• Turn off power and water supply to the appliance before performing service
• Inspect clamps and fittings and replace if corroded; ensure all connections are snug but not over-tightened

The Funnel Service Kit is an OEM replacement part for GE dishwashers. It includes a water inlet funnel and seals necessary for proper water flow within your dishwasher. This part helps prevent leaks and ensures that water is properly directed into the dishwasher.

Symptoms of a faulty water inlet funnel service kit include:

• Water leaks from the dishwasher
• Insufficient water flow during the wash cycle
• Inconsistent cleaning or rinsing performance

Causes of a bad water inlet funnel service kit can include wear and tear over time, blockage from debris or mineral buildup, or damage to the funnel or associated components. If you notice issues such as water leaks, inadequate water flow, or inconsistent cleaning results, it may be time to replace the old or damaged water inlet funnel service kit with this genuine OEM part.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This fill funnel hose directs incoming water from the inlet assembly into the tub through the fill funnel. Replacing a worn or cracked hose helps stop leaks and restores a reliable, sealed fill path for consistent wash performance.

• Carries water from the inlet assembly through the fill funnel into the tub
• Maintains a watertight path to prevent external leaks
• Symptoms of failure: dripping during fill, puddles beneath the unit, or visible cracks/splits in the hose
• A significant leak may lead to low water level or extended fill times

• Disconnect power and shut off the water supply before servicing
• Remove the toe-kick/kickplate; pulling the dishwasher forward may be needed for access
• Place a towel or pan to catch residual water; move clamps, remove the old hose, and fully seat the new hose on both fittings
• Re-secure clamps, restore water and power, and run a short fill to check for leaks before reinstalling panels

This replacement O-Ring restores a watertight seal at an internal dishwasher connection, helping stop leaks and protect surrounding cabinetry. Replace a hardened, cracked, or flattened seal to maintain reliable wash performance and prevent water damage.

• Creates a watertight seal between mating parts inside the dishwasher
• Helps prevent drips and leaks during fill, wash, and drain cycles
• Addresses leaks caused by a worn, flattened, or damaged seal
• Visual clues: cracks, brittleness, deformation, or mineral trails at the joint

• Disconnect power and shut off the water supply before servicing
• Access the affected connection and remove the old O-ring
• Clean the groove and mating surfaces; lightly lubricate with food-grade silicone grease; seat evenly without twisting or pinching
• Reassemble and run a brief test cycle to check for leaks

Replace a worn or broken tub roller with this Tub Roller and Stud Assembly. It mounts to the dishwasher tub wall to guide the rack smoothly, preventing dragging, binding, or derailment when loading and unloading.

• Mounts on the tub sidewall to provide a smooth glide point for the dish rack
• Restores easy rack movement and can reduce squeaking or scraping noises
• Helps keep the rack aligned and prevents it from jumping off track
• Typical signs of failure: cracked/broken wheel, missing/bent stud, rack difficult to slide

• Disconnect power and water supply before servicing; wear cut-resistant gloves.
• Pull the rack out to access the roller location inside the tub.
• Remove the old roller and stud (retainer/tab/screw varies by model) and install the new assembly in the same orientation.
• Slide the rack in and out to confirm smooth movement before returning the appliance to service.

The Door Cable is an OEM part for GE dishwashers, designed to support and assist in the smooth and controlled opening and closing of the dishwasher door. This cable connects the door to the spring mechanism, providing the necessary tension to balance the door's weight during operation.

Signs that you might need to replace the Door Cable include the door suddenly dropping open or being difficult to raise, indicating a break or excessive wear.

Symptoms of a bad Door Cable include:

• The dishwasher door slamming open or requiring extra force to close.
• Unusual noises when opening or closing the door, suggesting the cable is not running smoothly.
• Difficulty in keeping the door partially open, affecting loading and unloading dishes.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Door Hinge Pulley is an OEM part for GE dishwashers. This part works with the door springs and cables to provide smooth and balanced movement. This pulley ensures that the door operates efficiently, making it easy to load and unload dishes.

Causes of a bad door hinge pulley can include wear and tear from regular use, accumulation of debris or grease, or damage from accidental impacts.

Symptoms of a bad door hinge pulley include:

• The dishwasher door not staying open or closed properly
• Difficulty in opening or closing the door
• Unusual noises during door operation, such as squeaking or grinding
• The door feeling loose or unbalanced

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 10-32 x 1/4-inch zinc-plated screw secures internal panels and hardware in select dishwashers. Replace a missing, stripped, or corroded fastener to restore a tight fit and help prevent vibration or loosening during operation.

• Fastens brackets, panels, or components that use a 10-32 machine thread
• Replaces hardware that is missing, stripped, or rusted
• Helps reduce rattling or vibration from loose assemblies
• Supports proper component alignment for reliable operation

• Disconnect power and water supply before servicing the appliance
• Remove the old fastener and verify thread size and length match before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace damaged clips, nuts, or inserts that won't hold a 10-32 screw securely

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This dishwasher junction box cover encloses the power-connection compartment at the base of the unit. Replacing a damaged or missing cover helps protect wiring from debris and accidental contact, restoring a safe, secure connection area. What it does:

• Covers and secures the dishwasher's electrical junction box
• Helps shield wire splices from moisture, dust, and accidental contact
• Restores proper fit when the original cover is cracked, broken, or missing
• Useful if the junction box won't stay closed or the cover no longer secures properly

• Includes 1 junction box cover

• Disconnect power at the circuit breaker before servicing
• Remove the lower access/kick panel to reach the junction box
• Remove the old cover and screw, position the new cover, and secure with the existing hardware
• Ensure all wiring and the strain relief are fully inside the box before closing; restore power and test

The Water Valve Assembly is an OEM part for GE dishwashers. This part controls the flow of water into the dishwasher, ensuring that the correct amount of water is used during each cycle for optimal cleaning performance.

Causes of a bad water valve assembly can include electrical malfunctions, wear and tear from regular use, mineral buildup from hard water, or physical damage to the valve or its components.

Symptoms of a bad water valve assembly include:

• The dishwasher not filling with water
• Water leaking from the valve
• The dishwasher overfilling with water
• Error codes related to water intake issues

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 10-32 x 9/16 machine screw secures dishwasher components and panels. Replacing a missing or stripped fastener restores a tight fit, reduces vibration/rattles, and keeps assemblies properly aligned for reliable operation.

• Secures panels, brackets, or internal assemblies using a 10-32 machine thread
• Replaces lost, corroded, or stripped screws
• Can help resolve looseness or rattling from a loose mounting point
• Correct 9/16-inch length helps maintain proper spacing and alignment

• Disconnect power at the breaker before servicing
• Use the appropriate driver for the screw head; start threads by hand to avoid cross-threading
• Tighten snugly but do not overtighten to prevent stripping threads or damaging mating parts
• Compare to the original fastener to matching thread and length

• Thread size: 10-32
• Length: 9/16 inch

The 4.1 Amp Control Board Fuse is an OEM replacement part for GE dishwashers. This fuse is integrated into the control board, acting as a safety device that protects the dishwasher's electronic components from potential overcurrent situations. Blowing or breaking the circuit during electrical surges prevents damage to the control board and other sensitive components.

Causes of a blown fuse include power fluctuations or component failures causing excessive current draw. Over time, fuses may degrade from continued cycling.

Symptoms of a bad fuse include:

• Lack of power to control board and components it supplies
• The inability of the dishwasher to turn on or progress through cycles
• Potential electrical issues if surge currents are not limited

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement AC wire harness routes power between an appliance's main control and its AC components to restore reliable electrical connections and safe operation. Designed as a direct-fit harness for compatible GE appliances. What it does:

• Provides the factory-style wiring path for AC power and signal connections
• Restores lost or intermittent power caused by damaged or frayed wires
• Replaces burned, corroded, or broken connector ends to improve electrical contact
• Helps stop erratic operation caused by open or shorted harness leads

• One replacement AC wire harness

• Disconnect power to the appliance before starting any repair
• Inspect connectors and routing; replace only if the harness matches OEM connector types
• Secure harness away from sharp edges and moving parts to prevent future damage

This control box bottom is the lower housing piece that secures and protects the appliance control board and related components. It restores a stable mounting surface and helps keep electronics shielded from vibration and debris. What it does:

• Provides the lower half of the control box housing to support and protect the control board
• Keeps wiring and connectors routed and held in place to prevent strain
• Replaces cracked, broken or warped housing that can expose electronics
• Helps stop rattling or movement of the control assembly that can cause intermittent controls

• Control box bottom

• Power off and unplug the appliance before starting any repair
• Handle the control board and connectors carefully to avoid electrostatic or mechanical damage
• This part typically installs with screws or clips; retain fasteners and note their locations during disassembly
• Inspect and address the electronics before reassembly

This control box top is the plastic cover that protects the appliance's control board and user controls while keeping the front of the console finished and safe. It helps prevent dust, moisture, and accidental contact with internal electronics. What it does

• Covers and protects the control board and internal wiring behind the console.
• Provides the mounting surface and openings for buttons, knobs or touch interfaces.
• Prevents dirt, lint, and moisture from reaching sensitive electronics.
• Restores a secure, finished appearance to a damaged or cracked console area.

• Always disconnect power to the appliance before beginning work to avoid electrical shock.
• Remove any bezel, screws or clips securing the old top and transfer any required mounting hardware or trim pieces.
• Handle the control board and connectors with care; avoid touching circuit components or bending contact pins.

This dishwasher hose clamp secures internal hoses to pumps or fittings, helping prevent leaks and disconnections. Replace a weakened or damaged clamp to restore a tight, reliable seal at the connection.

• Provides clamping pressure to hold a hose on pump, sump, or drain fittings
• Helps stop water leaking at hose joints
• Resolves: loose or disconnected hoses, water under the unit/base, or poor draining from a slipped drain hose
• Replaces worn, rusted, or deformed clamps after service

• Disconnect power and turn off the water supply before servicing
• Pull the dishwasher forward as needed for access; place a towel or pan to catch residual water
• Seat the hose fully, then compress or tighten the clamp per its design; position just behind the hose barb bead
• Run a short cycle and inspect for leaks at the connection

The Clamp is an OEM replacement part for GE dishwashers. It holds and secures critical components such as tubing or hoses securely in place. Clamps play an important supporting role by fastening tubing and preventing kinking, both of which are essential for proper water flow and circulation within the dishwasher.

Causes of a bad clamp can include cracks, corrosion, or fatigue that causes the clamp to fail in its gripping function over time. Hoses or tubes may also wear down a clamp through constant vibration.

Symptoms of a bad clamp include:

• Leaks from hoses, tubes or connections
• Reduced water pressure or uneven spray patterns
• Moisture or water damage around connections
• Loose hoses that rub or chafe

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 8-18 AB TSQ 5/8 SS

The Door Latch is an OEM replacement part for GE dishwashers. It serves the critical function of securely keeping the door closed during wash cycles through its engaging bolt design.

Over extended use, aspects of the latch can degrade such as worn plastic catch areas, loosened screws, or a faulty latch hook mechanism. Causes are generally normal wear and tear.

Symptoms of a bad latch include:

• The door not closing fully or popping open accidentally
• Inability to fully lock or latch no matter how hard the door is pressed
• Damaged or stripped screws holding the mechanism

This OEM replacement part is compatible with Hotpoint, RCA and some Kenmore models as well.

The Tub Gasket is an OEM part for GE dishwashers. It is installed around the perimeter of the dishwasher door to create a water-tight seal during operation, effectively preventing water leaks. This gasket ensures that the dishwasher can maintain the necessary water level and pressure to clean dishes effectively, while also protecting your kitchen from water damage.

Causes of a bad Tub Gasket can include natural wear and tear from regular use, exposure to harsh cleaning chemicals that can degrade the rubber material, or improper installation leading to gaps or loosening.

Symptoms of a bad Tub Gasket include:

• Water leaking from around the dishwasher door
• Signs of mold or mildew on the gasket
• The gasket becoming hard or cracked
• Visible gaps between the gasket and the dishwasher door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Mounting Bracket is an OEM replacement part for GE dishwashers. This bracket secures the dishwasher in place underneath the kitchen countertop.

Causes of failure relate to stresses of a heavy dishwasher pushing down against the countertop edges combined with constant machine vibration over extended service life.

Symptoms of a cracked or damaged mounting bracket include:

• Excessive movement play or sloshing of the installed dishwasher
• Strange noises when the dishwasher is running
• Difficulty removing or installing the dishwasher
• Visible bending of bracket components out of intended position

This genuine GE bracket is compatible with Hotpoint and RCA dishwashers.

The Countertop Screw & Buttonplug is an OEM part for GE dishwashers. This assembly includes screws and button plugs designed to securely fasten the dishwasher to the underside of kitchen countertops.

Causes of a bad Countertop Screw & Buttonplug can include stripped threads from over-tightening, corrosion due to exposure to moisture, or general wear and tear that diminishes the screws' and plugs' ability to maintain a secure hold.

Symptoms of a bad Countertop Screw & Buttonplug include:

• Dishwasher tilting forward when the door is opened
• Visible gaps between the dishwasher and countertop
• Loose feeling or movement of the dishwasher when pushed
• Screws failing to hold or remain in place

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
