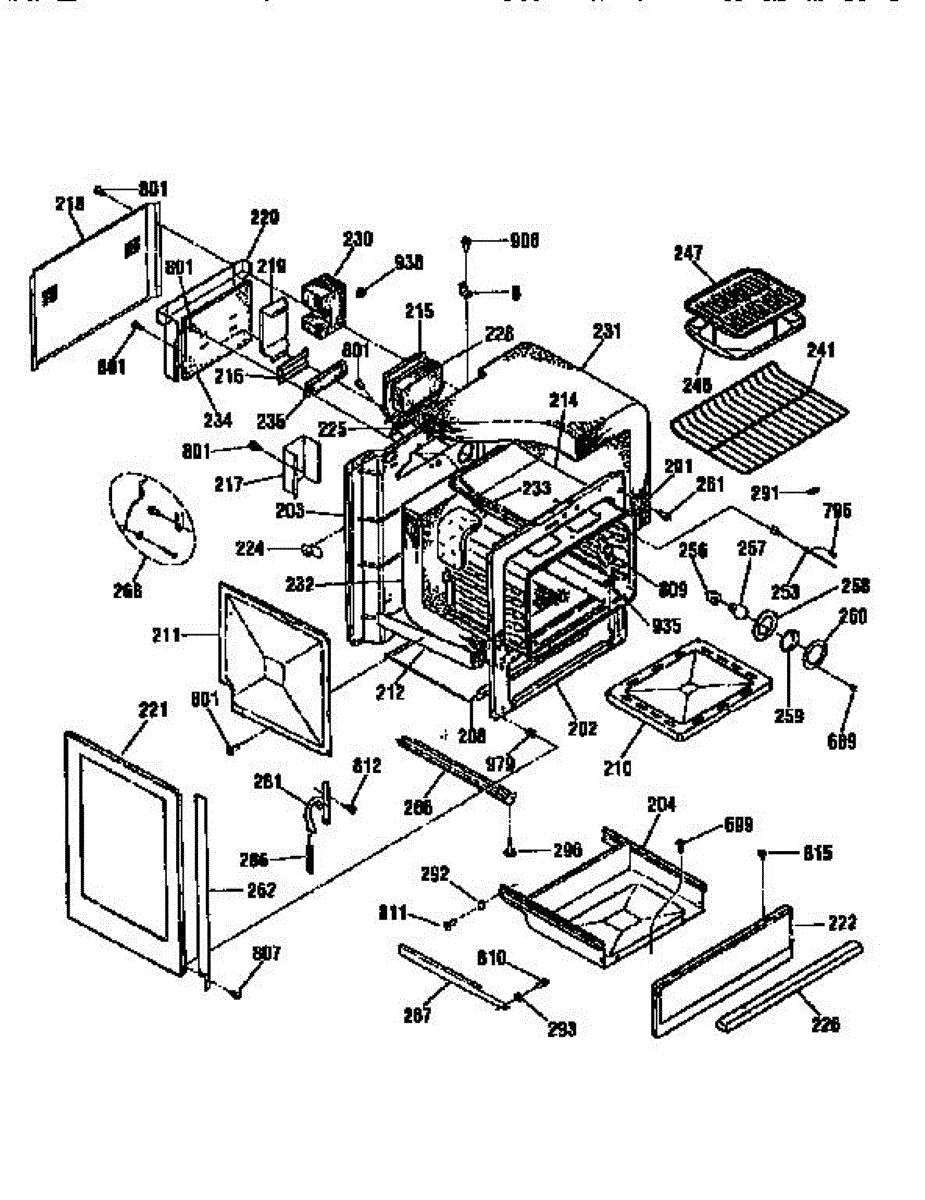

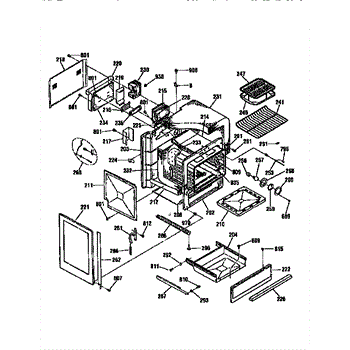

Parts for Kenmore 911.36769690 (91136769690, 911 36769690): Body Section Parts

Oven cavity wrapper assembly that forms the outer cabinet structure. Replace if your wrapper is cracked, damaged, rusted, or missing components.

This front frame assembly replaces a damaged or worn outer oven door frame to restore appearance and help keep the door trim secure. It's a direct-fit replacement where the exterior frame is cracked, dented, or loose. What it does

• Replaces the outer trim that surrounds the oven door, restoring a clean, finished look
• Secures door components and keeps the exterior frame aligned with inner door parts
• Helps prevent drafts and keeps the door trim from vibrating or rattling
• Commonly used when the frame is cracked, dented, bent, or the trim is separating from the door

• Disconnect power to the appliance before beginning any repair
• Handle any attached glass panels and sharp edges with care; wear gloves and eye protection
• Installation typically requires removing the oven door and a few fasteners; retain hardware for reassembly

Replaces damaged or worn lower kick panel on your range. Restores finished appearance and protects internal components. Direct-fit body panel assembly.

Insulation panel that installs at the back bottom of your range. Replace if original is damaged, deteriorated, missing, or no longer provides heat protection.

Replace worn or missing oven door insulation on your range. Installs around the door perimeter to seal heat inside. Order now if damaged or deteriorated.

Insulation that wraps around the flue deflector in your range. Replace if the original is damaged, deteriorated, or missing to maintain proper heat protection.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Fix oven not reaching set temperature or F2/F3 error codes. This temperature sensor monitors internal heat for accurate cooking. Easy DIY repair.

Replace your oven light bulb socket to restore interior lighting. Fixes flickering or non-working oven lights. Confirm fit with your model number.

This high-amp SPDT switch routes power between circuits in cooking appliances to control items such as locks, element relays, or fans. Replacing a worn switch restores dependable operation and helps eliminate intermittent on/off issues. What it does:

• Single-pole, double-throw action directs power between NO/NC circuits based on actuator position
• Used to signal or control a component per the model's design (e.g., latch/lock, relay, fan)
• Failure symptoms can include no activation, stuck-on/off behavior, intermittent operation, or heat-damaged terminals
• Electrical tests may show incorrect continuity between COM–NO/NC when pressed or released

• Includes: 1 SPDT high-amp switch

• Disconnect power at the breaker or unplug the appliance before servicing
• Label or photograph wiring; move leads to matching COM/NO/NC terminals on the new switch
• Mount with the correct actuator orientation and secure any bracket or screws
• Inspect connectors for heat damage; ensure tight spade fits, restore power, and test operation

Chain from floor to range design

Left side oven door hinge provides smooth opening and closing operation. Replace if cracked, seized, worn, or binding. Mounts to oven cavity interior.

Replaces a cracked, worn, or broken oven door hinge. Installs on the right side, allowing the door to open and close smoothly and securely.

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

ST10-16 X 7/16"

Replacement mounting screw for securing panels, brackets, and trim on electric ranges and wall ovens. Needed when original fastener is stripped or missing.

ST10-16 X 7/16"

White mounting screw for ovens and ranges. Secures panels, brackets, and internal components. Replace if stripped, missing, or discolored during repairs.

Black-finished screw secures oven panels, trim, and brackets. Replace missing or damaged fasteners to restore solid fit and prevent rattling or gaps.

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.

Flat-head 10-32 zinc screw secures panels and components on cooktops, ranges, and ovens. Replace stripped, missing, or corroded screws for proper fit.

Factory screw secures brackets, panels, trim, or burner components on ranges, cooktops, and wall ovens. Replaces missing, stripped, or corroded fasteners.

Replace your missing, worn, or damaged range washer. This small metal component secures parts and assemblies throughout your oven, ensuring proper fit.

Expansion nut spacer for electric ranges and ovens. Secures components and maintains proper spacing. Replace if cracked, stripped, or missing.
